Pure Sine Wave 1.5kw Solar Inverter for Home

Share on (62258457910):


Price:$260.00 - $273.00

Quantity:


Product Overview

Description



Company Information





1) MARS has sold the system to Nigeria, colombia ,Burkina faso,Egypt,Bolivia,Kenya,Ghana,south africa,Argentina ,philippines,congo , etc.almost 85% of africa countries !


2)With a professional installation team, Have went to Egypt,  chad,Nigeria,Ghana,Doha,pakistan for installation


3) We insist on using good quality raw material whenever and wherever.


4) With customer’s’ praise as an assurance,MARS is a guaranteed brand.


5) Our company's philosophy is: one-stop solar energy service platform.


















Product Description

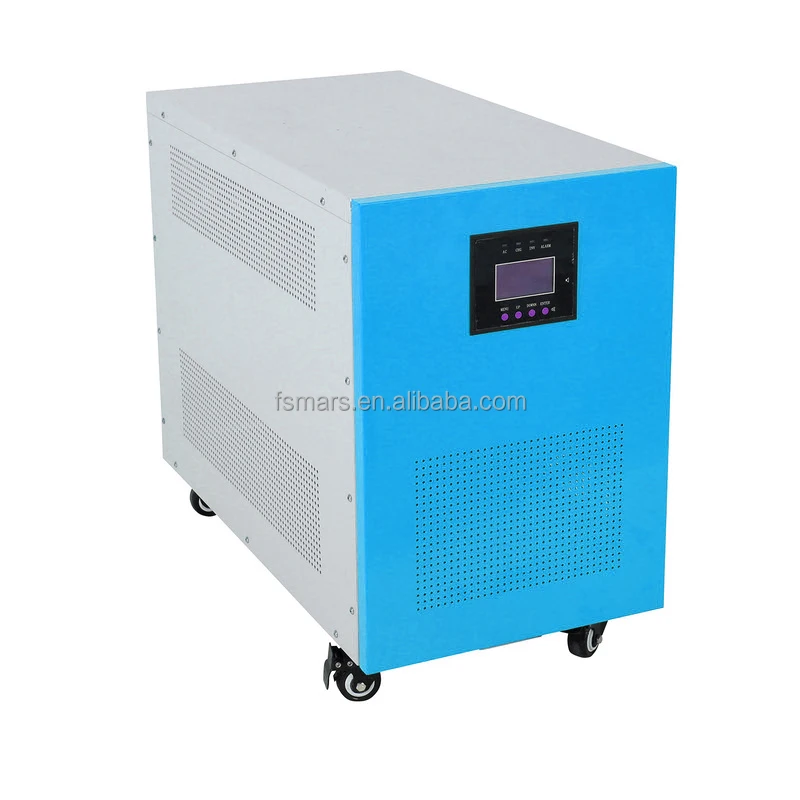

MARS power inverter, pure sine wave, with MPPT charge controller built-in, off grid single phase model have power design 300w upto 10kw, only inverter without controller built-in model have power design 300w upto 30kw, for wind power system or solar system using.

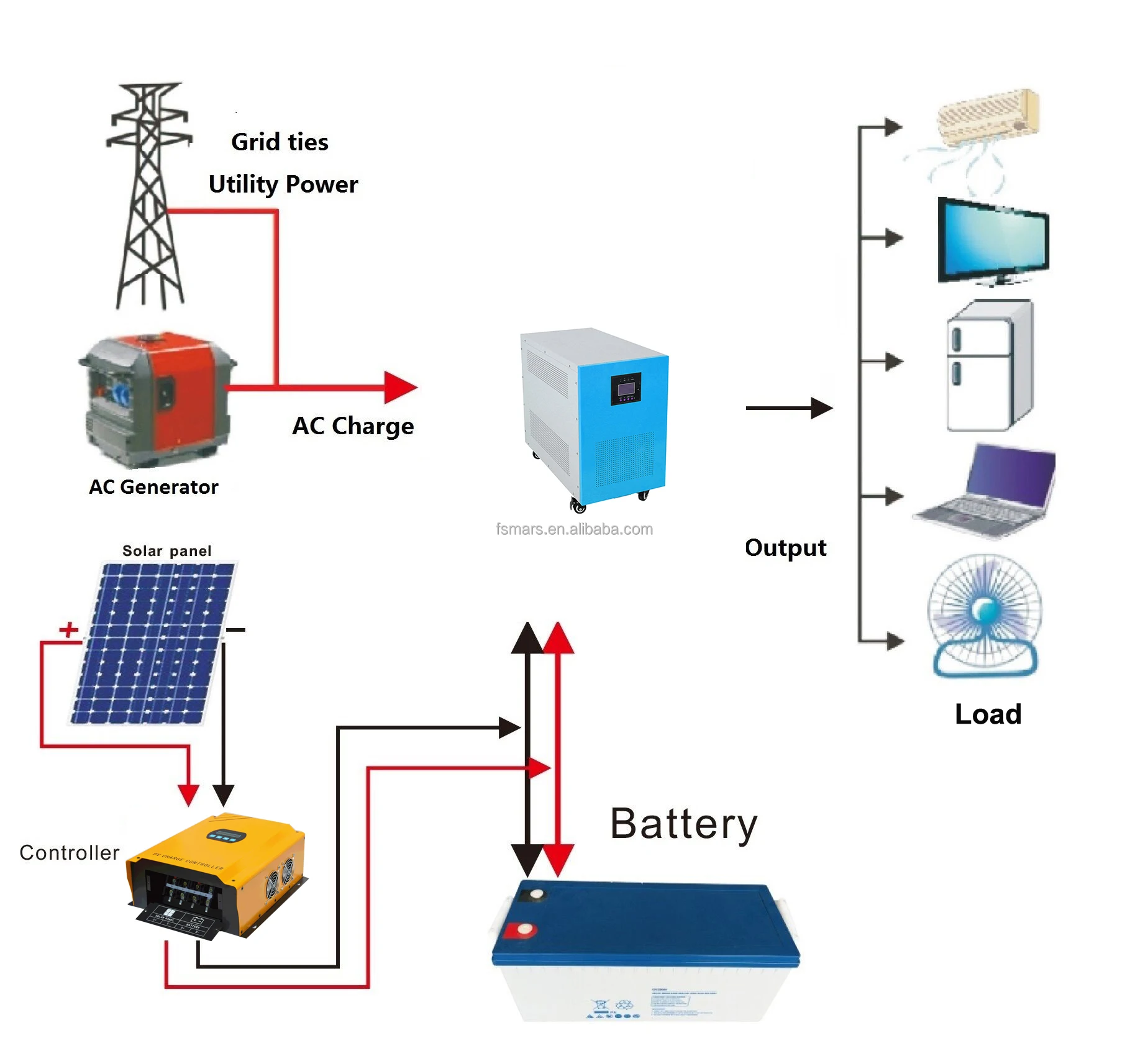

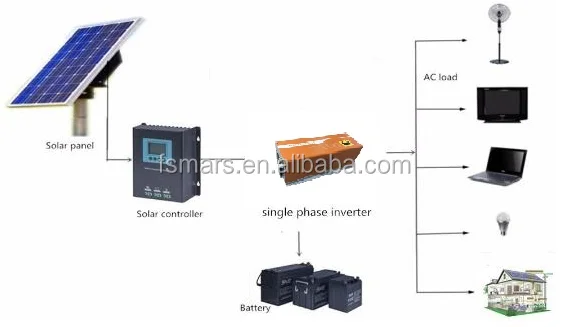

Inverter connection diagram














Main features

1) Excellent performance because of double – MCU intelligent design;


2) Pure sine wave output for compatibility with loads of different types;

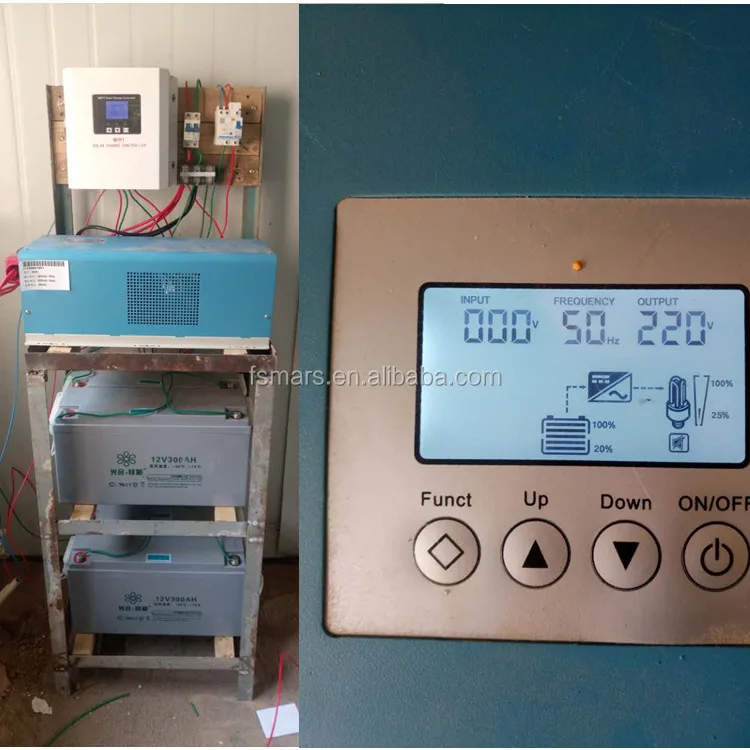

3) Visualization of operation status of the equipment through a digital LCD;


4) A wide range of input voltage, accurate output and full automatic voltage stabilization;


5) Settable battery type and charge current for the charge management of batteries of different types;


6) Settable mains supply preferred mode, energy – saving mode and battery preferred mode for easy meeting if the needs of different users;


7) Overall protection functions (battery overvoltage protection, battery under-voltage protection , overload protection , short circuit protection and over temperature protection).


















Product Overview

With or double MCUs , the product provides different charge voltage and charge currents to realize charge management for batteries of different types, Its mains supply preferred mode, energy – saving mode and battery preferred mode are all settable , thus making it easy to meet the different application needs of users. It has and LCD. It is widely applied to families , schools, streets , frontier defense , pasturing areas, industrial equipment satellite communication equipment, military vehicle – borne equipment, ambulances, police cars , ships , etc.








1.5KW-6KW Type


1





































































































Model:



MT1.5K



MT 2K



MT 3K



MT 4K



MT 5K



MT 6K



Rated power



1500W



2000W



3000W



4000W



5000W



6000W






Battery



Rated voltage



12V/24VDC



24V or 48VDC



48VDC or 96VDC



Charge current



5-30A



Input



Voltage



85-138VAC/170-275VAC



Frequency



45-65HZ












Output



Voltage



110V-240VAC±5% (Inversion mode)



Frequency



50/60HZ±1% (inversion mode)



Output wave



Pure sine wave



Conversion time



<10ms (typical load)



Efficiency



>90% (85% resistive load)



Overload



110-120%/30S; >160%/300ms



Protection function



Battery overvoltage protection, battery undervoltage protection, overload protection, short circuit protection, overtemperature protection,etc



Ambient temperature for operation



0-40



Ambient temperature for storage



-15-+50



Operation/storage conditions



0-90% (no condensation)



External dimension:



480*222*182mm



655*248*182mm



Packing dimension:



560*290*235mm



735*316*235mm















Packaging & Shipping


 packing

















Certification

123





FAQ











FAQ

Q:What's the advantage for this solar system from MARS?
A: 1) have install support ,if you need ,we can send engineer for install support .(we already come to chad ,pakistal ,doha,egypt for installation)

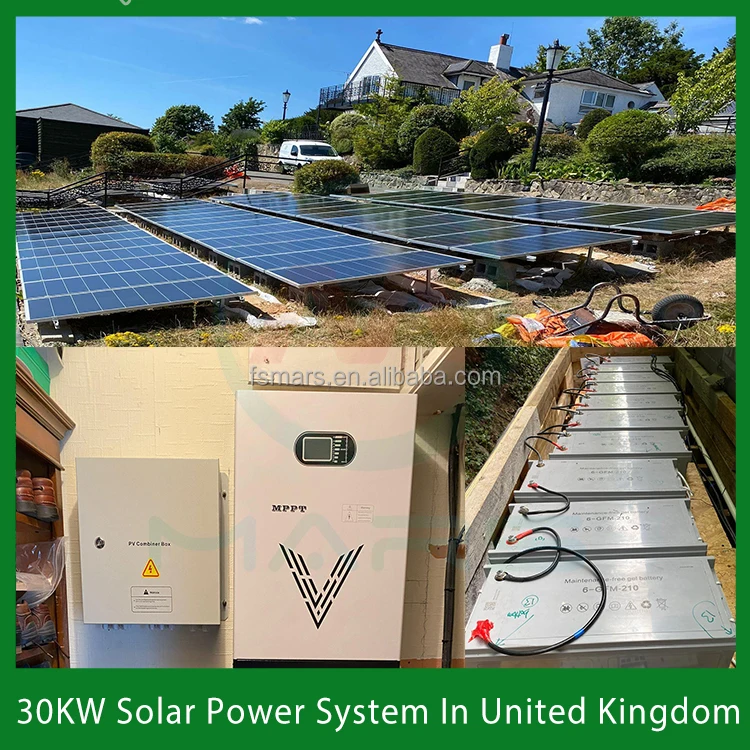

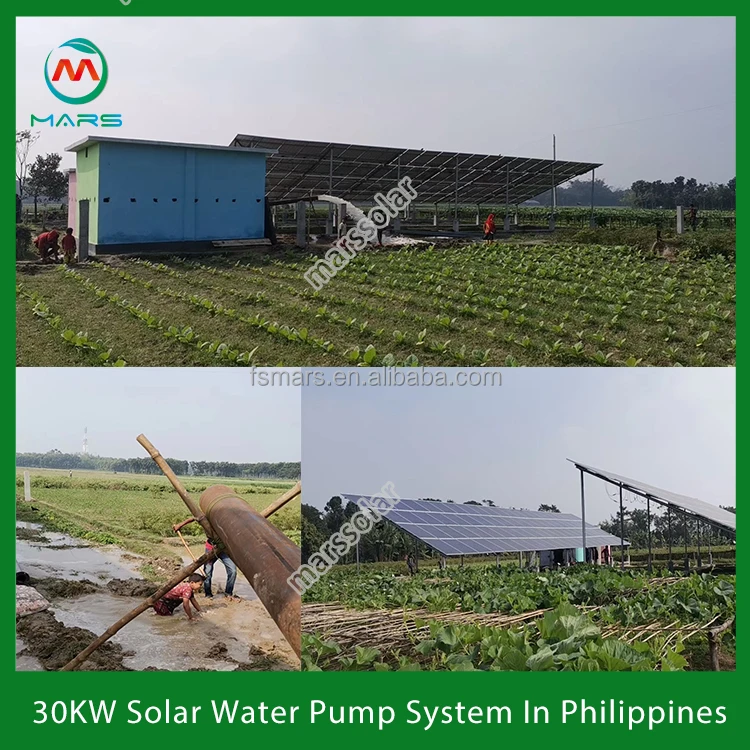

2) have many project picture all over the world ,mostly is africa market .--setting up a suitable system for you !
3) have many customer feedback that solar system working perfect ,choose MARS,choose satisfaction.

Q: MARS normal system how long can all appliances be turned on at the same time?
A:for full capacity load is 7-11 hours , in day time ,used sun power directly take the load 3-5hours . at night time 4-6 hours . Optimum Usage to Extend Battery Life
with electricity or generator ,can be turned 24 hours

Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.

Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. It can also connect to third generator, as like diesel generator. Please tell our sales before production.

Q: What is the lifetime of the solar power system?
A: Solar panel’s lifetime are 25 years,battery,solar inverter 6-8 years .

Q. how do you package your products for shipping.
A:solar panel, pallet packing; PV combiner, plywood packing; Inverter, plywood packing; Battery, pallet packing; Cable, carton box packing .
Send inquiry get more information!

Q. what are the possible days between ordering and shipping, shipping and arrival in Africa.
produce day about 7-15days .shipment days need about 25-40days

Q:what is MARS solar system after sales service?
A: solar panel 10 years, other parts 2 years warranty
ship NEW panel and battery for service;
change inverer fuse for service, save time and money.

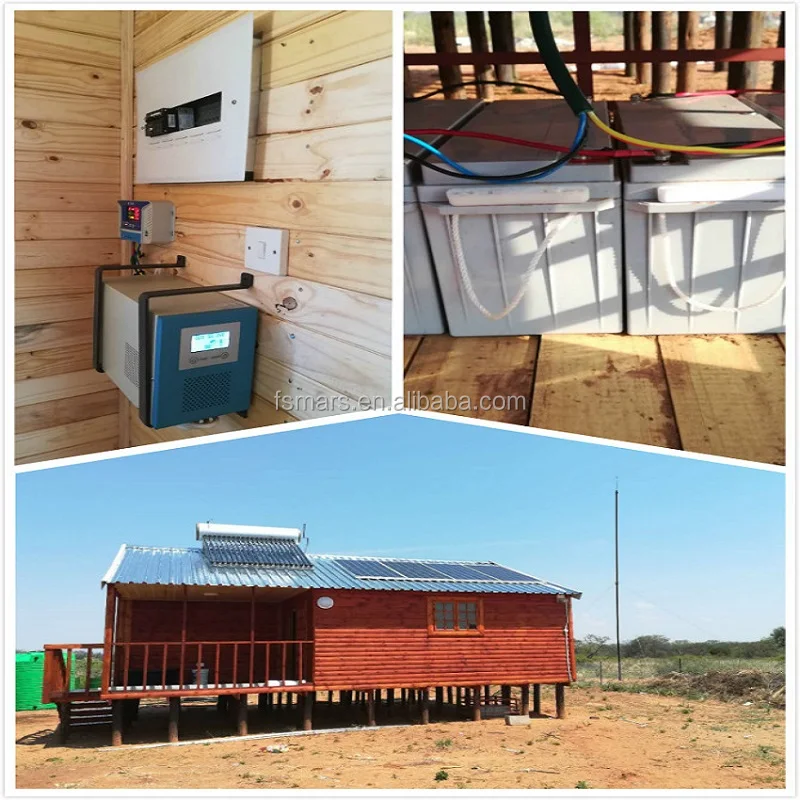

Buyer Feedback


 _meitu_0
























Our Services

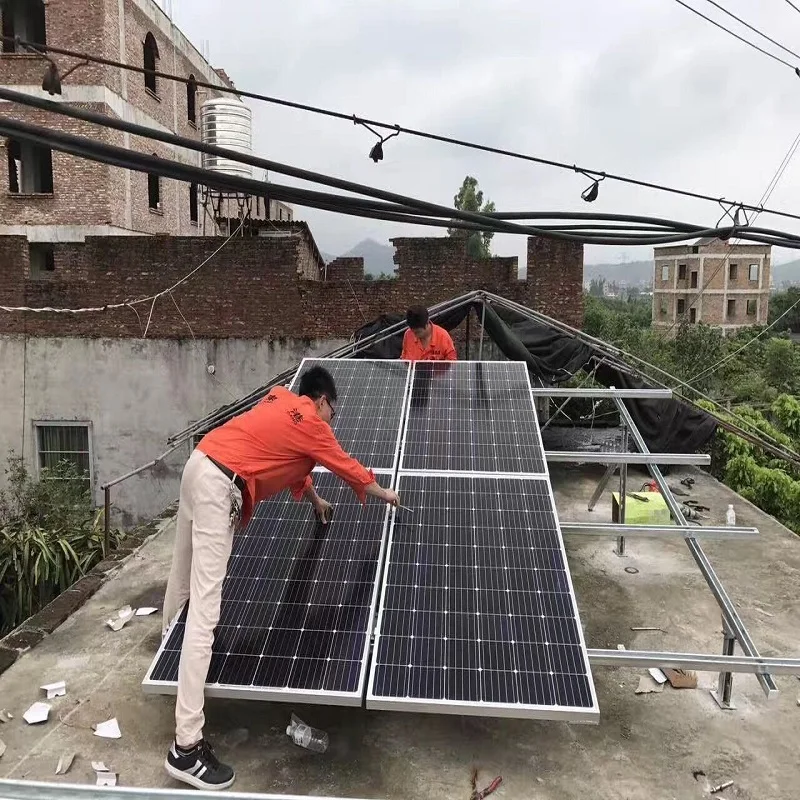

 We have a professional installation team, can provide customers with quality installation services.


TIM20170809110410





.jpg





MT model inverter normal design surface color is orange, other color can be designed as per customer need base on quantity.
