110V / 220V (60hz / 50hz) electric small placement machine CHM T36 automatic intelligent SMT embedded IPC desktop placement mach
- Category: >>>
- Supplier: Shenzhen Shenjiaao Electronic Technology Co. Ltd.
Share on (62258498599):
Product Overview
Description
Electric Small placement machine CHM-T36 Automatic intelligent SMT
embeded IPC desktop pick place machine 110V/220V (60hz/50hz)
Detailed Images

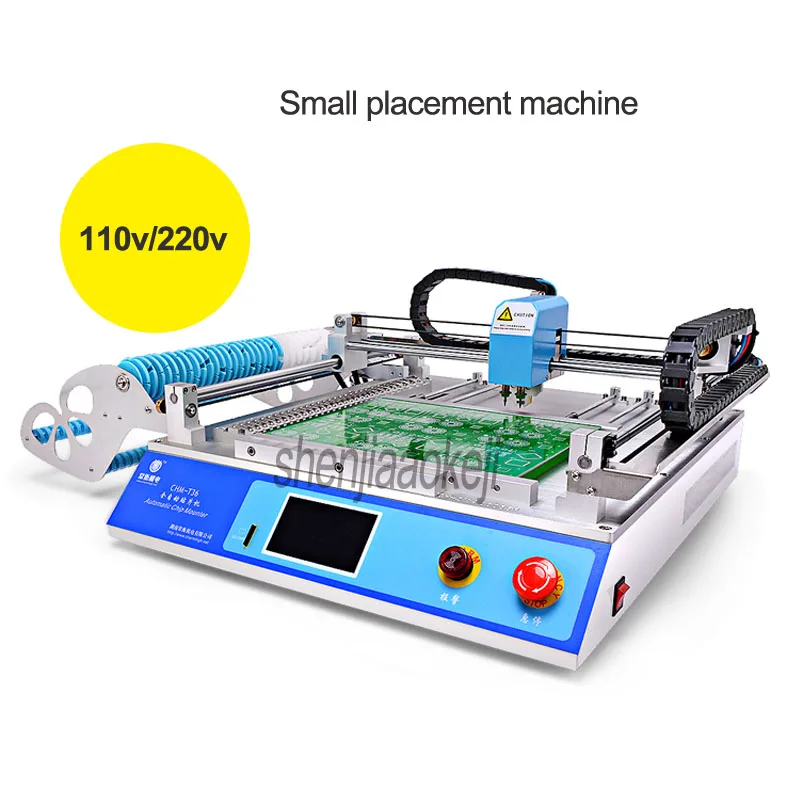

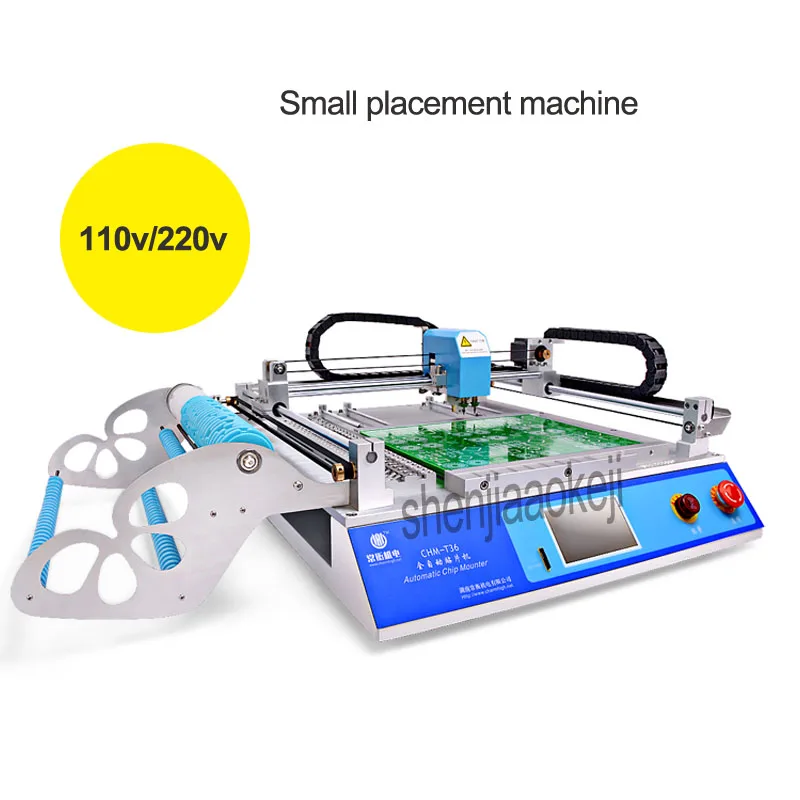

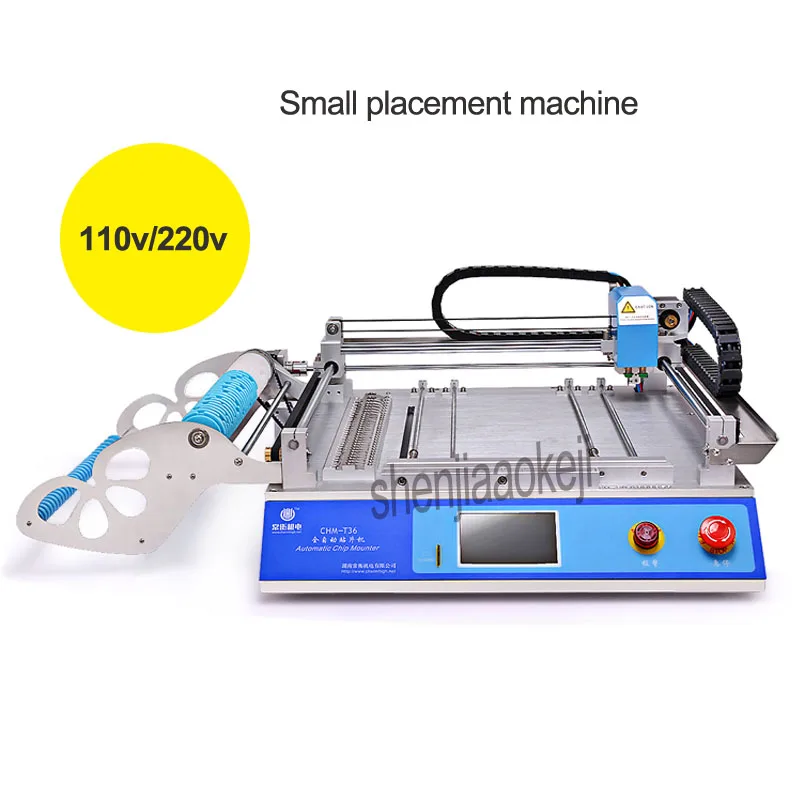

Name: small placement machine
Model: CHM-T36
Product number: FL3084
Voltage: 110V/220V (60Hz/50Hz)
Power: 200W
Control system: ordinary stepping

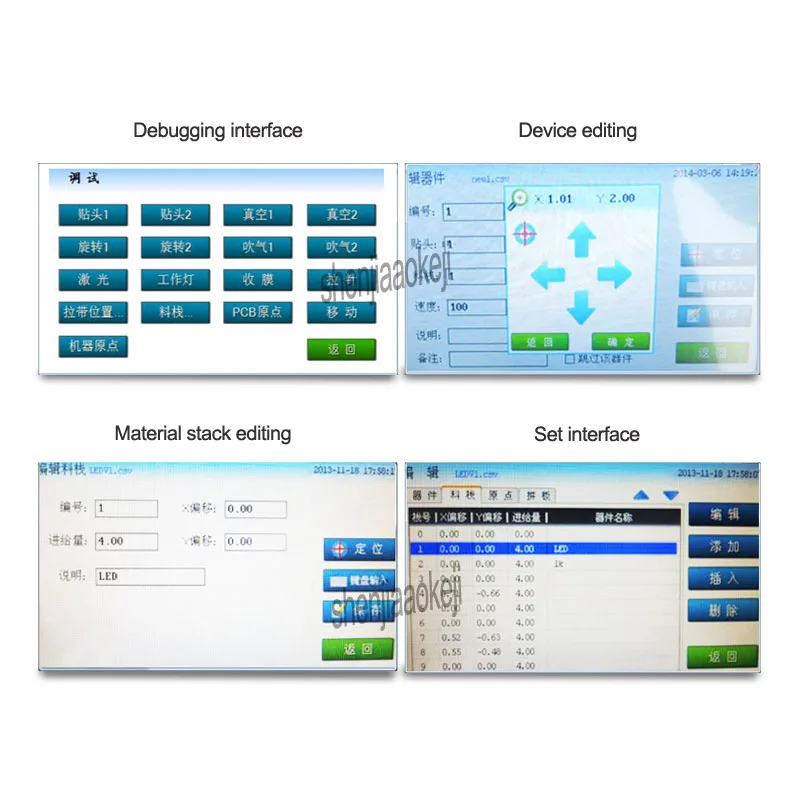

Control computer: 5-inch touch screen
XYZ axis travel: 400*460*15mm
Number of mounting heads: 2
Support material tape: braided 8/12/16/24mm bulk material
Patch accuracy: ±0.025mm
Support circuit board: 10*10-360*410mm
Support original: Resistor capacity / SOP / LED

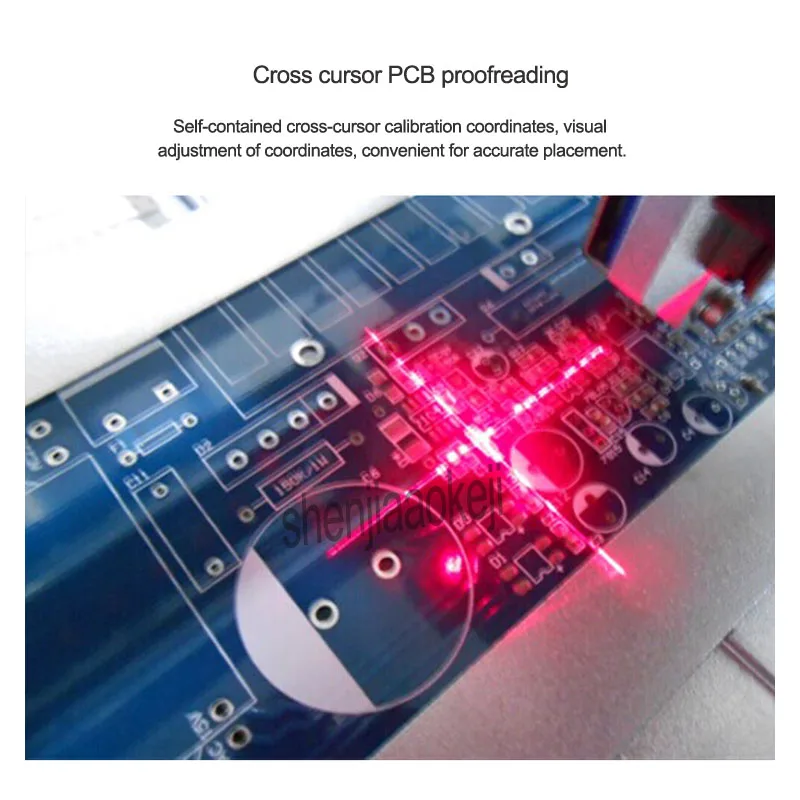

Correction system: cross cursor correction coordinates
Patch speed: theoretical speed 600cph
Vacuum system: built-in 2 large suction silent vacuum pumps, no external air source required (vacuum value: -92kpa)
Feeding system: 29 braiding stacks (8mm*22, 12mm*4, 16mm*2, 24mm*1)
Weight: about 65kg
Size: 960*705*335mm
Packaging list:
1pcs CHM-T36 placement machine
4pcs suction nozzle: 503, 504,505,506.
1pcs Power cord
1pcs SD card+card reader
1set wrench(6pcs)
1pcs English operating manual
Note
1.If your area is a remote area, you will need to add a separate fee.
2.when the parcel arrived to your customs,please pay the tax and pick up the parcel,we are not responsible for any customs duty or import tax.
3.If you have any questions about our products, or what other things do you want to know ,please contact us ,thank you.
