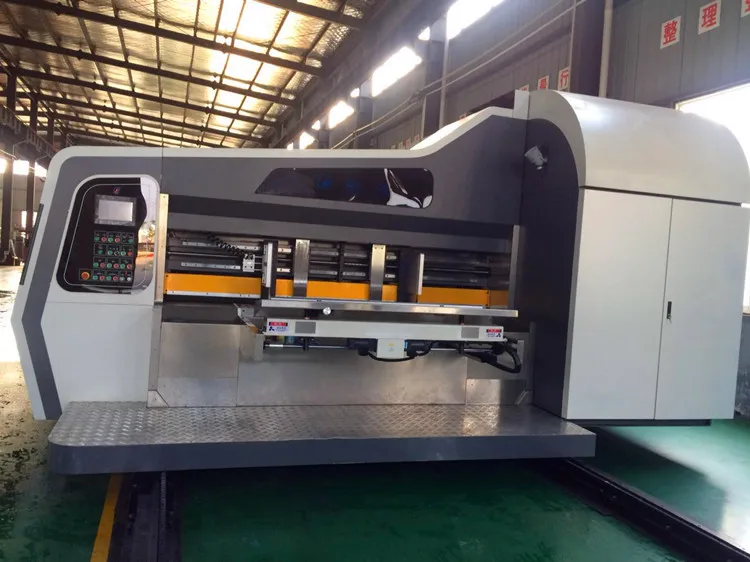

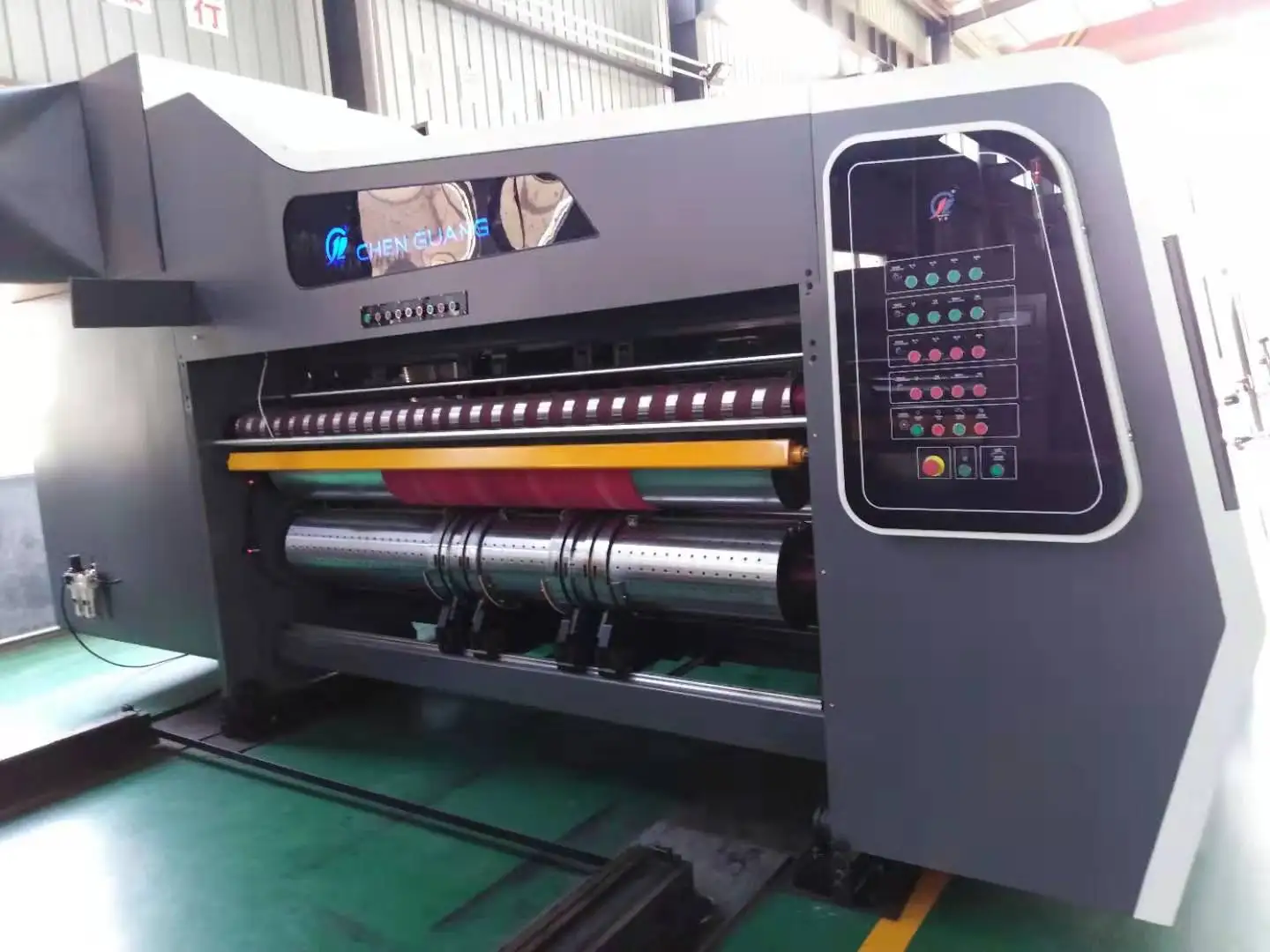

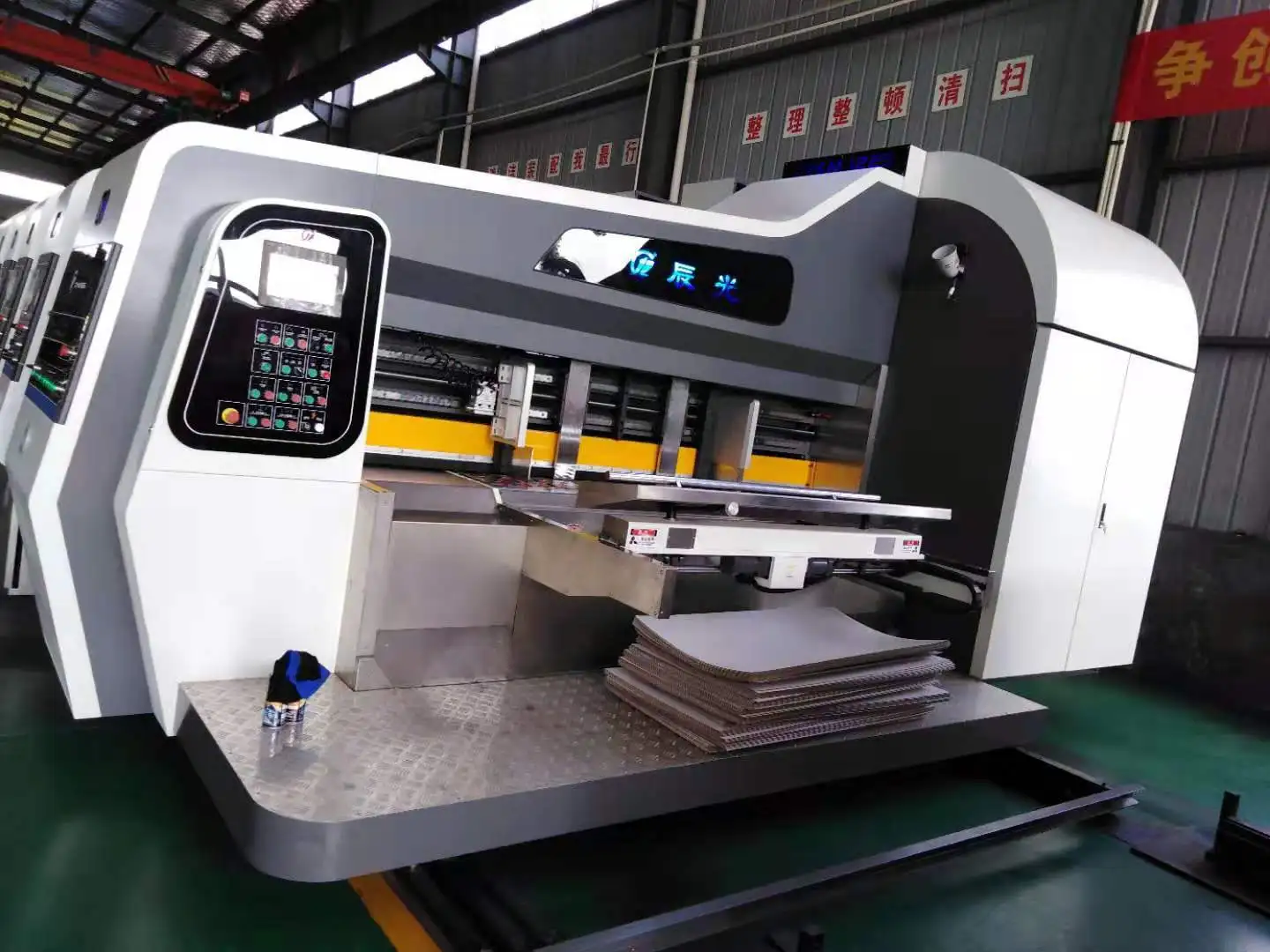

High Speed Computer Control flexographic printing machine 1 color corrugated carton flexo printing machine
- Category: >>>
- Supplier: Jiangsu Chenguang Precision Technology Co. Ltd.
Share on (62258679042):
Product Overview
Description
Product Description
Automatic corrugated board muilt color printer slotter diecutter machine , is the must need in the paper box package industry , that is easy operation and save the labour and save the cost , this machinery that is most welcome machinery in current carton box factory
Main Features:
a.It adopts centralized computer control and servo independent drive; it can connect to the whole plant ERP management system.
b.A safety emergency protection switch is set between the operation surface and the unit, and the moving button is prohibited for each unit.
c.The PLC program controls the servo drive to ensure the stability and reliability of the operating data.
d.The whole machine has multiple touch screen controls, which can store common orders, and it is more convenient and quick to change orders.
Detail information:

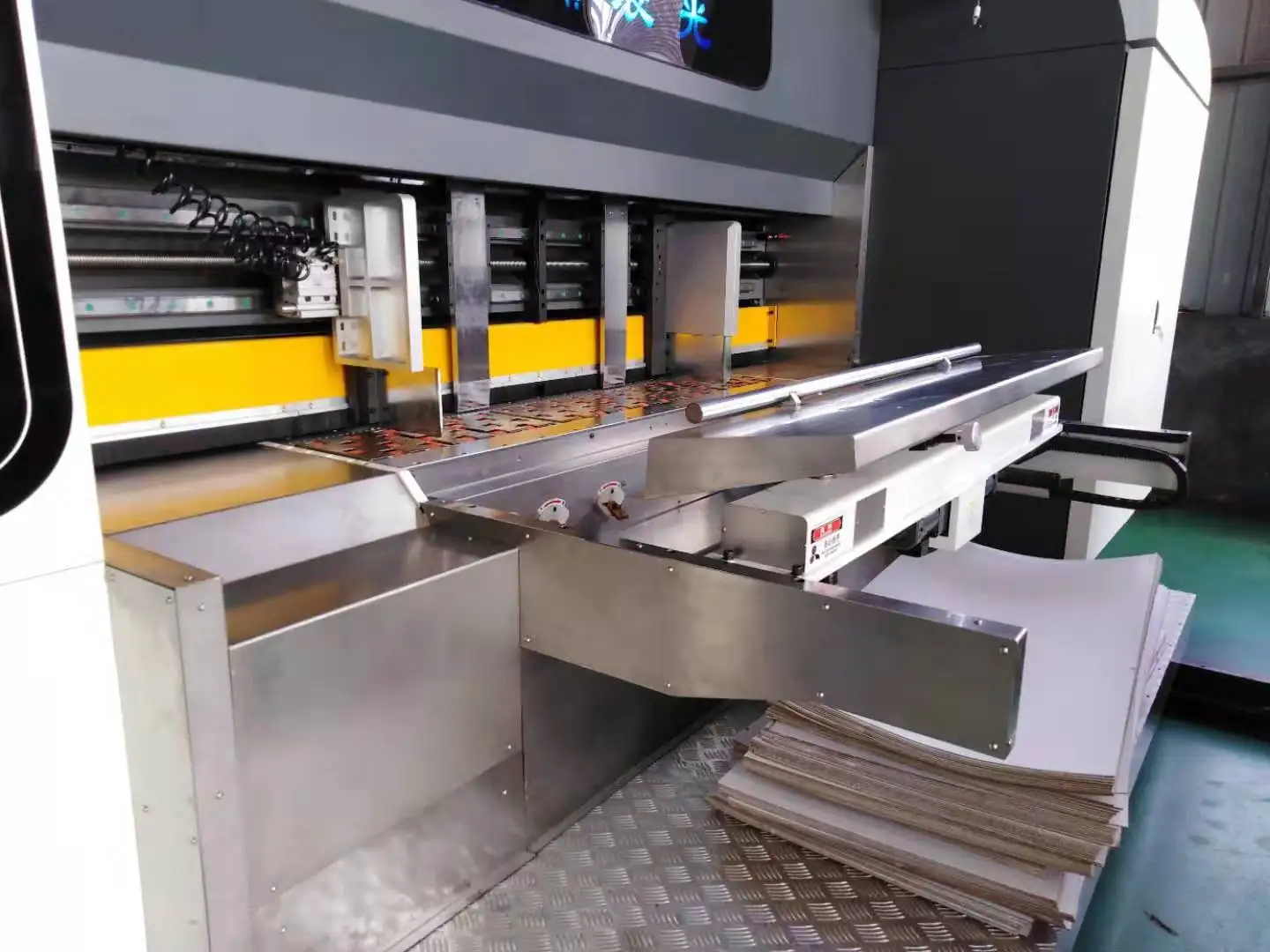

Feeding Unit
1.Equipped with advanced feed system
2.Draught fan can regulate wind power. It suits all kinds of paperboards.
3.Left and right baffles can adjust.
4.Dust pelletizing system can clean dust quickly.
5.Rubber roller use quick release so as to change quickly.
6.Machine with locks move and install overload protection.

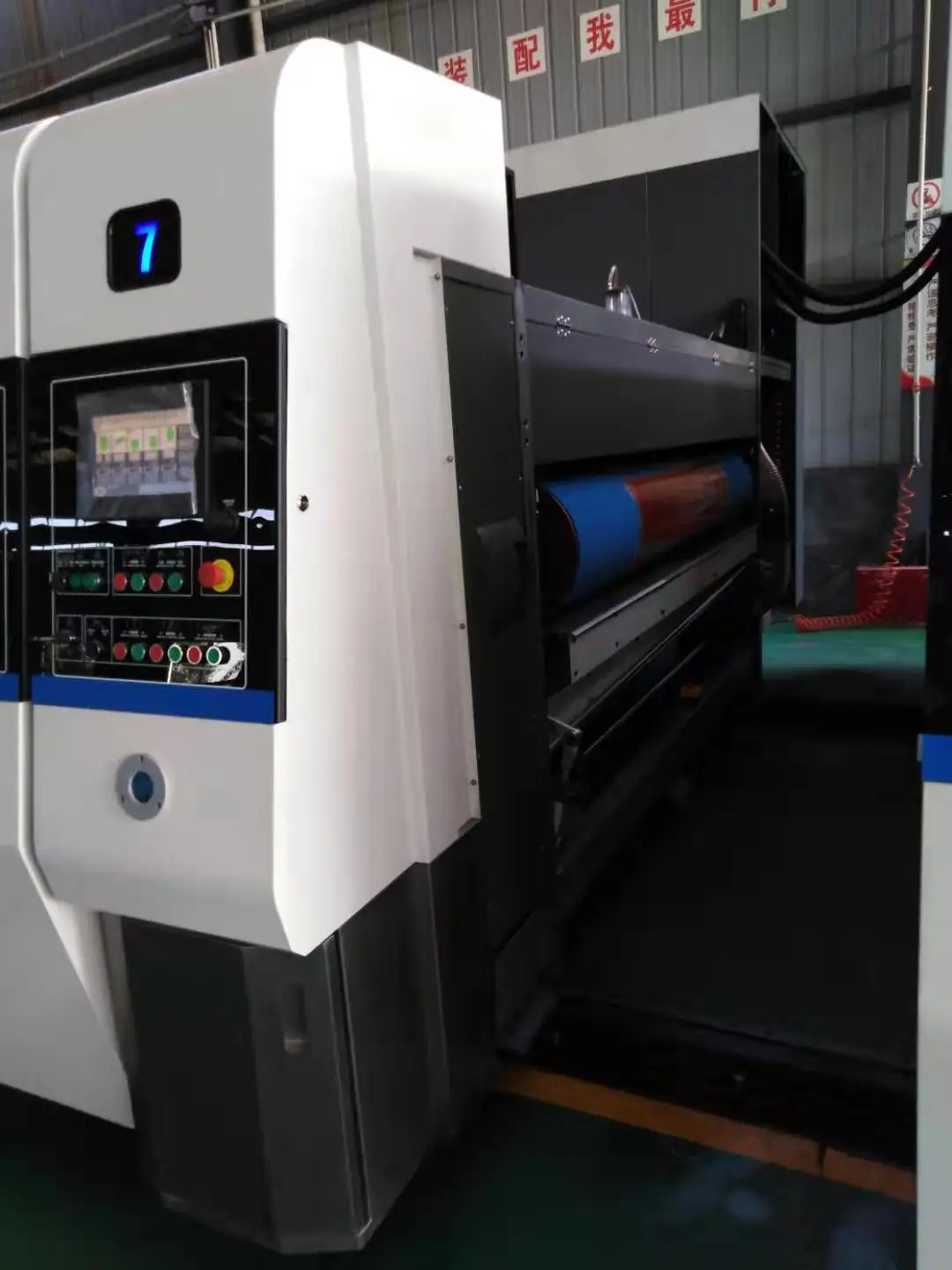

Printing Unit
1.Printing wheel (printing plate form wheel) phase position adjust by planetwheel, twirl 360°adjust electrically, itcan stop at operation or stop. PLC control system, setups are return to zero,scrape form memory, automatic reset and phase position adjust after enteringvalues.
2.Printing roller can move from left to right, by ±5MM. printing surface with scale mark make hang form and distancemeasurement easily.
3.Install foot pedal control roller rorate. It is easy to change form,scrape form and pull switch so as to ensure staff safety.
4.Anilox roller use “ Haili” to ensure ink distribution effect and printingquality.
Rubber shaft use Dongjun, waist drum type, good ink distribution effectand good printing quality.
5.Optional: high reticle ceramic anilox roller with doctor blades, single scrapetype, closed scraper cavity. They can save more ink and ensure printing effect.

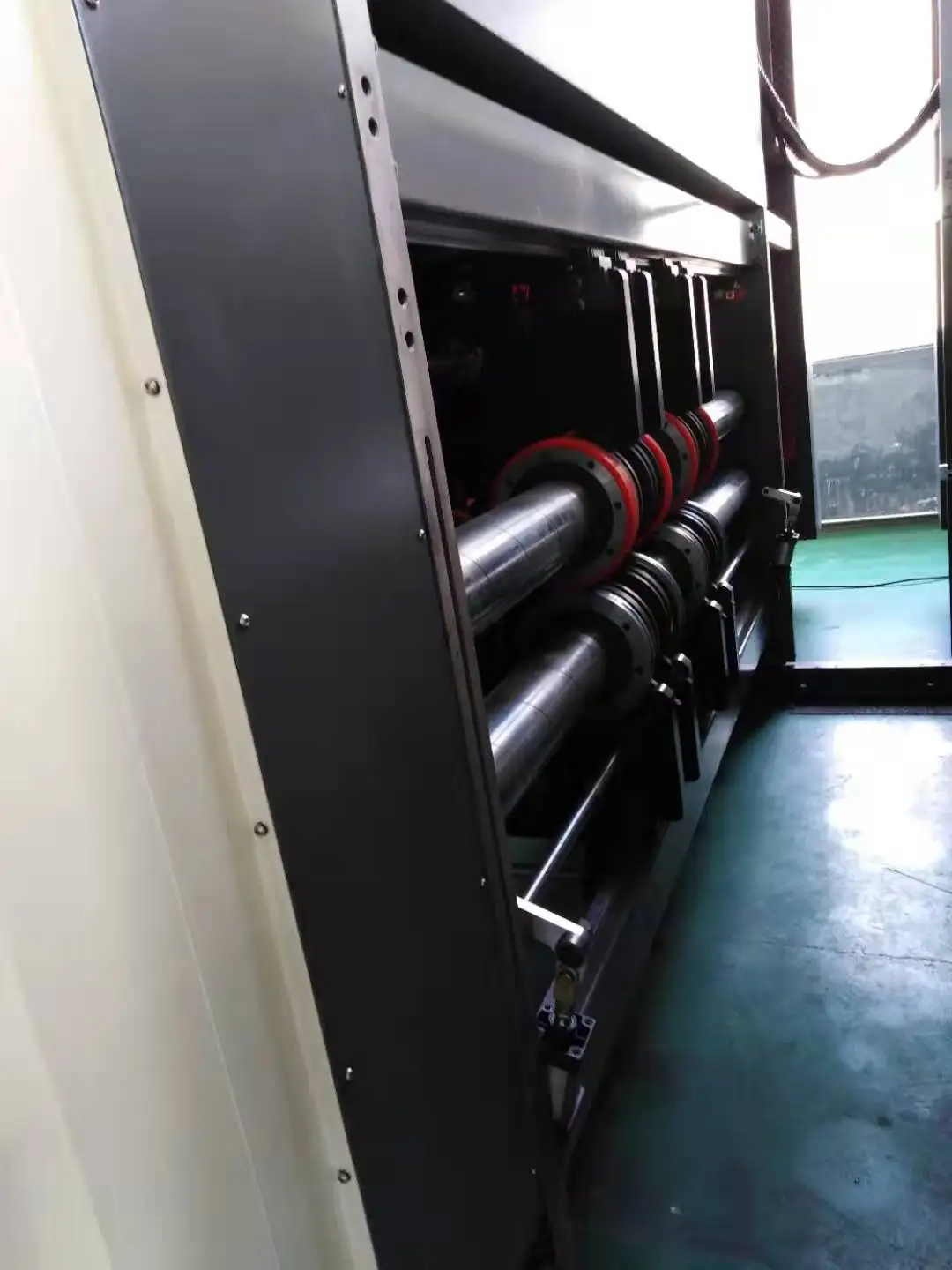

Slotting Unit
1.With single shaft type slotting, the height ofbox and phase position will be adjusted electrically. PLC system have automaticknife slotting, restore orders and so on functions, it makes slotting moreconvenience and high efficiency.
2.Synchronous tool apron is made ofhigh-precision screw with a linear slide rail, which can move left and rightstably and precisely so that the slotting cutter can be adjusted smoothly.
3.The copper folk of cutter is designed forautomatically compensating gap device, which prolongs the service life ofcopper fork.
4.Multiple-spacing device is installed in case ofknife collision.
5.Automatic inflatable paper-carving knife.
Die-Cutting Unit
1.Using servo speed to make rubber mat speed and knife tool speed same, toensure paperboards die-cutter size exactly, to increase die-cutting quality andlengthen rubber mat lifetime.
2.Rubber mat moves from left to right. It can adjust main machine operationspeed.
3.Lengthen rubber mat lifetime.
4.Die-cutting roller surface have stainless steel dental crown to fix knifetool.
Size Information
Model | 920 | 1225 | 1425 | 1628 | |||
Max.Speed (pcs/min) | 280 | 240 | 180 | 160 | |||
Max.Feeding Size(L*W mm) | 900*2050 | 1200*2500 | 1400*2600 | 1600*2900 | |||
Min.Feeding Size(L*W mm) | 280*600 | 350*600 | 380*650 | 450*650 | |||
Alternate Sheet Feeding Size(mm) | 1100*2000 | 1500*2500 | 1700*2600 | 1900*2900 | |||
Max.Printing Area(mm) | 900*2000 | 1200*2400 | 1400*2500 | 1600*2800 | |||
Standard Plate Thickness(mm) | 7.5 | ||||||
Min.Slotting Spacing Of The Positioner(mm)A*B | 150*150 | 160*160 | 160*160 | 160*160 | |||
Min.Slotting Space For Reservr Cutter(mm)A*B | 240*80 | 260*80 | 260*80 | 260*80 | |||
Related Products

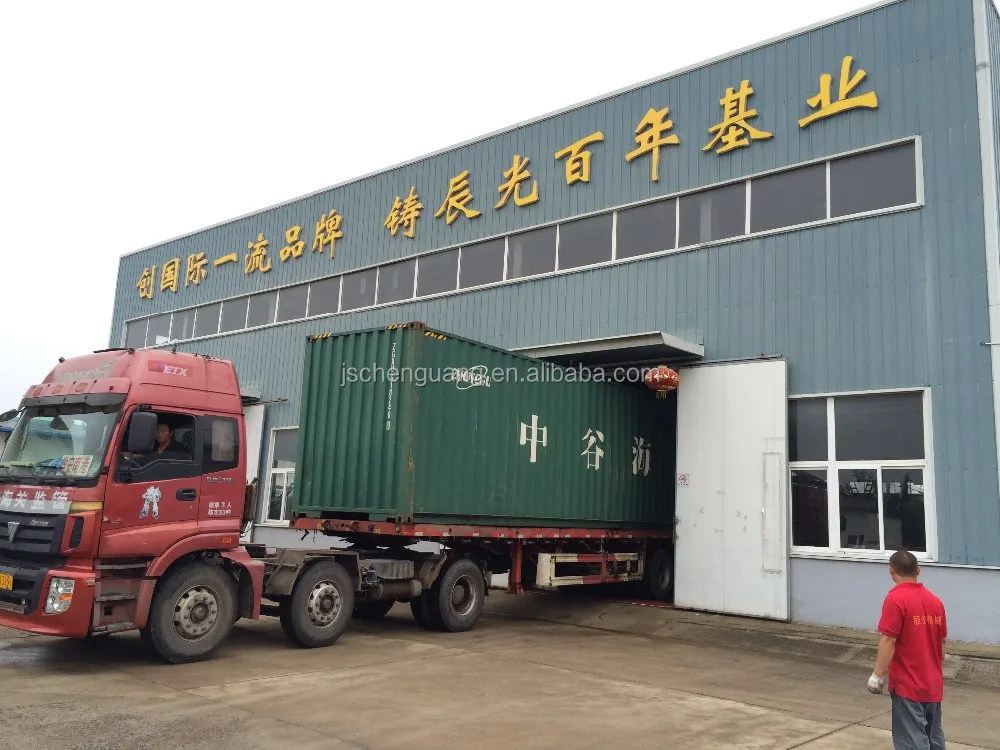

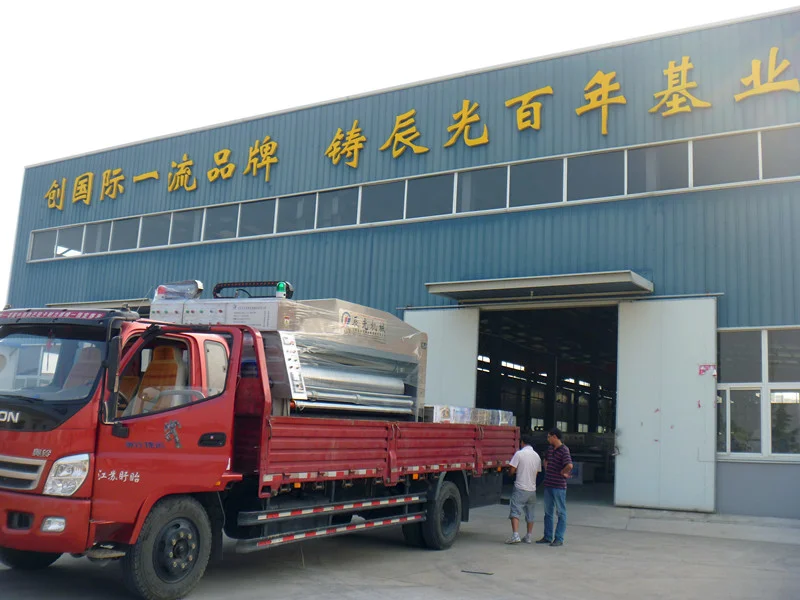

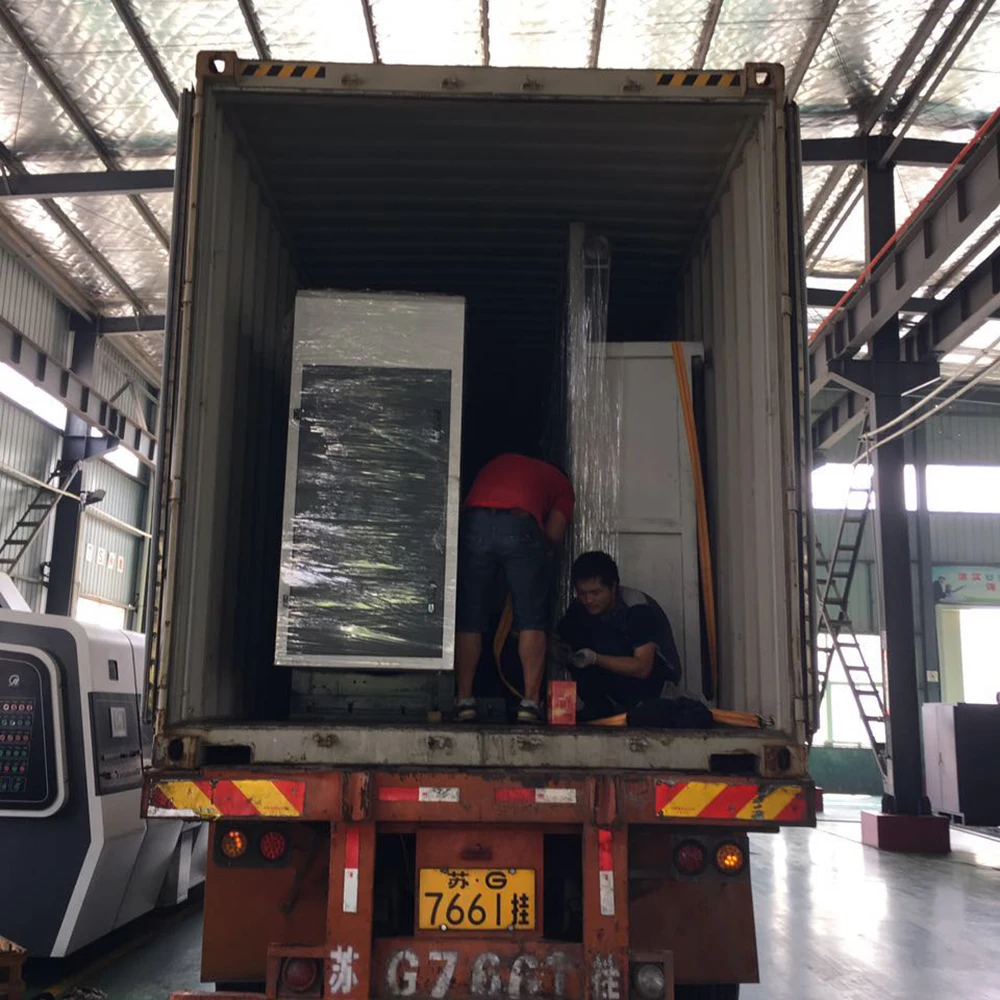

Packing&Shipping
Packing detail | packing(inner):with stretch film Packing(outside):Wooden frame |
Delivery time | 60days after get your deposit and confirmed all the artworks |
Delivery clause | FOB Shanghai port |
Tertms of payment | T/T |
Guarantee | The whole machine is guaranteed for one year. |
After Sales Service
Installation and TrainingServices
a.Installation Services are available with all ChenGuang machines.Our Comapny will dispatch technician to The Buyer's factory to installation and preparation of machines.Moreover,we will training your operators, so that you can use the machine in a best way.
b.ChenGuang company advise the buyer could send their own technican come to our factory to learn how to operate machines. ChenGuang company technician will teach and train the learners hand by hand till he can operate machine by himself.
After Sales Service
a.ChenGuang Company machines guarantee time is one year.
b.Many easy broken spare parts will be prepared in the tool box together with machines.
c.Any parts broken ,Just a pictures or a videos.
d.The new free parts will reach within 3-7 Express working days .
b.Many easy broken spare parts will be prepared in the tool box together with machines.
c.Any parts broken ,Just a pictures or a videos.
d.The new free parts will reach within 3-7 Express working days .
Certifications

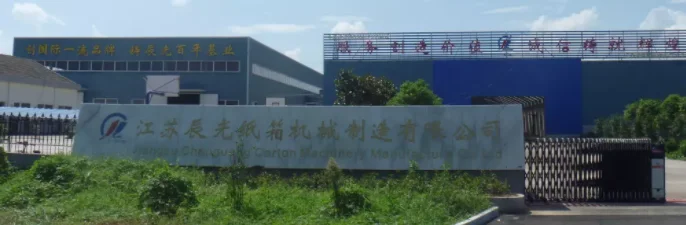

Company Introduction
Chenguang Precision Machinery Co., Ltd has been the supplier of intelligent cartons around the world for more than ten years. We are intended to provide our clients with the most practical carton manufacturing service.
Dongchen, which is the registered trademark of Chenguang, has been honored with many rewards at home and abroad, such as internationally advanced and high-tech enterprise award.
Today, you can find Chenguang among carton machinery manufacturing companies at every corner of the world, and our partners are from over 90 countries around the world.
FAQ
Q1.Are you a factory or a trading company?
A1:We are an experienced factory.
Q2:Can I see the running machine in your factory?
A2:Seeing is believing ! It would be our honor If you can come and visit us. and we have confidence that our machine performance will make you satisfatory.
Q3: How about your machine quality?
A3: We have the most strict QA & QC system for the quality suppporting, the machine quality is guaranteed with the CE standard and passed the ISO9001:2008, SGS and TUV certificated.
Q4:What are you main products?
A4:Our main products includes OLABO-Vacuum Transfer Top Pringting Slotting Die-Cutting Machine, SAIO-High-Speed Printing Slotting Die-Cutting Machine, Chain Feeder Pringting Slotter Machine and full-automatic OLABO-Open&Close Type Vacuum Transfer Top Flexo Folder Gluer etc.
