2、A single channel SODIMM slot supporting DDR3L 1066/1333/1600MHz/
3、Supporting 1 built-in SATA 2.5 "HDD and 1 mSATA slot
4、Supporting 1*MINI-PCIE slot, expandable WIFI/3G/4G, etc.
Super compact mini-fan-free low-power design/
5、2 x RS-232
6、VGA + HDMI display, can support synchronous asynchronous dual display
Product name
MFC-1000
Motherboard
EP-2120 integrated motherboard
Processor
Intel Celeron J1900 Quad Core 2.0G
Chipest
IntelBay Trail
RAM
One single-channel SODIMM slot supporting DDR3L1066 / 1333 / 1600MHz Maximum support 8G
Hard disk
1x MSATA ,1x SATA
System
win7/win8/win10/Linux
Power
12V 5A power adapter
wifi
Can support dual antenna WiFi
Expansion slot
one mini pcle,support wifi/3G/4G module
LAN
TWO RTL8111F Gigabit Ethernet port, support network wake-up
USB
1xUSB3.0 ,5xUSB2.0
HDMI
1
BIOS
AMI UEFI BOIS
Audio
Realtek ALC662 HD Audio
Watchdog
255-level timer resettable
Serial port
2x RS-232
VGA
one
HDMI
one
BLOS
AMI EFI
Audio
Realtek ALC662 audio control chip with dual channel, stereo, Line_out
PS/2
/
Ambient temperature during operation
0~ +60°C
Storage/transport environment temperature
-40~ +80°C
Storage/transport humidity
5%-95% relative humidity, no condensation

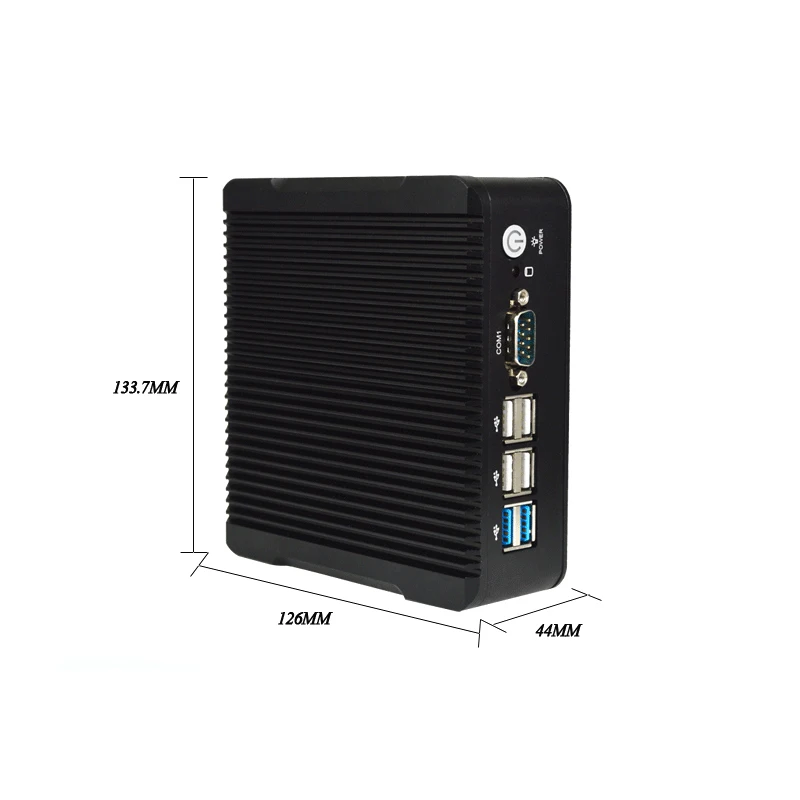

Outline size
126x133.7x44mm(L,W,H)
Weight
around 1.0kg

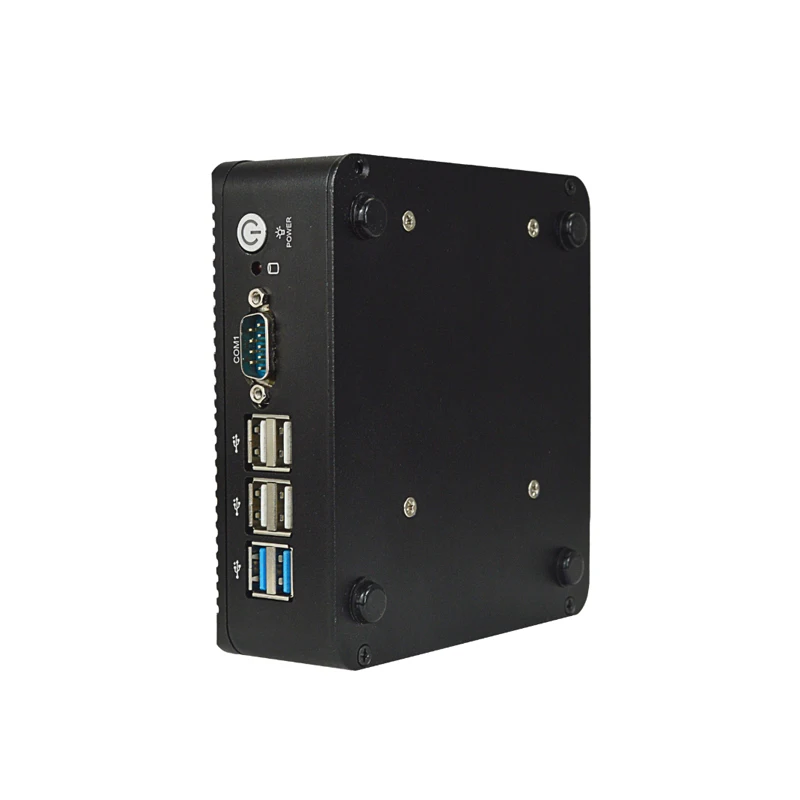

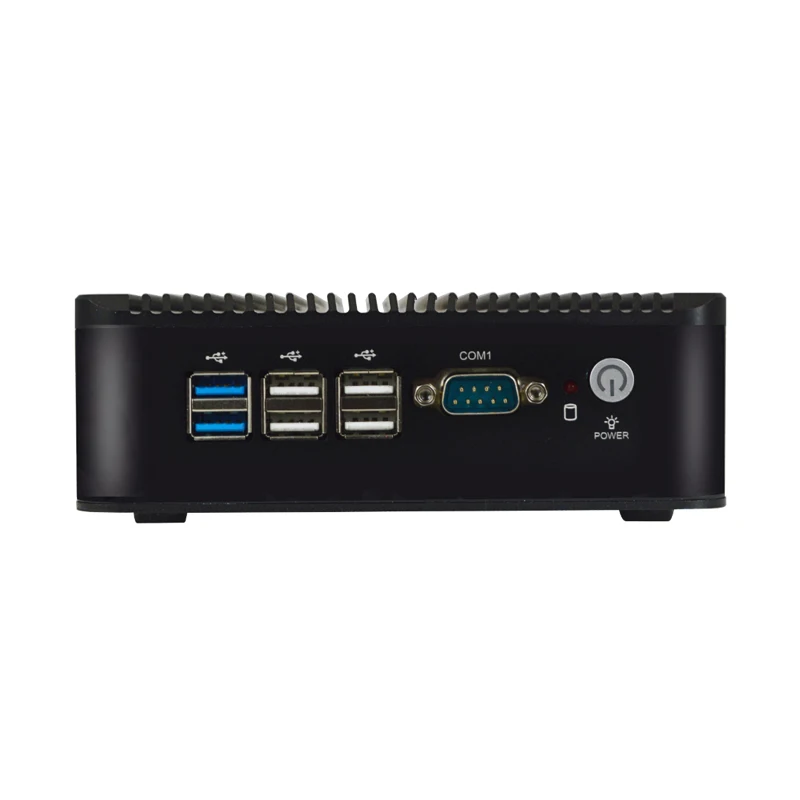

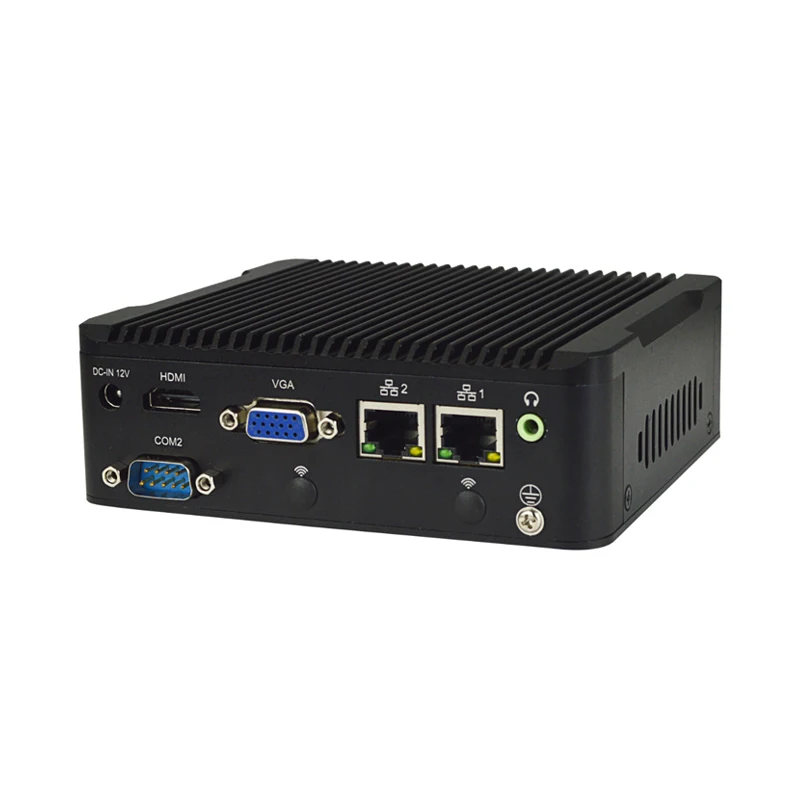

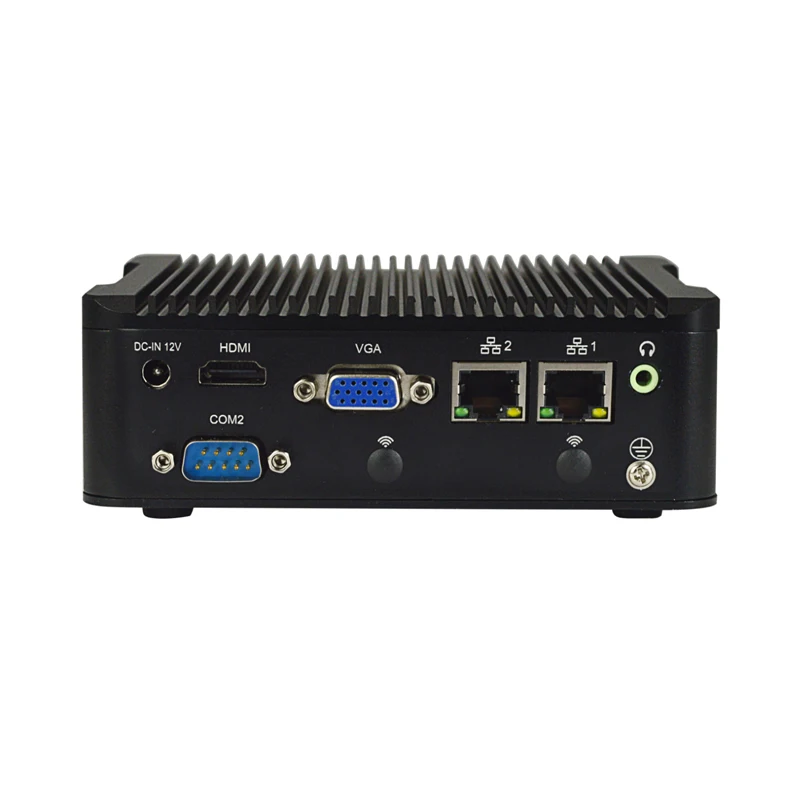

Detailed Images
