Product Overview
Description

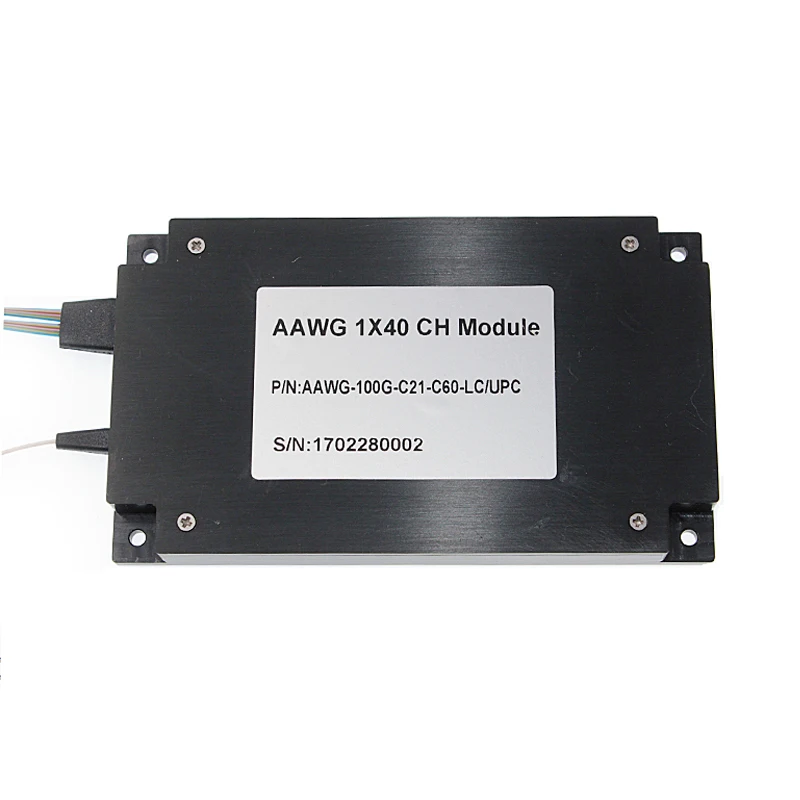

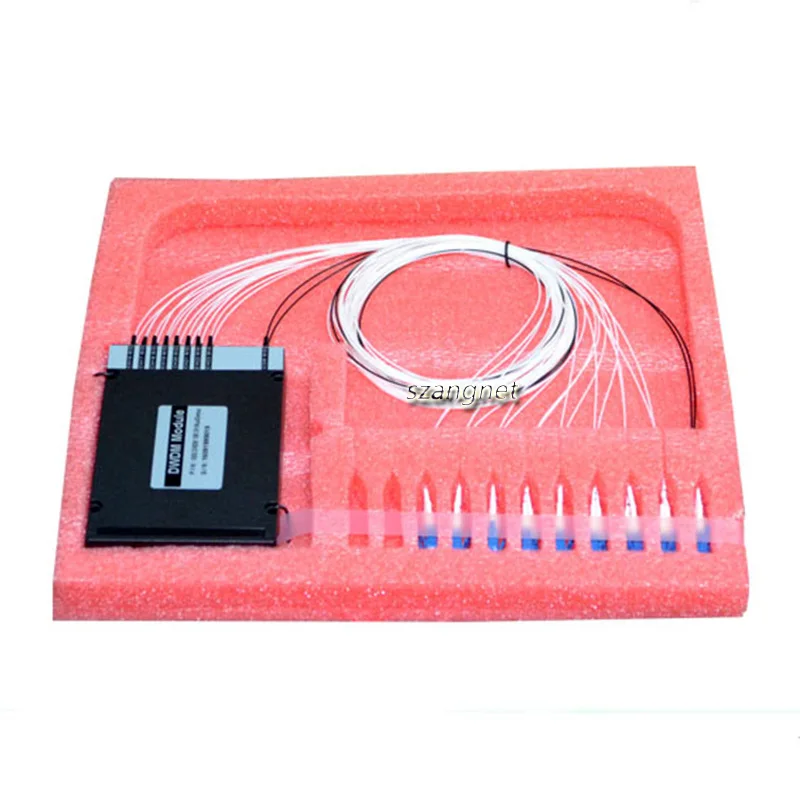

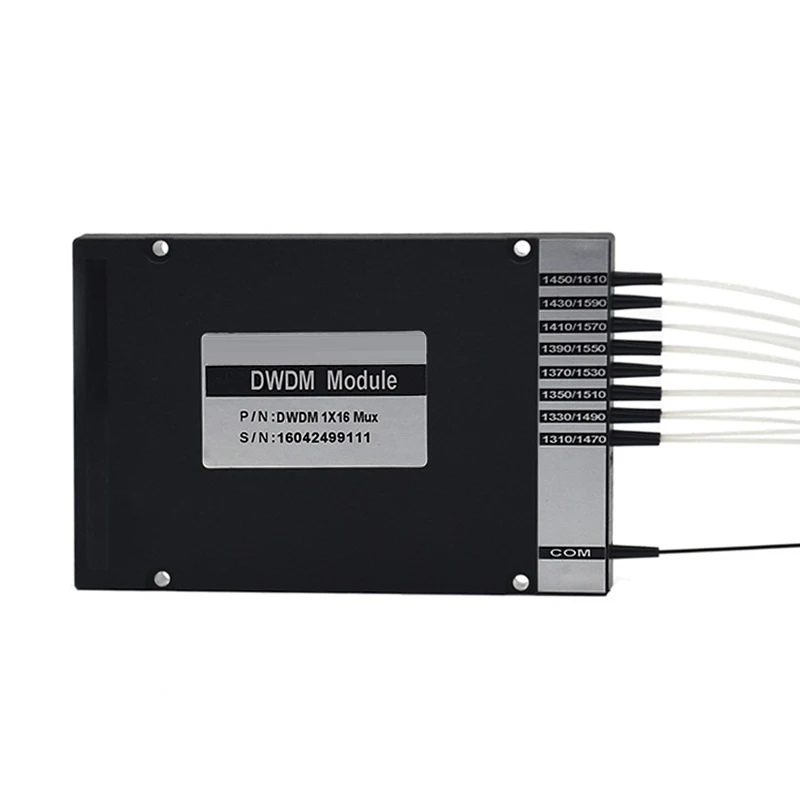

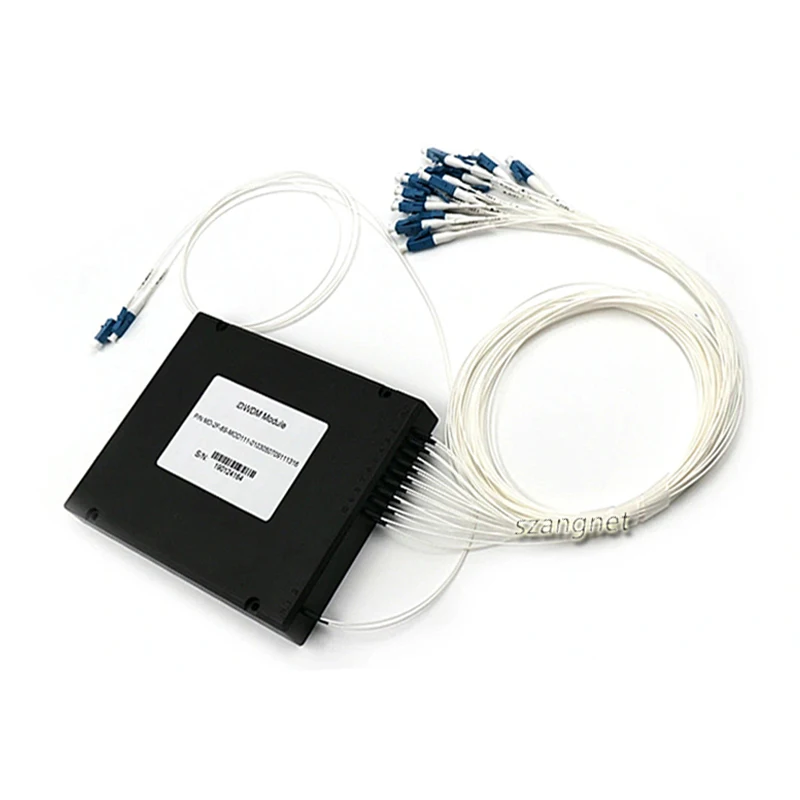

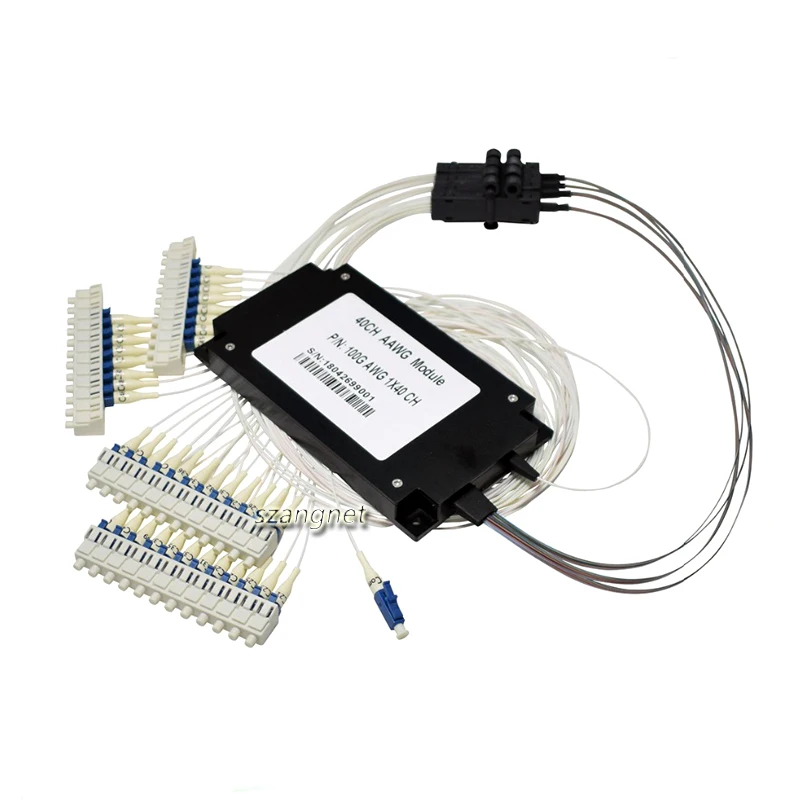

Mux Demux DWDM 100G 8 Channel 16 Channel 40 Channel 100G DWDM
Product Description
DWDM multi-channel multiplexer /demultiplexer (Mux /DeMux)modules are available on ITU channel spacing of 200GHz. They demonstrate low loss, temperature insensitivity and reliable performance in any system application.Mux/DeMux modules offer low-cost wavelength management solutions that are suitable for long haul, metro, and access application
Specifications:
| Parameter | 4-Channel | 8-Channel | 16-Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength(nm) | ITU 100GHz Grid | ||||||
| Channel Spacing(GHz) | 100(0.8nm) | ||||||
| Channel Passband (@-0.5dB bandwidth(nm) | >0.25 | ||||||
| Insertion Loss(dB) | ≤1.8 | ≤3.7 | ≤5.5 | ||||
| Channel Uniformity(dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple(dB) | <0.3 | ||||||
| Isolation(dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Insertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||
| Polarization Dependent Loss(dB) | <0.1 | <0.1 | <0.15 | ||||
| Polarization Mode Dispersion(ps) | <0.1 | ||||||
| Directivity(dB) | ≥50 | ||||||
| Return Loss(dB) | ≥45 | ||||||
| Maximum Power Handling(mW) | 300 | ||||||
| Opterating Temperature(℃) | -5~+75 | ||||||
| Storage Temperature (℃) | -40~+85 | ||||||

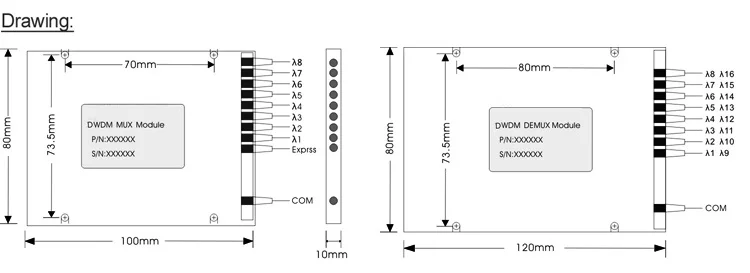

| Package dimension(mm) | A: L100×W80×H10 | ||||||
| B: L120×W80×H18 | |||||||
| C: L141×W115×H18 | |||||||
Related Products
Factory Show
Shenzhen Angnet Technology Co., Ltd, established in 2015, located in Shenzhen China, is a professional manufacturer engaged in the research, development, production, sale and service of Fiber optic products and network products. Our main products: FTTH products and Network products.
Quality and standards are the foundation of Angnet, we have passed many quality system verifications, like ISO9001 and RoHS. Dedicated to strict quality control and thoughtful customer service, Our products are selling well in all cities and provinces around China, and overseas.
The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service. Shenzhen Angent Technology Co., Ltd is looking forward to cooperate with you.
FAQ
Q1: Are your trading company or manufacture ?
A: We are factory verified by SGS
Q2: Do you provide OEM service ?
A: Yes, we can print your logo or label on the products or on the box.
Q3: Can you provide free samples ?
A: Some of low value samples can be free for you, but you need pay for the shipping cost.
Q4: How can you guarentee the quality ?
A: Build on our perfect quality management system, all of our products were 100% tested before the shipment.
Q5: What is your delivery time ?
A: Generally, sample: 3~5 working days. formal order: 7-10 working days.
Q6: What's your payment terms ?
A: We accept T/T, Western Union, Money Gram, Paypal.
For samples: 100% payment. Formal order: 30% as deposit, 70% balance payment before shipment.
