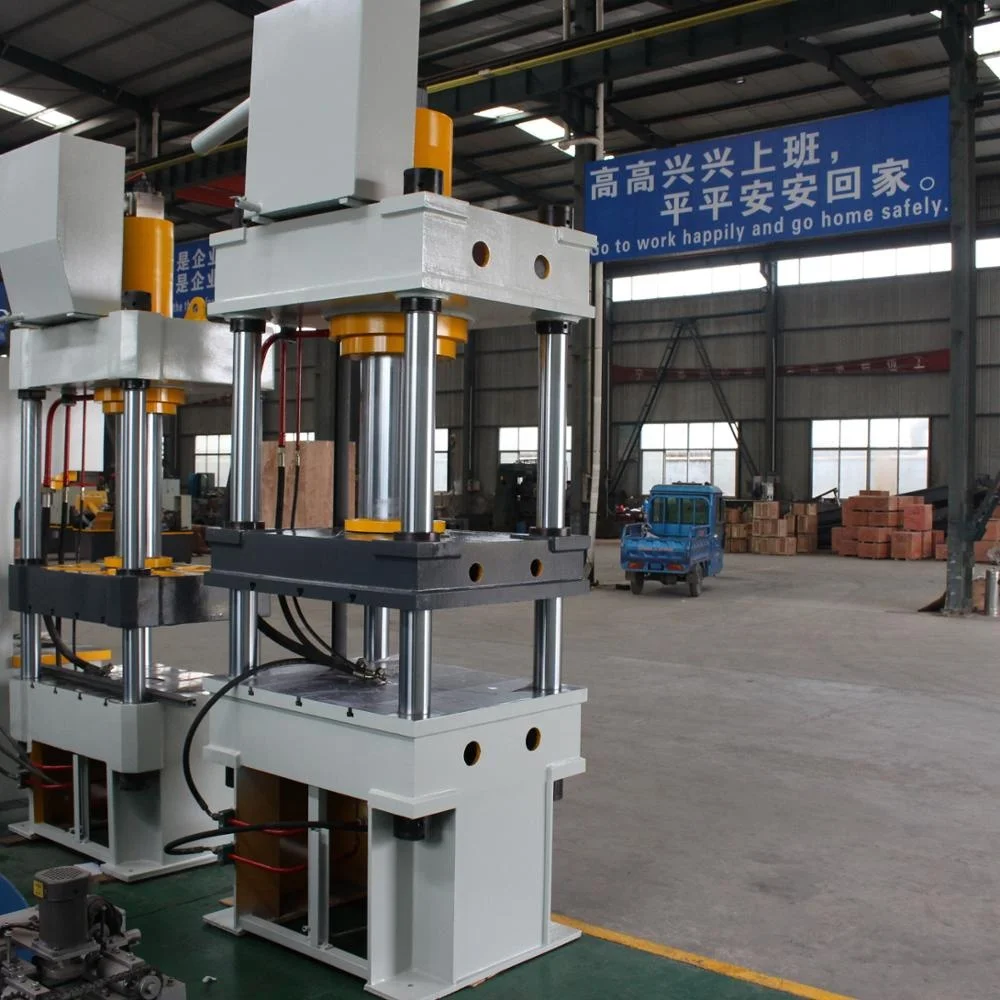

Metal Sheet 4 Column Hydraulic Deep Press Machine 200 ton

Product Overview

Description

Metal Sheet 4 Column Hydraulic Deep Press Machine 200 ton

2. Work pressure of the series hydraulic presses, pressing speed, travel range can be adjusted according to the requirements within the specified range, can achieve constant pressure and constant stroke of two kinds of Technology. When the constant pressure is formed, the pressure holding time delay and the automatic return stroke are pressed. A top out device is arranged in the middle of the working table, in addition to the top products, can be used as hydraulic cushion for the forming process of drawing parts.

Application:

For pressing process in all kinds of plastic materials, such as stamping, bending, flanging etc.. Also can be engaged in the correction, compression, grinding wheel molding, plastic products, rubber products and powder products.



Features

Hydraulic Punching Presses is one of the new generation of plate process machine. The press is for cutting, punching, blanking, bending and light stretching work.

1. J23 Series Presses is one of the new generation of plate process and developed by Nanjing YSDCNC Machinery Co., Ltd. ,The press is for cutting, punching, blanking, bending and light stretching work.
2. C- frame provides maximum rigidity and minimum deflection for accurate parts and long tool life.Steel-welded frame, high rigidity and less deformation Compact.Thick plates and large columns provide you with the stable platform you need for your demanding application.
3. Wide body frame eliminating vibration for improved ide life and machine,which means economical and practical. Operation space is wide, and the movable bolster could be moved out of frame to set the die. The structure is simple and the appliance is also beautiful.
4. High accuracy, high efficiency, simple and convenient operation, good performance, favorable price and best service.



1.  Cnc punching machine series Open Eccentric Presses is a general-purpose presses, suitable for forming, blanking, punching, bending and other cold stamping process.

2.  C-frame Casting fuselage,maximum rigidity and minimum deflection for accurate parts and long tool life. body can be tilted, , high rigidity and less deformation Compact. Thick plates and large columns provide you with the stable platform you need for your demanding application.

3.  The Machine use Rigid rotated bond clutch rigid and well supported. The clutch gives continuous strokes for mass production.

4.  Crank shaft is made of special alloy steel machined to close accuracy and fitted in bronze bushes for smooth working, longer life & accuracy.

5.  Properly sized flywheel, is made of high grade cast iron, for storing and releasing adequate energy for the pressing operations, and properly balanced for smooth running.

6.  Gear are of steel cast or fabricated. Gear teeth are generated by precision hobbing machine.

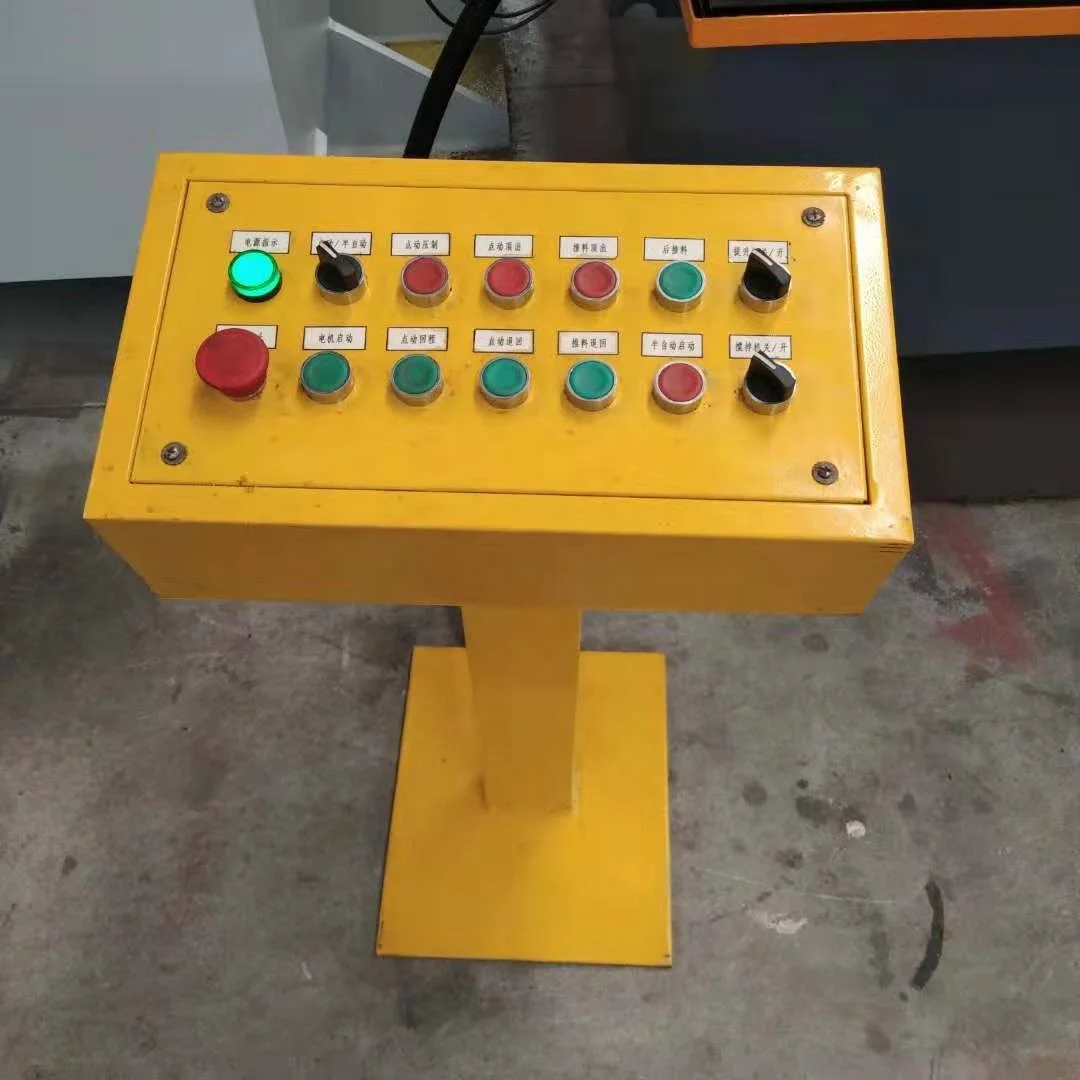

7.  Machine is with both hands button and foot switch control: anti-tie down, non-repeat controls with ring guards.

8.  Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch,easy to operate.





Products are exported to the Americas, Africa, Europe, the Middle East and Southeast Asia and other countries and regions.

Our company mainly produces straightening machines, hydraulic presses, powder forming machines, deep embossing machines, iron filing machines, mechanical punching machines, hydraulic brake machines,  shearing machine, bending machine etc. The products are widely used in various industries of light and heavy industry.





1. What's the price and specification of hydraulic press machine?

The price will be based on parameter you requested. all the specification can be customized.



2. How about your machine quality?

Our machine has passed CE, ISO, SGS certificated. Or you could directly come to visit our factory. We warmly welcome you.



3. May I send samples to test?
Yes, if you could send us samples, it would be better.
