Wholesale Medical x ray film cassette 14*17inch X ray Cassette Price

Product Overview

Description

Wholesale Medical x ray film cassette 14*17inch X-ray Cassette Price

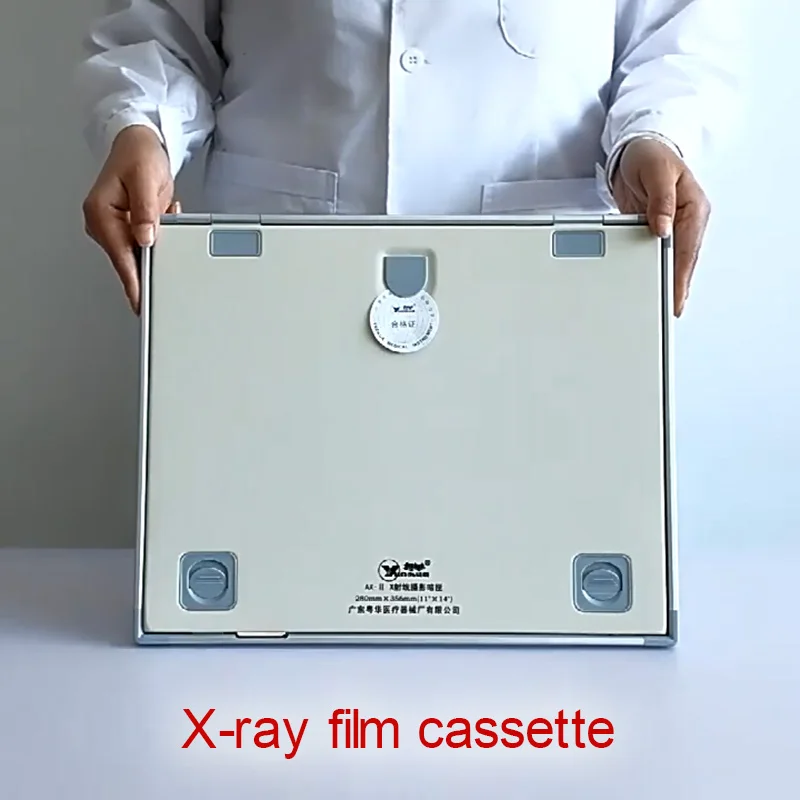

Our X Ray Film Cassette are made of special aluminum alloy profile frame and special engineering plastic supporting parts with high endurance aluminum plate, which are characterized by beautiful shape, convenient use and strong durability. Even if you fall on the ground at a height of one meter, you don't need to worry about damage.

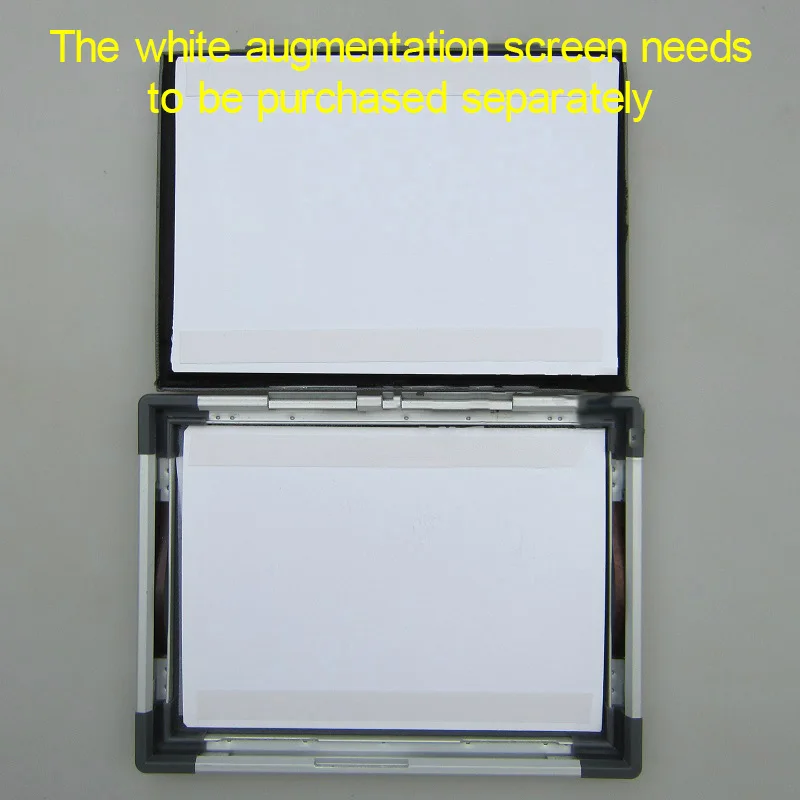

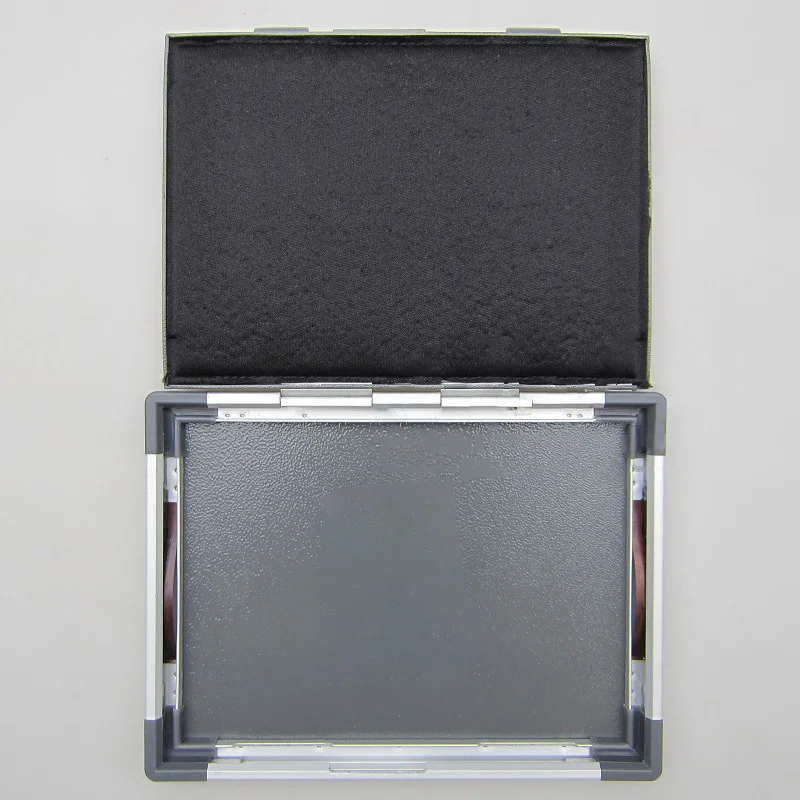

The high elastic lining material is used to make the contact between the X-ray film and the sensitized screen close and even, and the film image is rich in layers and high in definition. The liner is covered by cloth, so it is very convenient to replace the sensitized screen without damaging the liner.



Detailed product description

Specification   mm×mm (inch×inch)	Dimensions (mm)(L×W×h)	Unit / Carton	Packing size (cm) (L×W×h)	N.W.  Kg	G.W.  Kg
127×178(5'×7')	154×205×14	10	23.5×28.5×19.5	4.2	4.6
203×254(8'×10')	230×281×14	10	31×28.5×27	7.8	8.4
254×305(10'×12')	281×332×14	10	36×28.5×32	11	13
280×356(11'×14')	307×383×14	10	41×28.5×34.5	13.6	14.5
305×381(12'×15')	332×408×14	10	44×28.5×37	15.3	16.3
356×356(14'×14')	383×383×14	10	41×28.5×42	17	20
356×432(14'×17')	383×459×14	10	48.5×28.5×42	19.6	22.8
13cm×18cm	157×207×14	10	23.5×28.5×19.5	4.2	4.6
18cm×24cm	207×267×14	10	29.5×28.5×24.5	7	8.4
24cm×30cm	267×327×14	10	35.5×28.5×30.5	10.2	12
30cm×40cm	327×427×14	10	45.5×28.5×36.5	16.7	19.4

British system specification (inch)
5'×12'	6'×12'	6'×15'	6.5'×8.5'	7.5'×12'
7'×14'	7'×17'	9.5'×9.5'
metric system specification(cm)
15cm×30cm	15cm×40cm	20cm×40cm	30cm×35cm	40cm×40cm

no need of sticking any lead letter on the cassette, you can get the patient’s information record from the film only by applying a regular film mark equipment.
