Product Overview

Description

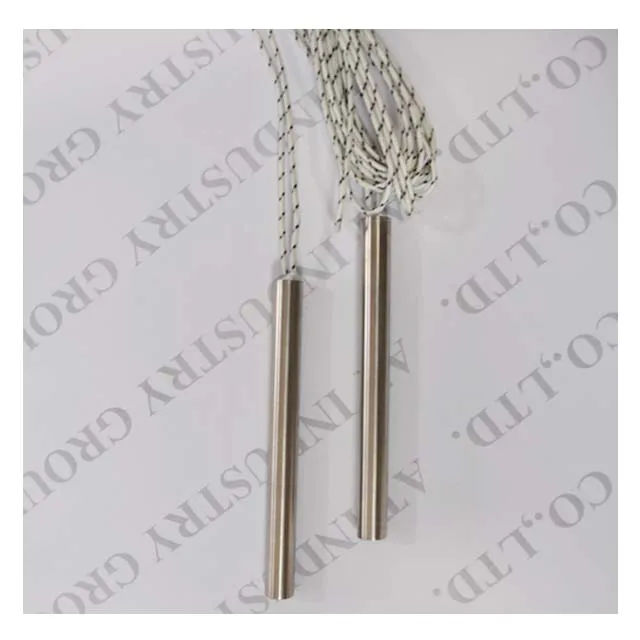

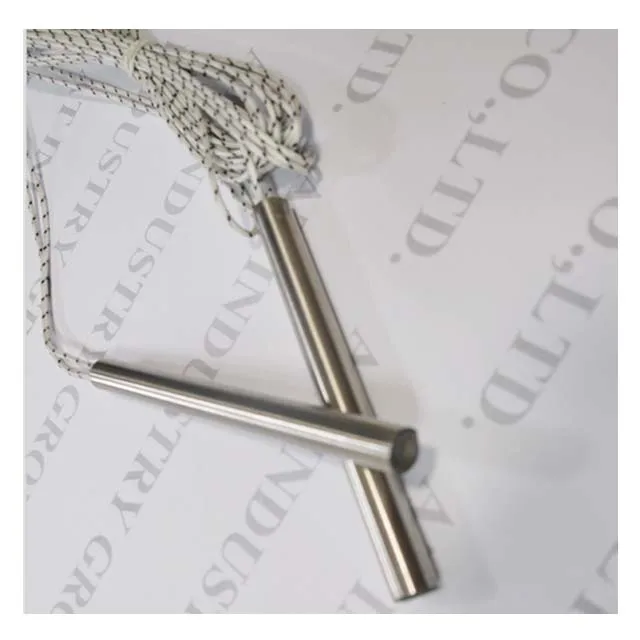

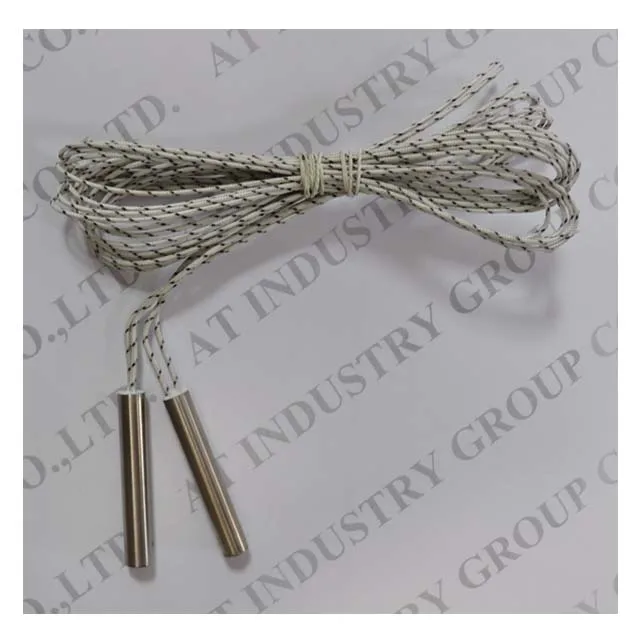

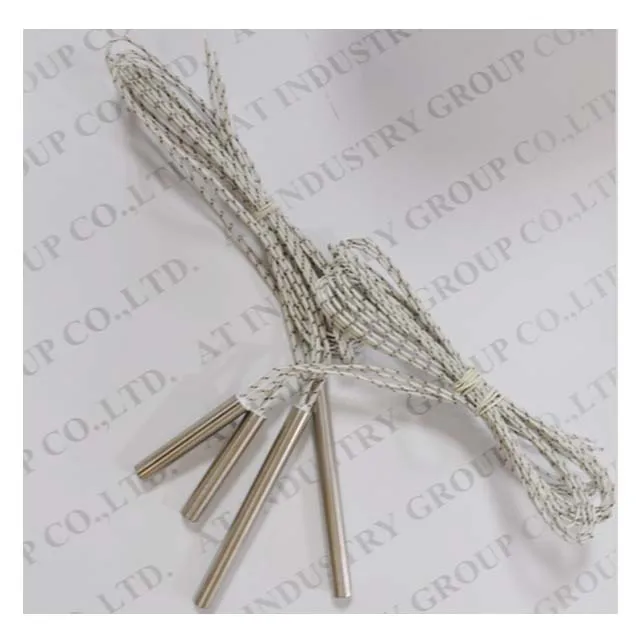

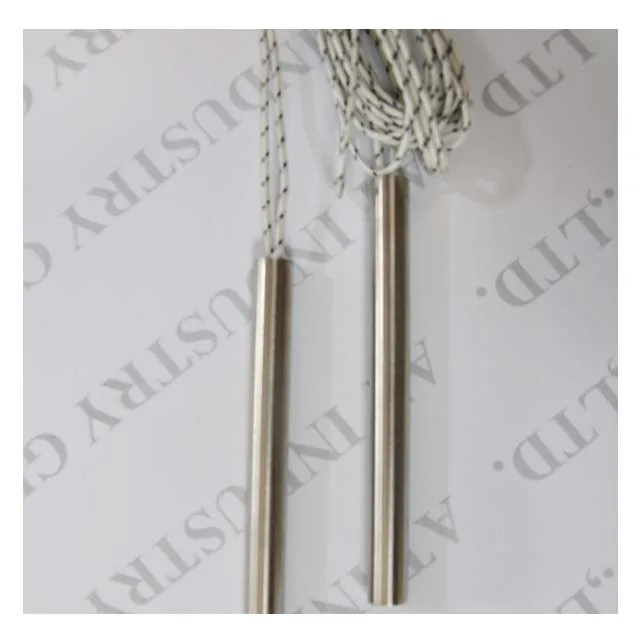

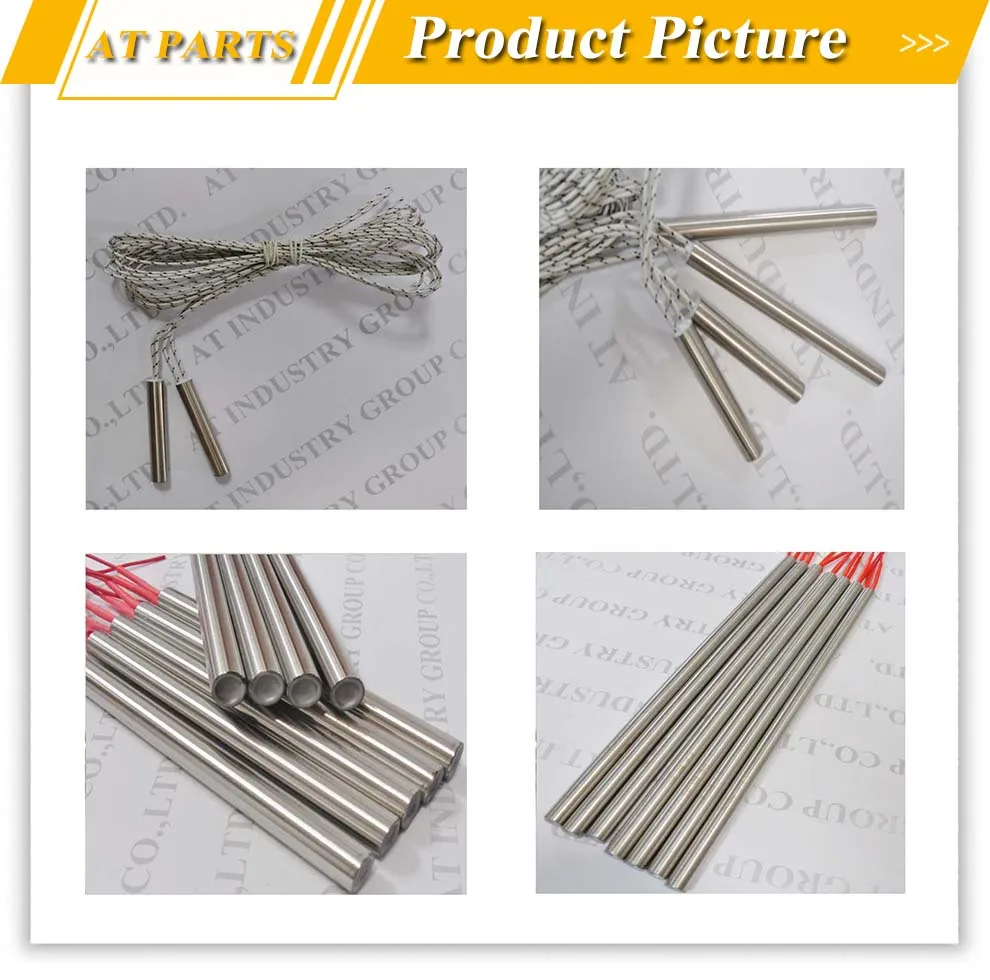

ATPARTS High watt density single end cartridge heater heating element for industrial oven

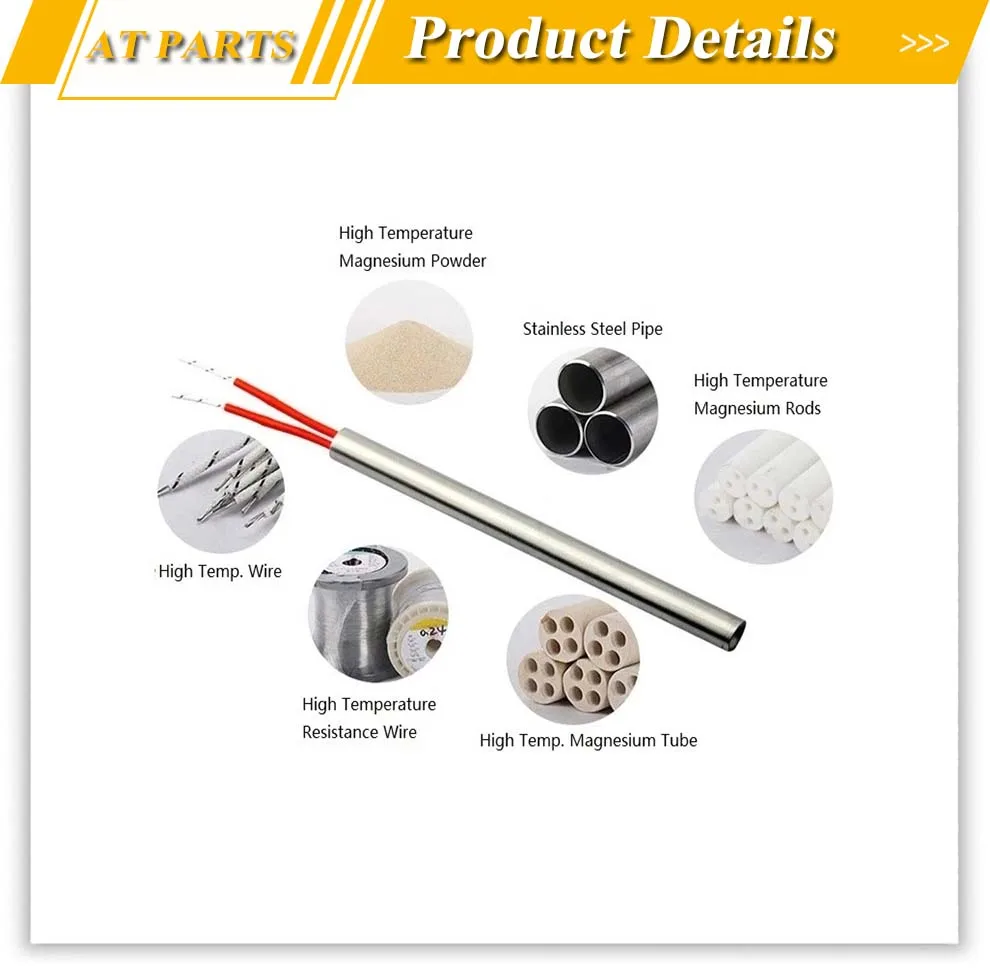

Cartridge heaters are manufactured in two basic forms - high density and low density.Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,

that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.

High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.

Features

1. Tube diameter: Φ3mm-Φ25mm
2. Tube Material: SS304/SS316/SS321/NICOLOY800 etc
3. Insulation Material: High purity MgO Power
4. Resistance Wire element: Ni-Cr or FeCr
5. Lead Wire Connectiom Choice: External or Internal
6. Lead Wire Length: 250mm Fiberglass Standard ( Other Options: Silicone)

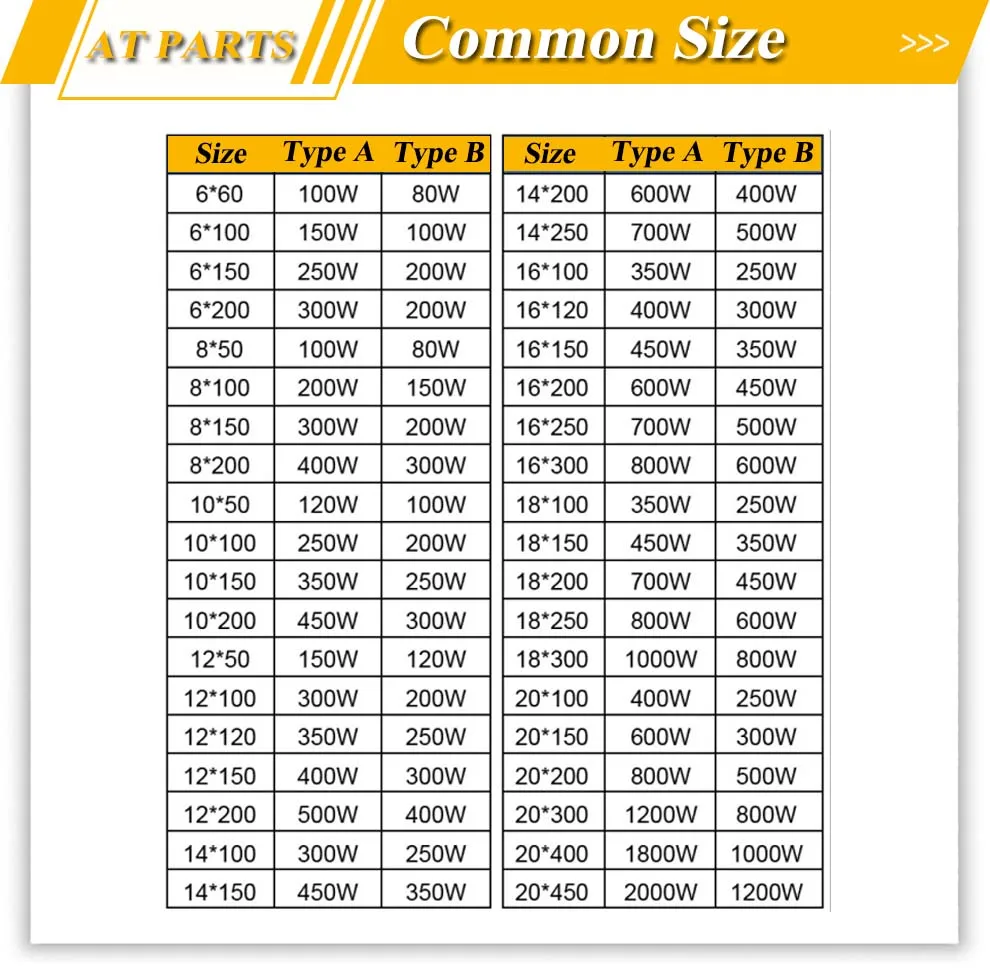

Diameter	3mm to 30mm, etc.
Length	Customized
Wire length	Customized
Leads type	Direct line, SUS 304 braided, metal hose, etc.
Voltage Supply	12V to a maximum of 480V
Wattage density	Not exceeding 30w/cm2 (advisable)
Total capacity	customized
Resistance Tolerance	+10% - 5% (closer tolerances are available upon special request)
Heating length	Customized
Sheath Material	SUS 304/316/321 Incoloy 840
Insulation material	Magnesium Oxide Powder
Maximum Temperature	800 °C

















1.Q:Are you a factory or trading company?
A, Yes we are the factory and have 10 production lines for us.

2.Q:What's the shipping method?
A: International express and sea transportation,Depend on customers.

3.Q:Can I use my own forwarder to transport the products for me?
A:Yes, if you have your own forwarder in Shanghai, you can let your
forwarder ship the products for you.

4.Q:What's the Payment method?
A:T/T, 30% deposit before production, the balance before delivery.
We sugguest you transfer the full price at one time. Cause there is bank process fee, it would be a lot of money if you make twice transfer.

5.Q: What is our payment term?
A:We can accept the payment by T/T, Ali Online, Paypal,Credit card and W/U .

6.Q:Can we print our own brand?
A: Yes, Of course.Will be our pleasure to be one your good OEM manufacturer in China to meet your OEM requirements.

7.Q:How to Place an order?
A:Please kinldy send us your order by email,we will confirm the PI with you .we wish to know the below:your details address,phone/fax number,destination,transportation way ;
Product informaiton:item number,size,quantity,logo,etc

Pls click below "send"  for more details, the best price will be prepared for you.
