China Duowei 10cm PU Polyurethane Sandwich Panel In Middle East For Cold Storage

Product Overview

Description

10cm PU Sandwich Panel In Middle East For Cold Storage



Panels exclusively for mid-temperature, high-temperature and low-temperature refrigerators.As the response to the Montreal International Convention, Duowei Union Group spent three years researching and developing the VCOOL steel structure outdoors-mounted combined refrigerator panels, which are produced with the imported serial production line. With the environmentally friendly pentane as the foaming agent, the VCOOL product is known as the best insulation material and system for refrigerators that features flame resistance, environmental protection and energy saving.



Compared with other products made of non-environmental foaming agents, VCOOL steel structure outdoors-mounted refrigerator panels feature such advantages as:

• Greatly improved dimensional stability, enhanced surface evenness of refrigerator surface and better quality of finished panels.


• Fluoride free, highly environmental and with zero impact upon.


• Intensified foam strength and enhanced resistance of the material .


• Excellent insulation performance.

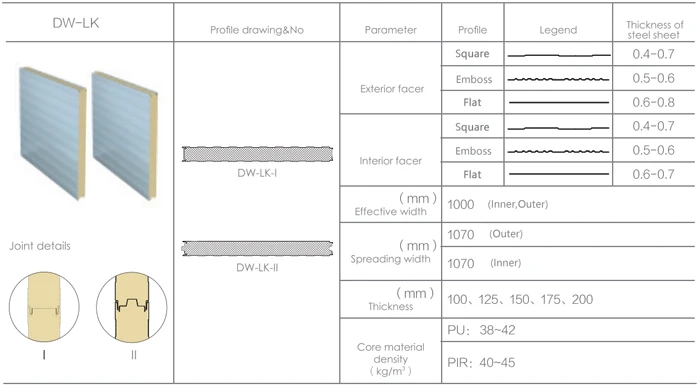

The technical specifications of cold storage sandwich panel
Thickness range	Temperature difference between inside and outside	Height of wall panel	Length of roof panel	Applicable cold storage temperature
mm	℃	m	m	℃
100	30	5	4.45	-15
125	35	5.5	5.2	-20
150	50	6	5.85	-25
175	65	6.5	6.3	-30
200	75	7	6.8	-40
