Underfloor heating cable twins conductor 17w/m
Underfloor heating cable twins conductor 17w/m
Underfloor heating cable twins conductor 17w/m
Underfloor heating cable twins conductor 17w/m
Underfloor heating cable twins conductor 17w/m
Underfloor heating cable twins conductor 17w/m
Underfloor heating cable twins conductor 17w/m

Underfloor heating cable twins conductor 17w/m

Share on (62259144633):


Price:

Quantity:


Product Overview

Description


Product Name
Single Conductor Heating Cable
Model
TXLP-1R
Jacket
polyvinyl chloride
Grounding wire
galvanized copper wire
Shielding layer
aluminium foil + copper wire
Inner conductor
alloy resistance wire
Internal Insulation
Crosslinked Polyethylene
Joint Type
Implicit Joint
Outside diameter
6.5mm
Supply Voltage
110V, 120V, 220V, 230V
Linear power
17w/m 18.5w/m 20w/m
Cold wire length
2.25m
Surface working temperature
≤65°C
Bending coefficient
 ≥5D

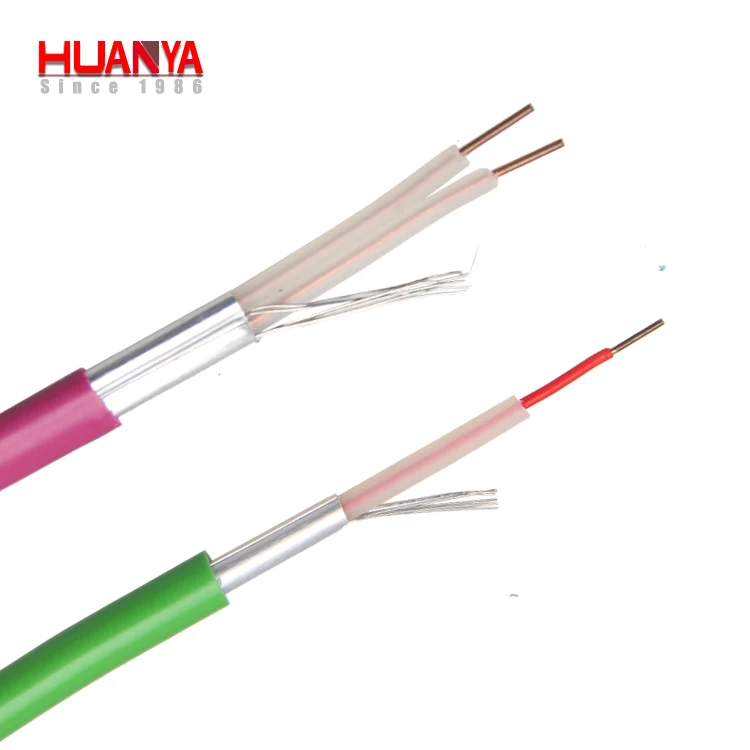

Single conductor heating cable
1.Nickel alloy wire
2.8 tinned copper wire
3.Cross-linked PE insulation
4.Armored shield
5.PVC jacket
Twin conductor heating cable
1.Nickel alloy wire
2.8 tinned copper wire
3.Cross-linked PE insulation
4.Armored shield
5.PVC jacket
Features
Small cable diameter
Ecological compatibility
100% guarantee of electrical safety
100% absence of electromagnetic radiation
Additional protection against overheating
Universal solution for premises with complex room layouts
Maximum cost and energy saving
Easy installation
Product Parameters
TXLP/1single conductor industrial heating system 220V 18.5W/M
Power(W)
Type
Voltage(V)
Standard Length(m)
Power /Per Meter(W/M)
Resistance(Ω)
3150
TXLP/1/18.5
220
170.3
18.5
15.4
3000
TXLP/1/18.5
220
162
18.5
16.1
2800
TXLP/1/18.5
220
151.4
18.5
17.3
2600
TXLP/1/18.5
220
140.5
18.5
18.6
2400
TXLP/1/18.5
220
129.7
18.5
20.2
2200
TXLP/1/18.5
220
118.9
18.5
22.0
2000
TXLP/1/18.5
220
108.1
18.5
24.2
1760
TXLP/1/18.5
220
95.1
18.5
27.5
1600
TXLP/1/18.5
220
86.5
18.5
30.3
1400
TXLP/1/18.5
220
75.7
18.5
34.6
1200
TXLP/1/18.5
220
64.9
18.5
40.3
1000
TXLP/1/18.5
220
54.1
18.5
48.4
850
TXLP/1/18.5
220
45.9
18.5
56.9
700
TXLP/1/18.5
220
37.8
18.5
69.1
600
TXLP/1/18.5
220
32.4
18.5
80.7
500
TXLP/1/18.5
220
27.0
18.5
96.8
400
TXLP/1/18.5
220
21.8
18.5
121.0
300
TXLP/1/18.5
220
16.2
18.5
161.3
TXLP/2twin conductor industrial heating system 220V 17W/M
Power(W)
    Type
Voltage(V)
Standard Length(M)
Power /Per Meter(W/M)
Resistance(Ω)
3300
TXLP/2/17
220
194.1
17
14.7
2800
TXLP/2/17
220
164.7
17
17.3
2600
TXLP/2/17
220
152.9
17
18.6
2400
TXLP/2/17
220
141
17
20.2
2100
TXLP/2/17
220
123.5
17
23.0
1700
TXLP/2/17
220
100.0
17
28.6
1370
TXLP/2/17
220
80.6
17
35.3
1250
TXLP/2/17
220
73.5
17
38.7
1000
TXLP/2/17
220
58.8
17
48.4
840
TXLP/2/17
220
49.4
17
57.6
700
TXLP/2/17
220
41.2
17
68.1
600
TXLP/2/17
220
35.3
17
80.7
500
TXLP/2/17
220
29.4
17
96.8
400
TXLP/2/17
220
23.5
17
121.0
300
TXLP/2/17
220
17.6
17
161.3

1.Tinned copper stranded wire


It is made of tinned copper wire and has excellent chemical stability, high voltage resistance and aging resistance.


2.Insulating flame retardant material


Polyvinyl fluoride has excellent high temperature and low temperature resistance and excellent electrical insulation properties.


  1. 3.Long service life

Long service life, high stability and energy saving, easy construction and easy installation.


Jiangsu Plaza Premium Electric Instrument Co.,Ltd. was established by Mr. Baifa Ye in 1986. We have employed 160 workers and our factory covers 3,000 square meters. With the total assets reaching 2 million US dollars, we own modern production lines and high quality controlling equipment with scientific administration, professional engineers, highly trained technicians and skilled workers. Consequently, our products are of both high quality and high ratio of performance to price and are salable to worldwide markets. Now we are selling products to North and South America, Southeast Asia, and Western Europe.Quality first and user uppermost" is the most important one of our principles. We always strive for best in quality and after-sales services to satisfy customers' demands.
