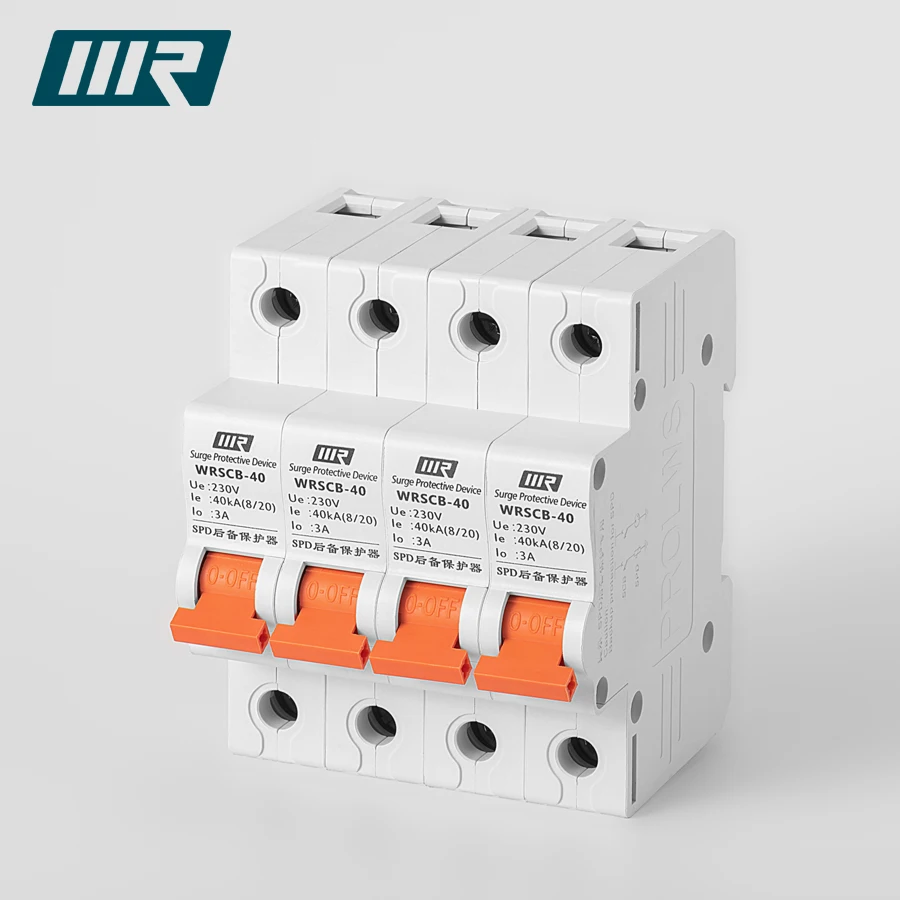

WRDZ Surge Protection Device Power SCB SPD Protector
- Category: Low Voltage Products >>>
- Supplier: Zhejiang Wrdz Electronics Co. Ltd.
Share on (62259257351):
Product Overview
Description
There is no gap structure for this product;
Low residual pressure (almost equal to wire residual pressure);
Unmistakable action; No blind area;
Independent main circuit system, auxiliary system and tripping system.
Complete the specifications anf meet the requirements of PSD at T1, T2 anf T3 levels;
The installation of 35mm card rail is in line with the installation requirements around the world;
It has instantaneous or delayed tripping function, and the tripping current is accurate;
Test button can be used to verify the integrity of the tripping system.
| Technical Parameter | T1 | T2 | T3 |
| Specification | WRSCB-100G | WRSCB-80G | WRSCB-40G |
| Rated working voltage Ue | 1000V/dc | 1000V/dc | 1000V/dc |
| Nominal insulation voltage (Ui) | 1200V/dc | 1200V/dc | 1200V/dc |
| Applicable SPD(limp,In) | ≤ 25kA(10/350μs) | ≤ 60kA(8/20μs) | ≤ 20kA(8/20μs) |
| Frequency current tripping value | 4A | 4A | 4A |
| Power frequency current breaking times | 1000 | 1000 | 1000 |
| Short-circuit current breakering capacity(Ics) | 0.5kA | 0.5kA | 0.5kA |
| Frequency short-circuit current breakering capacity(Ics) | 35kA | 35kA | 35kA |
| Maximum terminal connection | 25mm | 25mm | 25mm |
| Protection degree | Ip20 | Ip20 | Ip20 |
| Ambient temperature | -25℃-60℃ | -25℃-60℃ | -25℃-60℃ |
| Storage environment | -40℃-75℃ | -40℃-75℃ | -40℃-75℃ |
| Work environment | 20%~90% | 20%~90% | 20%~90% |
Scope of Application
The SPD dedicated backup protector, provide power supply with 1,2,3 equipment to protect the
SPD(lightning protector) professional backup protection, is suitable for the need to install the
SPD lightning protection devices, such as: civil construction, electrical, communications, road
traffic, such as the petrochemical industry of power equipment.
Product Usage
It is effective to protect the SPD from the occurrence of abnormal transient overcurrent, so as to avoid serious fire accidents.
The actual selective separation of the working frequency current and lightning current can
effectively protect the SPD from the occurrence of degradation, which can reduce the starting
voltage of the SPD to a lower than that of the power supply voltage, so as to avoid causing
serious problems. Fire accident.
When the SPD has an outdated lightning flow, this external disconnection will not cause an
error trip, so that the lightning protection of electrical equipment is always in an effective state.
