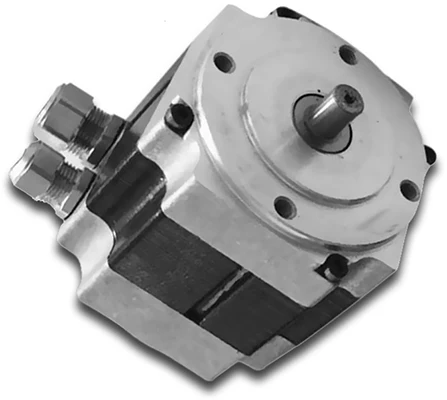

high speed low torque 24v 48v 200 watt dc brushless motor bldc BMM739
- Category: >>>
- Supplier: Changzhou Mcmaster Electrics Co. Ltd.
Share on (62259273802):
Product Overview
Description
Product Description
OUR PRODUCTS |
Product:brushless high rpm 48v 200 watt dc electric motor 24v 3000rpm bldc
Product Application: brake motor, medical equipment, mechanical equipment, solar tracking device etc.
SPECIFICATIONS |
Model | Voltage (VDC) | No Load | Rated Load | Toque (N.m) | Cogging Toque (N.m) | Moment of Inertia (Kg.cm2) | Torque Constant (N.m/A) | Length (mm) | ||
Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | |||||||
BMM739-1 | 48 | 1.01 | 3488 | 6.11 | 3000 | 0.7 | 0.04 | 0.614 | 0.137 | 92 |
BMM739-2 | 24 | 1.01 | 3488 | 6.11 | 3000 | 0.35 | 0.02 | 0.307 | 0.069 | 62 |

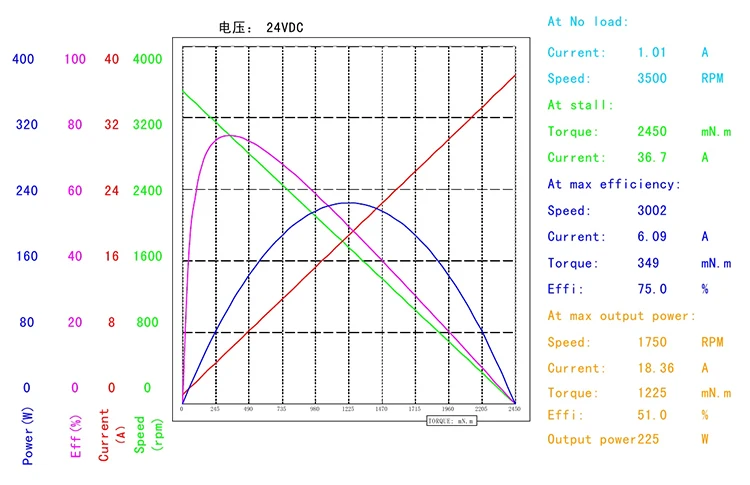

PERFORMANCE CURVE |

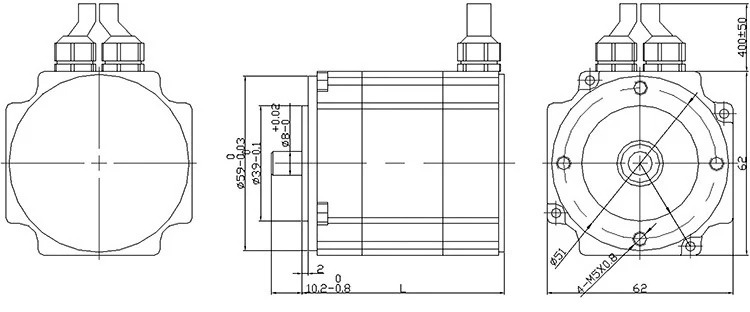

OUTLINE DRAWING |
SIMILAR PRODUCT |
Similar Power |  |  | |  |
| |
|
|
| ||||
Similar Speed |  |  |  | |  | |
| ||||||
| ||||||
Similar Torque |  | | ||||
| BMM709 | BMM710 | BMM712 | BMM738 | ||
|  | |||||
|
|
|
|
|
For more information, you can visit our website
https://www.mcmaster-electric.com
Packaging & Shipping
Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.
Company Information
McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.
FAQ
1. Q: Can you provide detailed technical data and drawing?
A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.
2. Q: Can I visit your factory before we place an order?
A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.
3. Q: How to control the products quality in your company?
A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
