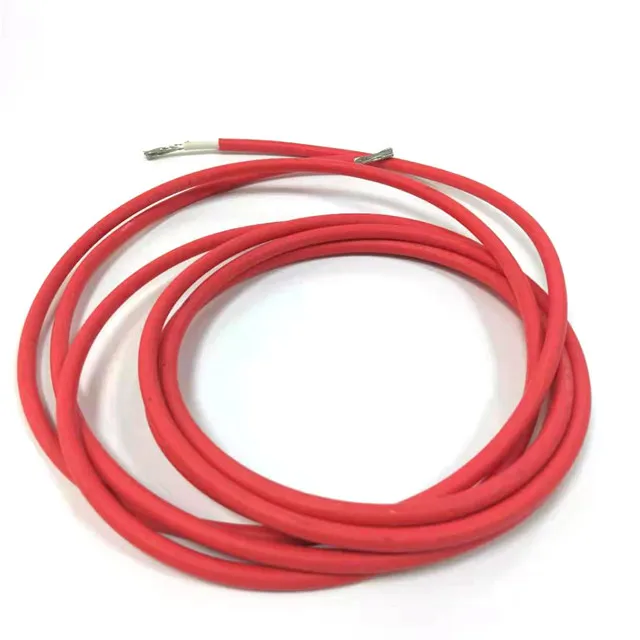

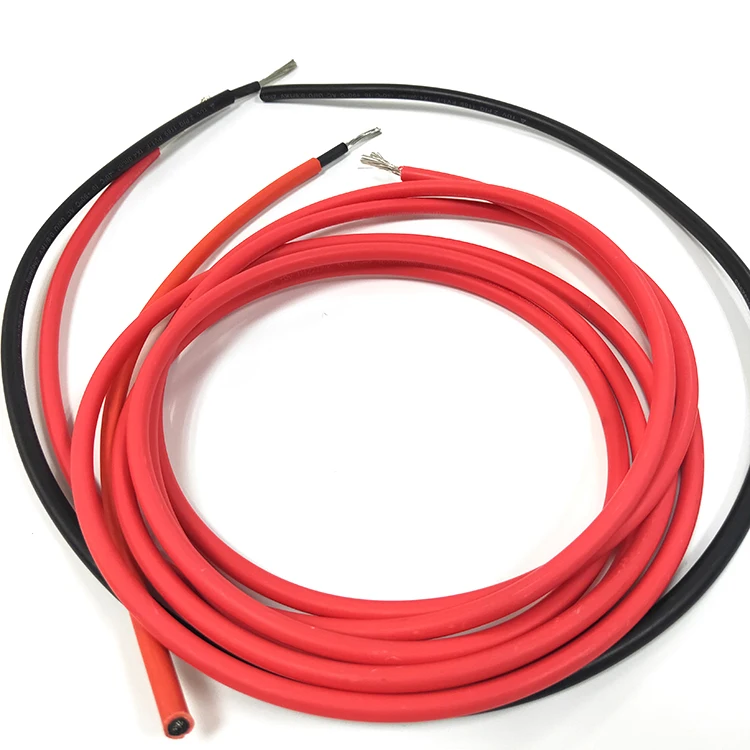

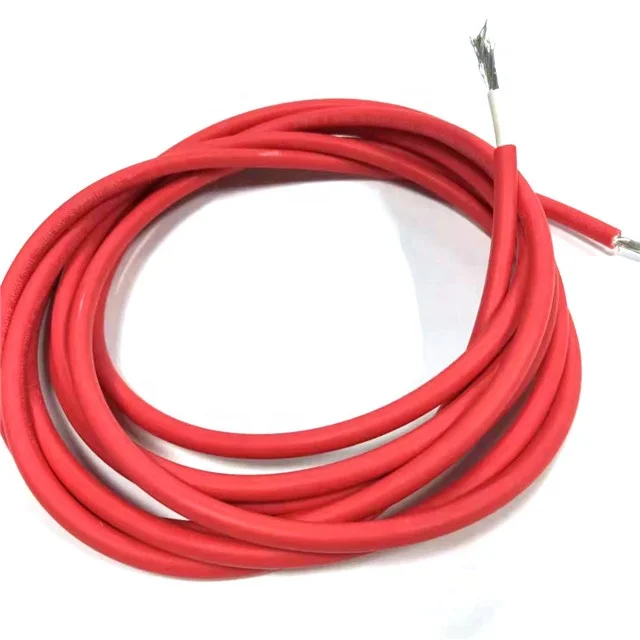

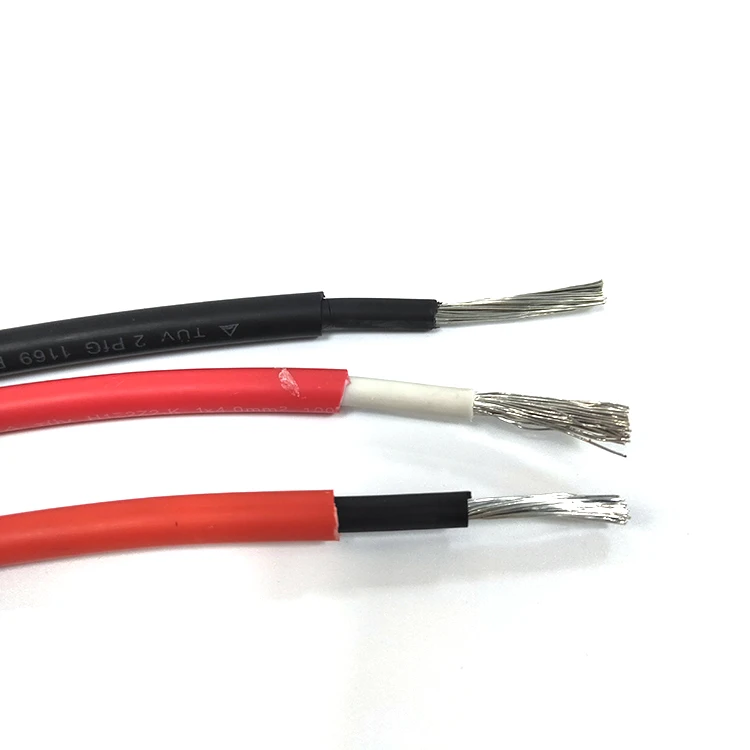

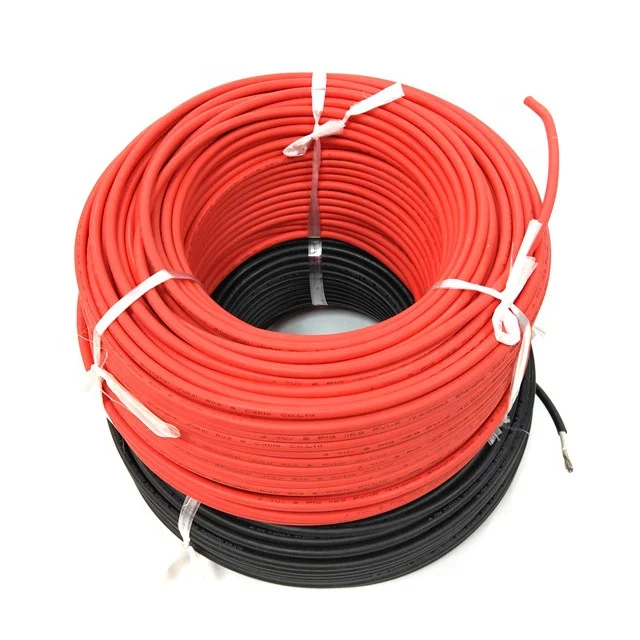

SeanRo TUV CE certified UV resistance 4mm cable reach rosh 6mm photovoltaic solar cable
Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolysis.
These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
They operate at DC voltage and provide long life in exposed conditions.
Technical data:
Nominal voltage | U0/U=600/1000V AC,1000/1800V DC | Test voltage | 6500V,50HZ,5min |
Max. conductor temperature | -40℃ up to +125℃ | Ambient temperature | -40℃up to +90℃ |
Max. Short circuit temperature | 280℃ | Bending radius | fixed installation>4×Φ Occasionally moved>5×Φ |
1. Conductor: Tinned copper.
2. Insulation: XLPE/XLPO
3. Sheath: XLPE/XLPO
4.Fire-resistance performance:IEC 60332-1
5.Approvals:TUV 2PfG 1169/08;EN50268-2
6.Application standards:UNE211 23;UNE 20.460-5-52,UTE C 32-502
Model Type
Size(n/mm2) | Conductor Construction (n/mm) | Finished Cable OD(mm) | Max DC Resistance @20C(ohm/KM) | Curent (A) (underground installation) |
1*4 | 52/0.30±0.008 | 4.85 | 5.09 | 52 |
1*6 | 78/0.30±0.008 | 5.55 | 3.39 | 67 |
2*4 | 52/0.30±0.008 | 4.85*10.00 | 5.09 | 44 |
2*6 | 78/0.30±0.008 | 5.55*10.00 | 3.39 | 57 |
