APT fixed tube plate tubular heat exchanger for industrial Refrigeration parts 15HP

 Titanium heat exchanger evaporator for aquarium or aquaculture

Titanium has a strong corrosion resistance, and the corrosion in sea water is basically zero. It is not easy to produce oxide layer on the surface. It does not pollute the medium and is environmentally friendly and non-toxic. The shell can be made of PVC, titanium, stainless steel, etc. Titanium tube heat exchanger effectively prolongs the service life of heat exchanger in special occasions, and costs less maintenance. It also has the advantages of small size and strong heat transfer capacity.

Purpose:

Titanium tube heat exchangers can be widely used for temperature control in swimming pools, aquariums, aquariums, sea water baths, plating tanks, marine heating and cooling systems of chemical equipment. It can also be used in anti-corrosion areas such as seawater utilization and surface treatment industries. In addition, the titanium tube heat exchanger is also used in food, distilled water, pure water, brewing, beer, beverage, soilless cultivation, pharmaceutical, cosmetics and other industries. It can also be used in the field of environmental protection, such as waste gas condensation recovery, pollutant (solvent) recovery and so on.

Structure Feature

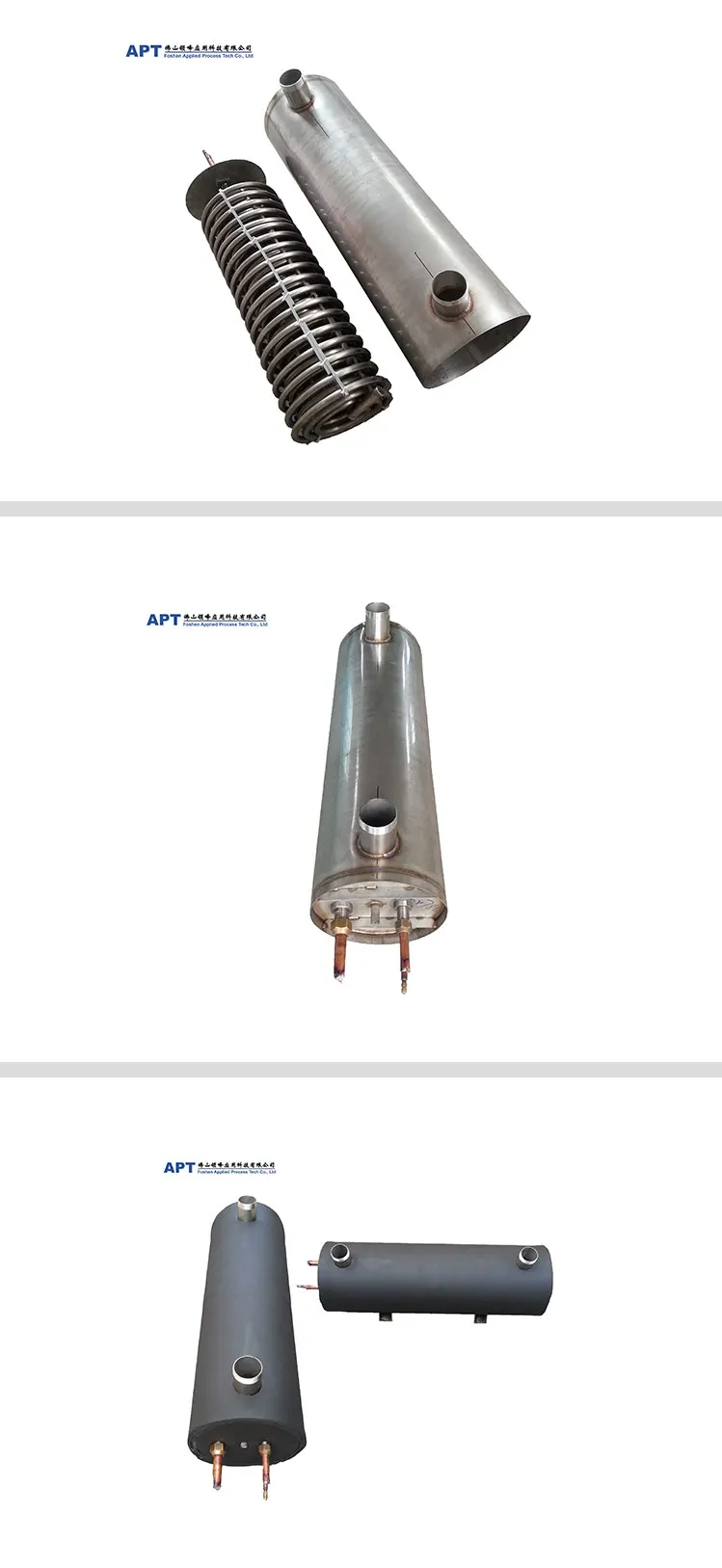

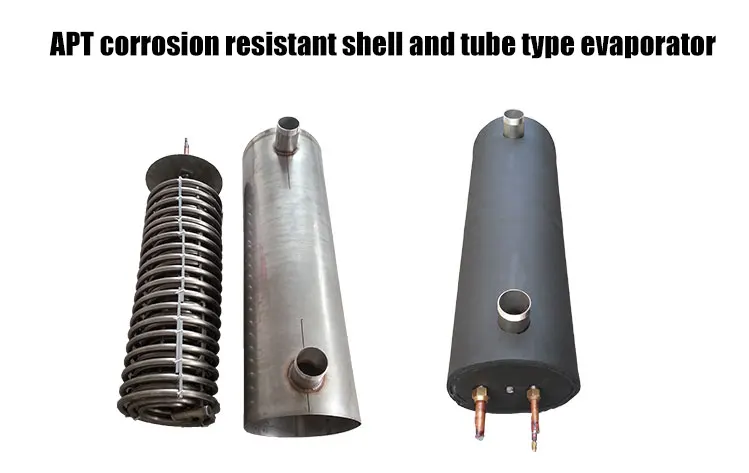

The inner heat converter is made of seamless pure titanium, which has strong corrosion resistance, high heat transfer efficiency, non-magnetic, non-toxic and good heat resistance.

The outer barrel is made of high strength plastic injection moulding, solvent pressing and synthesis. It has good chemical stability and is not affected by environmental factors and medium composition in the pipeline. It has good corrosion resistance, low heat transfer efficiency, good insulation and heat preservation, and good energy saving effect. It is welded by professional process.

Detail parameters

 Seamless pure titanium tube, and the grade is TA1. There are 52 bar high pressure test and precise halogen leaking test in production, makse sure they are not leak.

Our plastic shell is no longer a traditional plastic welding process. The top and base are made of special PVC moulds by one-time injection moulding process, which meets the ROHS environmental protection requirements. Thanks to its perfect structure design, it can with stand high pressure and the maximum pressure is 2.1 Mpa.

APT titanium coil tube heat exchangers with excellent ability for heat exchanging and adaptation are widely used for:

1. Heat pump water heater condenser

2. Condenser/evaporator for aquarium or aquaculture water chiller

3. Condenser for pool heat pump

4. Condenser/evaporator for water(ground) source heat pump

5. Cooler or regenerator for CO2 heat pump air

6. Condenser/evaporator for marine AC

7. Condenser for ice machine

8. Evaporator for water purifier

9. Evaporation or condenser for mariculture constant temperature machine

10. Condenser for dish washer
