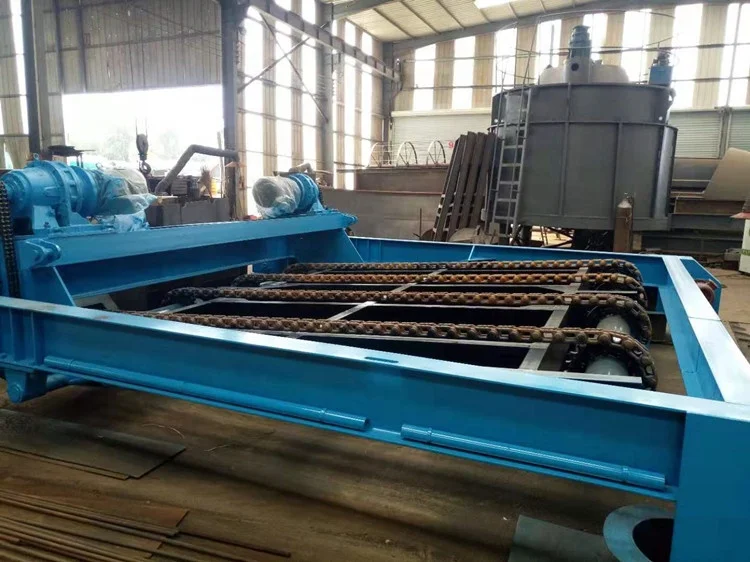

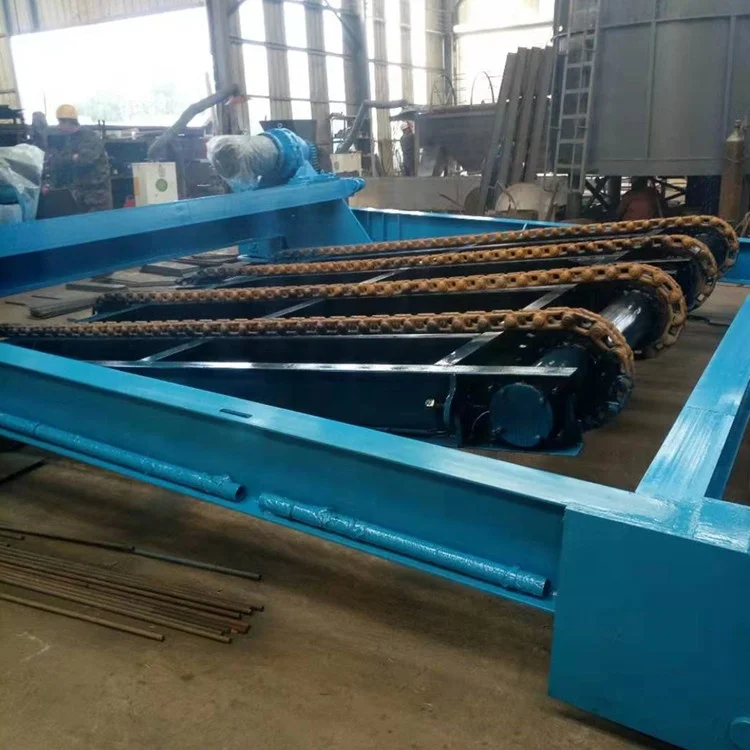

High performance automatic chain board fermentation stacker

Product Overview

Description

     High performance automatic chain board fermentation stacker

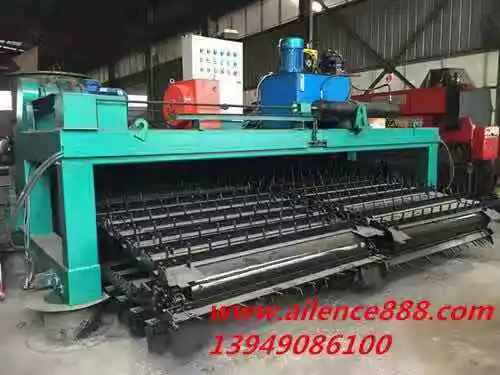

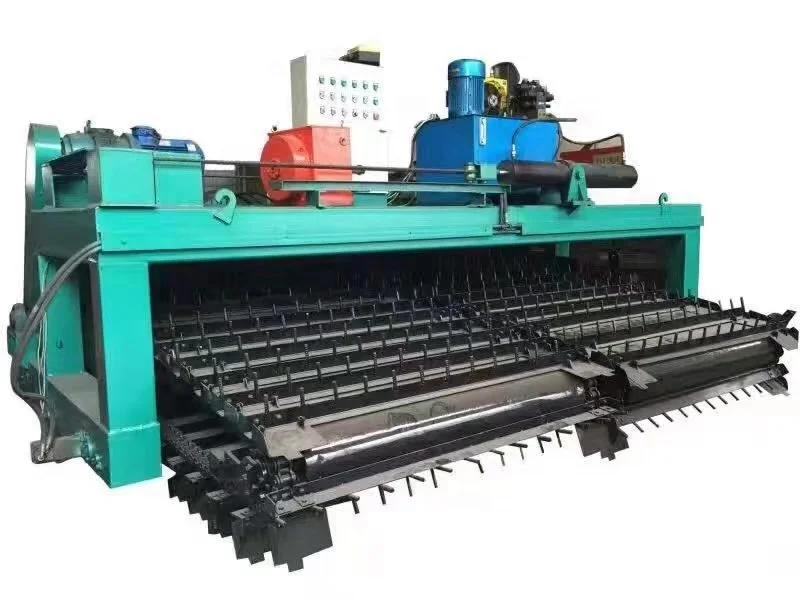

Chain Plate Turning Stacker



Product OVERVIEW



The series of plate-type Stacker machine is a new generation of polishing equipment developed by our company, which is suitable for organic fertilizer.

The main features of this series of chain-type stacker are

The chain-type transmission, rolling support of the chain board mechanism, small turn-throwing resistance, energy saving, suitable for deep trench operations.

When the material in the pallet on the long stay, high dispersal, and air contact full, easy precipitation points.

 Flexible.

The lifting and lowering of working parts are operated by hydraulic system, which is flexible and safe and quick.

Remote control of the machine, forward, flip, lift and back operations, improve the operating environment.

Equipped with transfer tank, you can realize a multiple slot operation, saving investment.

 Advanced design, reasonable structure, reliable performance, beautiful appearance, convenient operation and maintenance.



Ii. Main Technical parameters

Serial Number	Parameter Name	Unit	(Model)
			30Type	40 Type	50 Type
1	Supporting Power	kw	19	20.5	30
2	Flip-throw Chain plate width	mm	3000	4000	5000
3	Working speed	m/h	Adjustable	Adjustable	Adjustable
4	No-load speed	m/h	Adjustable	Adjustable	Adjustable
5	Fermentation tank width	mm	3380	4380	5380
6	Fermentation trough Height	mm	1500	1500	2000
7	Material height	mm	1500	1500-2000	1800-2000
8	Maximum Flip Ability	m³/h	200-280	360-480	450-600
9	Every time the material displacement	m	4	4	4.5
10	Max lifting Height	m	2.5	2.5	3.4
