Established in 2000, Zhejiang Changyu New Materials Co.,Ltd. is a leading manufacturer keeps innovating high barrier films for flexible package. We attained ISO9001, EU, ROHS certificate, all our products reach food and drug standard. With 18 years experience, we could support you customized solution for specific requirements.

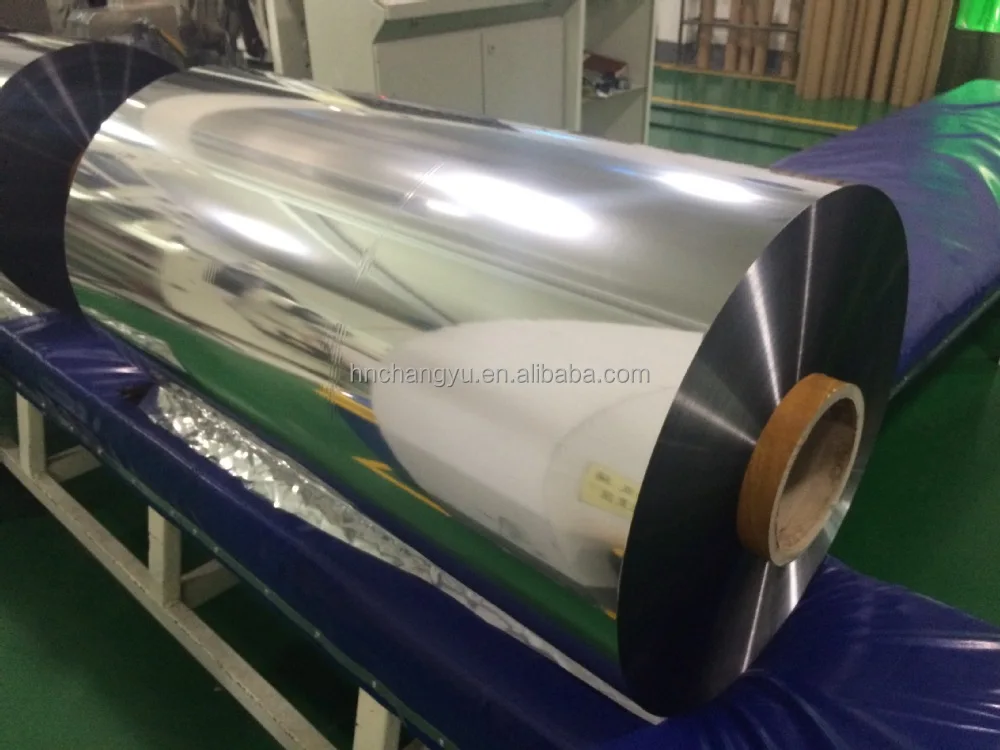

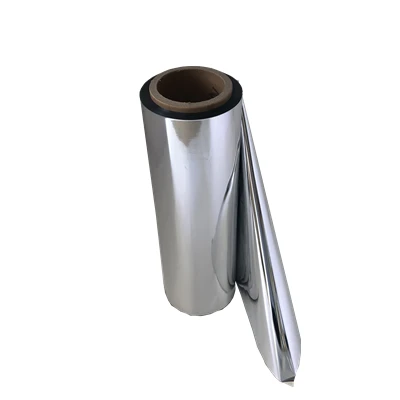

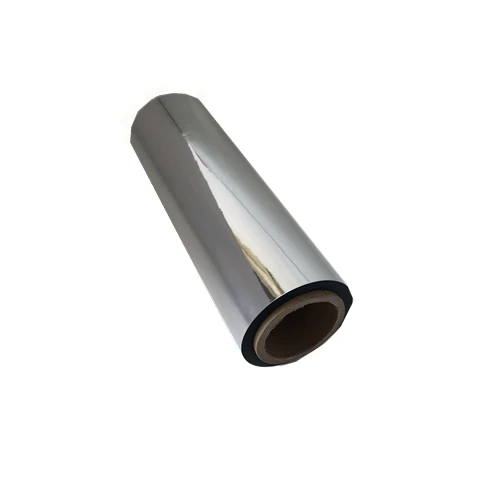

Vacuum Forming Metallized Cast Polypropylene VMCPP Thermal Lamination Film
Product Type
Metallized CPP Film
Description
Use CPP as base material, AL metallized on corona treated side
Features
1.High barrier of moisture.
2.Good film stiffness.
3.Metallic and a little matte appearance.
4.Heat Sealing property.
5.High bonding property of aluminum layer, avoid the aluminum transfer problem.
Specification
Film Thickness
Optical Density
Roll Length
Roll Width
Roll Diameter
Inner Core
20/25 micron
2.0-3.0
4000/6000/9000/18000m
500-2000mm
≤800mm
76mm(3″), 152mm(6″)
Techenical Data Sheet
ITEM
UNIT
TYPICAL VALUES
TEST STANDARD
Tensile Strength
MD
MPA
45
ASTM D-882
TD
MPA
26
Elongation
MD
%
450
ASTM D-882
TD
%
500
Aluminum adhesive(EAA test)
N/15mm
1.0~2.0
/
Wetting Tension
OD
36-38
/
Heat Sealing Temperature
(Strength: 8N)
℃, N/15mm
110
/
WVTR
g/(m²*24h),90%,38℃
1.0~1.8
ASTM-F1249
OTR
cm³/(m²*24h*0.1Mpa) ,23℃
30~50
ASTM-F1927
Application: It could be laminated with other materials, normally used for snack, PET food, medicine, mask and so on. Suitable for 2 layer structure
Equipment Advantages
High-end Metallizers
Most of our equipment are Germany Leybold and we keep updating more advanced types. Plasma pretreatment will highly improve aluminum adhesion. With 18 years experience to coordinate, almuninum uniformity and aluminum compactness could be controlled well.
Equipment for ALOX film
Workshop of Metallizers
Slitting room with
constant temperature and humidity

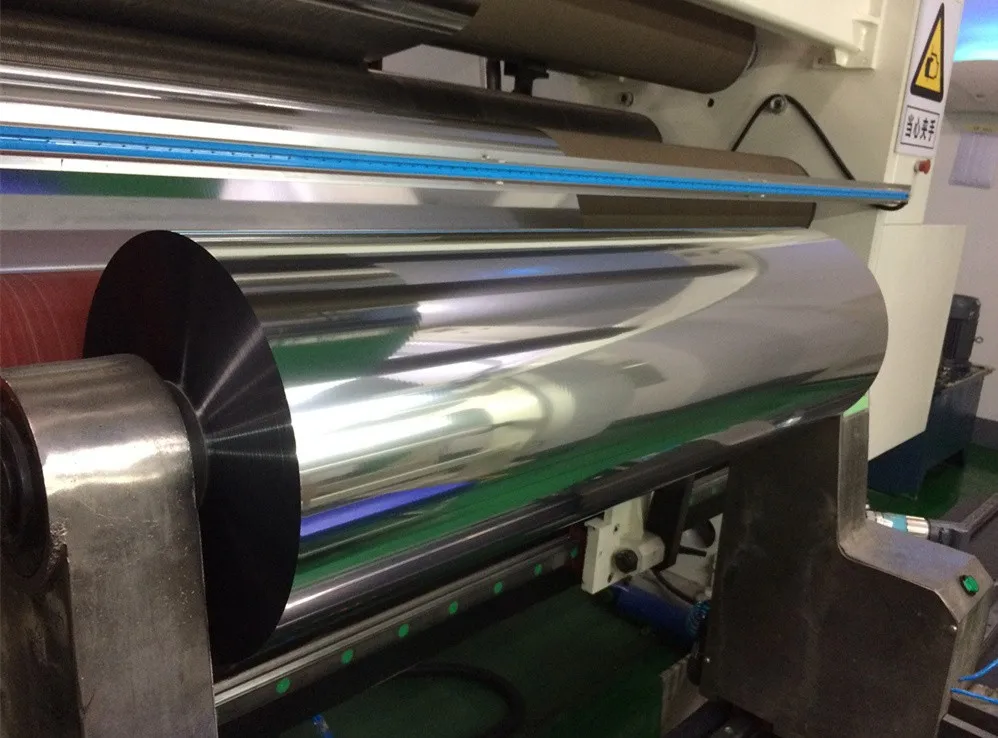

Slitting machine with
stable technology and operation
Online inspector with
excellent quality control

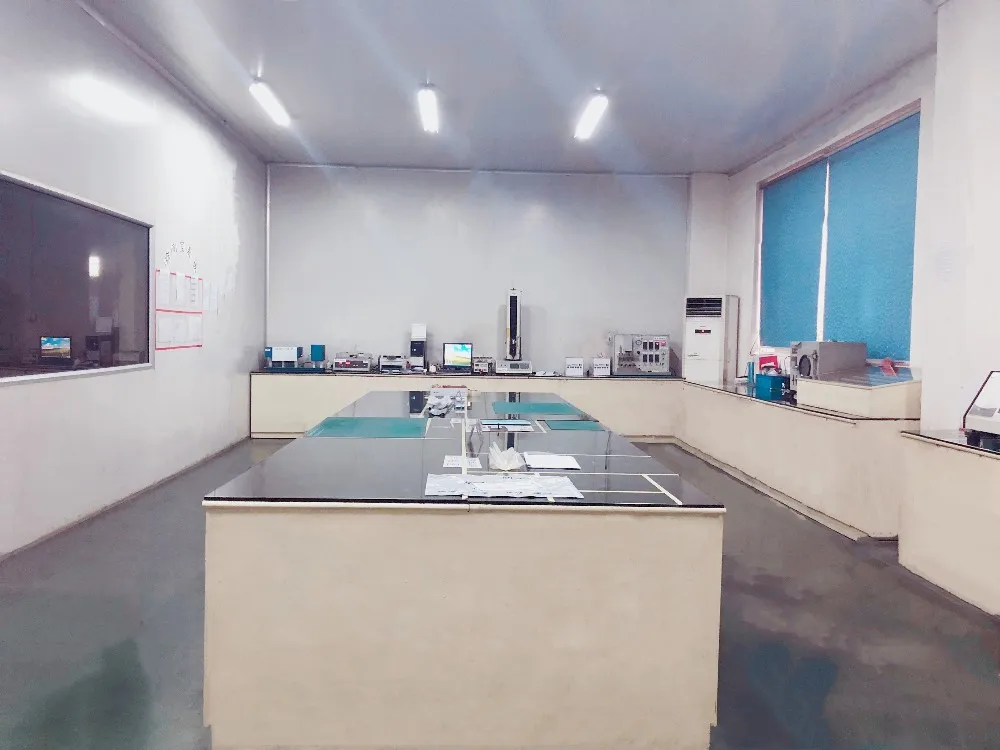

Quality Service
Testing of raw material and finished products, we will control the quality strictly before sending them to you. We also leave samples for product tracing. After-sale service is available, even we could provide technical composition support.

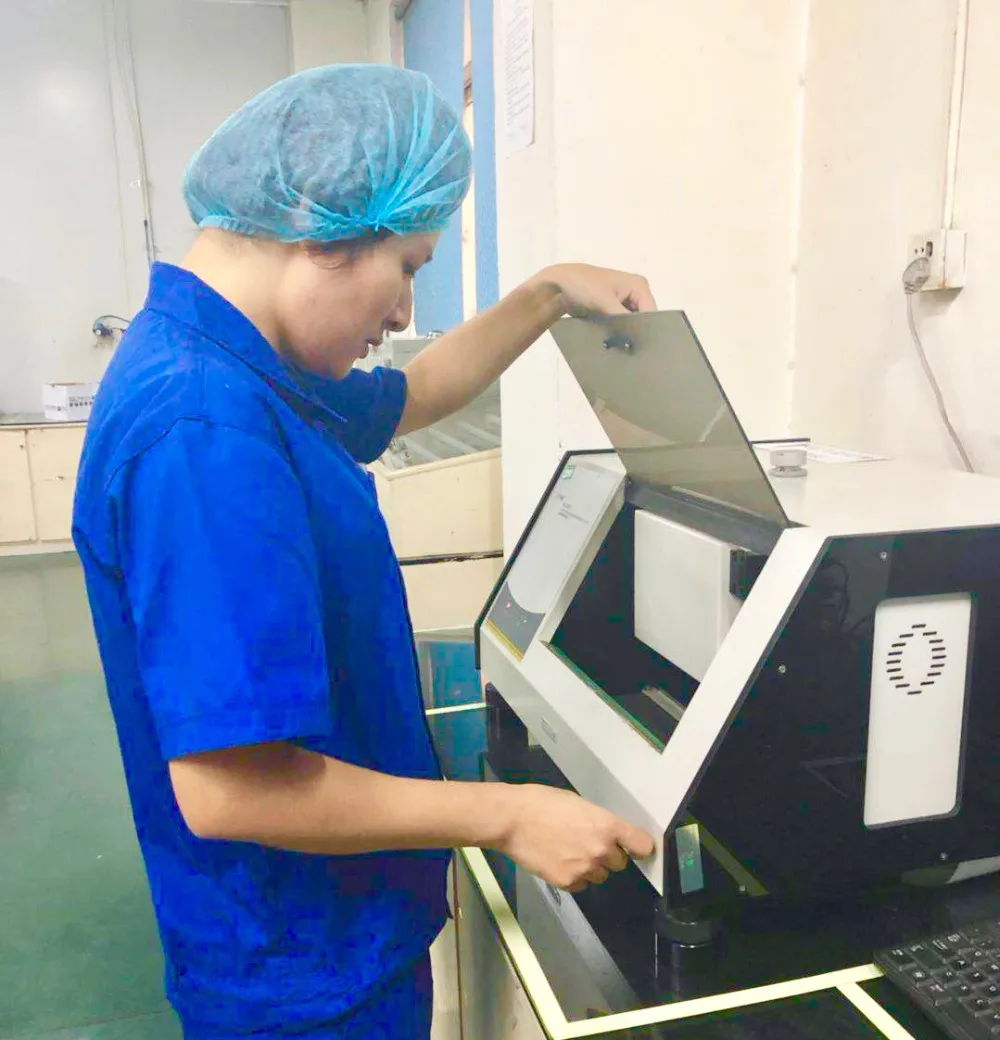

Testing of Water vapor transmittance

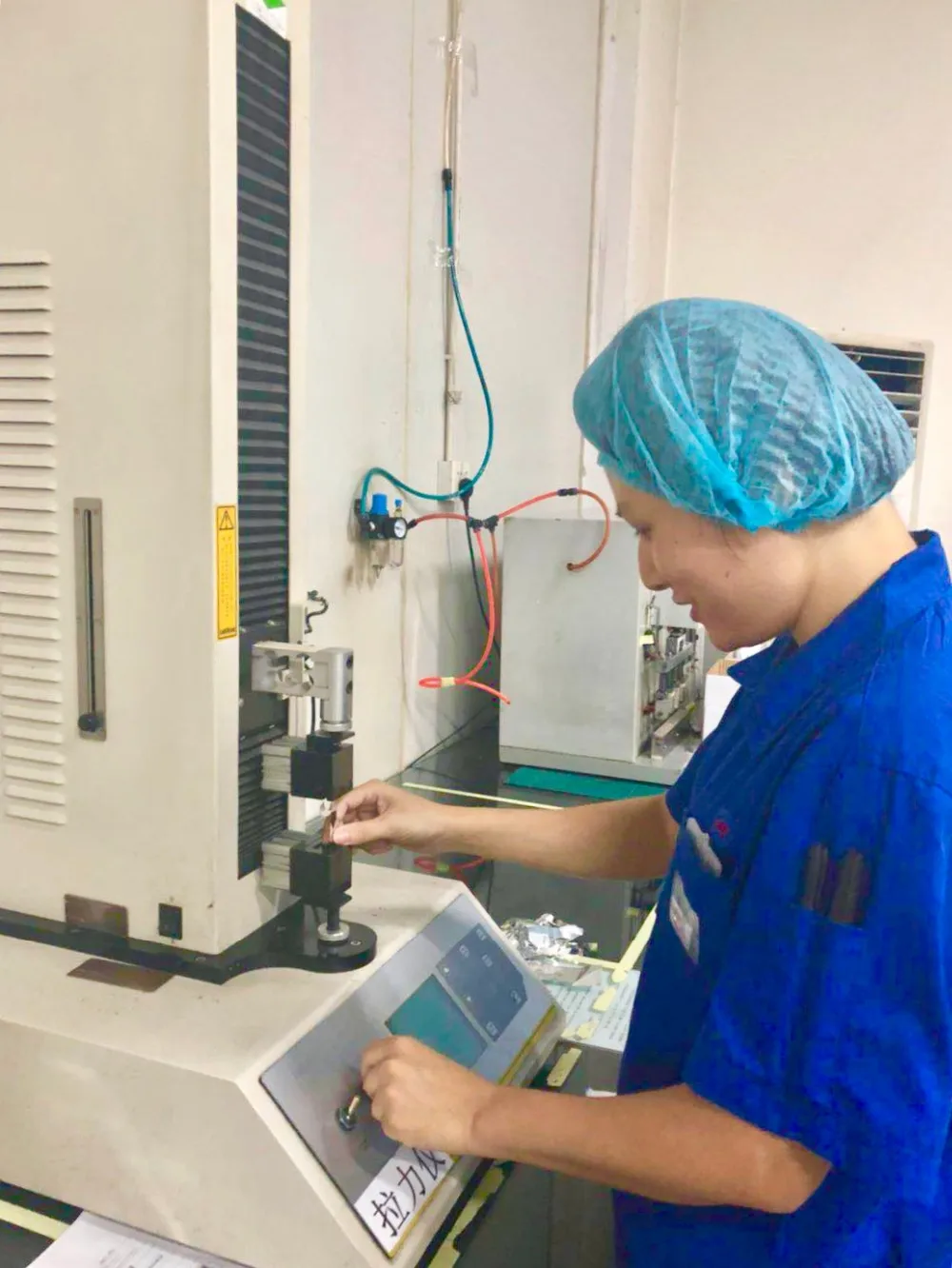

Testing of physical properties
Packing & Delivery
Why Chose Us
1.Quality: We have specialized in metallizing and coating film for almost 20 years. Meanwhile, our machine is mostly imported from Germany Leybold. With strict production management system and rich production experience, we could ensure the quality of each roll.
2.Delivery: As the leading enterprise in this field, our annual output reaches to 60,000 tons. And we are quite near to SHANGHAI and NINGBO port to shorten delivery time.
3.Price: With stable suppliers of raw material and production process, we cut down unnecessary cost to lower quotation.
4.Innovation: We have a series of patented technologies and we constantly develop new improved products.
5.Service: Pre-sale service including free sample testing, factory viewing. After-sales for any issue, and provide technical support. We have more than 10 years experience in exporting. If you have any requirement, don't hesitate to contact us.
Certifications
FAQ
Q1. Are you a trading company or factory?
A: Established in 2000, we are a professional manufacturer, keep innovating high barrier film--Metallized film, PVDC coated film, ALOx film.
Q2: Can you offer free sample? A: Absolutely, free A4 cut samples are available.If you need sample roll for testing, please let us know your dimension and fully address.
Q3: What is your delivery time? A: We will load within 15-20 days after confirming the relevant orders .
Q4. Can you accept mixed products in one container? A: Sure. All our work are providing customers better soution. Let us know your detailed requirements.
Q5. How can I get a detailed quotation? A: Contact us online, Send us inquiry, Send us e-mail. All is OK.
