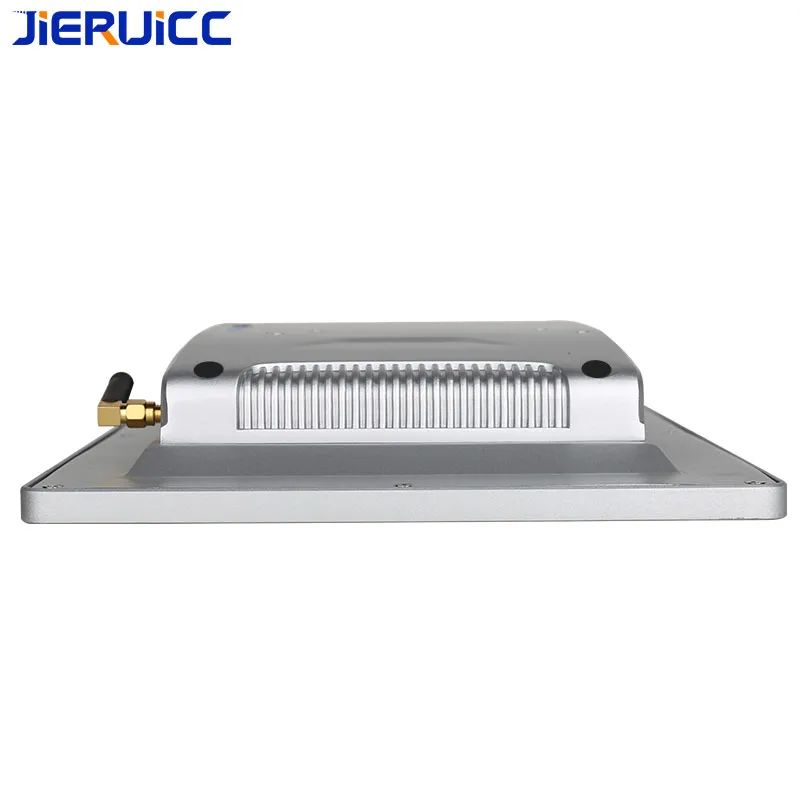

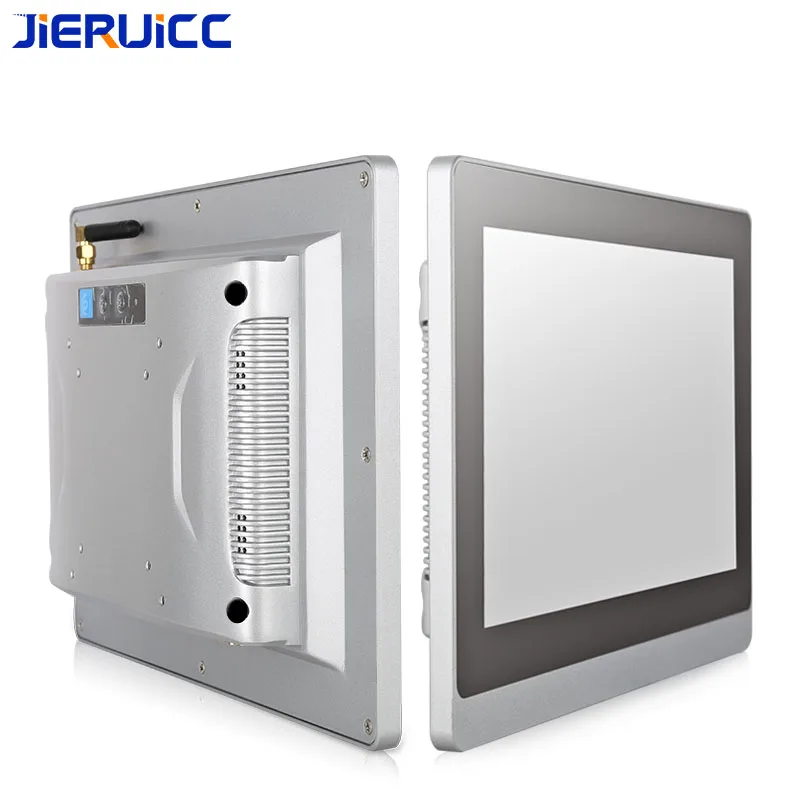

10.1 inch Android Panel PC with Touch Screen Embedded Systems for Retail Business with Interactive Kiosks
- Category: >>>
- Supplier: Shenzhen Yiyun Electronic Limited Company
Share on (62259708456):
Product Overview
Description

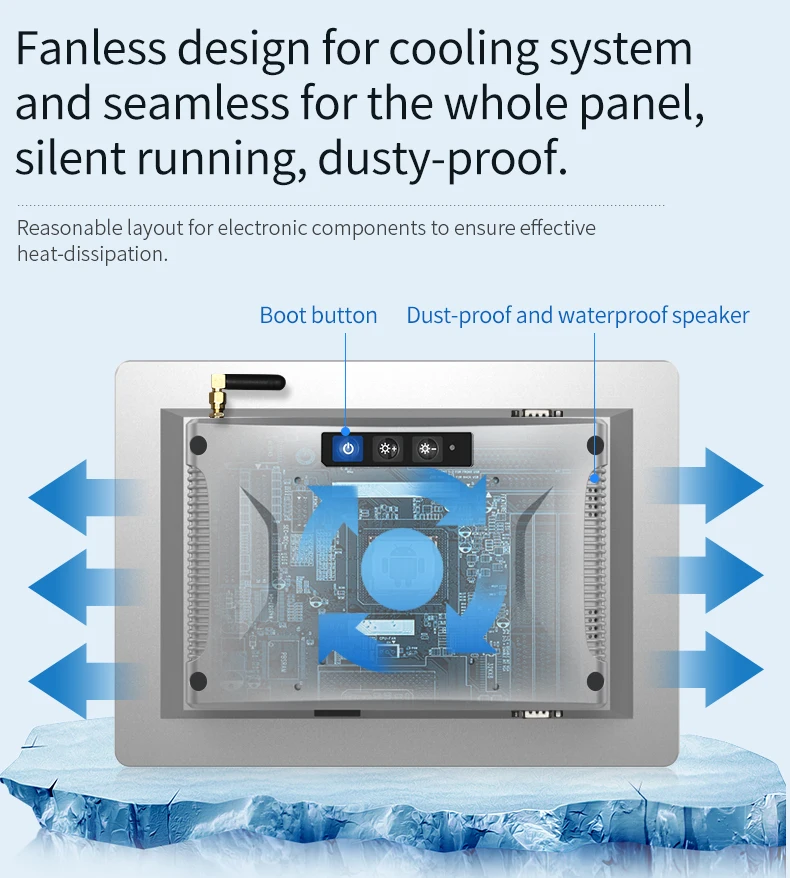

IP65 mini PC fanless rugged industrial panel pc 10.1inch Android touch pc
This industrial-grade touch tablet integrated machine is a rugged human-computer interaction device. It is made of aluminum alloy and has low power consumption. It has excellent performance in industrial applications due to its stable performance. The design of the whole machine material pays more attention to reliability, environmental adaptability, real-time, scalability, EMC compatibility and so on. The front panel is available in IP65. Widely used in high-end automation fields such as industrial control, military, communications, power, and network.

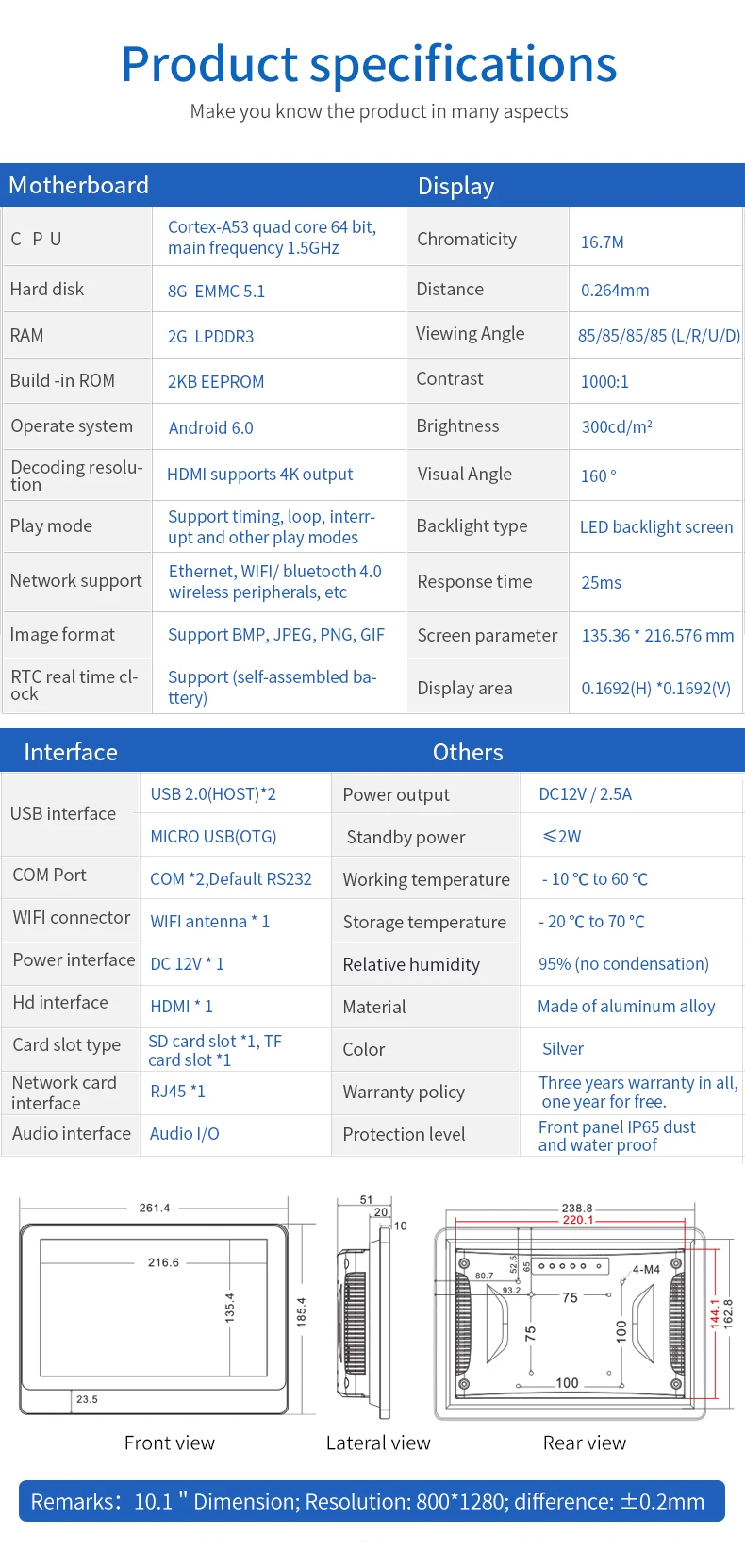

Specification
| Product Name | |
| 10.1“ Capacitive Android industrial panel PC | |
| Model No. | |
| GTP101A64 | |
| PC System | |

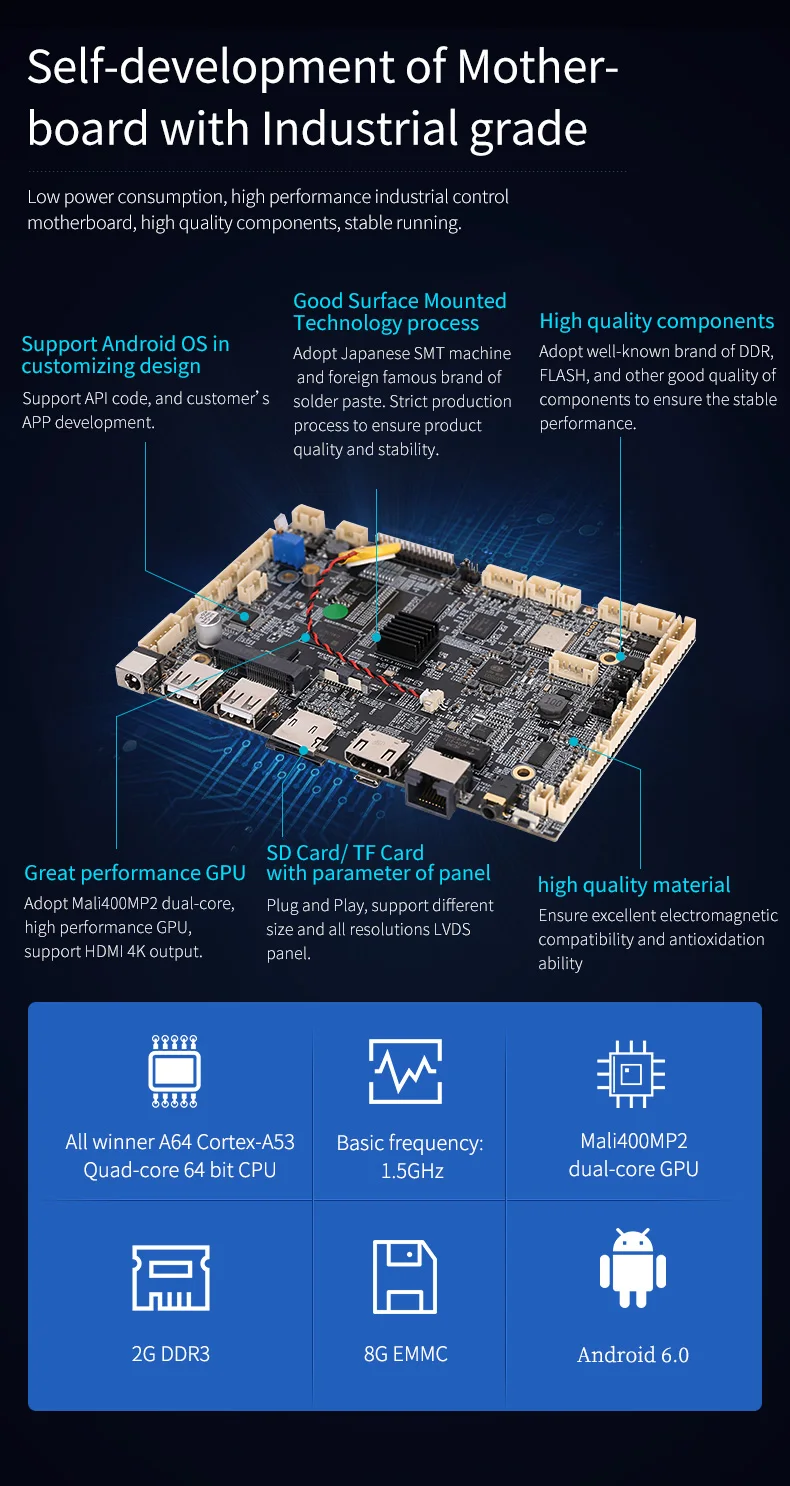

| CPU | Allwinner® A64 Cortex™ A53 QuadCore 1.5GHz |
| Chipset | Intel Bay trail SOC |
| Graphic GPU | ARM® Mali400MP2 Dual Core Supporting HDMI 4K output |
| Audio | Integrated Audio Chip |

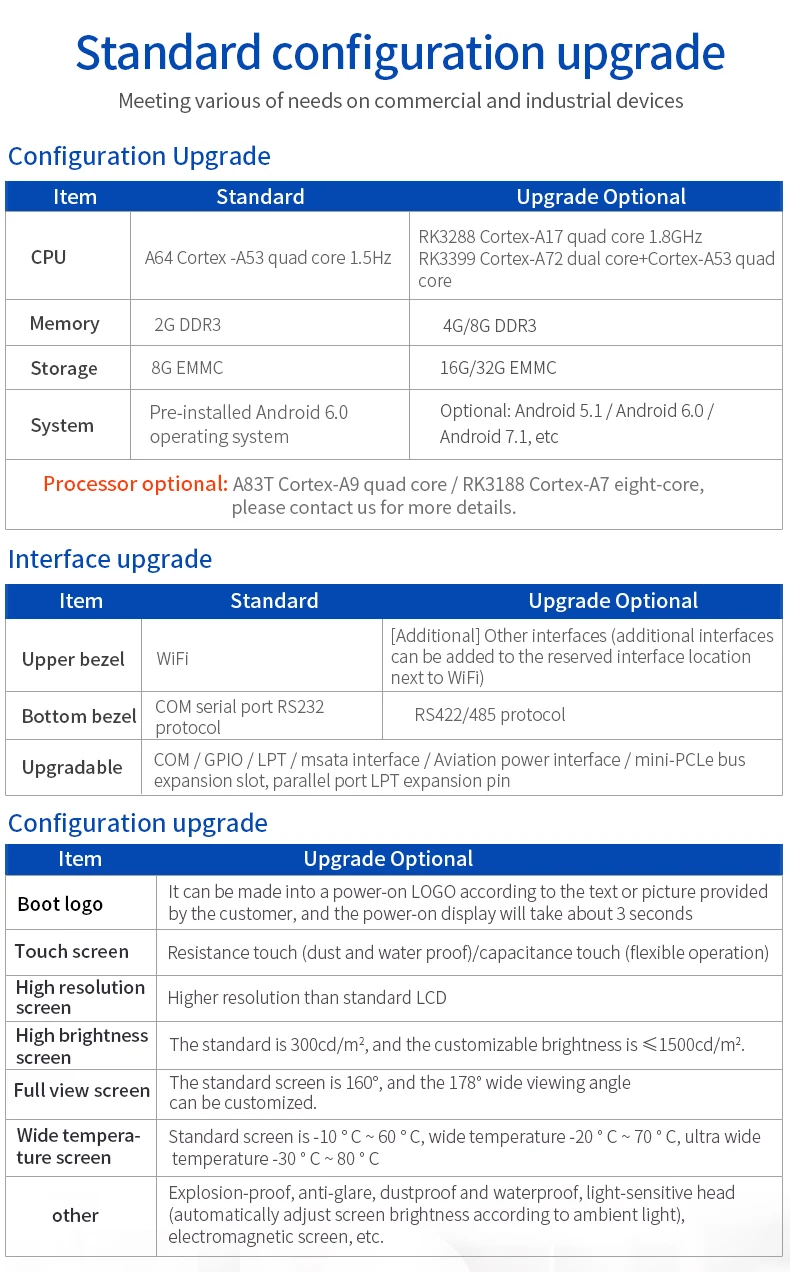

| Memory | 2G LPDDR3 (Optional:4G(RK3188/RK3288 CPU)) |
| Storage | 8G EMMC5.0 (Optional:16/32/64G(RK3188/RK3288 CPU)) |
| Network | 10/100Mbits Network; 3G; 4G; WIFI 2.4G Bluetooth4.0 support |
| OS | Android 6.0 |
| LCD Panel | |

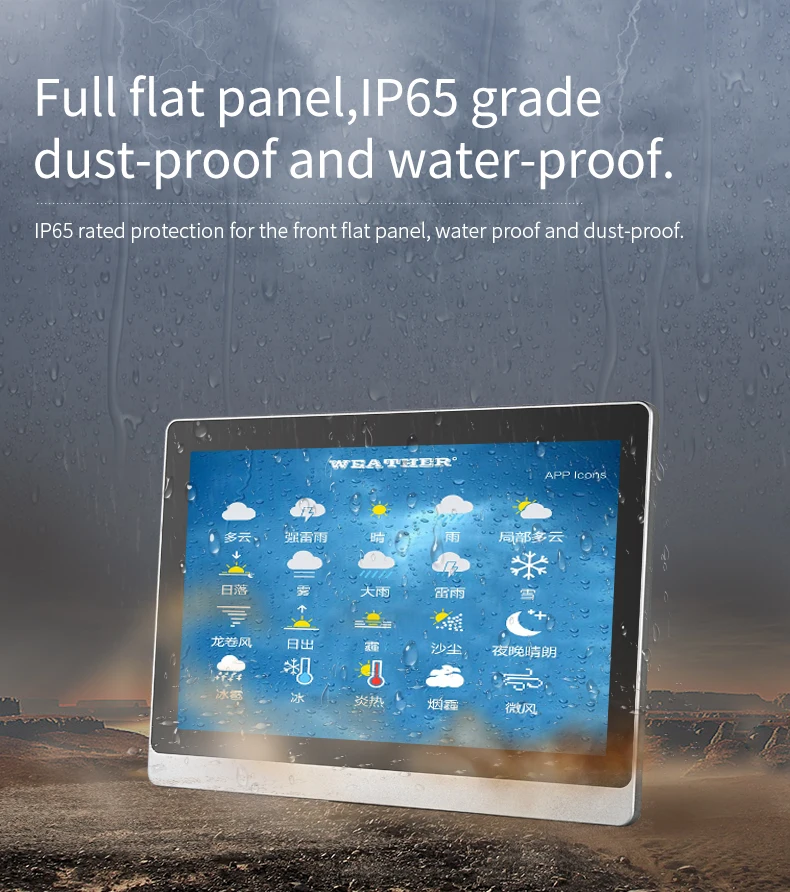

| IP Rating | IP65 Front/IP40 Back |
| Screen Diagonal | 10.1 |
| Display Active Screen Size(mm): | 223×125.2 |
| Aspect Ratio | 16:10 |
| Physical Resolution | 1280×800 |
| Colours Displayed | 16.7M |
| Brightness (cd/m²) | 400, Max Be Customized To 1500 |
| Contrast | 1000:01:00 |
| Dot Pitch(mm) | 0.264 |
| Typical Reaction Time (ms) | 5 |
| Visual Angle Horizontal/Vertical (°) | 160/160 (Optional: IPS) |
| Backlight / Backlight Lifetime (hours) | Led/50,000 |
| Transmittance Rate | ≤80% |
| Touch Panel | |

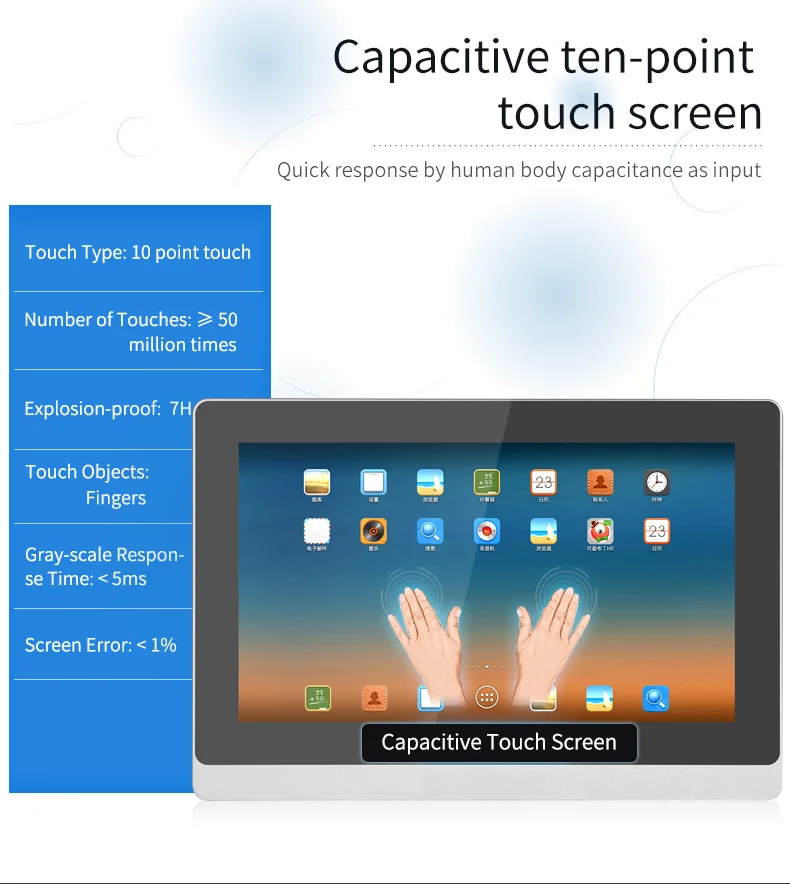

| Touch Technology | Capacitive 10-point Multi-touch |
| Touch Connector | USB |
| Touch Life (Contacts) | Capacitive≥50,000,000 |
| Surface Hardness | 6H |
| Touch Induction Intensity | 75g |
| Operation/Mechanical | |
| Operating Temperature | -10°~ 60° |
| Relative humidity(RH) | 0 ~ 65% (without condensation) |

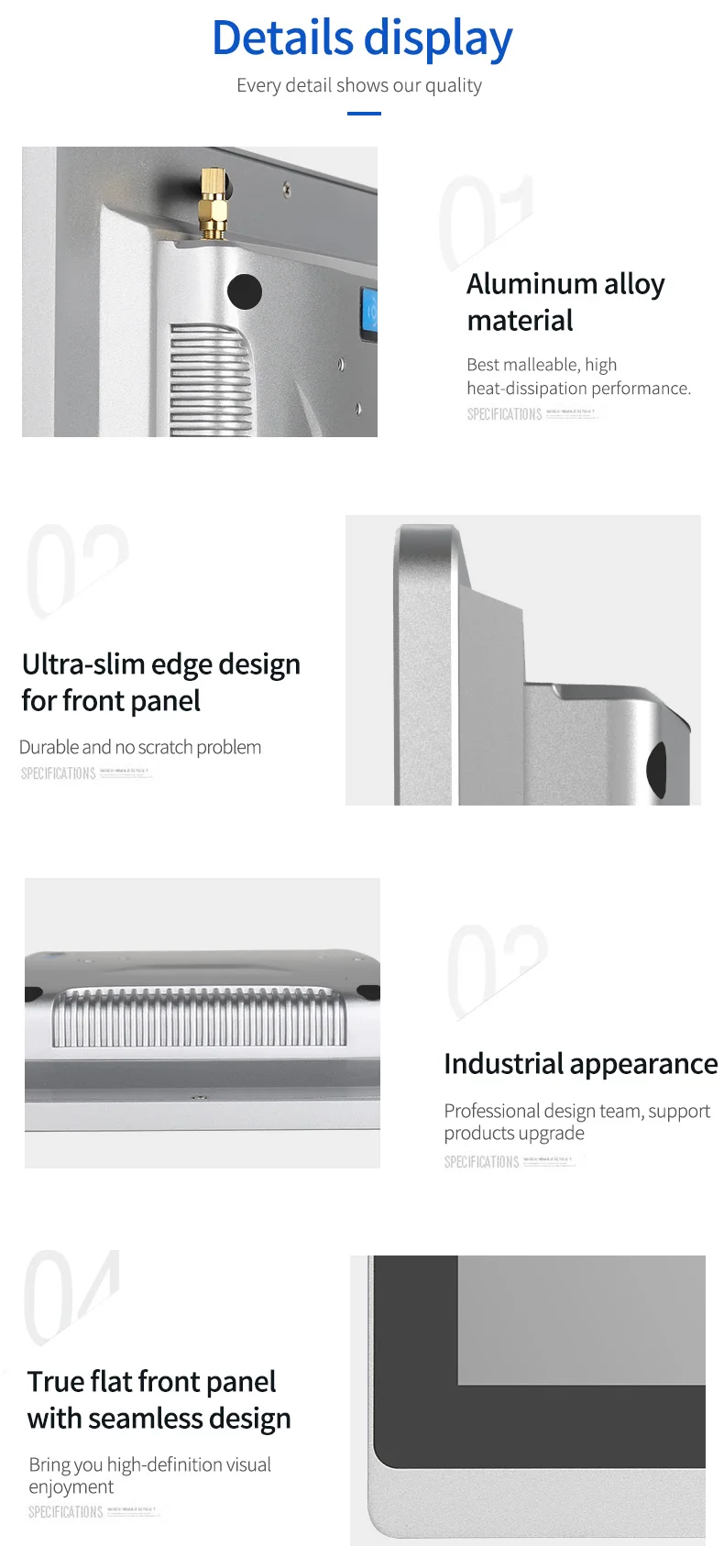

| Housing Material | Front with Brushed Aluminum |
| Back with Aluminum | |
| Housing (cm) Lx W x H | 261.4×185.4×51 |

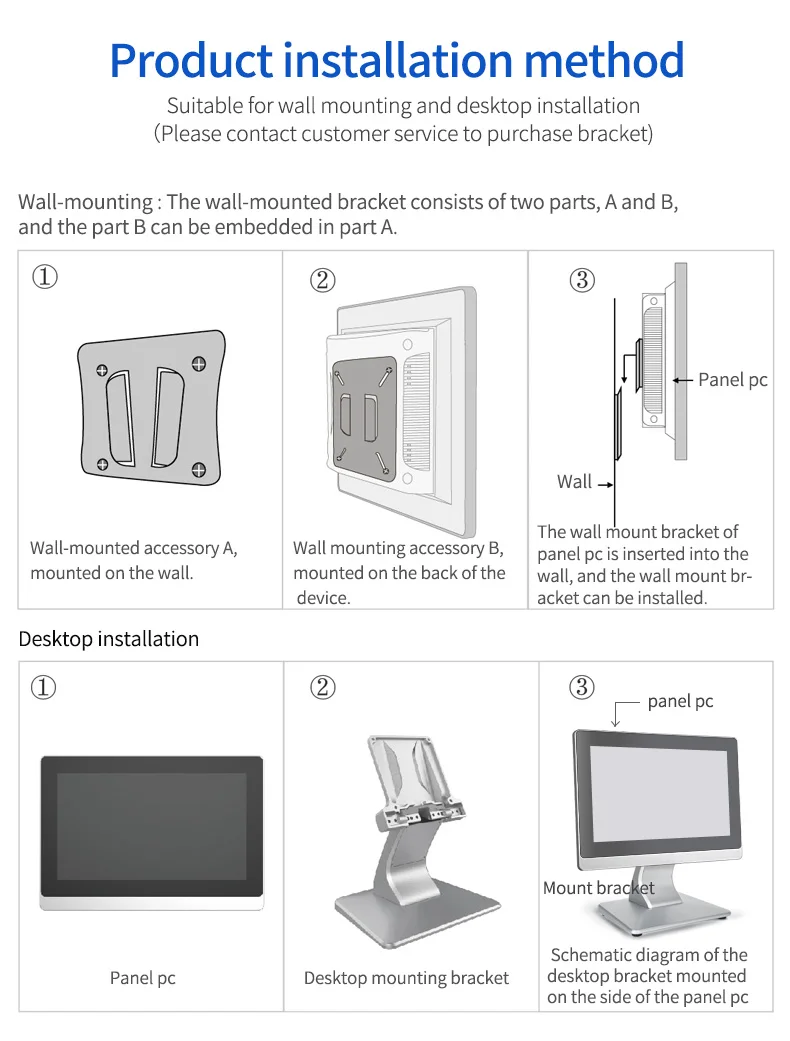

| Mounting | VESA75/VESA100 |
| Color | Black/Slivery |
| Power | |
| Power Supply | 100-240V 50-60HZ Active Switching; 12V – 2.5A DC-Out |
| Working Power | 12V-2.5A |
| Power Consumption | <12W |

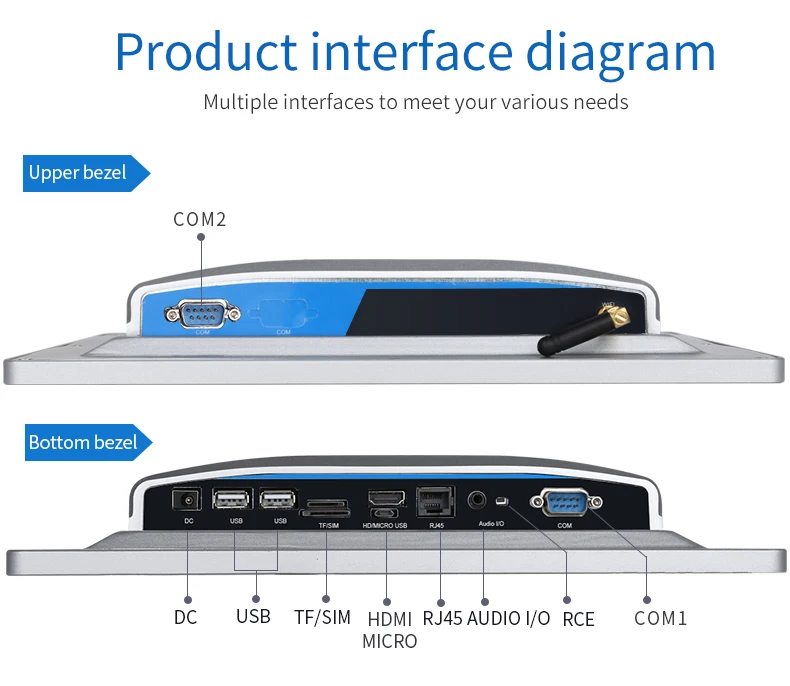

| External Connectors | |
| 2xUSB2.0 | |
| 1x DC 2.0 | |
| 1x HDMI (Support HDMI output, maximum support 1080P) | |
| 1x RJ-45 | |
| 1x Audio I/O | |
| 1x SIM Slot | |
| 1x TF | |
| 2x COM (Default RS232 Protocol, Can Change 422/485 Protocol) | |

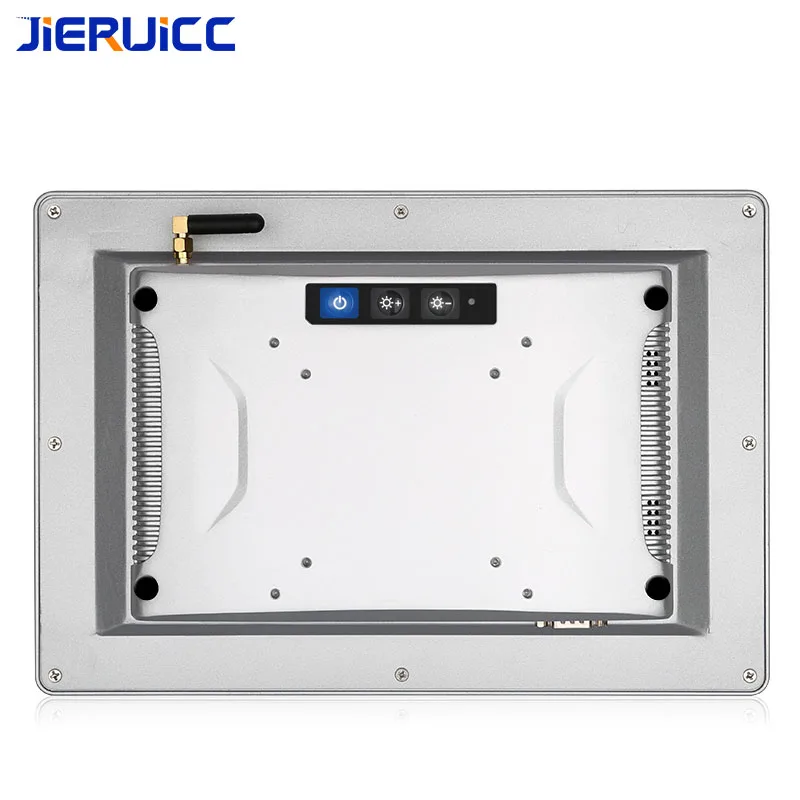

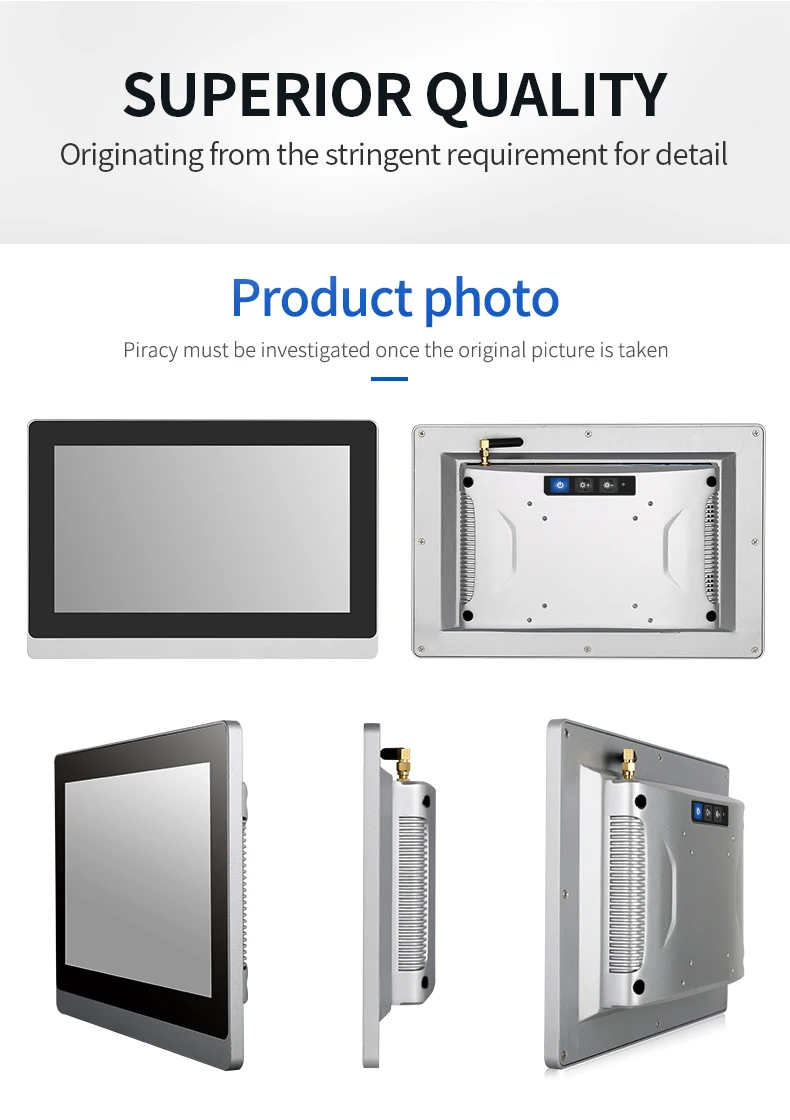

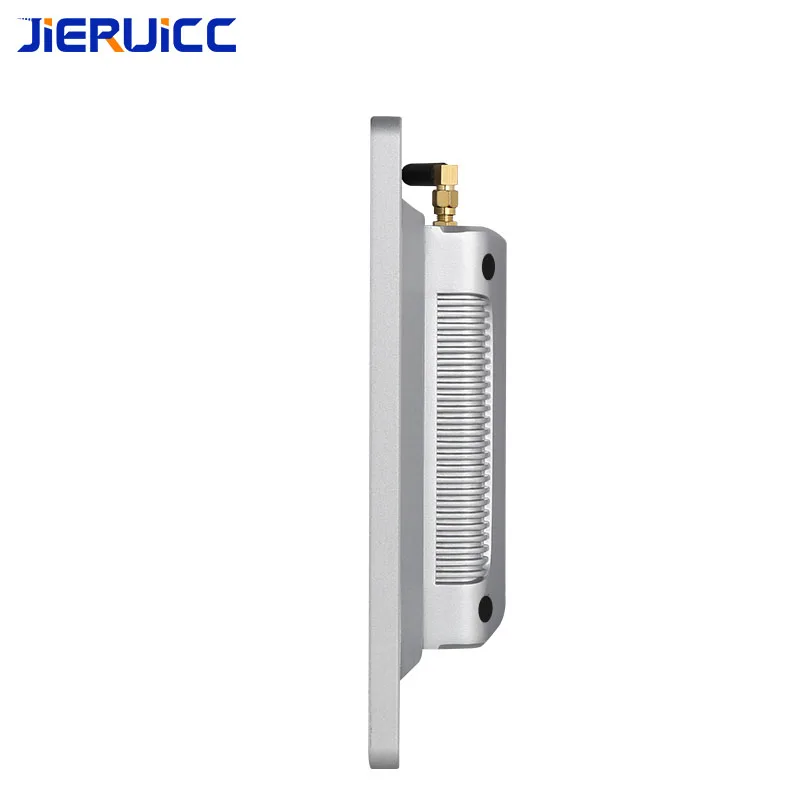

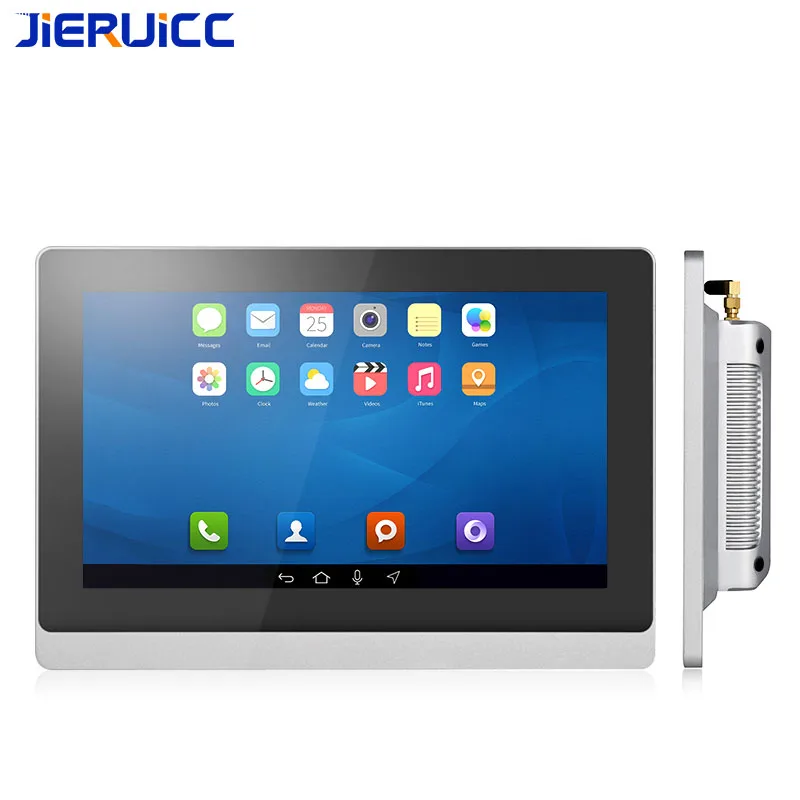

Products images
