Ultra compact vibration massage control panel
- Category: >>>
- Supplier: Shenzhen Liyan Modern Technology Co. Ltd.
Share on (62259741664):
Product Overview
Description
Overview
Quick Details
| Place of Origin | Guangdong,China(Mainland) | Brand Name | kenshap | |
| Model Number | LYXD-VBR001 | Usage |
Massage health care
|
|
| Input Voltage | DC 3.7V | Output | DC 3.0V | |
| Color | Brown | Motor length | 80mm | |
| Working Current | ≤800mA | Scan cycle | 500ms(Custmizable) |
Supply Ability
Supply Ability: 50000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details 500PCS/ctn
Port ShenZhen
Lead Time With 5 working days

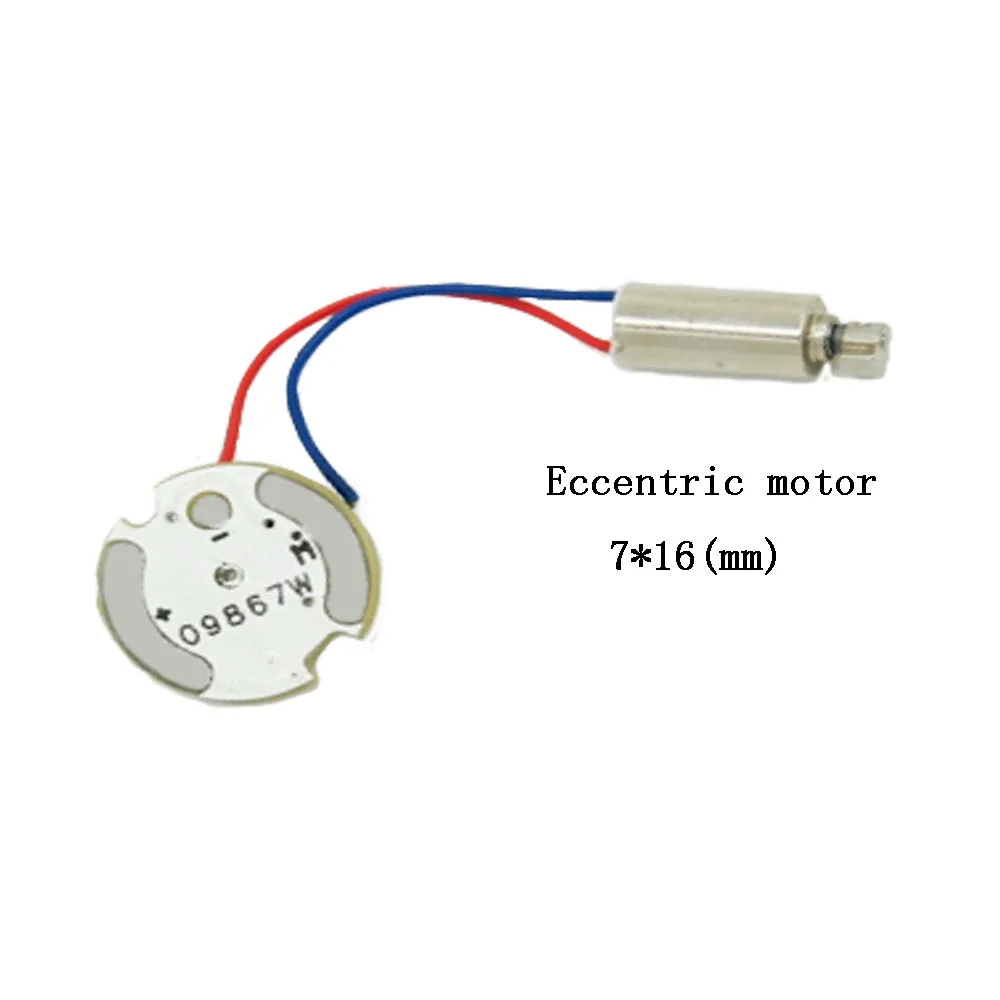

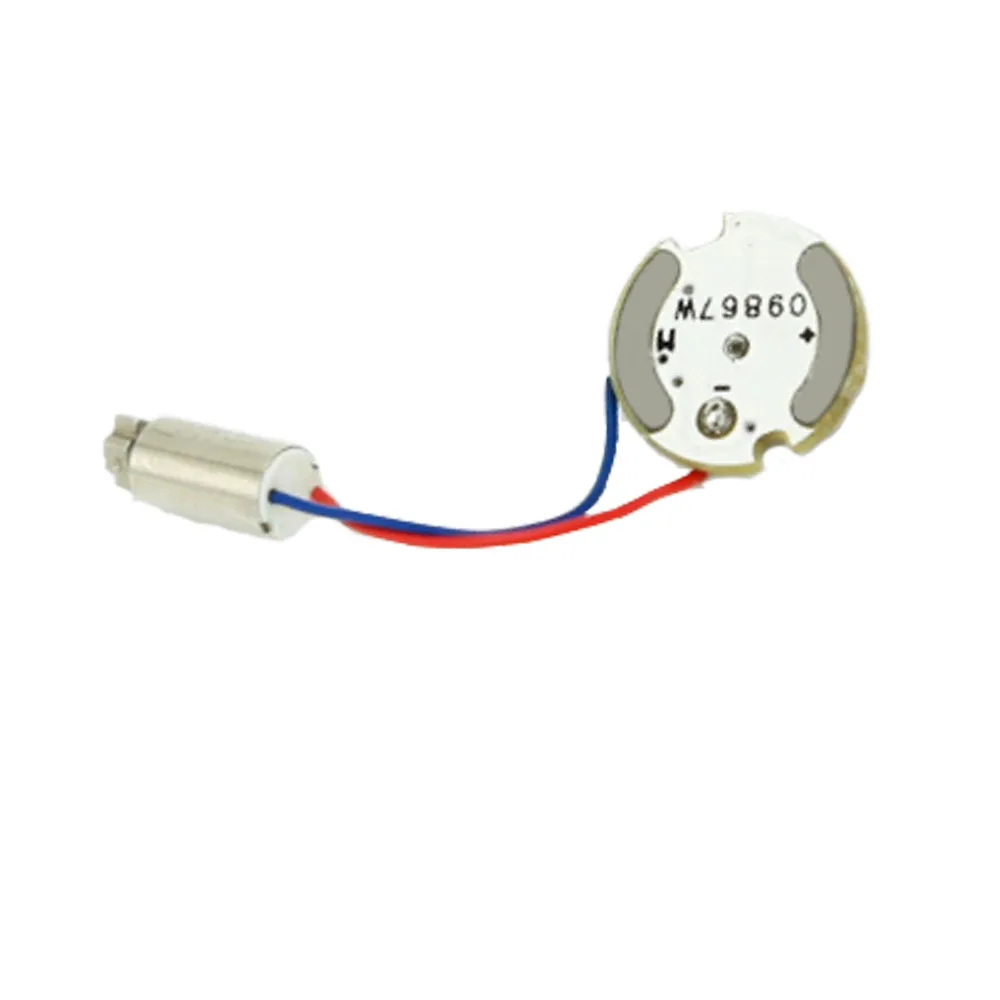

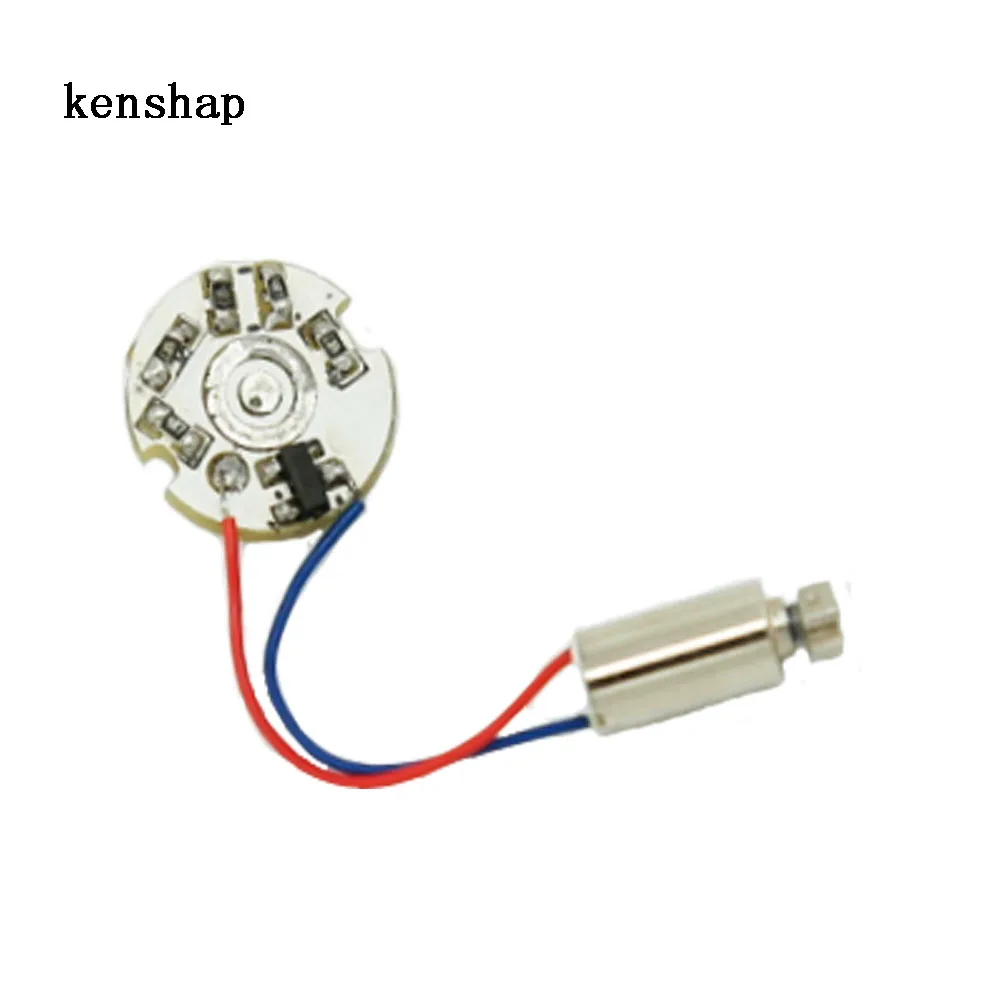

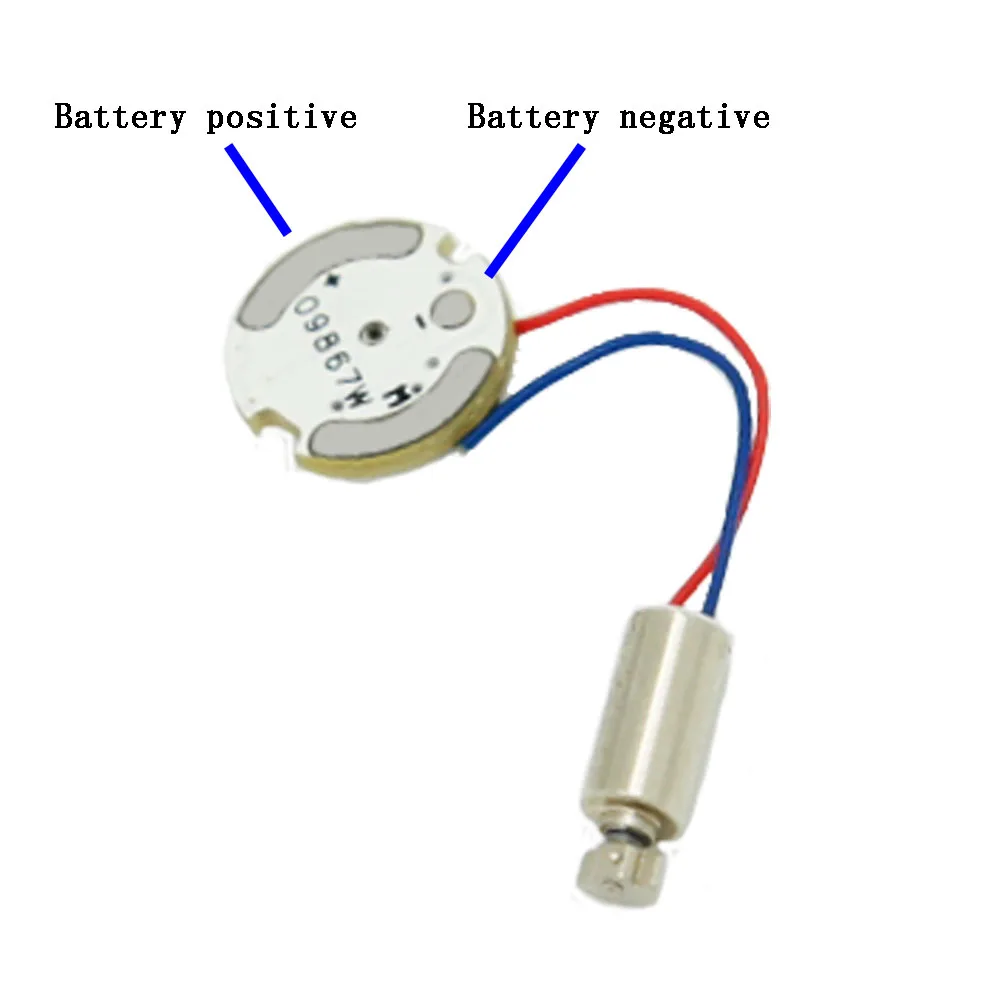

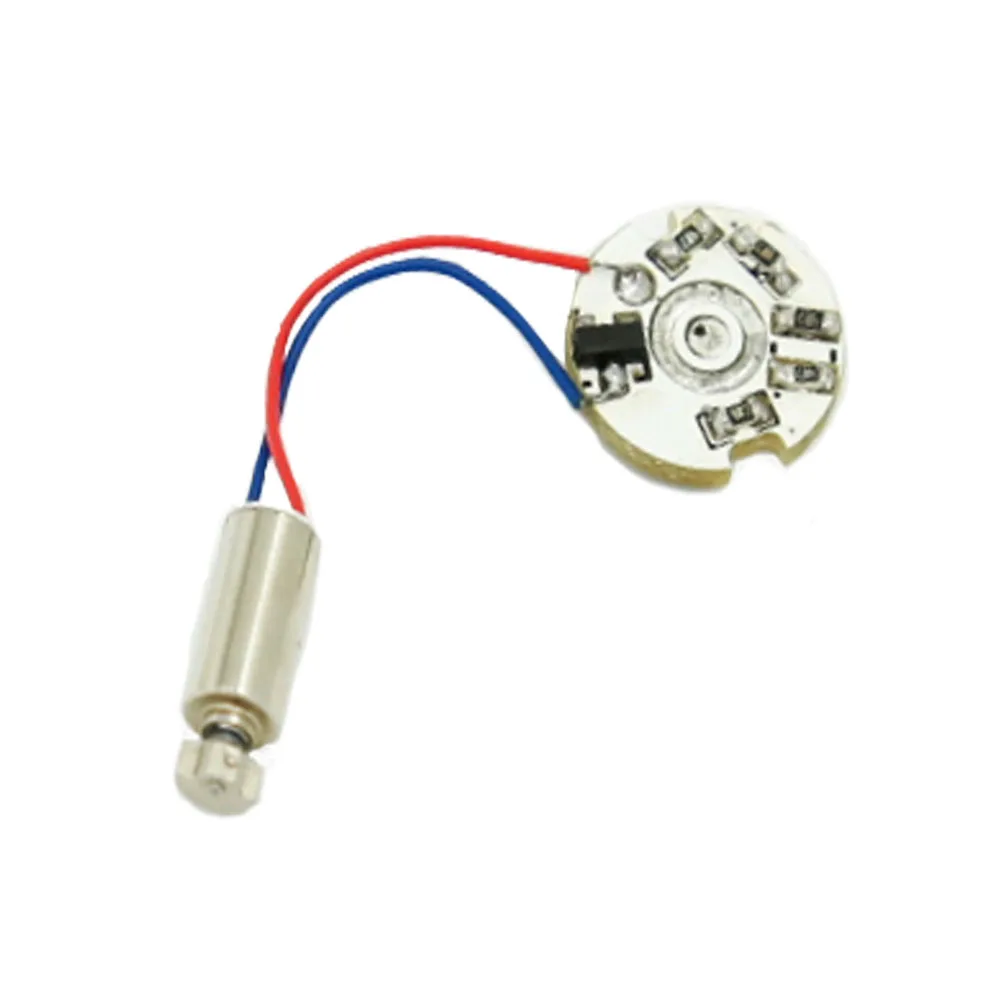

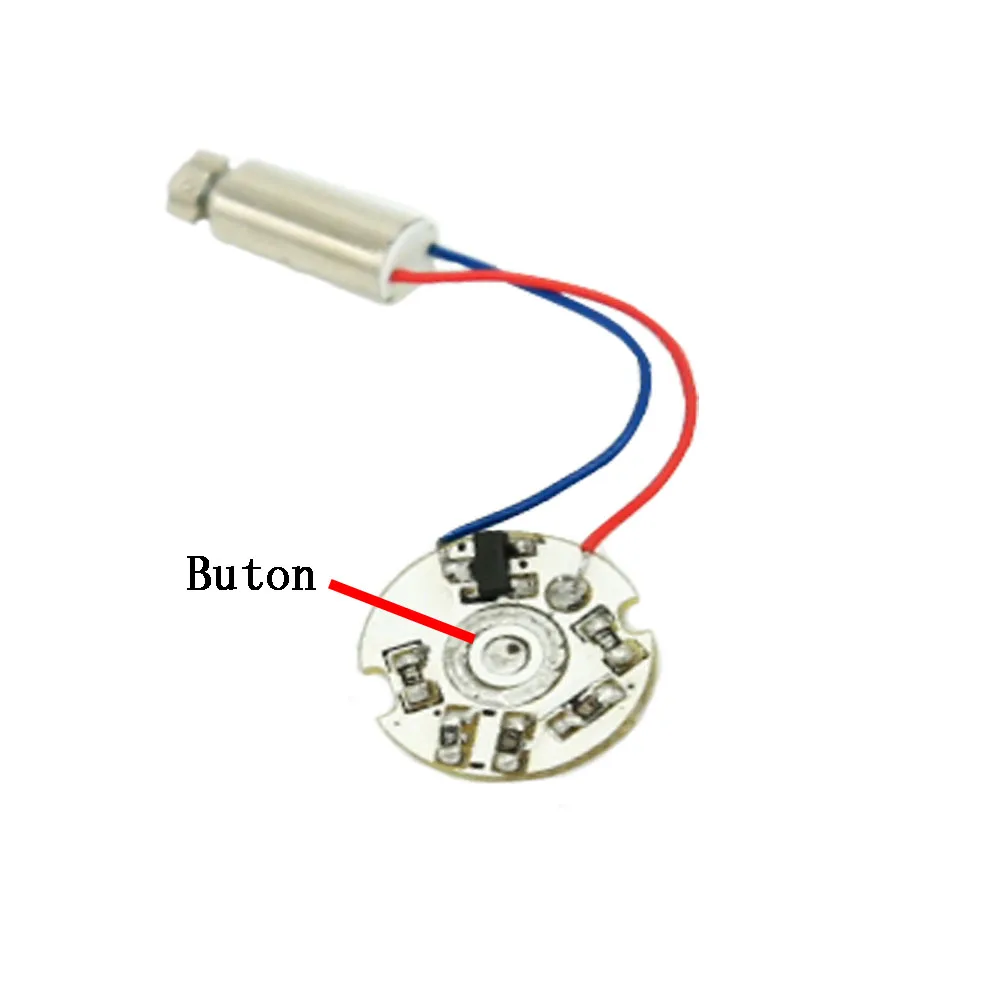

LYXD-VBR01 is a lithium battery powered ultra-micro motor control board, which can be used for adult erotic products, vibration massage products, health care products, etc.
Features:
1 One button
2 classic six mode
3 low, medium and high third gear strength
4 Lithium battery 3.7V
5 After induction,multiple output modes can be customized;
6 PCB board structure shape and module sensing scheme can be customized;
product description:
1/Single short press - mode selection
Short press once to start, work in the first mode, short press the second time, work to the second mode, and so on, short press the seventh time, shut down;
2/double-tap - intensity selection
The default is the low-grade intensity. The first press is switched to the mid-range intensity, the second press is converted to high-intensity, and the third connection is converted to low-grade strength.
The default is the low-grade intensity. The first press is switched to the mid-range intensity, the second press is converted to high-intensity, and the third connection is converted to low-grade strength.
Electrical parameters:
1\ Input voltage: DC3.7V;
2\ Output current: ≤800mA;
3\ Vibration angle: 360°;
4\ Working temperature: -20°-80°;
2\ Output current: ≤800mA;
3\ Vibration angle: 360°;
4\ Working temperature: -20°-80°;
control panel size:
1 Diameter: 15mm;
2 Maximum thickness: 3mm;
3 Motor cable length: 80mm;
1 Diameter: 15mm;
2 Maximum thickness: 3mm;
3 Motor cable length: 80mm;

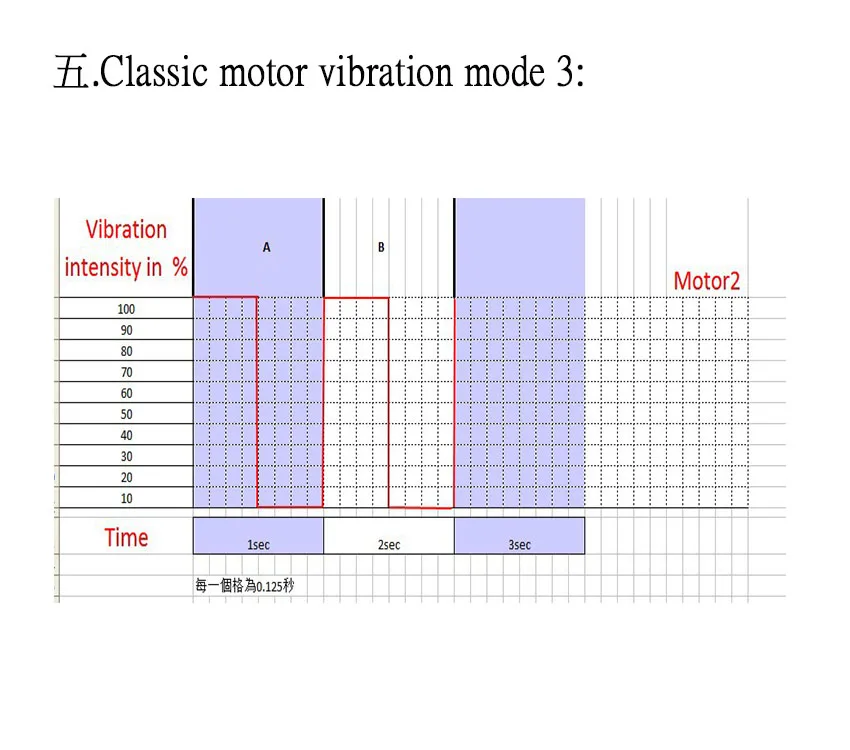

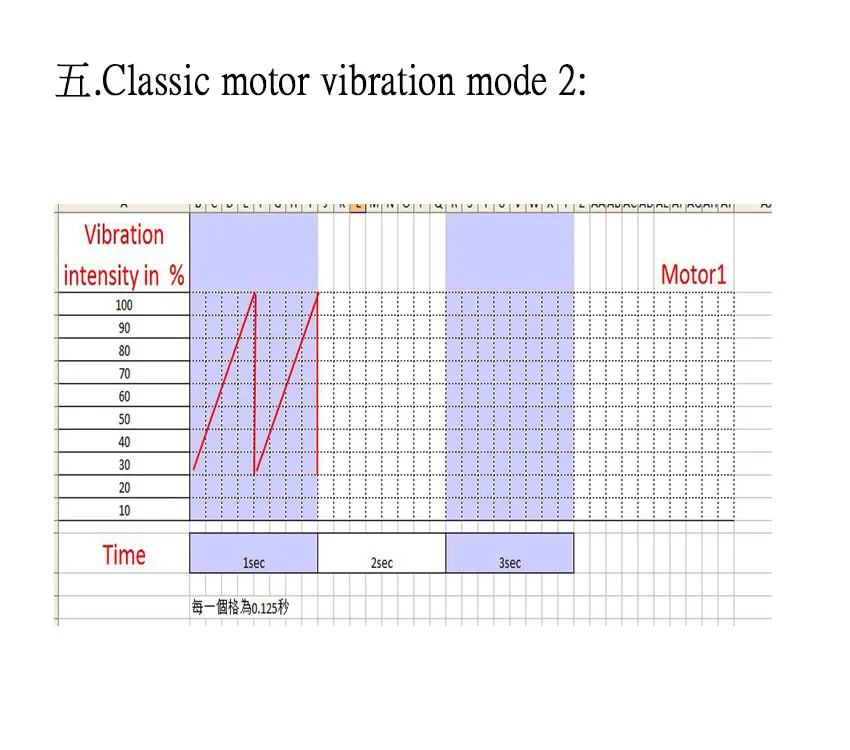

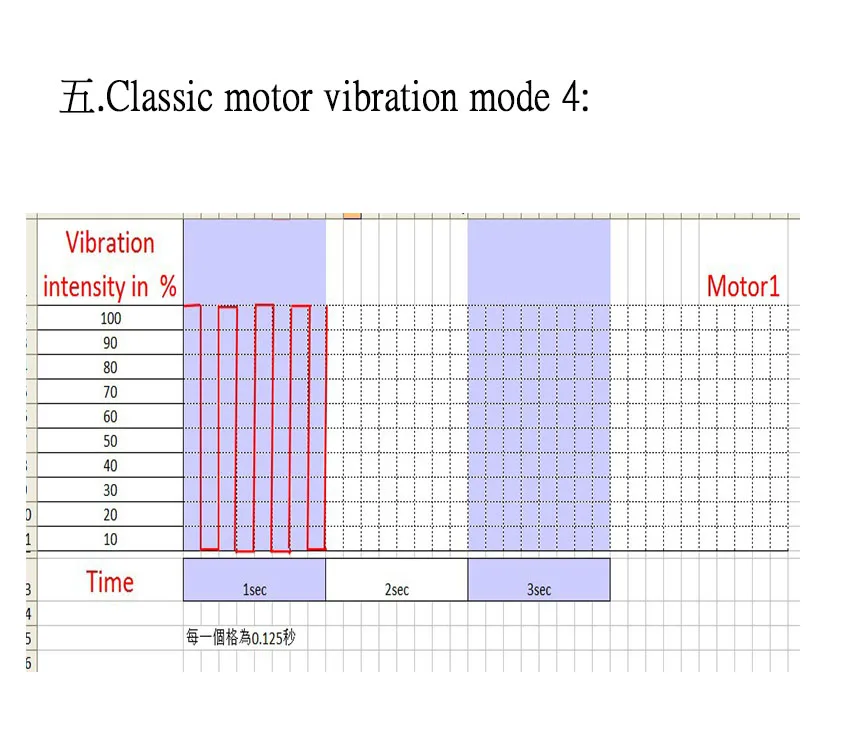

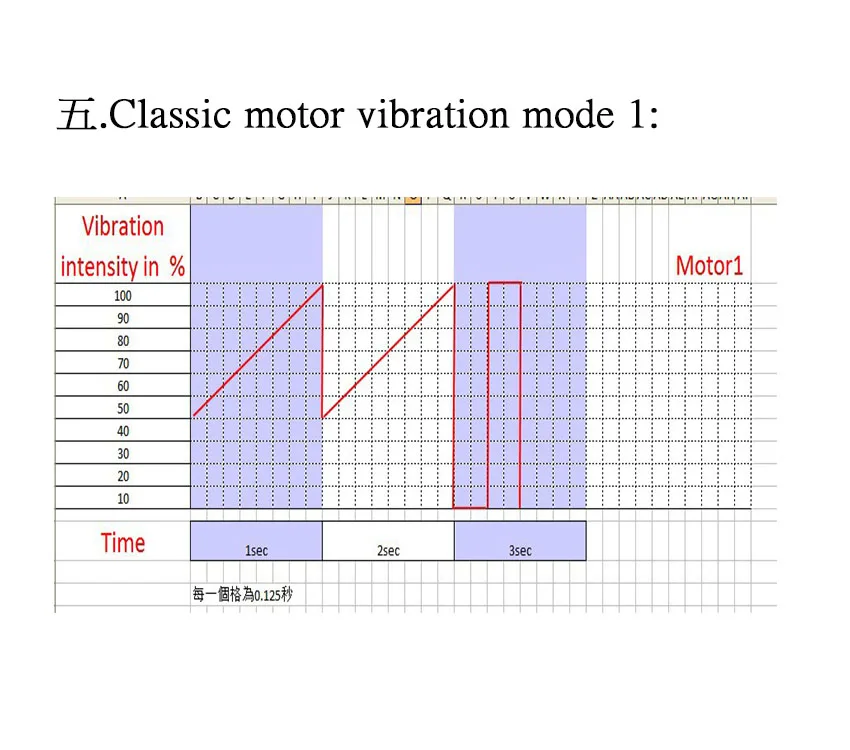

Six-mode vibration diagram:
