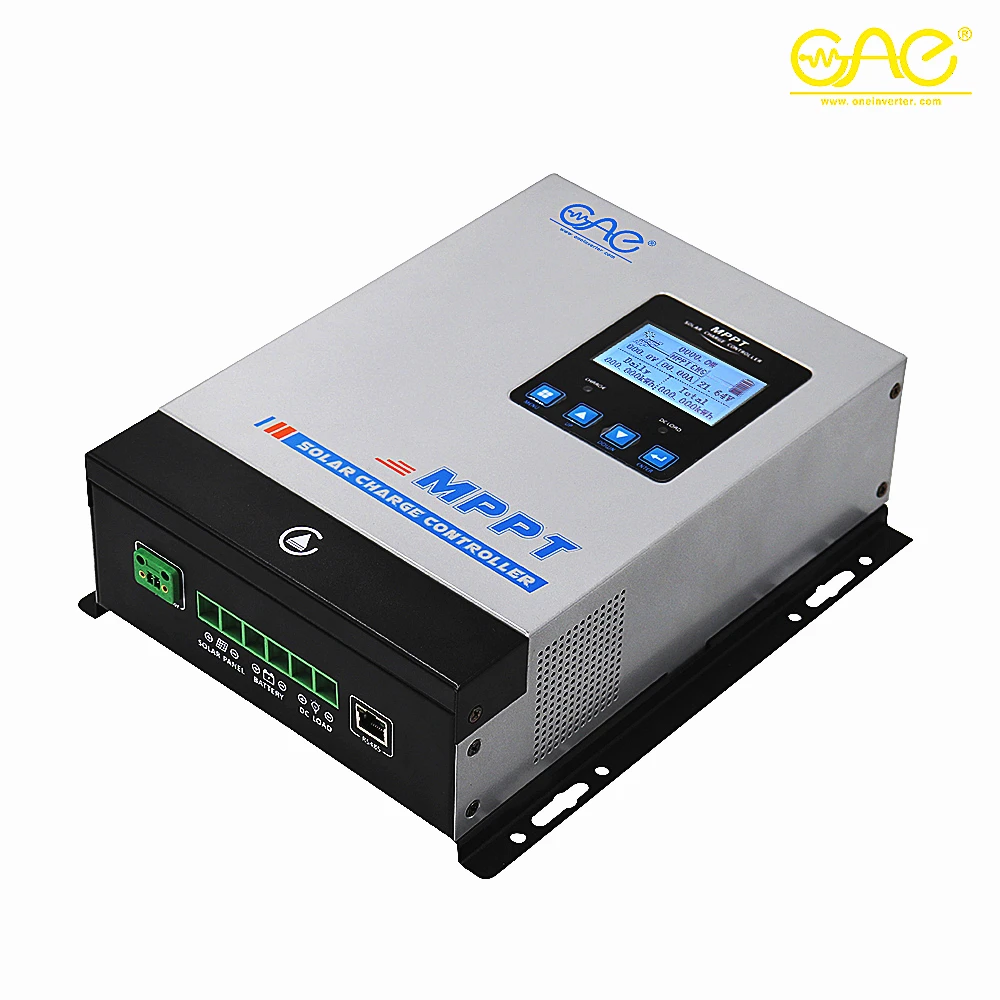

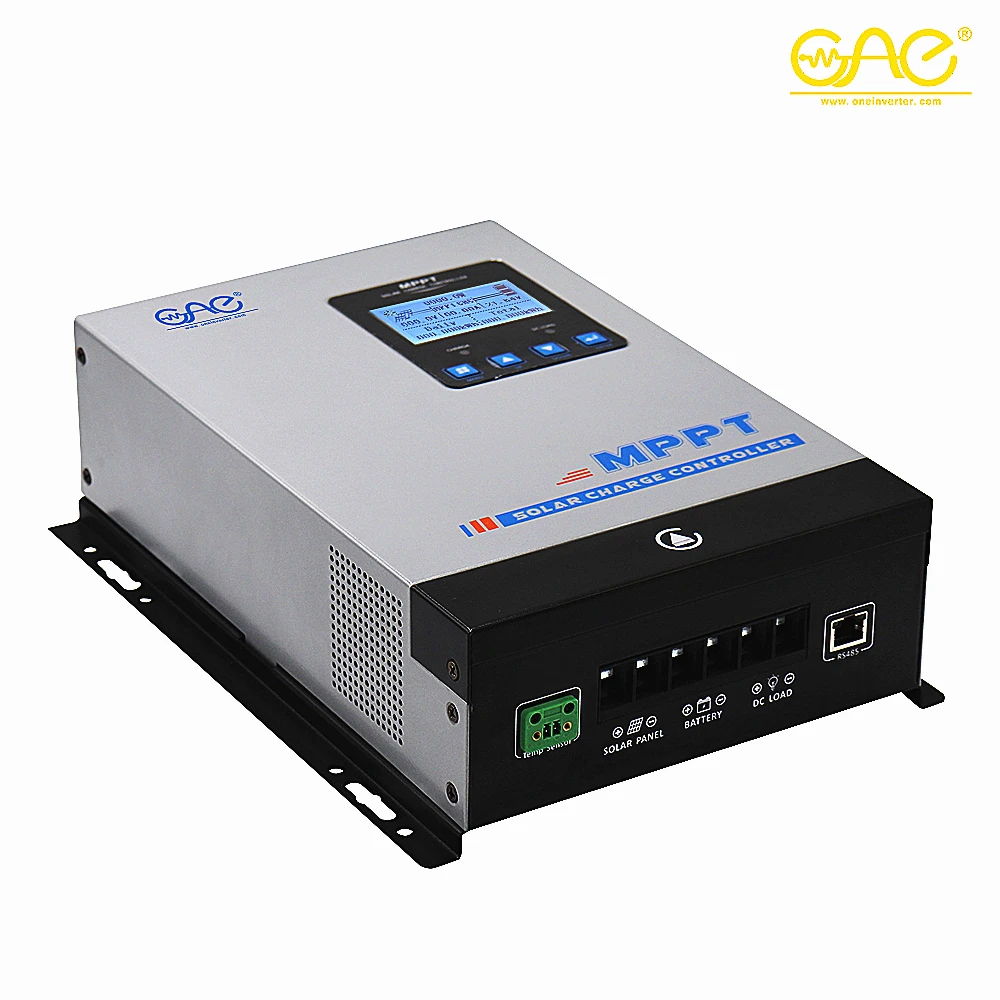

mppt tracer solar charger controller regulator 50A

Name: mppt tracer solar charger controller regulator 50A
SKU: 62259744115
Price: $75.00 - $78.00 USD
Availability: InStock

Price:$75.00 - $78.00

Quantity:

mppt tracer solar charger controller regulator 50A

AP series:

1. Capable of wifi remote control

2. Using advanced MPPT technology

3. High converting efficiency higher than 99% for minimizing energy loss.

4. Intelligent LCD&LED display. 5. Adopted advanced DSP microprocessor control technology

6.Capable of parallel in output,to expand capacity easily.

7.Reversed current protection at night, over voltage and reverse polarity protection.

8.Capable to selecting dirrent charging mode for various types of batteries.

9.Range from 20A to 120A.

Product Description

AP2 (1).jpg AP2 (2).jpg AP2 (3).jpg AP2 (4).jpg AP2 (5).jpg AP2 (6).jpg

Details data sheet

MODEL		AP-20	AP-30	AP-40	AP-50	AP-60	AP-80A	AP-100	AP-120
RATED CURRENT		20A	30A	40A	50A	60A	80A	100A	120A
MAXIMUM CHARGING CURRENT		22A	32A	42A	52A	62A	82A	102A	122A
MPPT RANGE OPERATING VOLTAGE	12V SYSTEM	18VDC~80VDC
	24V SYSTEM	30VDC~100VDC
	36V SYSTEM	40VDC~100VDC
	48V SYSTEM	60VDC~150VDC
	96V SYSTEM					120VDC~200VDC
MAXIMUM PV ARRAY POWER	12V SYSTEM	280W	420W	570W	700W	900W	1140W	1400W	1800W
	24V SYSTEM	550W	840W	1130W	1400W	1700W	2260W	2800W	3400W
	36V SYSTEM	840W	1260W	1710W	2100W	2700W	3420W	4200W	5400W
	48V SYSTEM	1100W	1650W	2270W	2800W	3400W	4540W	5600W	6800W
	96V SYSTEM					7200W	9120W	11200W	14400W
SUPPORTABLE BATTERY TYPE		SEALED LEAD ACID/GEL/NICAL/LIFEPO4 LITHIUM BATTERY
CHARGING MODE		THREE STAGES: CONSTAND CURRENT(MPPT),EQUALIZING CHARGE, FLOATING CHARGE
MAXIMUM EFFICIENCY		≥99%
COMMUNICATION		RS485
CARTON SIZE		*315235150MM*			*355270135MM*			*570360200*
G.W.		3.5KGS			4.5KGS			13KGS
*PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT FURTHER NOTICE
