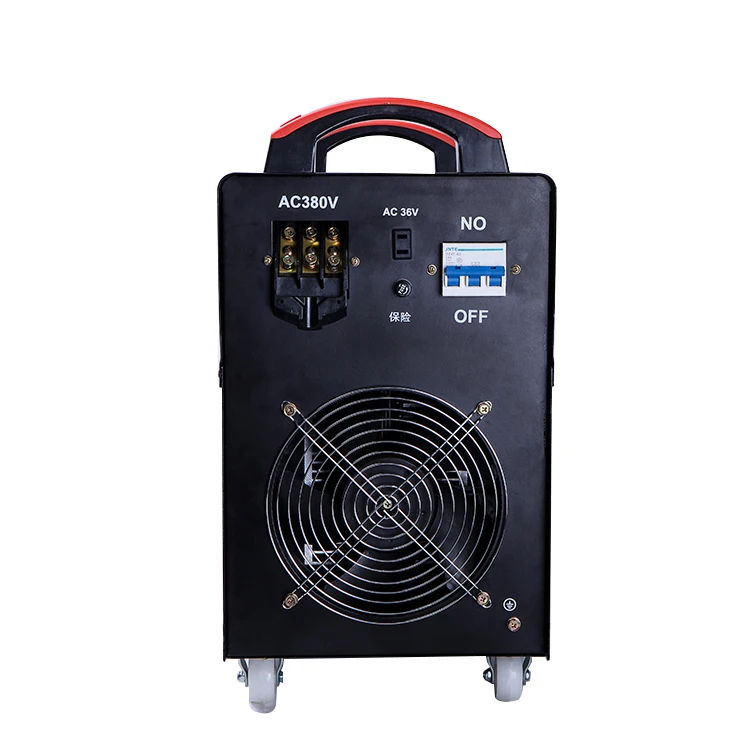

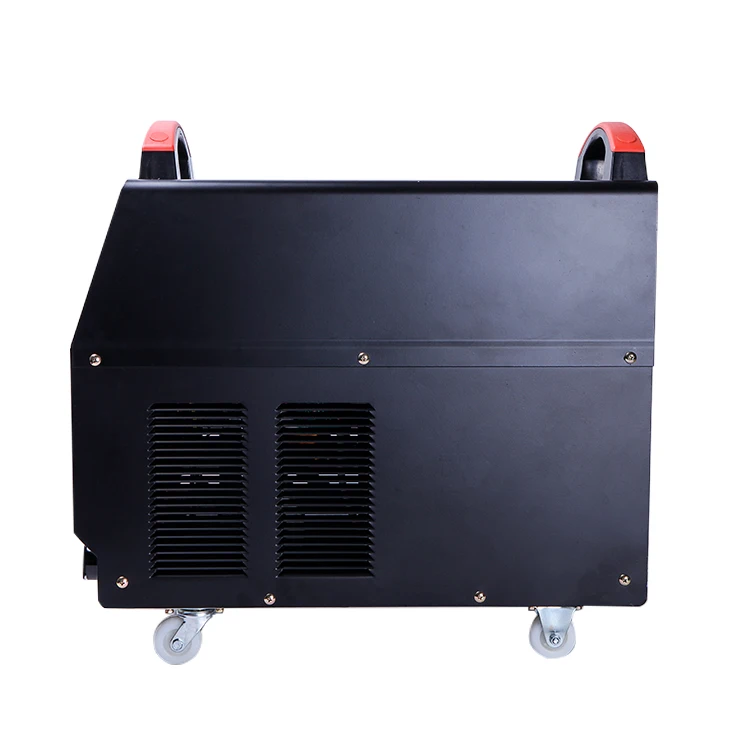

NO.1 AOTOP professional MIG MAG welder full accessories
- Category: >>>
- Supplier: Taizhou Aotuo Machinery & Electric Co. Ltd.
Share on (62259790177):
Product Overview
Description
Product Description
| Model | NBC-350 | NBC-500 | ||
| MMA | MIG | MMA | MIG | |
| Power Supply Voltage(V) | 3Phase 380V | 3Phase 380V | 3Phase 380V | 3Phase 380V |
| Frequency(HZ) | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
| Rated Input Current AA) | 25.8 | 25.4 | 31.8 | 31.2 |
| Adjust Current(Z) | 70-350 | 30-350 | 70-500 | 30-500 |
| Input Voltage(V) | 22.8-34 | 16.5-31.5 | 22.8-40 | 16.539 |
| Non Load Voltage(V) | 56 | 56 | 56 | 56 |
| Duty Cycle(%) | 60 | 60 | 60 | 60 |
| Power Factor | 0.93 | 0.93 | ||
| Effciency(%) | 85 | 85 | ||
| Class Of Insulation | F | F | ||
| Protection Class Of Case | IP23 | IP23 | ||
| Load Loss(W) | 160 | 160 | ||
| Wire feeding form | Split | Split | ||
| Wire Feeding Speed(m/min) | 3-16 | 3-16 | ||
| Post-Blowing Time(S) | 1.0-0.5 | 1.0-0.5 | ||
| Electrode Diameter(MM) | 1.0/1.2/1.6 | 1.0/1.2/1.6 | ||
| Plate Thickness(MM) | Above 0.8 | Above 0.8 | ||
| Weight(KG) | 24.4 | 26 | ||
| Machine Size(MM) | 600*300*590 | 600*300*590 | ||
| Packing Size(MM) | 610*310*600 | 610*310*600 | ||
