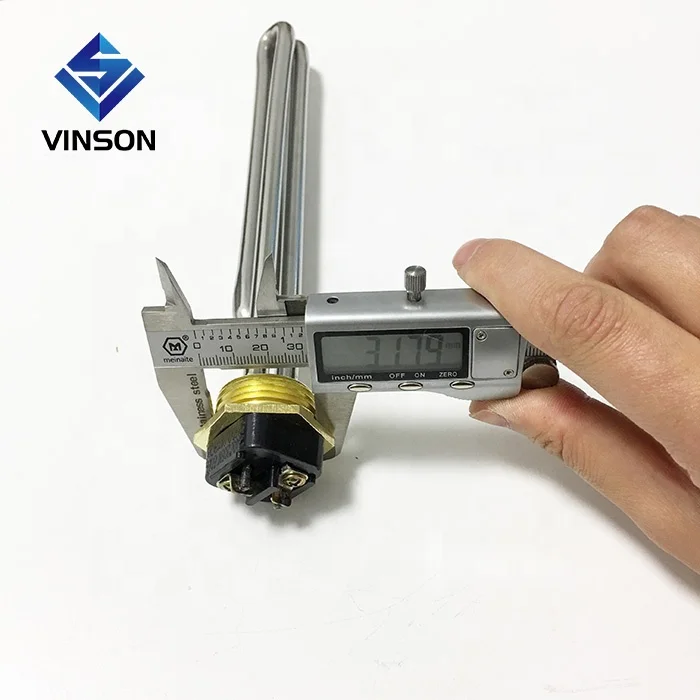

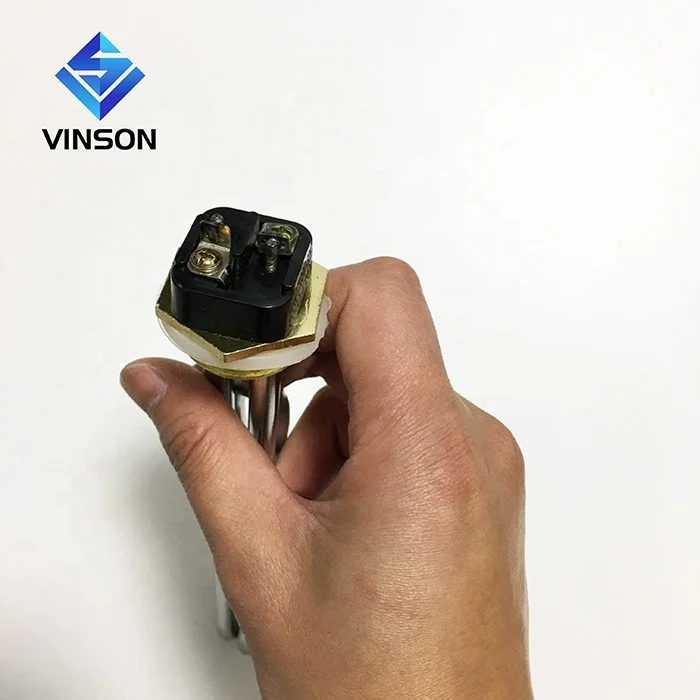

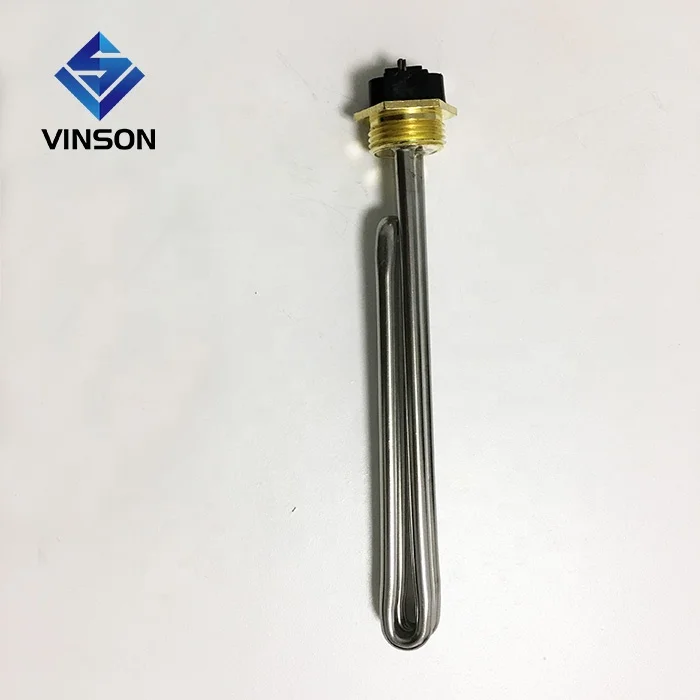

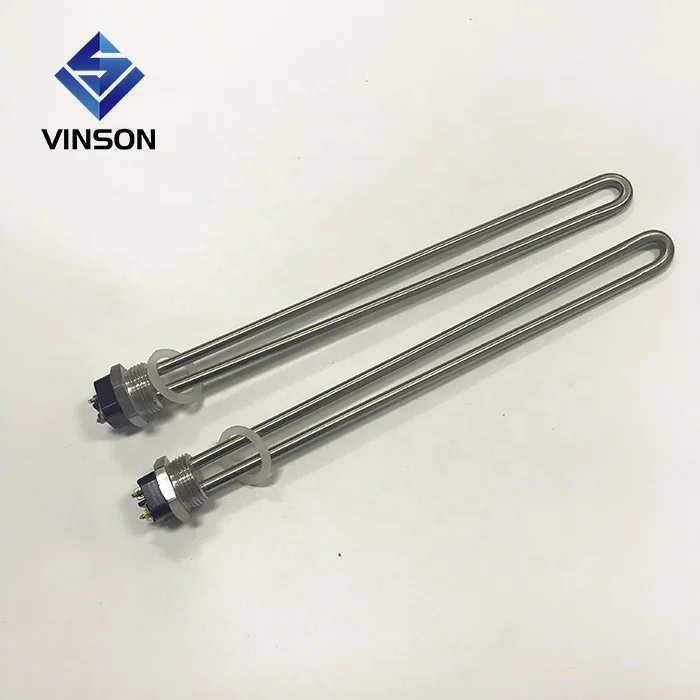

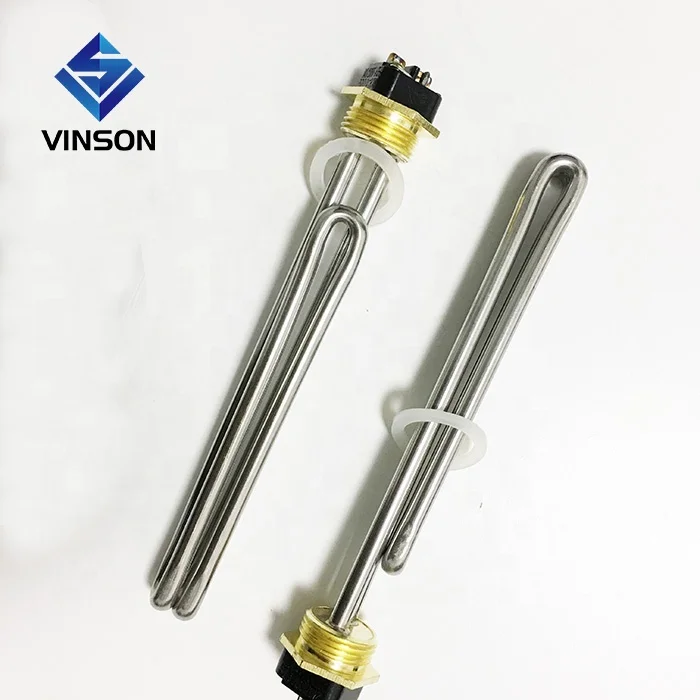

Electric water heater 12 volt 300W 600 watt hot water immersion heating element
- Category: >>>
- Supplier: Yancheng Vinson Technology Co. Ltd.
Share on (62259806759):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct details \t\t\t\t\t\t\t
Flange heaters are made using hairpin or bugle type tubular elements using incoloy sheathed elements that
are welded or silver-brazed into a pipe or steel flange. Perfectly designed to be mounted in tanks and pressurized vessels, Vinson flange heaters are used for heating liquid mediums or other specific types of liquids, and for heating gases (water, oil, heat transfer fluid, and corrosive solutions).
Applications.
•\tHot Water Storage Tanks
•\tWarming Equipment
•\tPreheating All Grades of Oil
•\tFood Processing Equipment
•\tCleaning and Rinsing Tanks
•\tHeat Transfer Systems
•\tProcess Air Equipment
•\tBoiler Equipment
•\tFreeze Protection of Any Fluid
Features | ||
Materials | Copper, steel, 316, 321, 347 stainless steel, INCONEL and more | |
Number Elements in Flanges | 3, 6, 12,18, 27, 36 and 45 | |
Element Diameter | 8mm, 10mm, 12mm or customzied | |
Watt Density | 6.5, 15, 23, 45 and 75W/In2 | |
Immersion Lengths | up to 240 inches | |
Please consider the following factors in order to select the proper flange heater:
• Flange size and pressures
• Heating element watt density
• Length of your tank
• Sheath material (corrosive or non corrosive)
Temperature of the corrodent
Degree of aeration of exposed corrodent
Velocity of the corrodent
The following sections will help you select the best flange heater that will meet the requirements of your application.
SELECTING YOUR VINSON FLANGE HEATER
APPLICATIONS | SHEATH MATERIAL | FLANGE MATERIAL |
Clean water, Freeze protection, Hot water storage,Boiler and water heaters, Cooling towers, Solutions not corrosive to copper | Copper | Steel |
Hot water , Steam boilers, Mildly corrosive solutions (in rinse tanks, spray washers) | Incoloy | Steel |
Oils, Gases, Mildly corrosive liquids,Stagnant or heavy oils, High temperature, low flow gas heating | Steel | Steel |
Process water, Soap and detergent solutions,Soluble cutting oils, Demineralized or deionized water | Stainless | Steel |
Mildly corrosive solutions | Stainless | Stainless |
Severe corrosive solutions, Demineralized water | Incoloy | Stainless |
Light oil, Medium oil | Steel | Steel |
Food equipment, Food equipment with cutout | Incoloy | Stainless |
Certifications
Detailed Image
Order Guidance
The key questions which need to be answered before selecting a tubular heating element are:
1.What wattage and voltage will be used?
2.What is the diameter and heated length required?
3.What's the heating medium? Water or Oil heating?
4.What is thread flange size?
Related Products
Loop igniter for stove
Tubular heater with thermostat
Cartridge heater
Packing & Delivery
Packaging | ||
Size | 40(L) * 28 (W) * 28 (D) | |
Weight | 20KG of Electric water heater 12 volt 300W 600 watt hot water immersion heating element | |
Packaging Details | The normal package is Carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
\t\t\t\t\t\t\t\t\tOur Factory \t\t\t\t\t\t\t
Yancheng Vinson Technology Co., Ltd was established in 2001 and has about 20 years' production history. We have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development.
"Quality is in my hand, Customer is in my heart" Quality is our culture, Our products have been exported to Europe, America, Asia, Mid East etc more than 200 countries. We are extensively used in electric heating and other industries. We hope our products and services can benefit your company, and our cooperation can be mutually beneficial win-win situation.
