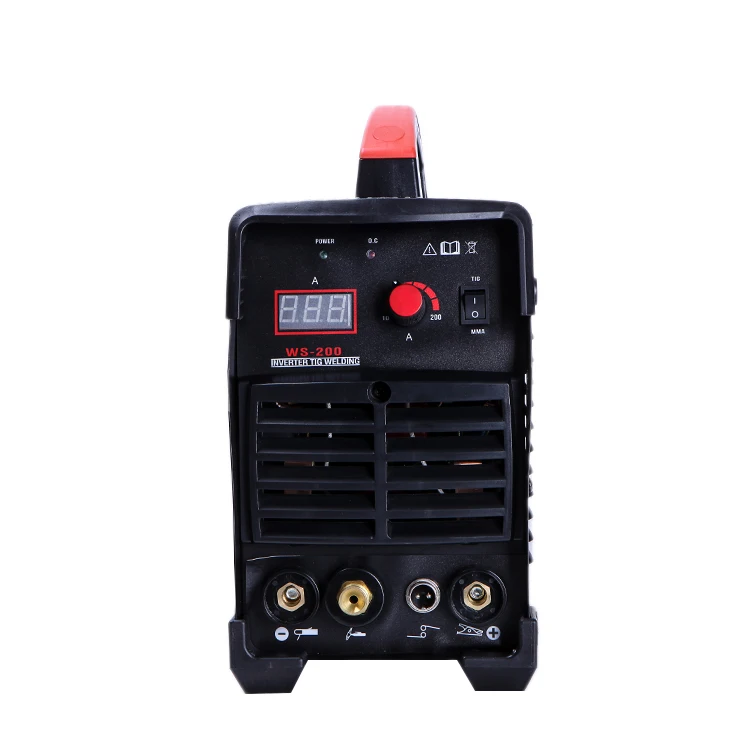

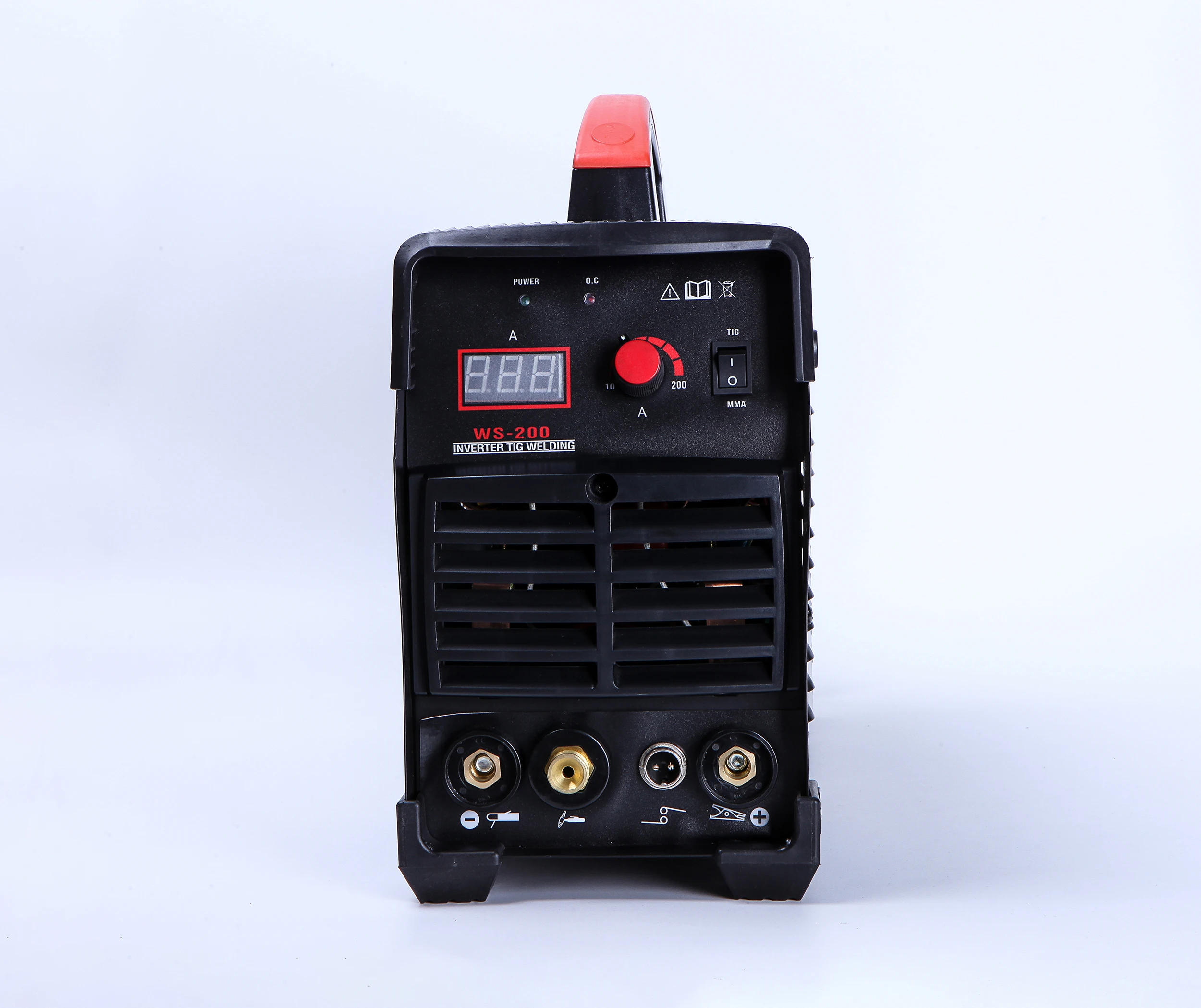

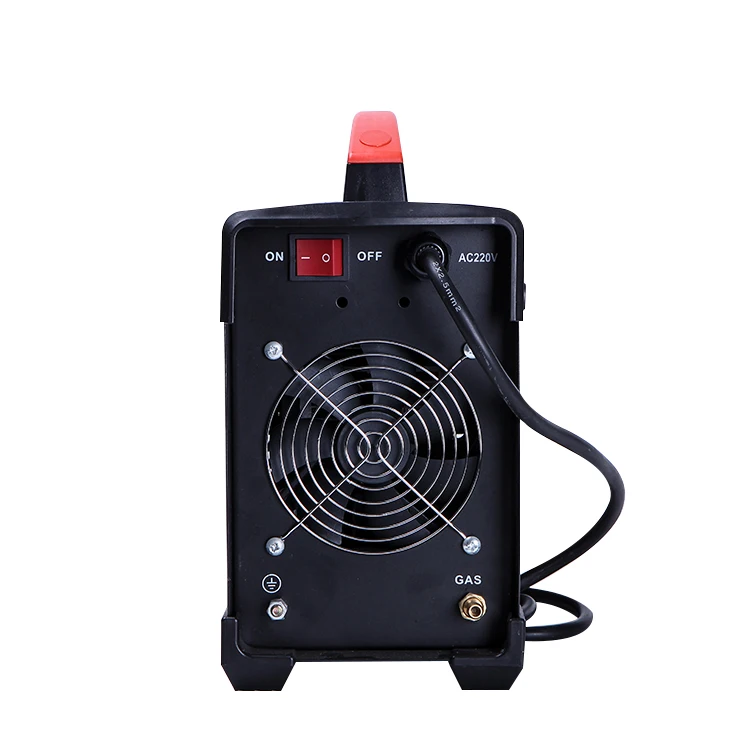

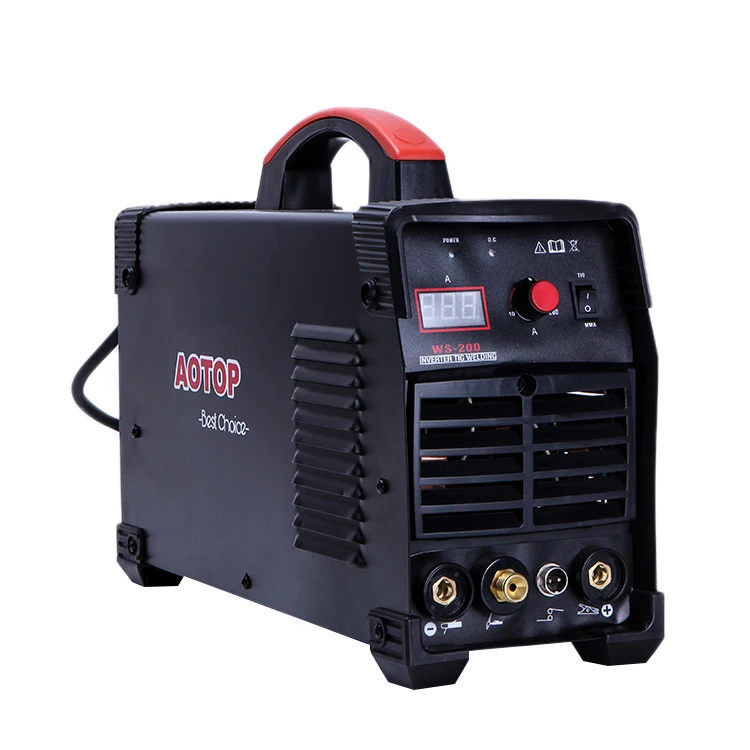

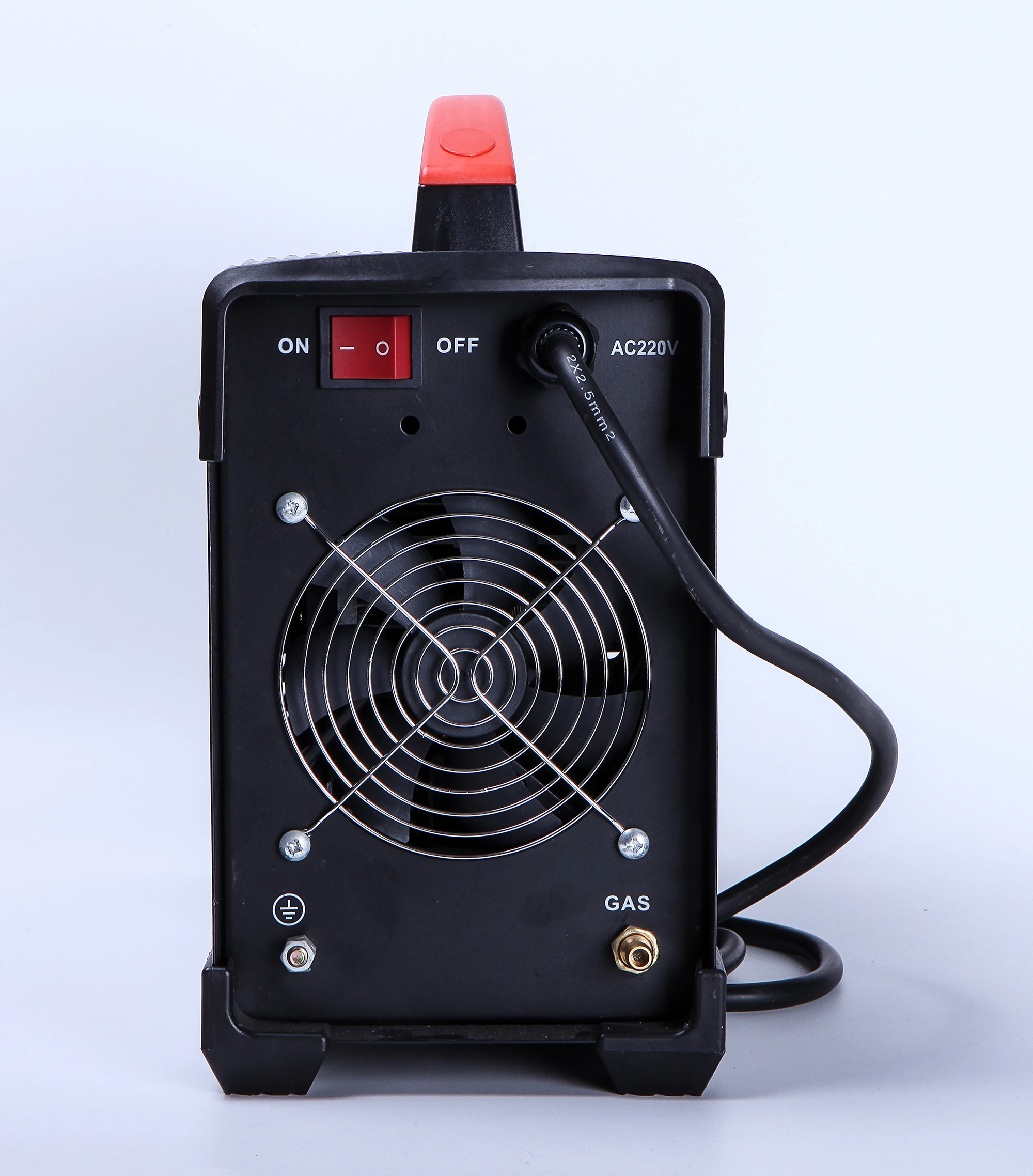

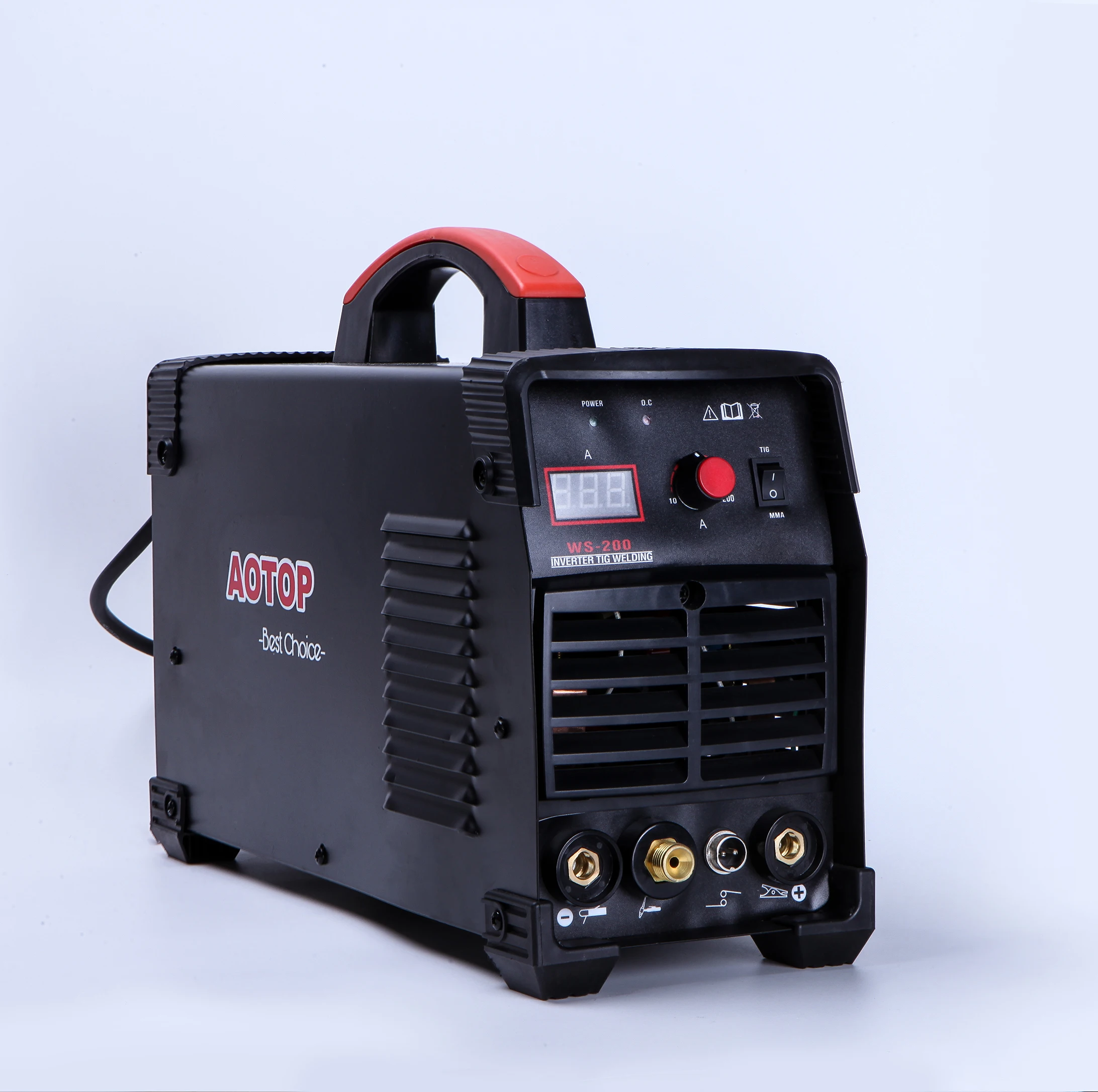

NO.1 AOTOP single phase MMA TIG argon gas welder
- Category: Arc Welders >>>
- Supplier: Taizhou Aotuo Machinery & Electric Co. Ltd.
Share on (62259845385):
Product Overview
Description
Product Description
| Model | WS-200 | WS-250 | ||
| MMA | TIG | MMA | TIG | |
| Power Supply Voltage(V) | AC-220V | AC-220V | AC-220V | AC-220V |
| Frequency(HZ) | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ | 50HZ/60HZ |
| Rated Input Current (A) | 32 | 25 | 44 | 31.5 |
| Adjust Current(Z) | 10-200 | 10-200 | 10-250 | 10-250 |
| Input Voltage(V) | 20.4-28 | 10.4-18 | 20.8-30 | 10.4-20 |
| Non Load Voltage(V) | 56 | 56 | 56 | 56 |
| Duty Cycle(%) | 60 | 60 | 60 | 60 |
| Power Factor | 0.75 | 0.75 | ||
| Effciency(%) | 80 | 80 | ||
| Class Of Insulation | F | F | ||
| Protection Class Of Case | PI23 | PI23 | ||
| Load Loss(W) | 40 | 40 | ||
| Arcing Mode | HF | HF | ||
| Electrode Diameter(MM) | 1.6-4.0 | 1.6-4.0 | ||
| Weight(KG) | 6.7 | 6.82 | ||
| Machine Size(MM) | 43.5*16*31 | 43.5*16*31 | ||
| Packing Size(MM) | 460*165*315 | 460*165*315 | ||
