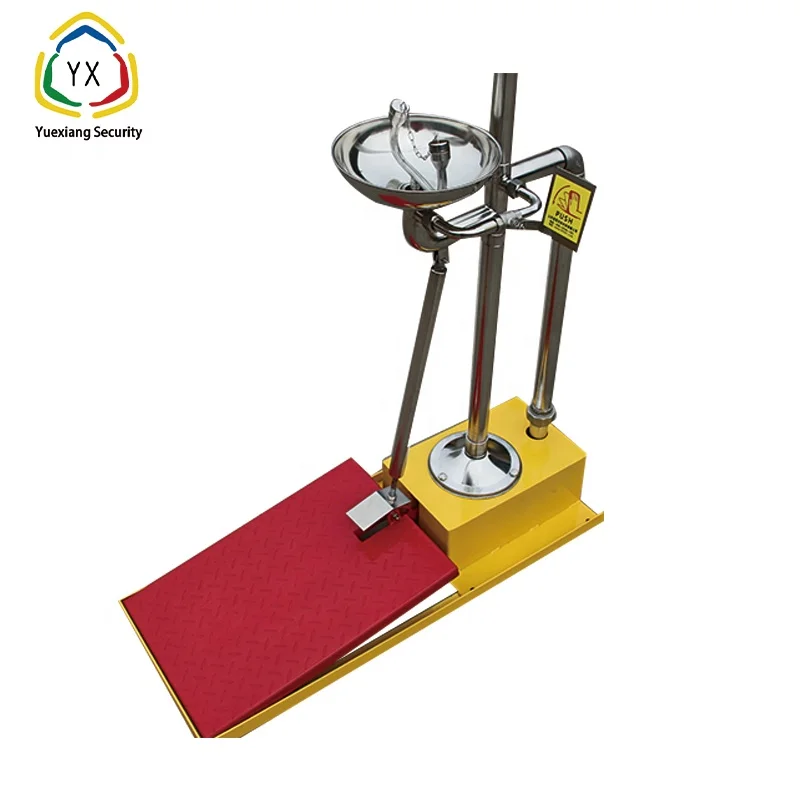

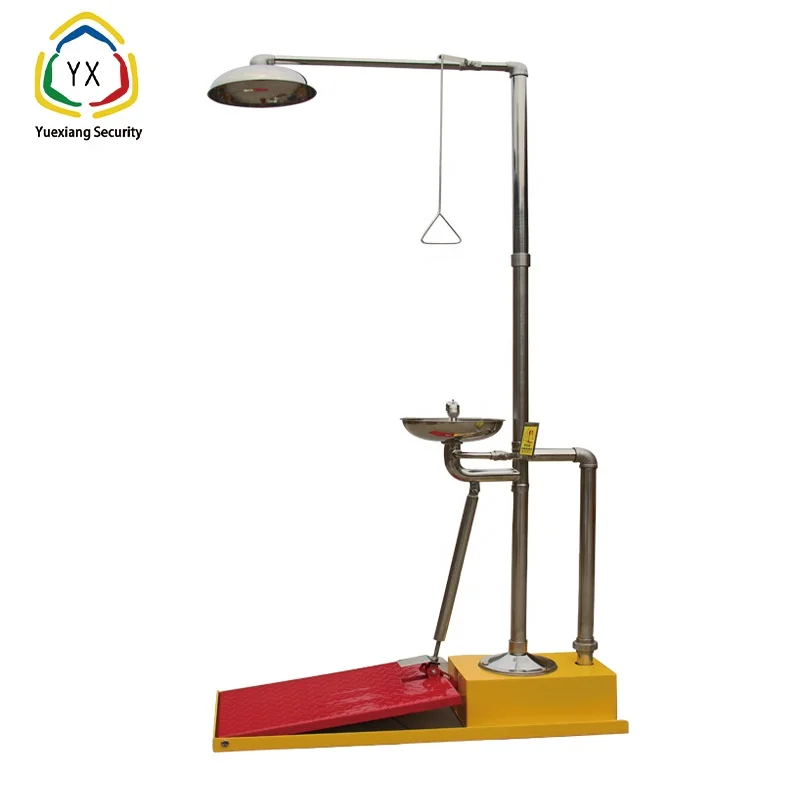

explosion proof cable heated freeze resistant combination safety shower and eye wash station

Share on (62260502689):


Price:$350.00 - $380.00

Quantity:


Product Overview

Description



Product Description





























































Model



BTF61-A



Product standard



American ANSIZ358.1-2014



Nominal pressure



1.0Mpa



Work pressure



0.2-0.4Mpa



Flow control



Eyewash flow≥11.4L/Min, shower flow≥75.5L/Min



Water supply and outlet



1-1/4 internal thread



Certificate



CE & ISO9001



MOQ



1 pcs



Warranty



1 year



Gross weight



15KG



Net weight



14KG



Package size



720*330*220MM



Product size



800*400*2340MM






1.Use medium: it meets the standard of health standard.
2.Main material: special SS304 stainless steel, which conforms to national standard, has good corrosion resistance of acid, alkali, salt and oil


3.Anticorrosion coating: use outdoor special ABS powder electrostatic spraying to effectively improve the corrosion of acid, alkali, salt and oil chemicals in the product.
It is suitable for use in environments with high acid and alkali concentration and strong corrosivity.

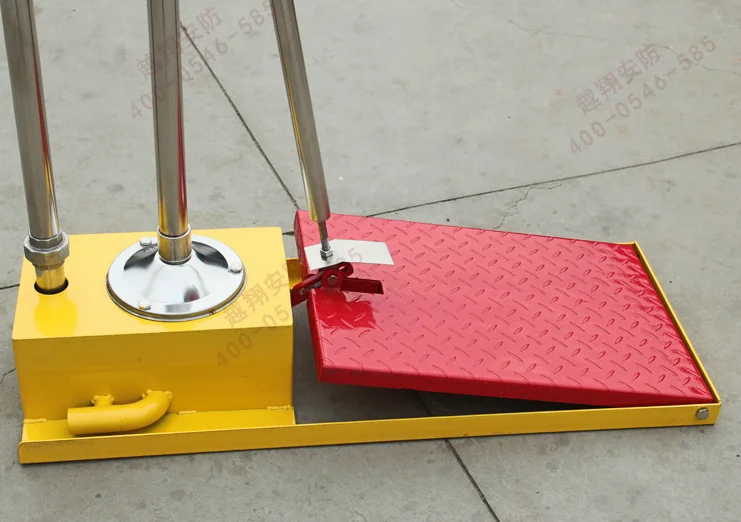

4.Low eye switch way: hands and feet, using only a light push push valve or on waste pedal, eye switch is open, clean water is automatically from eye nozzle jet, nozzle peripherals dust cover, when used with flow automatically.
After the shut-eye switch is opened, the non-man will operate and will not shut 5.utomatically. Please turn off the switch and reset the dust cover when used


6.The characteristics of the shower switch: the heavy two - plate switch is adopted.


7.Eye nozzle: eye nozzle built-in multi-layer filter, effectively filter the impurities in water, the water flow into a foamy water, effectively prevent the impurities in water, or to the injured eye due to water flow ultra secondary damage nerve and the injured area.
The filter screen is easy to remove, easy to clean and easy to maintain.

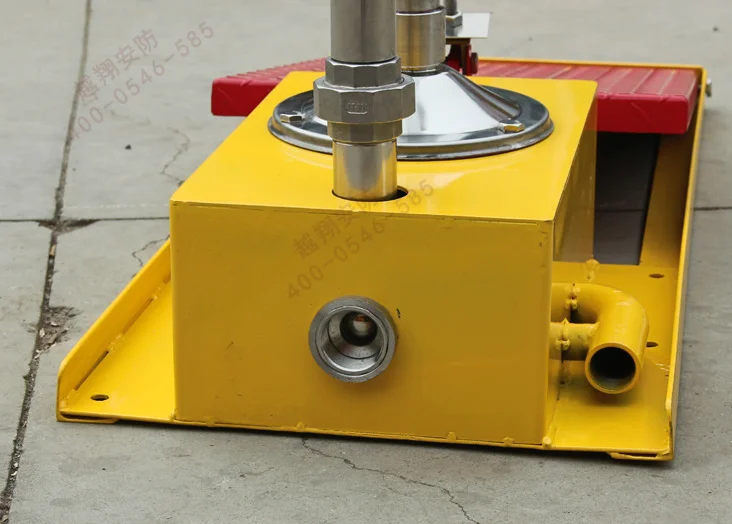

8.Low freeze protection: this product is equipped with high-performance emptying anti-freezing device, suitable for more than 5 ℃ below zero environment, use washing eyes closed after the switch, the system automatically drain water accumulation in the pipeline.
Such as 5 ℃ below zero the use should pay attention to the following pipe insulation anti-freezing measures.







Packaging & Shipping





Packing:Wooden/Carton box or according to the customer requirement


Enclosed with Manual( in English) which contains full detail information include packing list, assembly drawing, use instruction,troubleshooting,Maintenance,precaution,our contact info.


Sample order:By courier express like DHL/USP/TNT/FEDEX or by air


Bulk order:By air or by sea


Port:Qingdao


Lead time:Received your payment and arrange the shipment
