3.2V 100ah 200ah lifepo4 prismatic cell lithium polymer cells aluminum case battery
- Category: >>>
- Supplier: QS Energy (Shenzhen) Co. Ltd.
Share on (62260709048):
Product Overview
Description

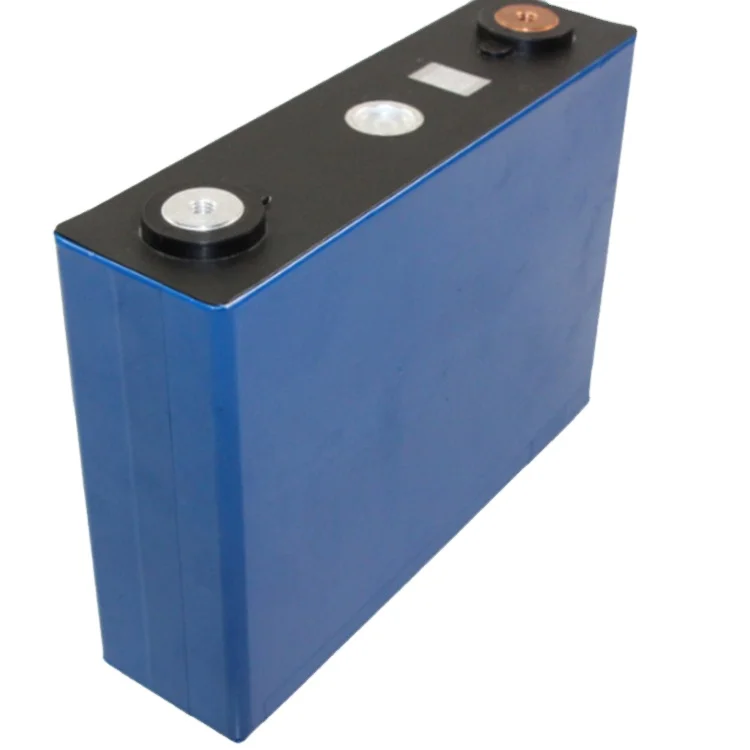

3.2V 100ah 200ah lifepo4 prismatic cell lithium polymer cells aluminum case battery
Product Paramenters
lifepo4 battery cell 50ah technical data
Voltage (nominal,V) | 3.2V |
Cell Dimensions (mm) | Length: 95mm,Width:148mm,Thickness: 39.5mm |
Cell Weight (g) | 1.18Kg |
Cell Capacity (nominal/minimum, Ah) | 50Ah |
Internal Impedance (1kHz AC typical, m-) | ≤ 0.35mΩ (At 0.2C rate, 2.0V cut-off) |
Cycle Life at 0.2C Discharge, 100% DOD | ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
Operating Temperature | Charging:0°C ~ 45°C;Discharging: -20°C ~ 60°C(The cell surface temperature cannot exceed 70°C) |
Storage Temperature | Temperature: -10°C ~ +35°C;Humidity:65%±20%RH(optimal store temperature of 23 ± 5°C for long term storage) |
lifepo4 35ah battery technical data
Rated Capacity | Nominal: 35Ah |
Nominal Voltage | 3.2V |
Weight | 1.2KG |
Dimension | 150*130*37.5mm |
Discharge cut-off Voltage | 2.0V |
Charging Voltage | 3.6±0.05V |
Internal impedance | (1kHz AC) 1mΩ typical |
Standard Discharging Rate | 5C(175A) |
Maximum Discharging Rate | 15C(525A) |
Typical fast charge current | 35A |
Cycle life | 2000 cycles |
Operation Temperature Range | Charge: 0~45°C |
Discharge: -20~60°C | |
Storage Temperature Range | Less than 1 year: -20~25°C |
Less than 3 months: -20~40°C | |
Storage Humidity Range | 60±25%RH. |
lifepo4 100ah battery technical data
Voltage (nominal,V) | 3.2V |
Cell Dimensions (mm) | Length: 173mm,Width:133mm,Thickness: 48mm |
Cell Weight (g) | 2.3Kg |
Cell Capacity (nominal/minimum, Ah) | 100Ah |
Internal Impedance (1kHz AC typical, m-) | ≤ 0.35mΩ (At 0.2C rate, 2.0V cut-off) |
Cycle Life at 0.2C Discharge, 100% DOD | ≥2000 times (100% DOD till 80% of initial capacity at 0.2C rate, IEC Standard) |
Operating Temperature | Charging:0°C ~ 45°C;Discharging: -20°C ~ 60°C(The cell surface temperature cannot exceed 70°C) |
Storage Temperature | Temperature: -10°C ~ +35°C;Humidity:65%±20%RH(optimal store temperature of 23 ± 5°C for long term storage) |

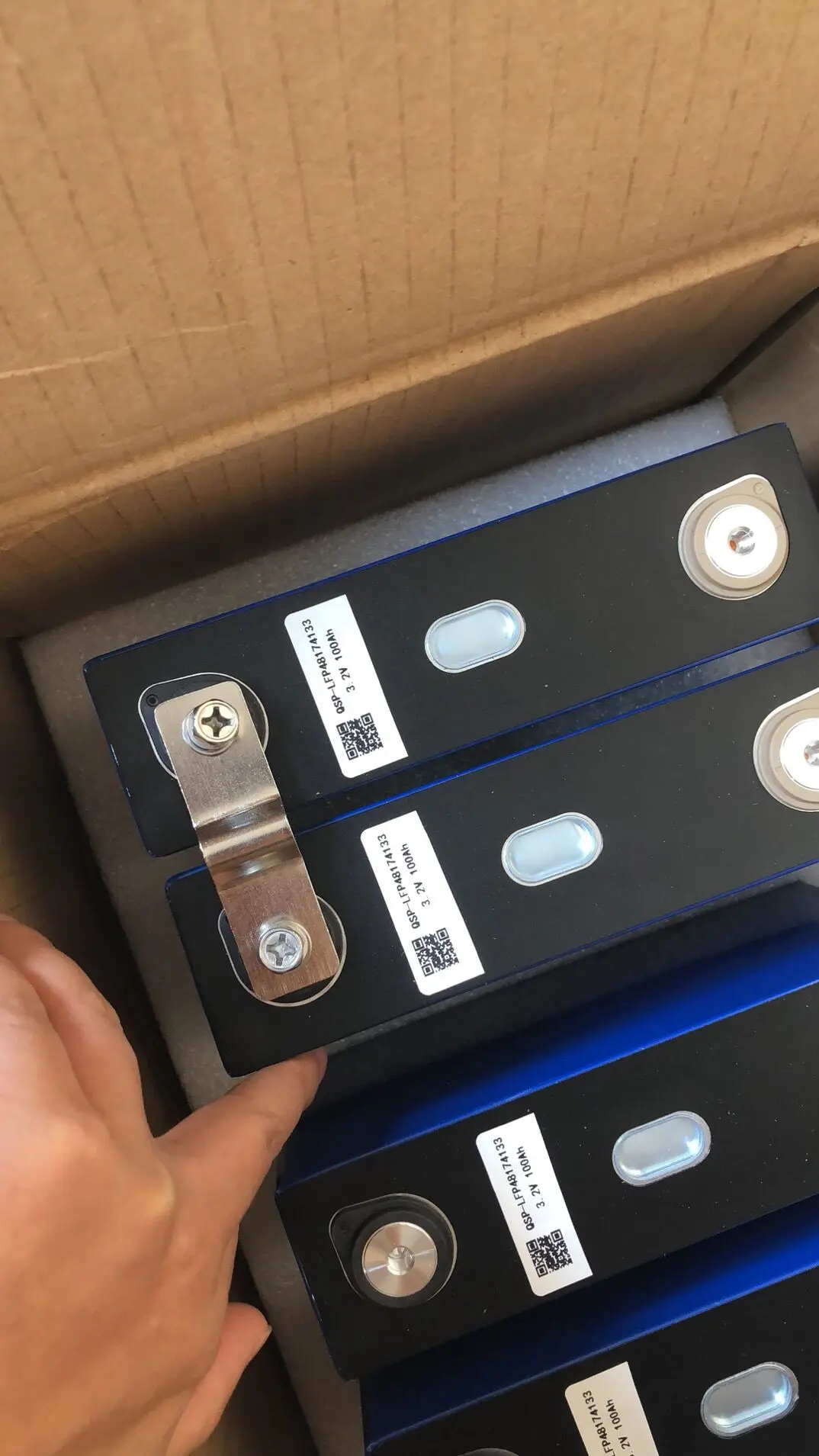

Details Images

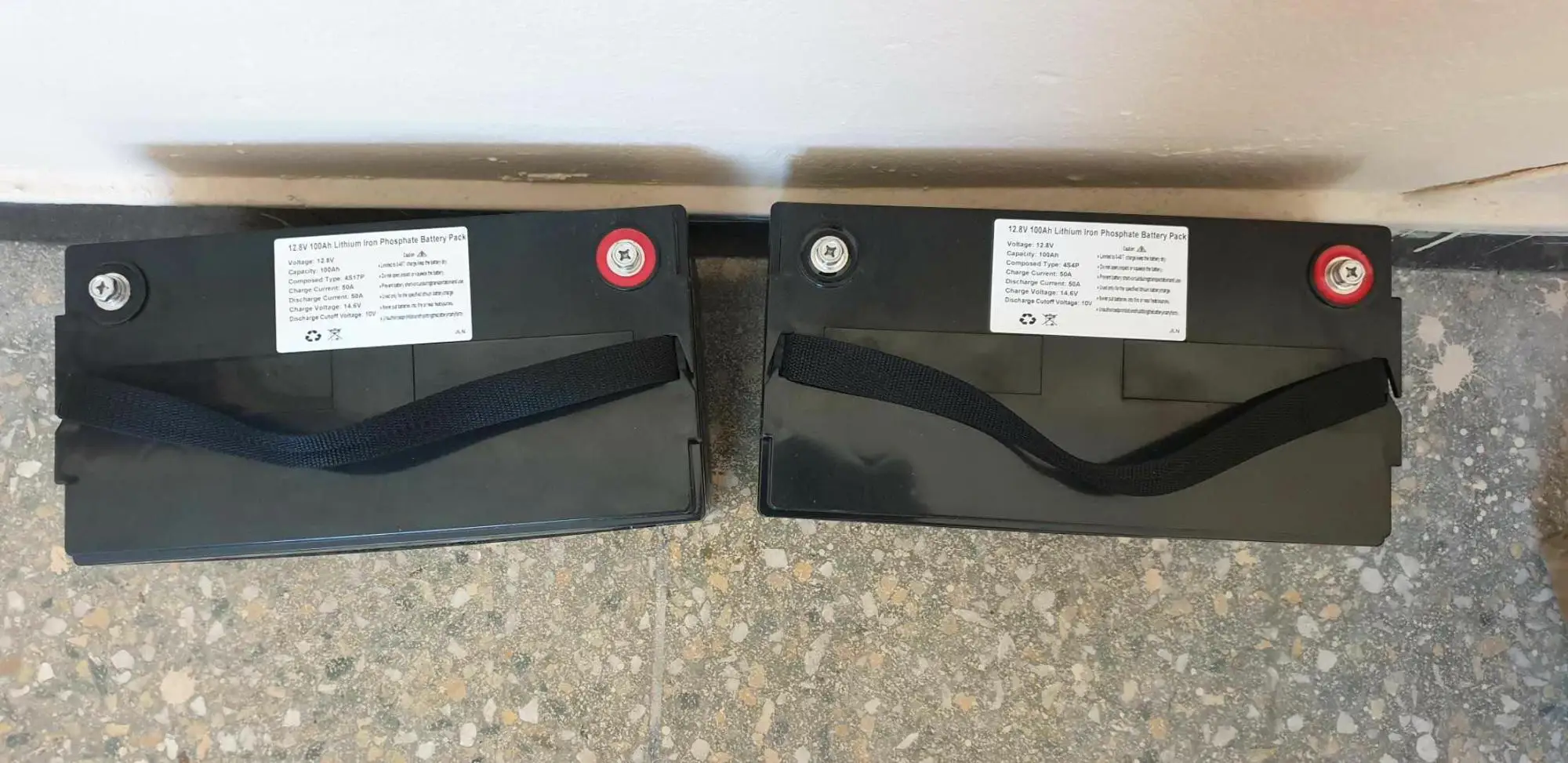

Completely products assembly by 3.2V LIFEPO4 cell
Product application
1) Energy Storage: UPS , backup ,power station.
2) EV : Golf trolleys , Electric scooters .Electric Bike ,Electric tricyle ,Electric Motor.
3) Solar System,Wind Energy Storage,Solar/Storage Home System, Solar Street Light.
4) Telecommunications Base Stations.
5) General Energy Storage (Such as: Back-up Power, Miner's lamp, portable power supply, digital products etc.)
Certificates

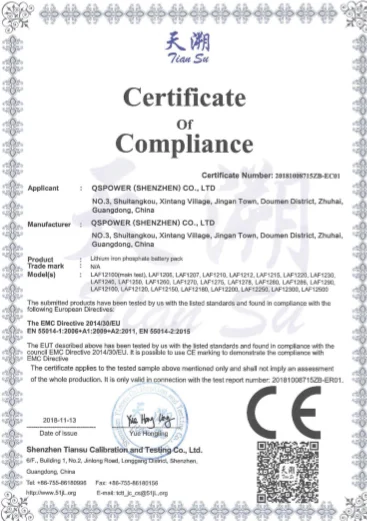

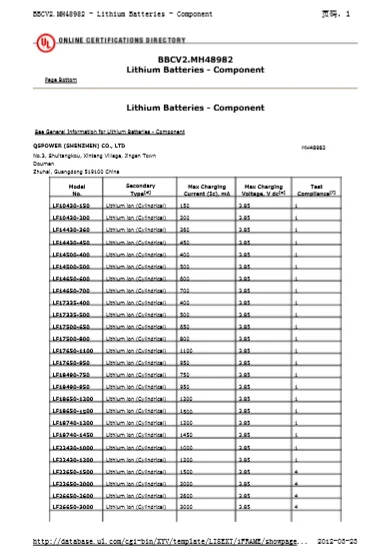

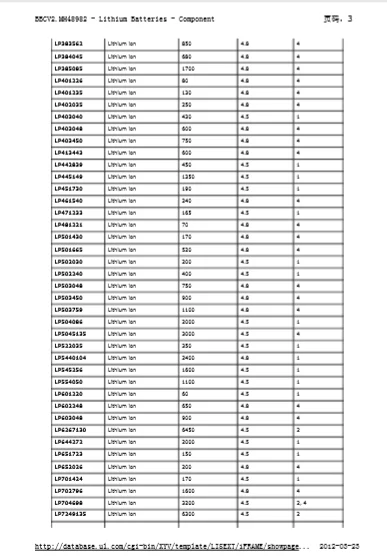

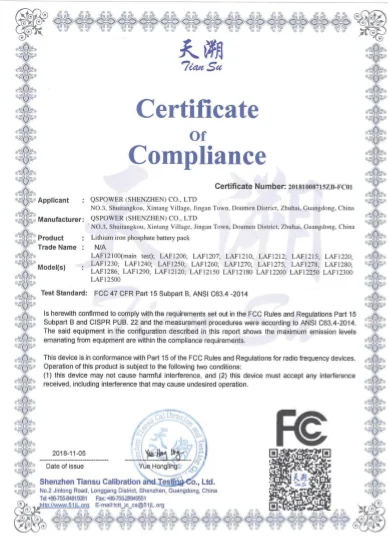

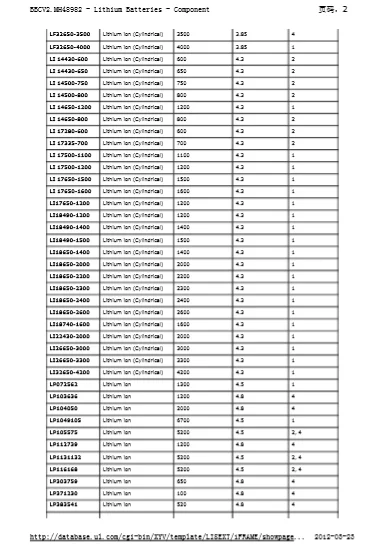

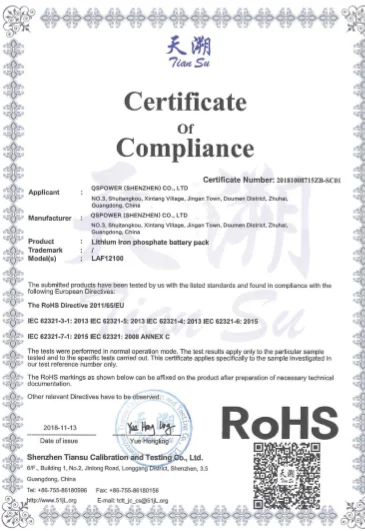

100ah lifepo4 battery certificates for UL CE MSDS BIS +
Company Profile
QSPOWER (zhuhai) Co.,LTD was founded on 2018 belonging to Qiangsheng Goup(UK) Co.,Ltd which focus on green energy products production since 2012.
QSPOWER have the strong technique support group which have the well-known expert form America and Taiwan.
QSPOWER has extensive experience with every facet of the design and manufacturing process of batteries.
QSPOWER are focus on Green energy solution, such as lithium battery technique R&D, battery testing, battery cell supplying chain, battery packing and customized green energy solution project.
QSPOWER has the experience and resources to help design engineers ensure a smooth design process and project management meet delivery schedules. We are willing to invest together for potential good project and business partner.
New developing requirements are welcome always.
Here are some general categories of markets we are in.
Vehicle battery
Energy Storage
Power bank
Power tool battery
Portable Medical battery
Customized batteries
QSPOWER have the strong technique support group which have the well-known expert form America and Taiwan.
QSPOWER has extensive experience with every facet of the design and manufacturing process of batteries.
QSPOWER are focus on Green energy solution, such as lithium battery technique R&D, battery testing, battery cell supplying chain, battery packing and customized green energy solution project.
QSPOWER has the experience and resources to help design engineers ensure a smooth design process and project management meet delivery schedules. We are willing to invest together for potential good project and business partner.
New developing requirements are welcome always.
Here are some general categories of markets we are in.
Vehicle battery
Energy Storage
Power bank
Power tool battery
Portable Medical battery
Customized batteries
