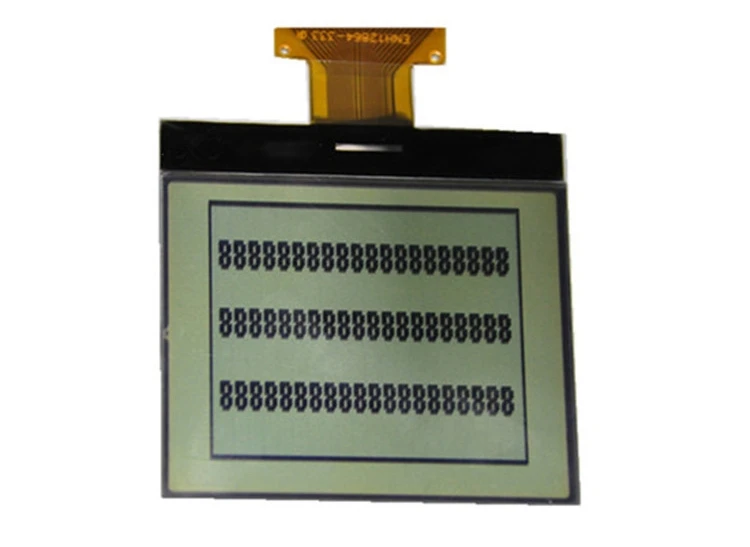

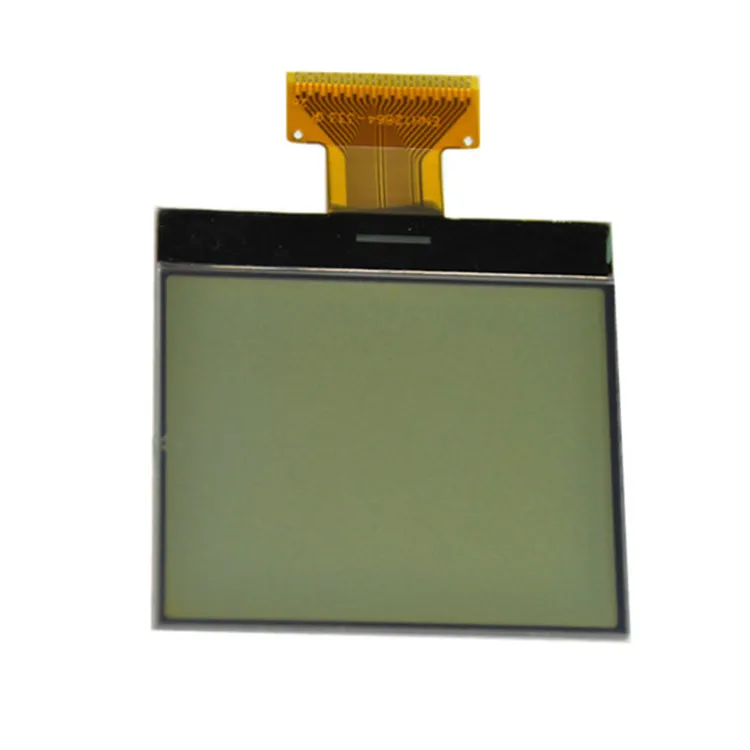

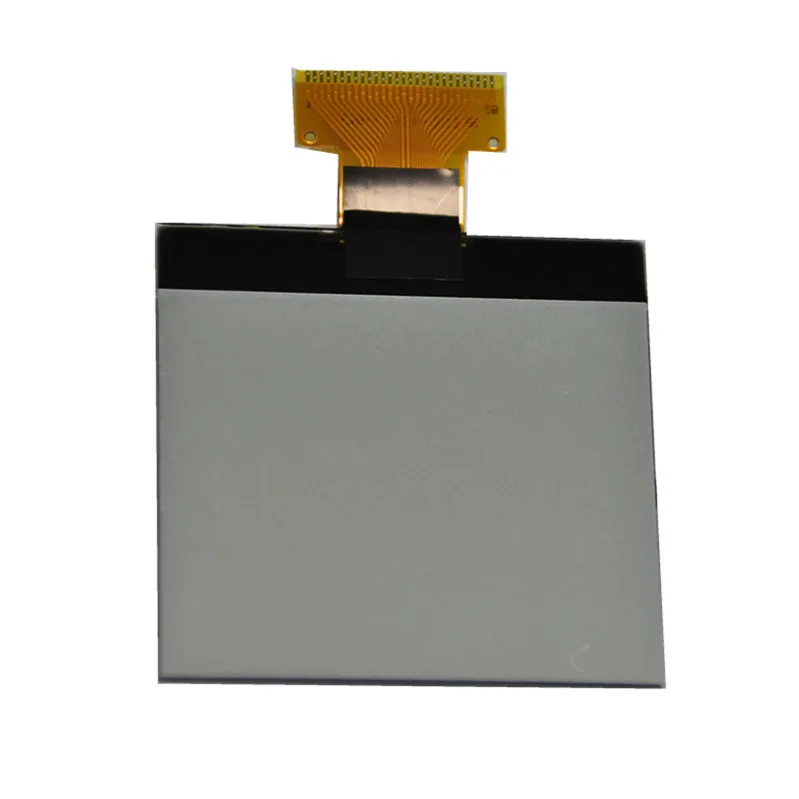

128*64 graphic lcd FSTN graphic cog lcd oem Positive lcd displayy
128*64 graphic lcd FSTN graphic cog lcd oem Positive lcd displayy
128*64 graphic lcd FSTN graphic cog lcd oem Positive lcd displayy
128*64 graphic lcd FSTN graphic cog lcd oem Positive lcd displayy

128*64 graphic lcd FSTN graphic cog lcd oem Positive lcd displayy

Share on (62260735940):


Price:$1.65 - $1.85

Quantity:


Product Overview

Description



Product Description














































1.Display mode: FSTN/Transmissive/Positive
2.Number of dots: 128*64
3.Viewing angle: 6 O'clock
4.Drive Method: 1/65 Duty  1/9 Bias
5.Backlight: NC
6.Connect: COG+FPC

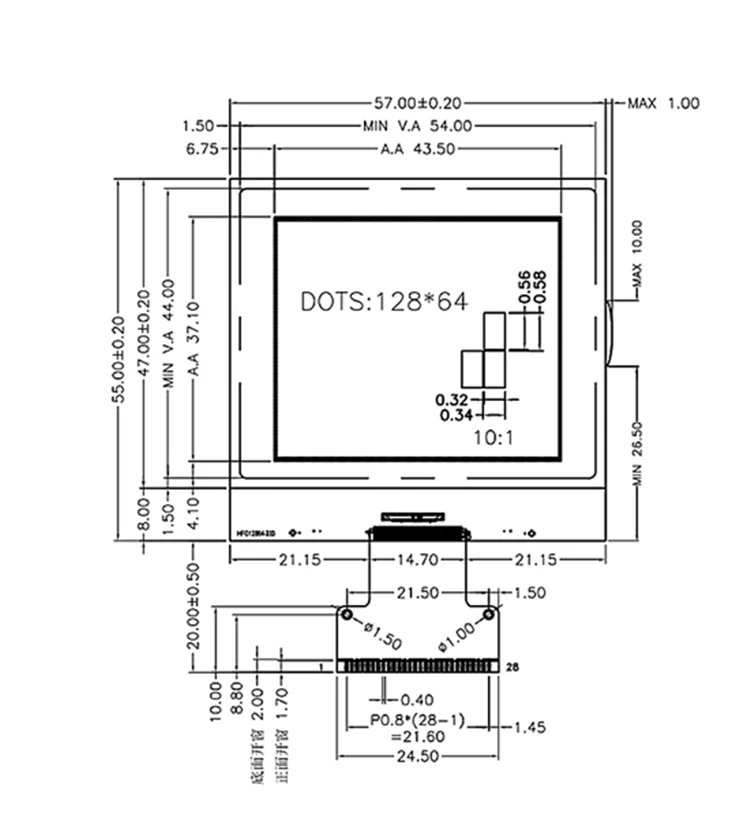

7.View area: 54.00*44.00mm
8.Active area: 43.50*37.10mm
9.Drive IC: ST7567P

01_.png +4.jpg+5.jpg6.jpg7.jpg










CUSTOM PROCESS:


(PRICE OF CUSTOM LCDS WILL BE DEPENDS ON THE REQUIREMENT)


1.Firstly,discuss and confirm all of the details.


2.Payment for tooling process.


3.Formal drawing will be sent within 5 days and confirmed by your side.


4.15-20 days for tooling process.


5.Samples(5-20 pcs)will be sent to you to test and confirmed.


6.Place order for mass production after samples are confirmed.
