Microscope Camera Kit 16MP HDMI Compatible HD USB Digital Industry Video Camera Big Table Stand 300X C MOUNT Lens LED Light
- Category: >>>
- Supplier: Shenzhen Hayear Electronics Co. Ltd.
Share on (62260740714):
Product Overview
Description
Note:
For USB output, the white balance, exposure and color adjustment are automatic. They can't be adjusted.
For HDMI-Compatible output, the functions can only be adjusted while connecting with monitor. If you connect the camera with computer, the functions also can not be adjusted.
Product Description
Features | |
Model | Camera with HDMI-Compatible USB2.0 two output |
Image format | jpg |
Image resolution | 4608*3456 (for TF card) 1920*1080@60FPS(for TF card) |
Video format | MOV(for TF card) |
Video recorder | 1920*1080 @ 60FPS (for TF Card) |
USB Video resolution | 1920*1080 @ 30FPS |
White Balance | Auto |
Light | Auto |
Color | Color |
Negative | Support |
Morror | Left/right,Up/Down |
Freeze | Support |
OSD | English/Chinese/French/Spanish/Portuguese |
Line | different color,5 horizontal line , 5 vertical line,any positions |
Specification | |

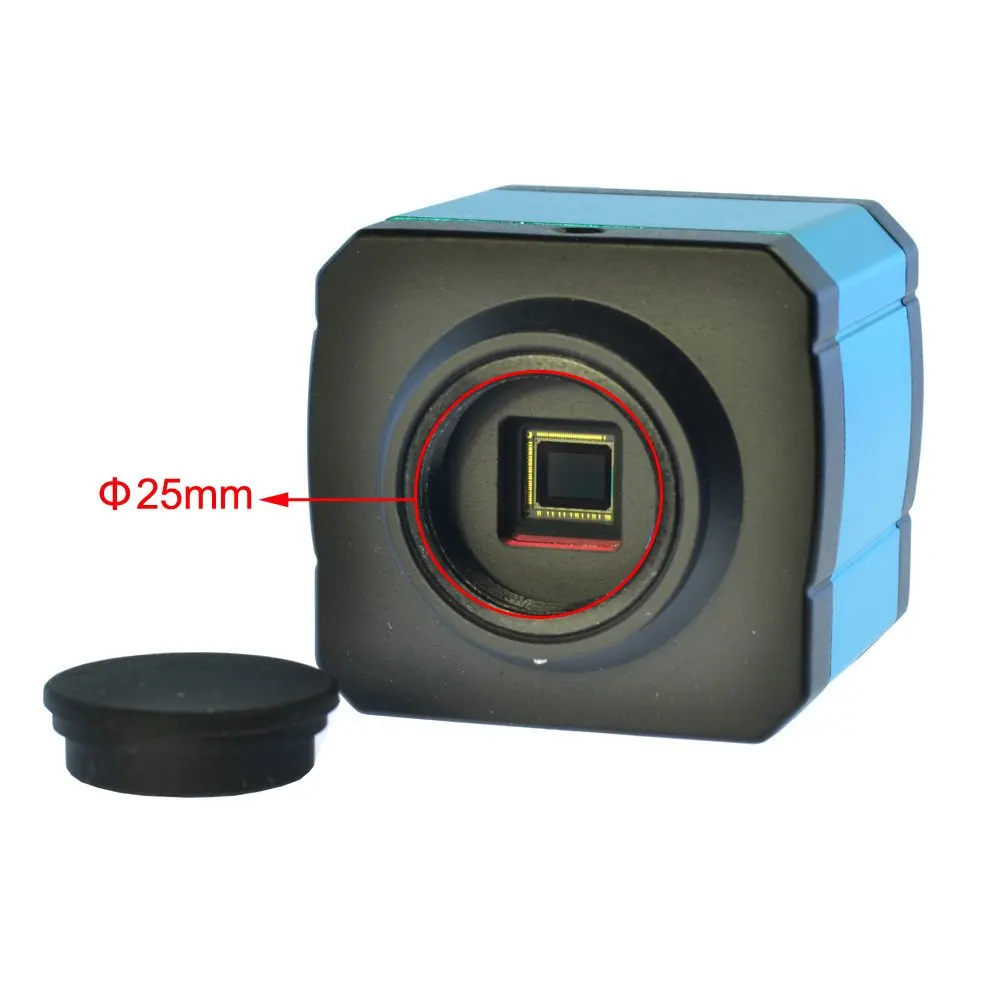

Image sensor | 16 megapixel Panasonic sensor 1/2.3 inch |
Effective pixel | 16 megapixel |
Pixel size | 1.43x1.43um |
Frame rate | 60fps |
Definition | FULL HD |
Housing | metal |
Lens | CS for test, custom provide |
Video format | MP4, AVI |
Encode | H.264 (High Profile) |
Digital magnification | 5 times digital zoom |
Brightness control | Auto/manual |
Color | R/G/B adjustable |
Film and record | Support |
Cross cursor | Support multi-color, size adjustable |
Transverse and vertical line | Support multi-color, 5 pcs of transverse lines/vertical lines, movable Different color,5 horizontal line , 5 vertical line,any positions |
SNR | Support |
TF card interface | Max 64G |

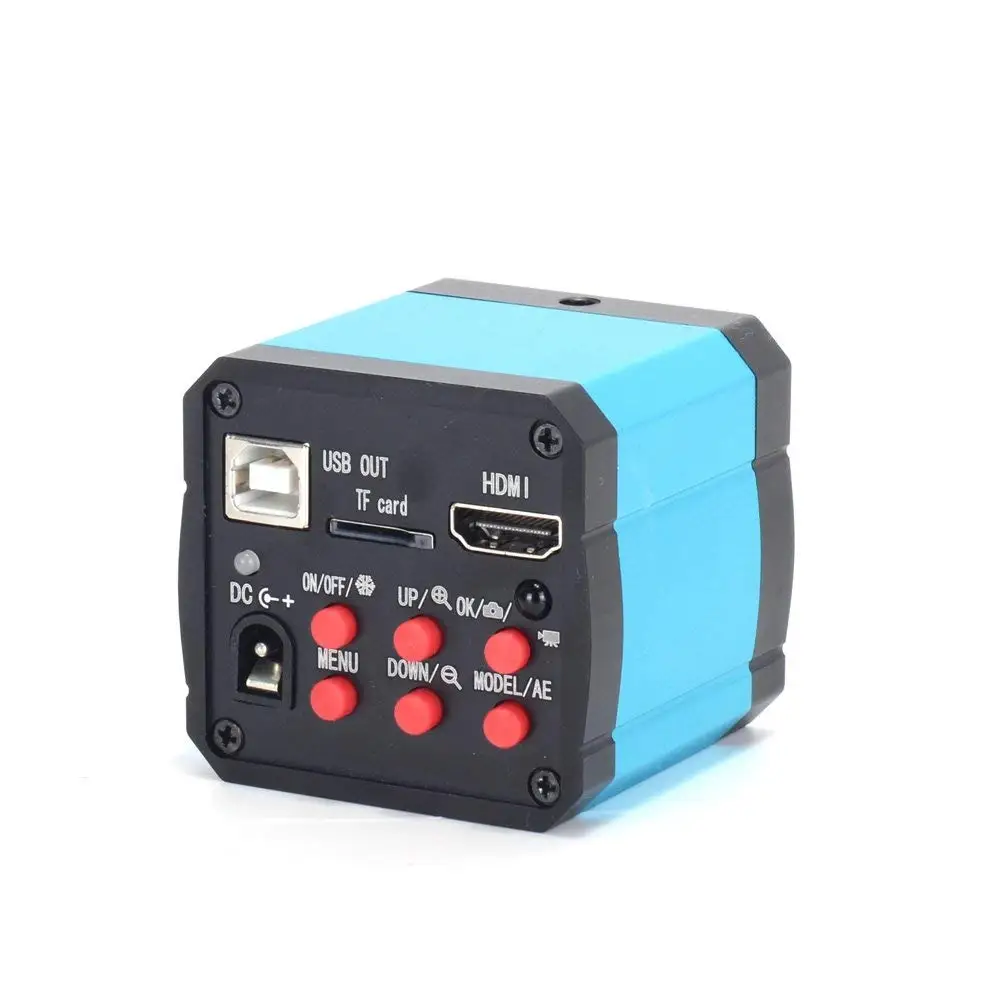

HDMI-Compatible interface | Standard HDMI-Compatible output (Type A) |
Lens | C/CS |
USB interface | Standard usb2.0 interface (Type B) |
NOTED!!! TF card storage is only for HDMI-Compatible output. USB output will be storaged in PC.
Stereo Table Stand Feature:
Need a Sturdy Boom Stand for reduced Vibration and Optimal Versatility? This stand provides what is needed!
Easy Large-Sized Focusing Knobs on Both Sides of Focusing Holder.
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 50mm
Weight: 2.6kg

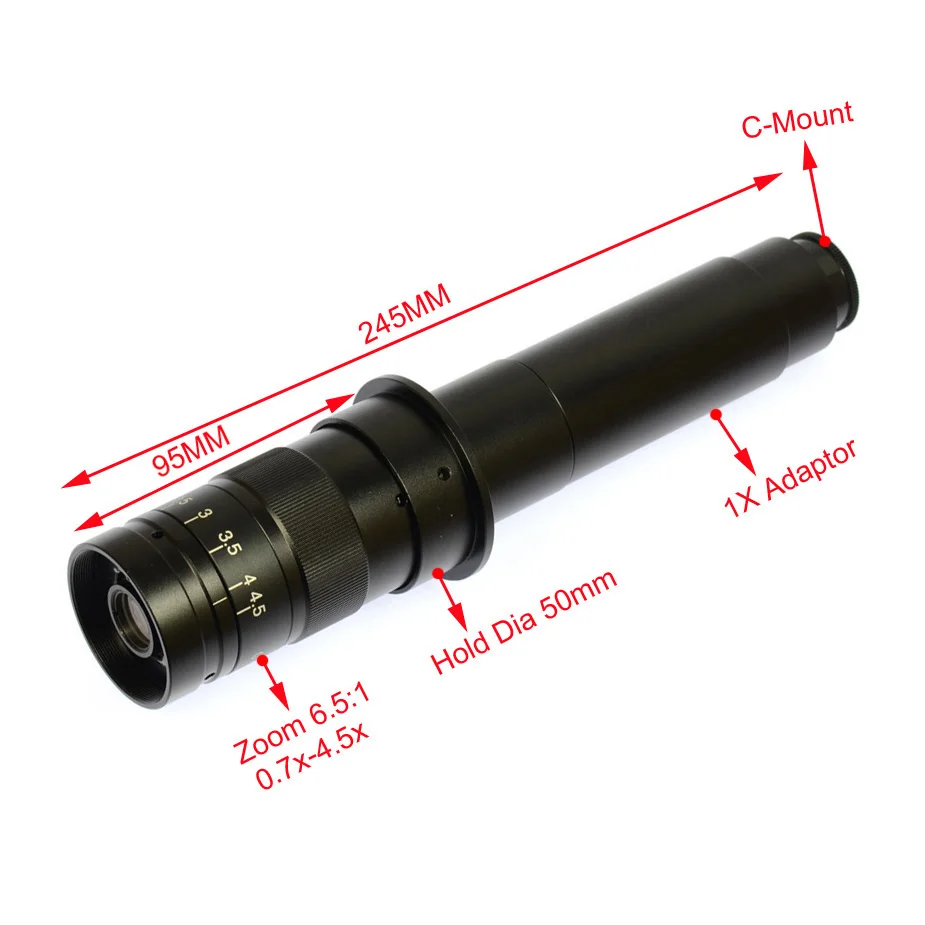

C-MOUNT Lens:
Working distance: 95mm
Zoom c-mount Lens
1.0X C-mount adapter
Zoom ratios:
Objective Magnification Power by 0.7 - 4.5X(about 10 - 300X on the display)
Size: 24.5mm(L) * 50mm(DIA)
Weight: 630g

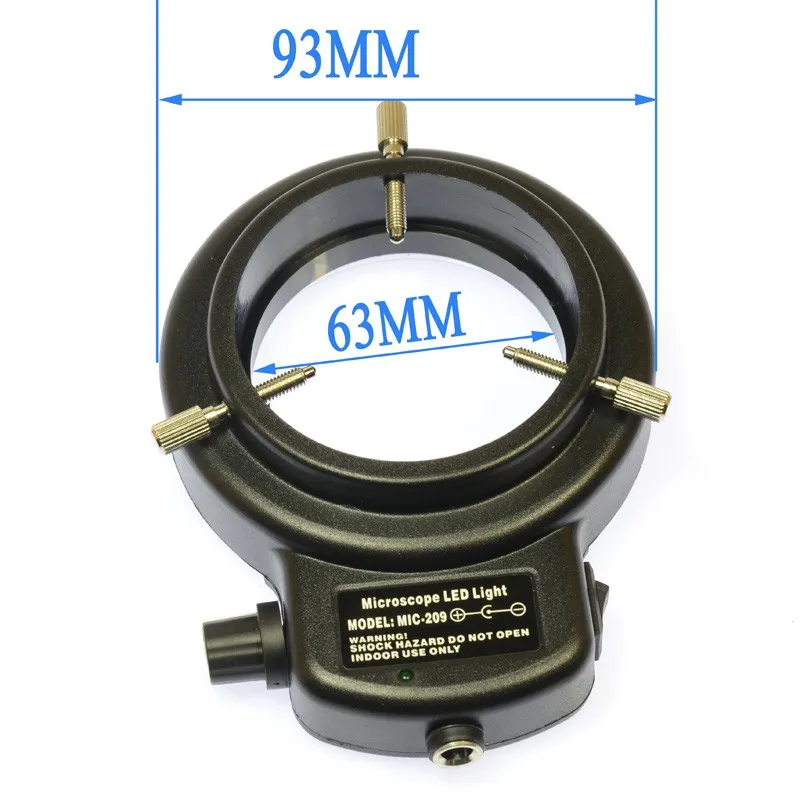

144 Bulbs Microscope LED Ring Light:
144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Detial Images:
Packaging & Shipping

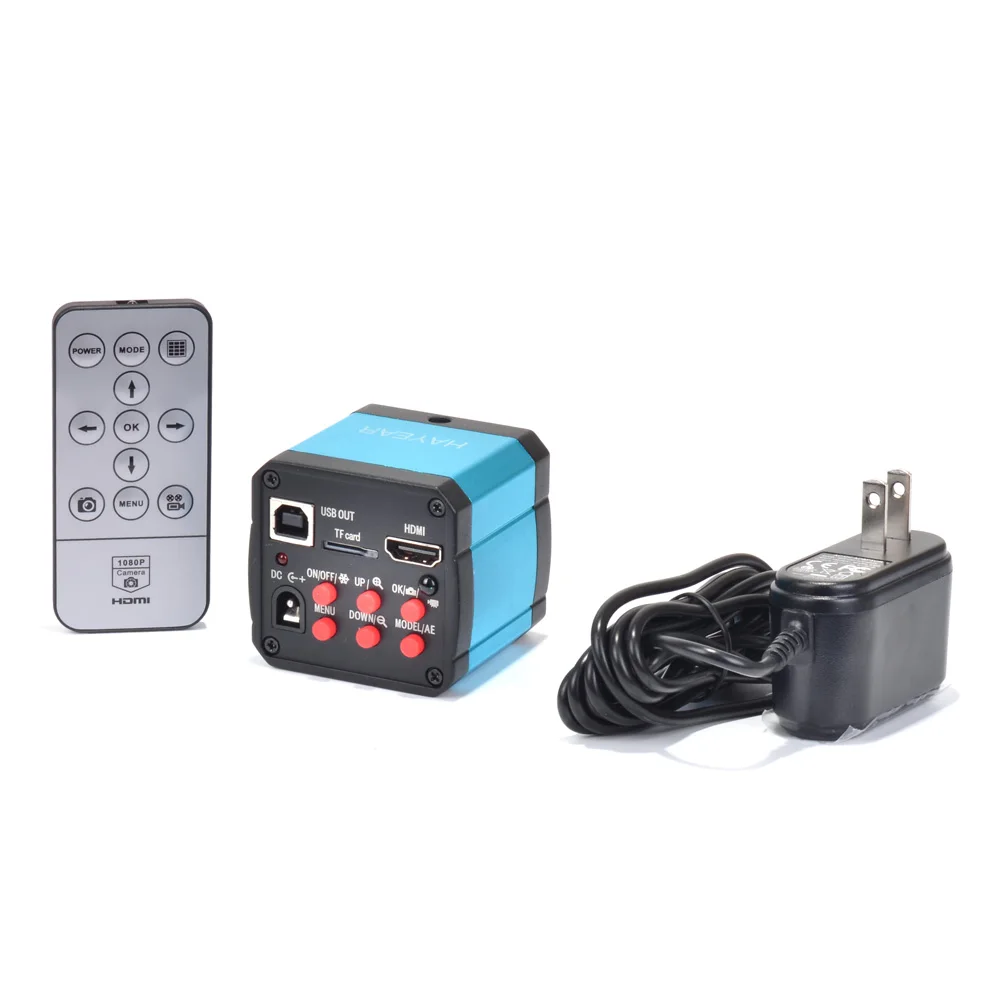

Package Content:
1 x Microscope Camera
1 x 300X C-MOUNT Lens
2 x 12V Power supply
1 x USB line
1 x Software DISC
1 x LED Ring light
1 x Digital Microscope Table Stand
