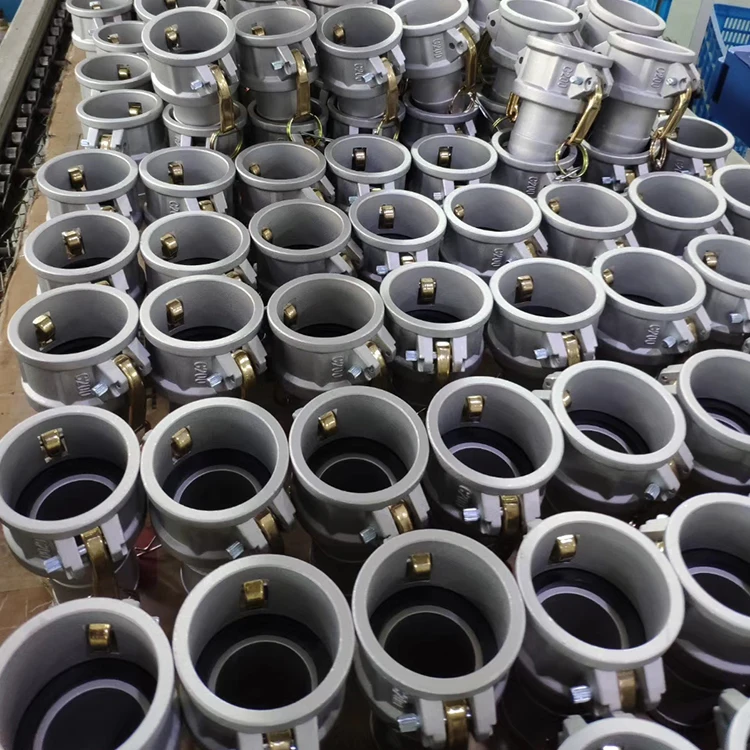

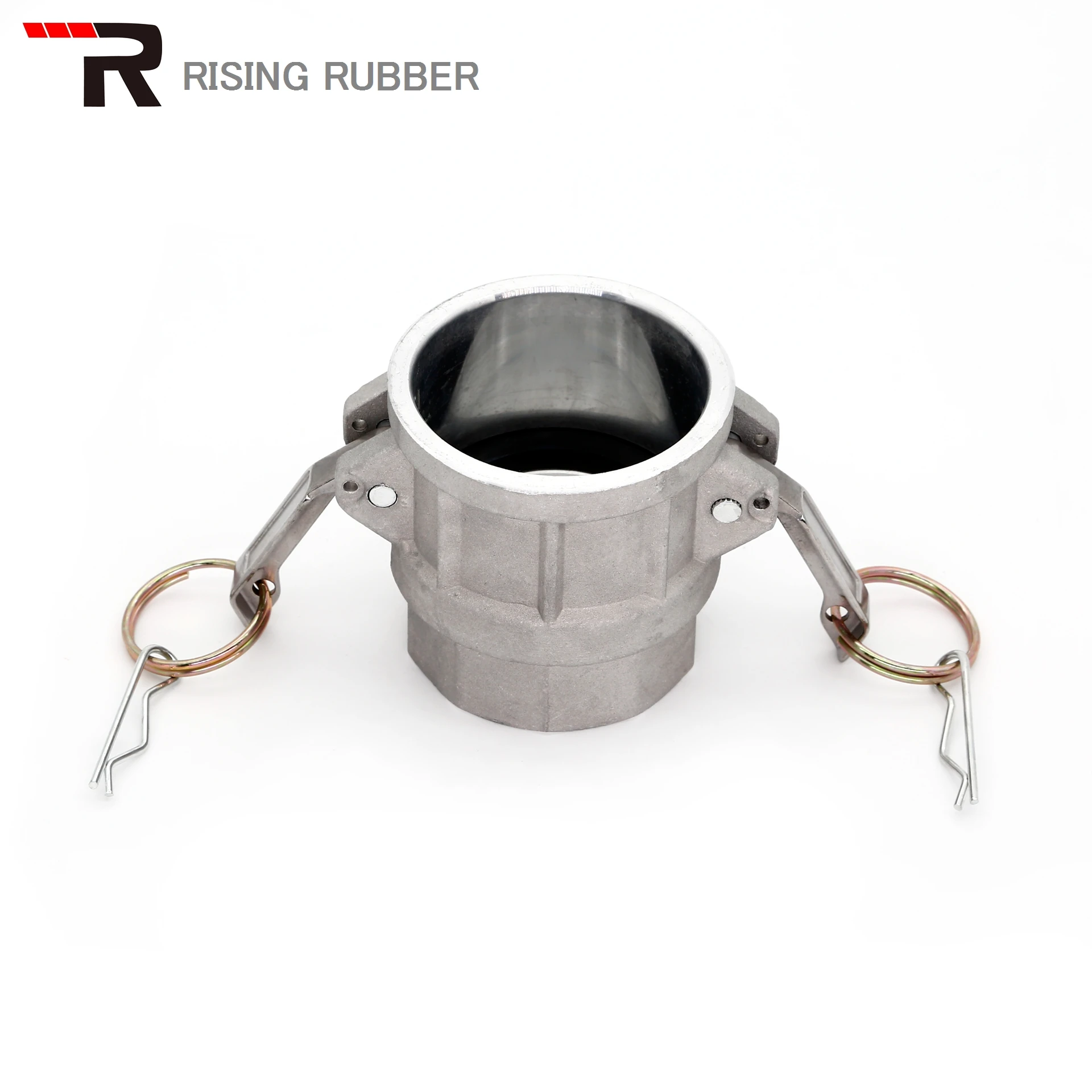

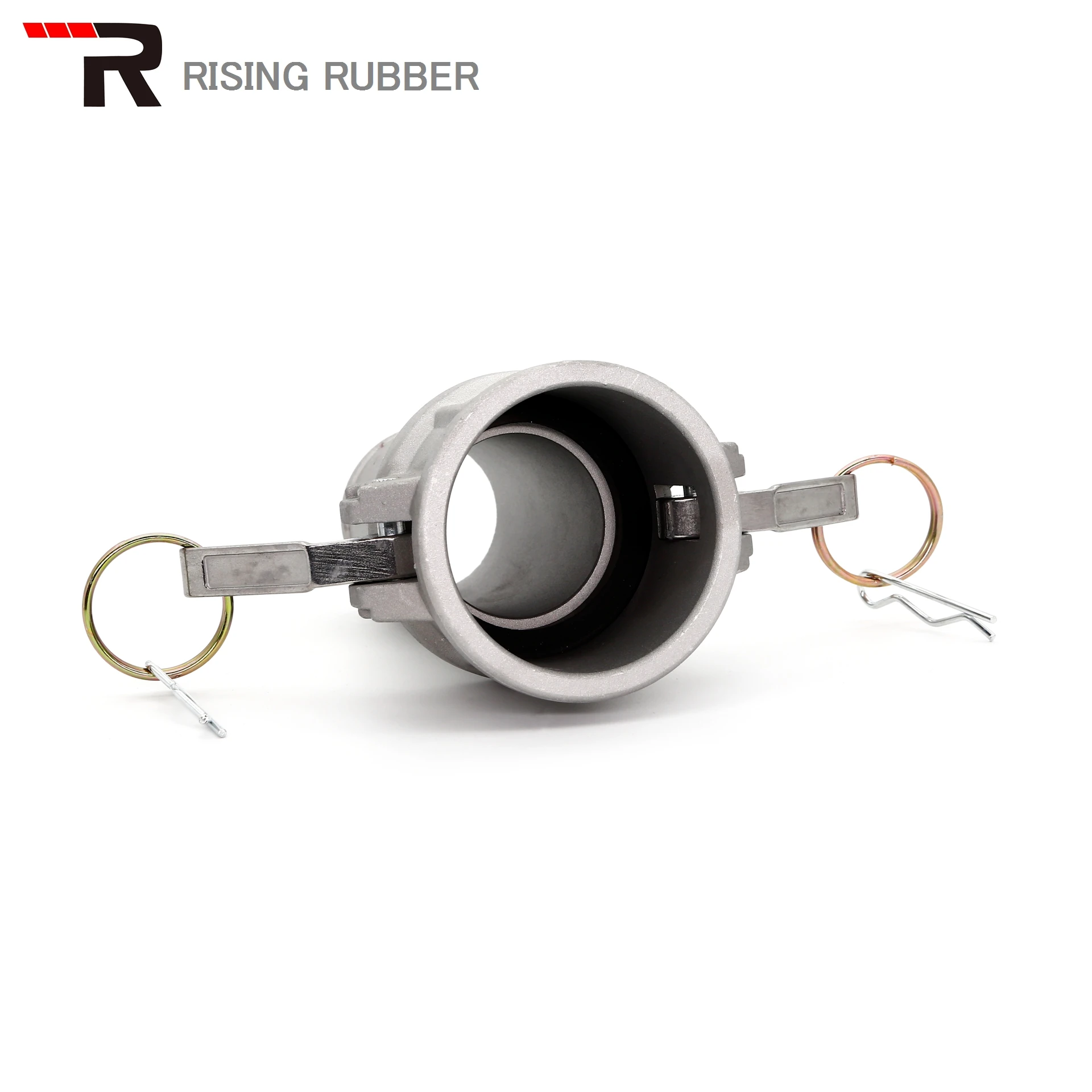

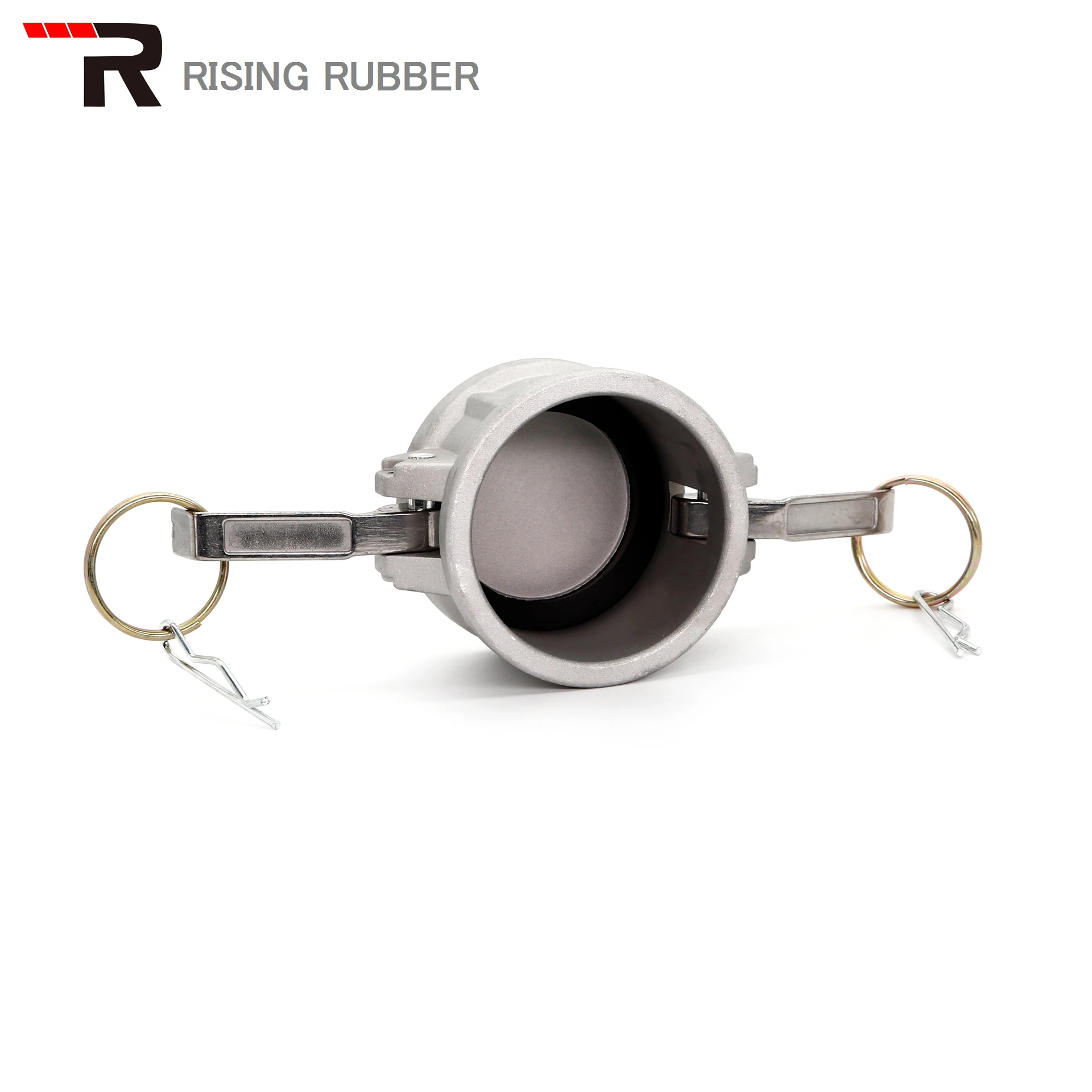

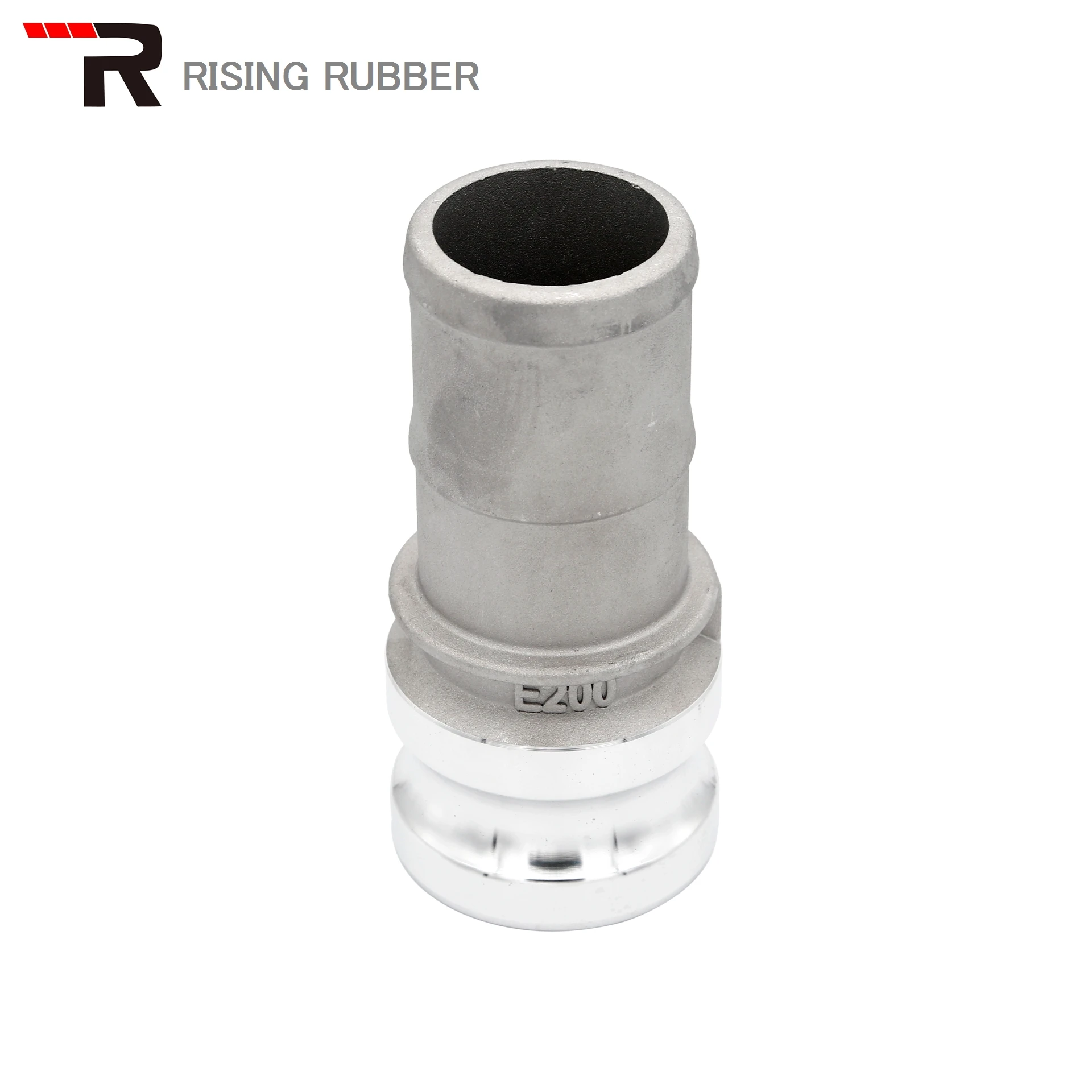

Aluminum Stainless Steel 304 Coupling Com lock Connectors

Description:

Stainless Steel camlock coupling

camlock hose fittings(Engates Rapidos, Boss coupling) specifications:

Standard of our SS cam and groove coupling:

>Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828.DIN2817

Casting method of our SS camlock coupling:

>Investment casting

Body material of our SS camlock fitting:

>CF8M casting (SS316)

>CFM casting (SS304)

>Other material are available on request

Specification of our SS camlock coupling:

>Sizes available:from 1/2" to 6"

1/2"    3/4"   1"   1-1/4"   1-1/2"   2"   2-1/2"   3"   4"   5"    6"   8"

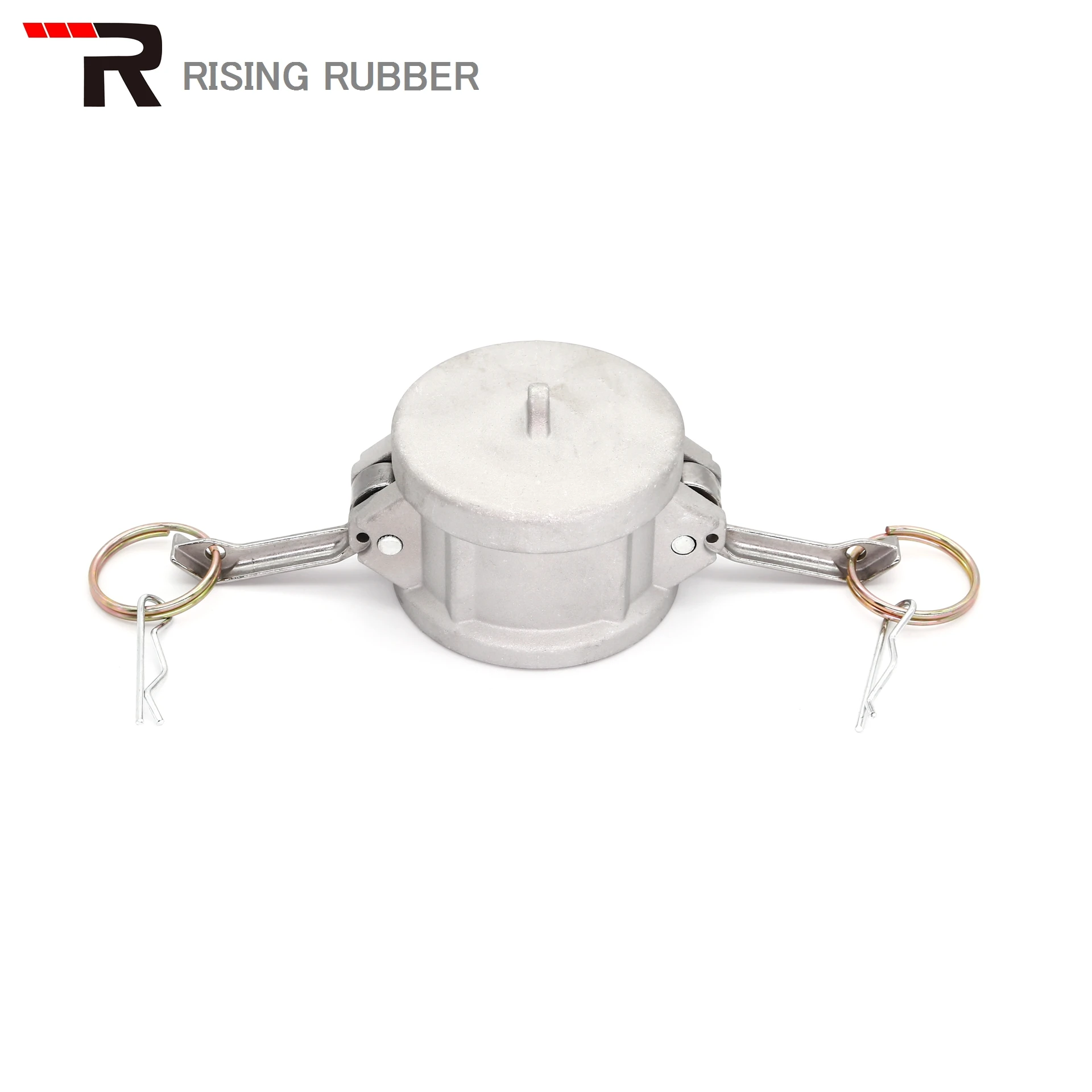

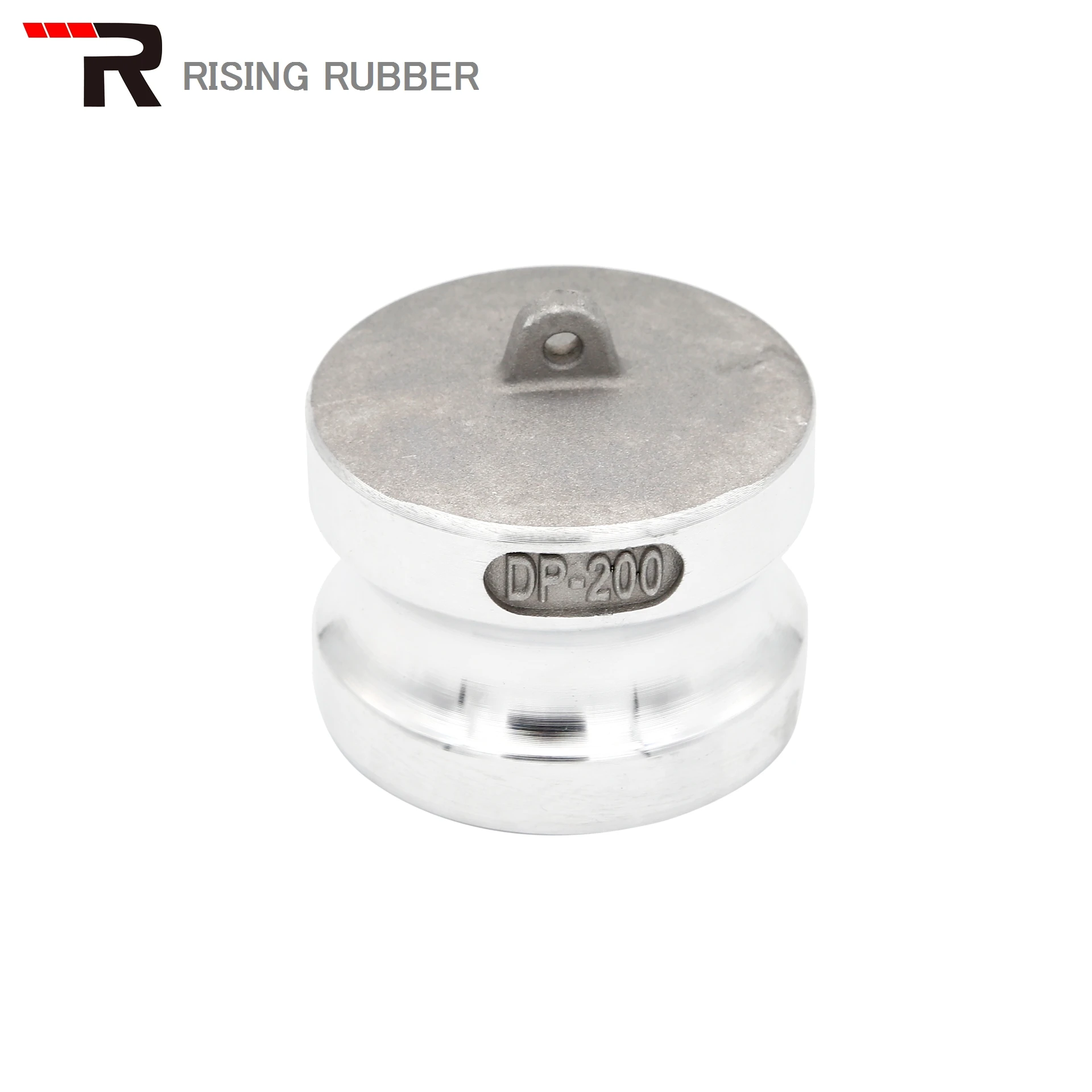

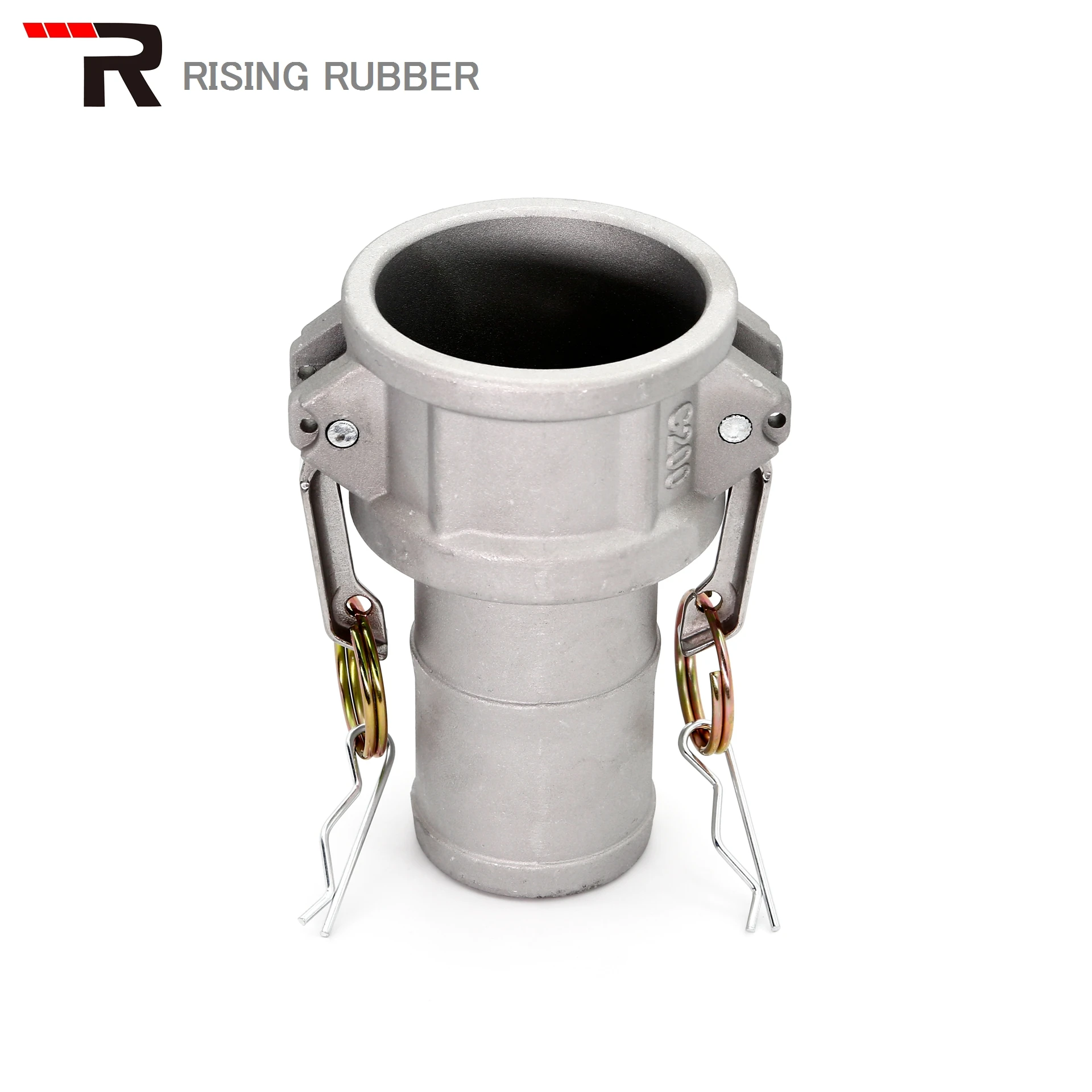

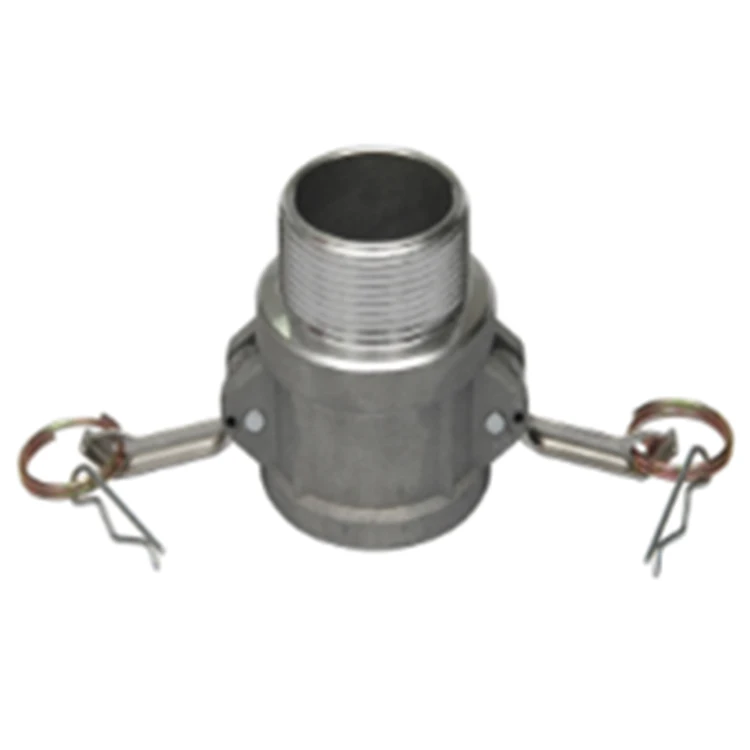

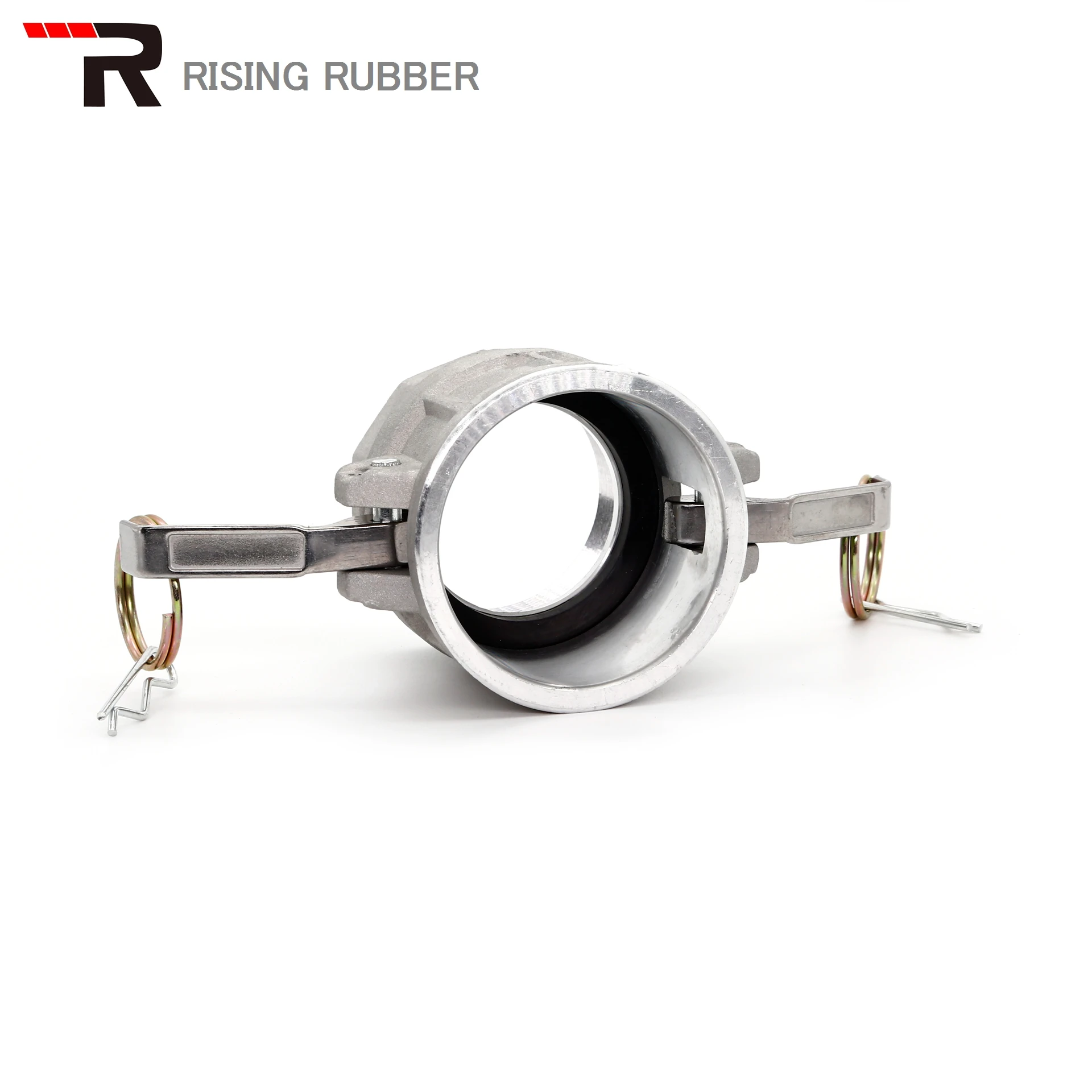

>Types available:A.B.C.D.E.F.DC.DP

Cam levers of our SS camlock fitting:

>stainless steel.

Pins.Rings and Safety clips of our SS kamlock:

>We use steel plated Pins,Rings and Safety clips.

(Note:Safety clips are only available when required by the client,the client have to pay additional if need safely clips)

Sealings of our acoples rapidos kamlock en acero inxidable:

>NBR

>EPDM

>Viton

>PTFE envelop gasket

Other materials are available on request.

Threads of our racores camlock en acero inxidable:

>NPT

>BSP(We usually make the female thread parallel BSPP.male thread tapered BSPT)
