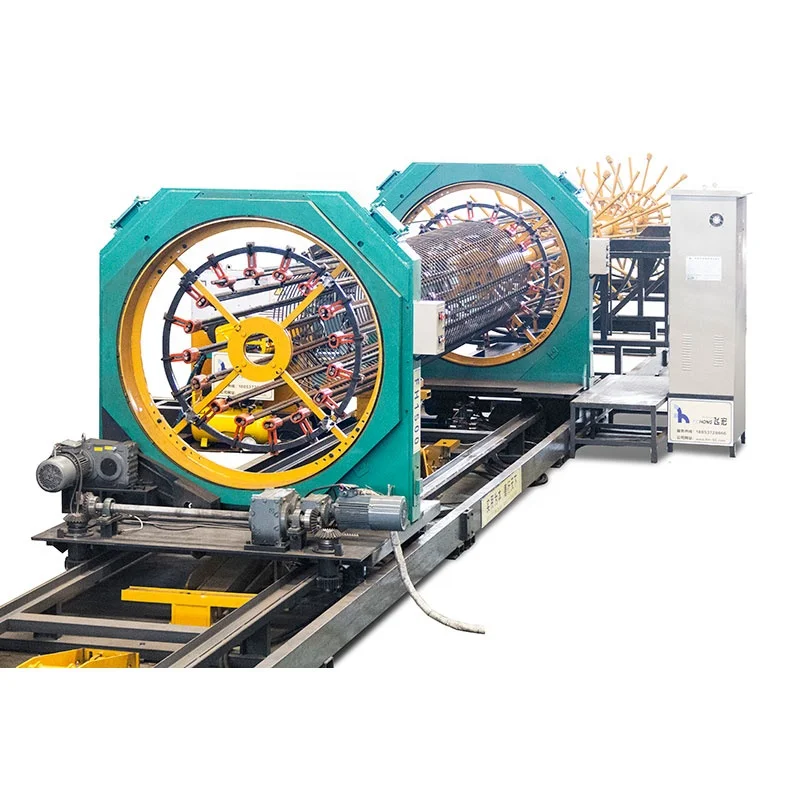

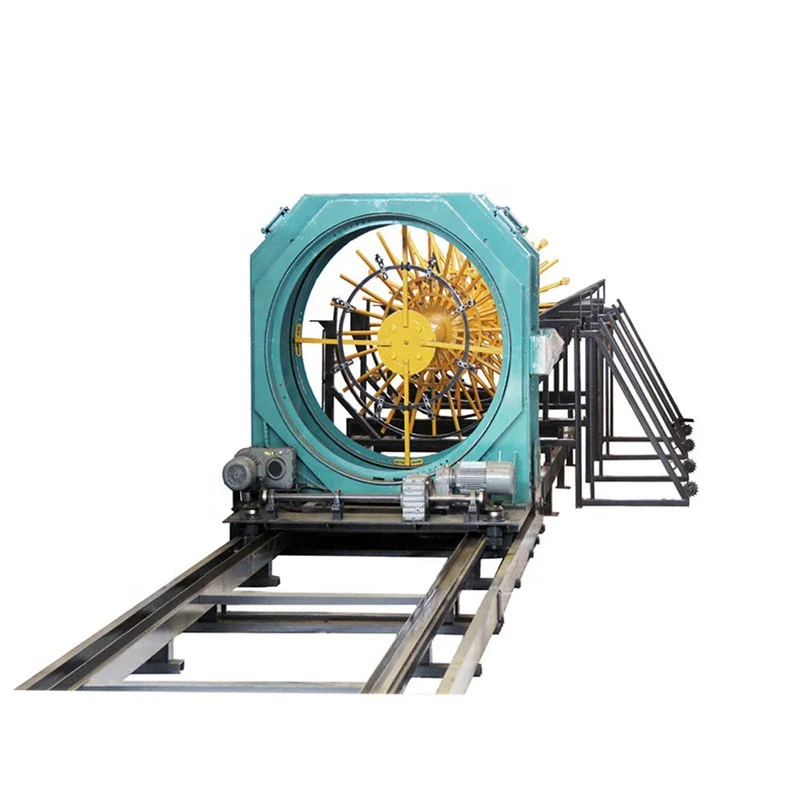

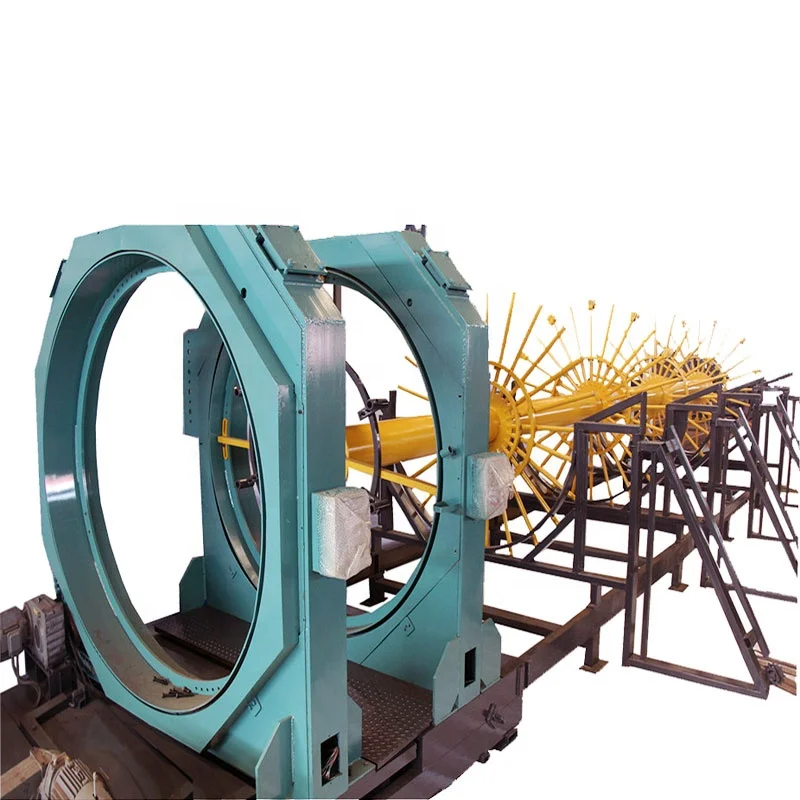

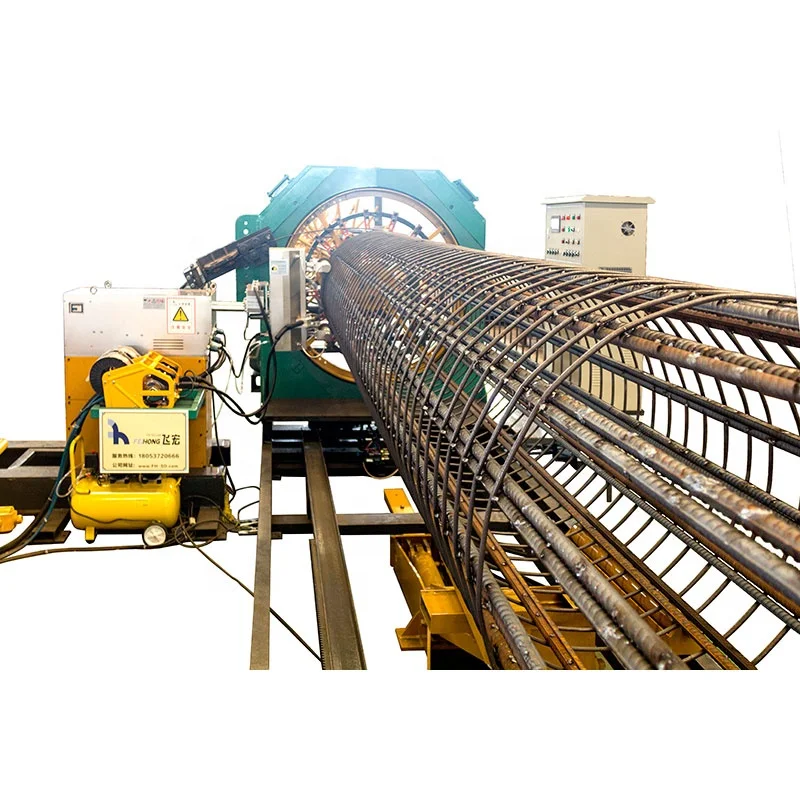

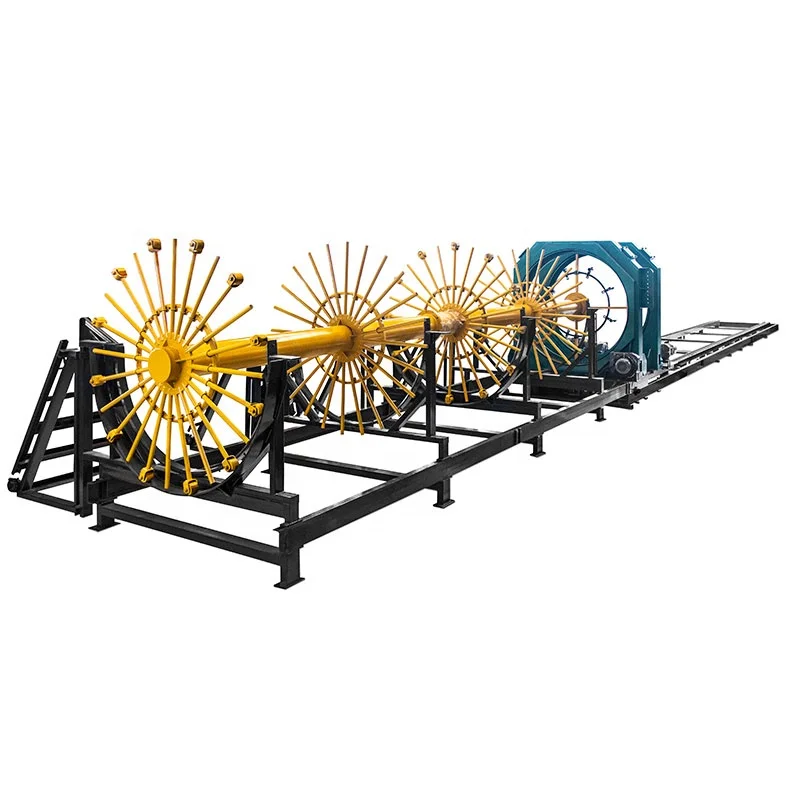

Mig Steel Rebar Cage Welding Assembling Machine for Concrete Pile

Product Overview

Description

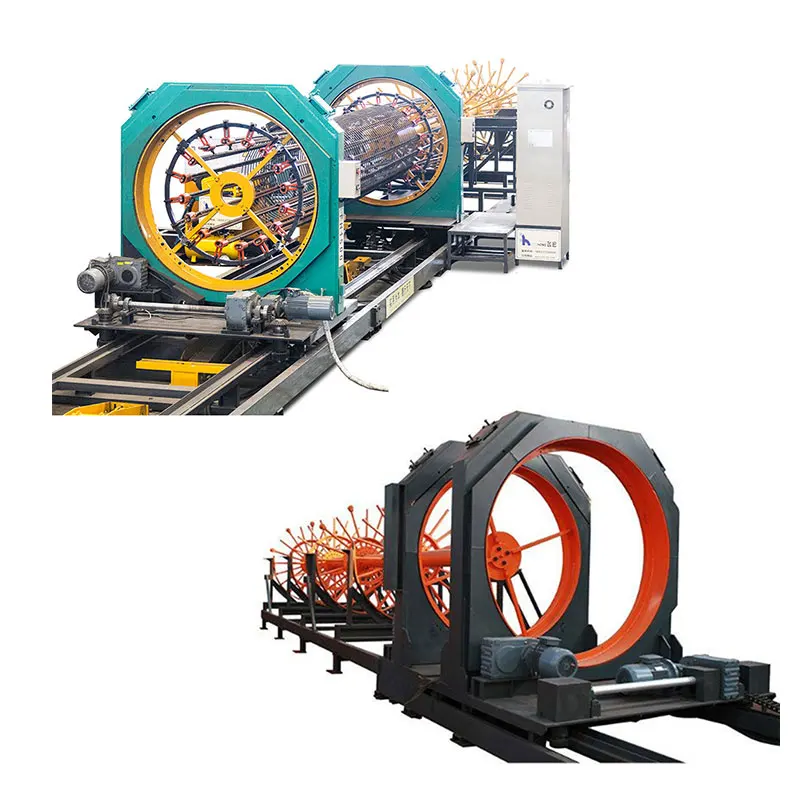

CNC REBAR CAGE WELDING MAKING MACHINE



Bending shape:

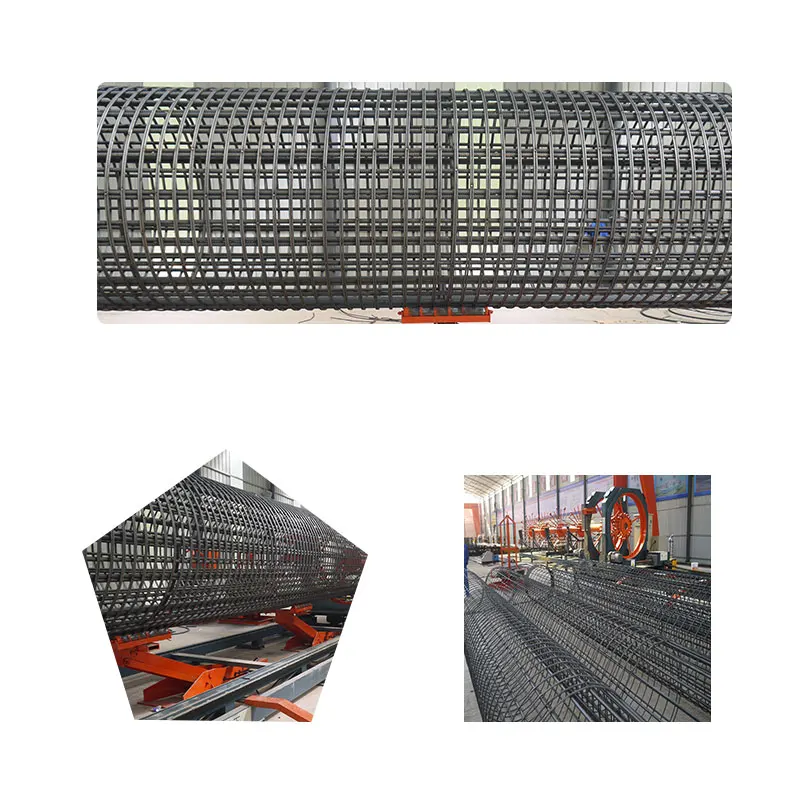

        The CNC Rebar Cage Welding Machine is mainly used in highway, high-speed railway, steel plants in the field of building construction, the construction site and the prefabricated factory. Our machine is controlled by PLC and we have imported the latest technology from European. The diameter error can be controlled within 1 cm; and the interval error of the steel cage bar of 1 meter can be controlled within 5mm. The productivity is three to four times than manual operation. It only needs 3 to 5 workers to operate the machine. The finished cage can be exempted from inspection with uniform plate spacing and full-solid solder joint.

Features:

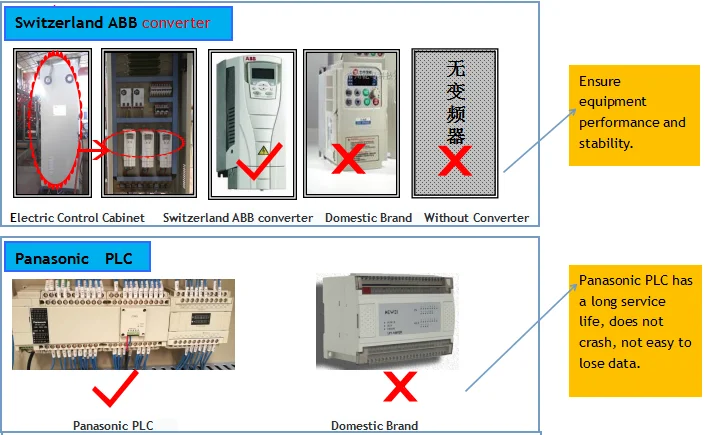

1. It adopts ABB converter, Panasonic PLC and touchable screen to ensure the stable operation of the equipment.

2. With the high precision of diameter control system, the longitudinal bar space error can be controlled within 1 cm, and 1 M spiral wire pitch error within 5mm.

3. It can produce double longitudinal bar with double spiral wire cages.

4. The self-weight of the machine is 10% heavier than those in the same industry, which can make machine more stable.

5. With the large load capacity, it can even produce 5 to 6 tons cages perfectly.

6. Power source:It adopts three domestic top brand main geared motors with large torque and low failure rate.

7. The support capability is 20% higher with the diameter 100mm hydraulic cylinder than those with diameter 80mm in the same industry.

8. Optional automatic welding robot.

Specification:

Technical Parameters
Item No	FH1500-12 (Pile diameter 1.5M)	FH2000-12 (Pile diameter 2M)	FH2200-12 (Pile diameter 2.2M)	FH2500-12 (Pile diameter 2.5M)
Cage pile diameter	600 ~ 1500mm	800 ~2000mm	800 ~2200mm	1000 ~2500mm
Max  cage length	13.5m	13.5m	13.5m	13.5m
Spiral wire diameter	5.0 ~ 16.0mm	5.0 ~ 16.0mm	5.0 ~ 16.0mm	5.0 ~ 16.0mm
Longitudinal bar diameter	12.0 ~ 32.0mm	12.0 ~ 32.0mm	12.0 ~ 32.0mm	12.0 ~ 32.0mm
Spiral pitch	50 ~ 500mm	50 ~ 500mm	50 ~ 500mm	50 ~ 500mm
Mobile disc moving speed	1100mm/min	1100mm/min	1100mm/min	1100mm/min
Rotary speed	4r/min	3.5r/min	3.5r/min	3.1r/min
Hydraulic system pressure	10Mpa	10Mpa	10Mpa	10Mpa
Maximum installed Power supply	13Kw  380V/50Hz/3Phase	23Kw  380V/50Hz/3Phase	23Kw  380V/50Hz/3Phase	31KW 380V/50Hz/3Phase
Working temperature	-20°~ 50℃	-20°~ 50℃	-20°~ 50℃	-20°~ 50℃
Overall dimension	28m(L) × 5m(W) ×2m(H)	28m(L) × 6m(W) ×2.5m(H)	28m(L) × 6m(W) ×2.5m(H)	28m(L) × 7m(W) ×3m(H)
Welding method	CO2 arc welding (free)	CO2 arc welding	CO2 arc welding	CO2 arc welding
Welding materials	Welding wire, welding rod (free)	Welding wire, welding rod	Welding wire, welding rod	Welding wire, welding rod

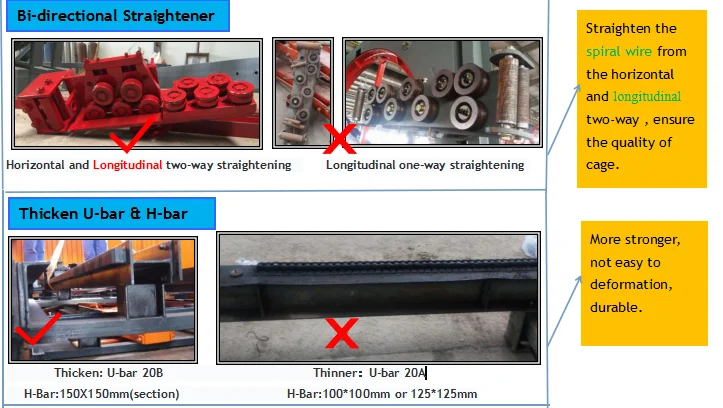

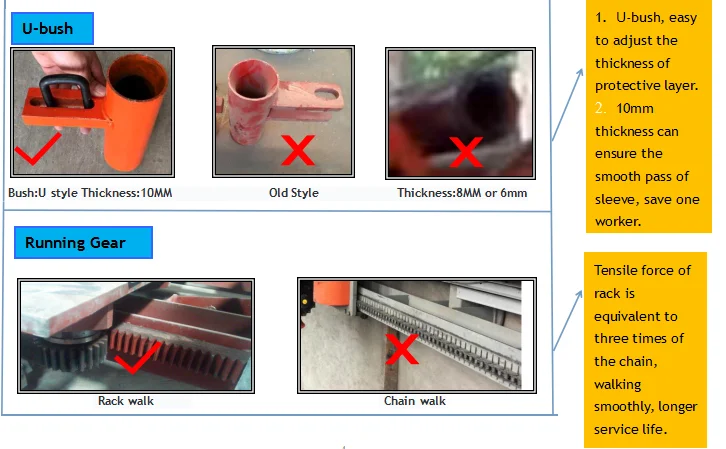

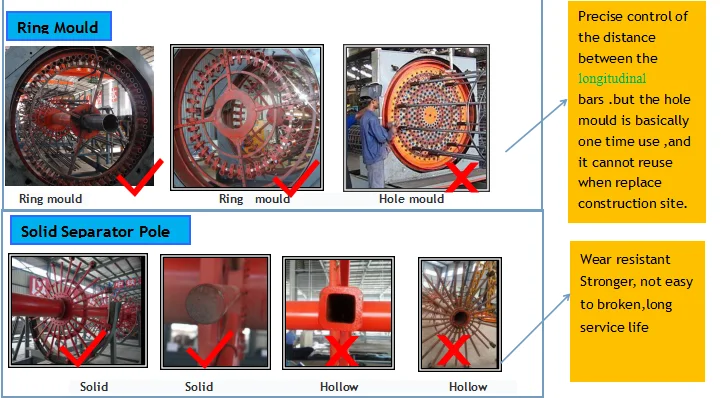

Components & Structure:
