wireless remote price crane 15 7.5 3 2.5 ton block philippines mode pull lift 1ton 10 5 2 1 ton electric chain hoist
- Category: >>>
- Supplier: Henan Dongqi Machinery Co. Ltd.
Share on (62260910462):
Product Overview
Description

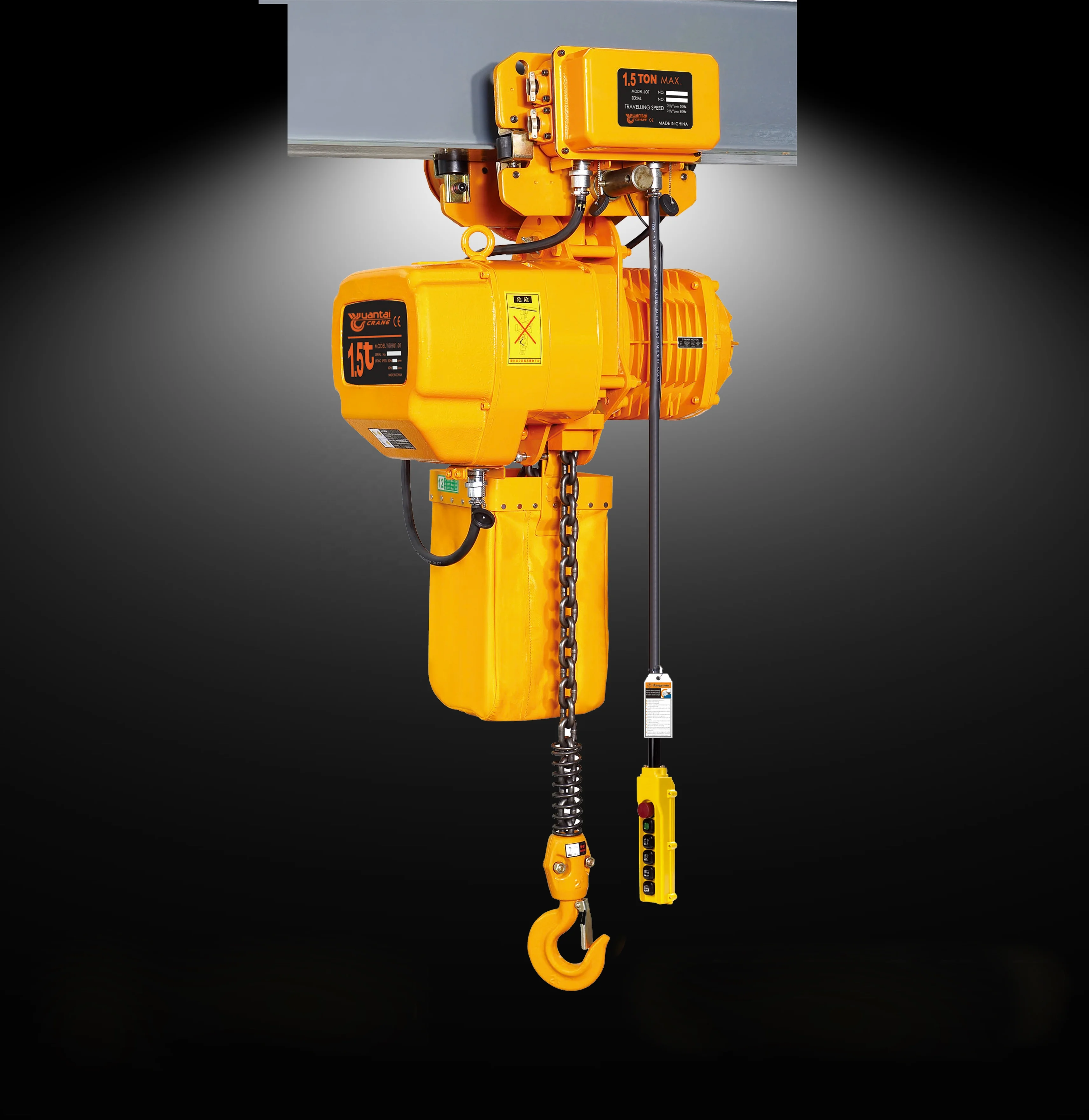

wireless remote price crane 15 7.5 3 2.5 ton block philippines mode pull lift 1ton 10 5 2 1 ton electric chain hoist
1. Three meters of lifting height and power supply cable as standard accompanies.
2. Extending the load chain is prohibited with additional links.
3. Optional lifting length, push button cord and power supply cable besides standard is available on
your request.
4. Canvas chain container are standard accompanies. Steel chain containers are available if your lift is
more than capacity of the standard container volume.
5. Emergency stop button on the push button switch, push down it, the motor circuit will be cut off.
6. Power voltage: 220V-690V, dual voltages are available. 50Hz and 60Hz are optional.
7. Control voltage: 24V, 36V, 48V are optional.
8. Wireless remote control can be assembled.
Parameters
Single Speed
| Model | SSDHL | |||||||||
| 0.5-01S | 01-01S | 1.5-01S | 02-01S | 02-02S | 2.5-01S | 03-01S | 03-02S | 03-03S | 05-02S | |
| Capacity | 0.5t | 1t | 1.5t | 2t | 2.5t | 3t | 5t | |||
| Lifting speed (m/min) | 7.2 | 6.6 | 8.8 | 6.6 | 3.3 | 5.4 | 5.4 | 4.4 | 2.2 | 2.7 |
| Motor power (Kw) | 0.8 | 1.5 | 3.0 | 3.0 | 1.5 | 3.0 | 3.0 | 3.0 | 1.5 | 3.0 |
| Rotation speed | 1440 r/min | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3P 220V~690V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. of load chain | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 |
| Net weight (kg) | 47 | 61 | 108 | 115 | 73 | 115 | 122 | 131 | 85 | 151 |
Double Speed
| Model | SSDHL | |||||||||
| 0.5-01D | 01-01D | 1.5-01D | 02-01D | 02-02D | 2.5-01D | 03-01D | 03-02D | 03-03D | 05-02D | |
| Capacity | 0.5t | 1t | 1.5t | 2t | 2.5t | 3t | 5t | |||
| Lifting speed (m/min) | 7.2/2.4 | 6.9/2.3 | 9.0/3.0 | 6.9/2.3 | 3.3/1.1 | 5.4/1.8 | 5.4/1.8 | 4.5/1.5 | 2.4/0.8 | 2.7/0.9 |
| Motor power (Kw) | 0.8/0.27 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 | 3.0/1.0 | 3.0/1.0 | 1.8/0.6 | 3.0/1.0 |
| Rotation speed | 2880 / 960 r/min | |||||||||
| Insulation grade | F | |||||||||
| Power supply | 3P 220V~690V | |||||||||
| Control voltage | 24V/36V/48V | |||||||||
| No. of chain | 1 | 1 | 1 | 1 | 2 | 1 | 1 | 2 | 3 | 2 |
| Spec. of load chain | Φ6.3 | Φ7.1 | Φ10.0 | Φ10.0 | Φ7.1 | Φ11.2 | Φ11.2 | Φ10.0 | Φ7.1 | Φ11.2 |
| Net weight (kg) | 54 | 74 | 144 | 150 | 86 | 148 | 159 | 168 | 102 | 184 |

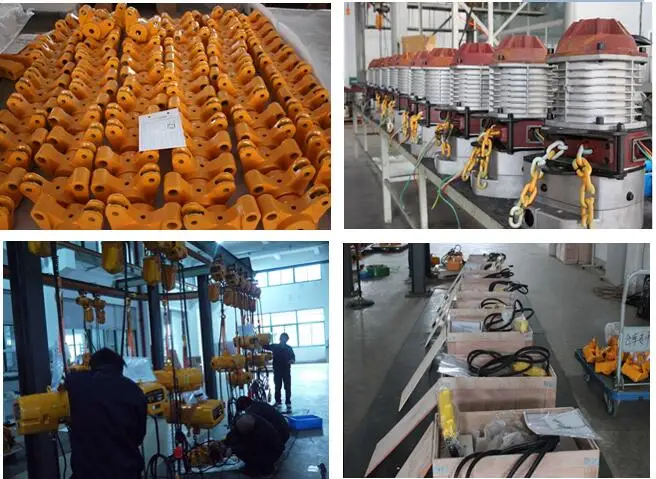

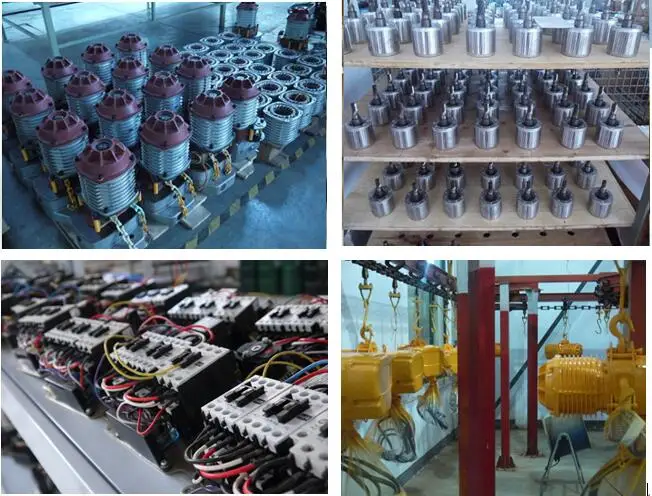

production process
Packaging & Shipping

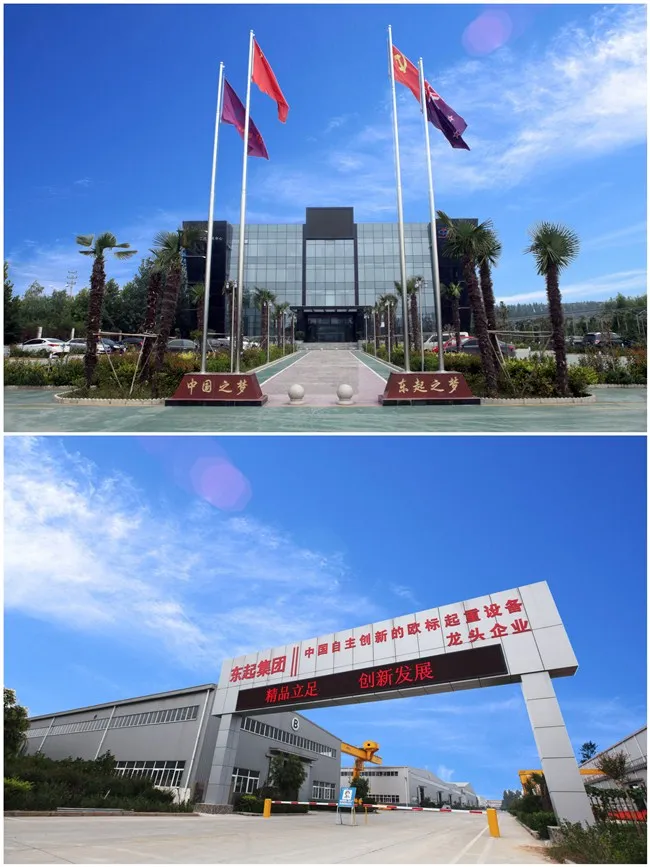

Company Information
Henan Dongqi Machinery Co., LTD is located in Changyuan county in Henan Province of China, where is called Crane’s Hometown. Each year, it has a supply of 75% crane products for the whole Chinese market. Dongqi crane factory covers an area of 240,000 square meters, with a total investment of 240 million RMB, the registered capital of 108 million RMB. Company technical cooperation with a number of well-known European machinery manufacturers, such as the UK SZW company, NORD company in Germany, the SIMENS company, Scheinder of France, and other reputed companies, committed to the traditional and European crane and lifting technology innovation and development, Dongqi Crane endeavor to be a famous brands in domestic and international market.At present, Dongqi has 2000 sets production equipment and testing equipment, crane annual comprehensive production capacity of more than 10000 sets, production output value of 1.5 billion.
Certificate

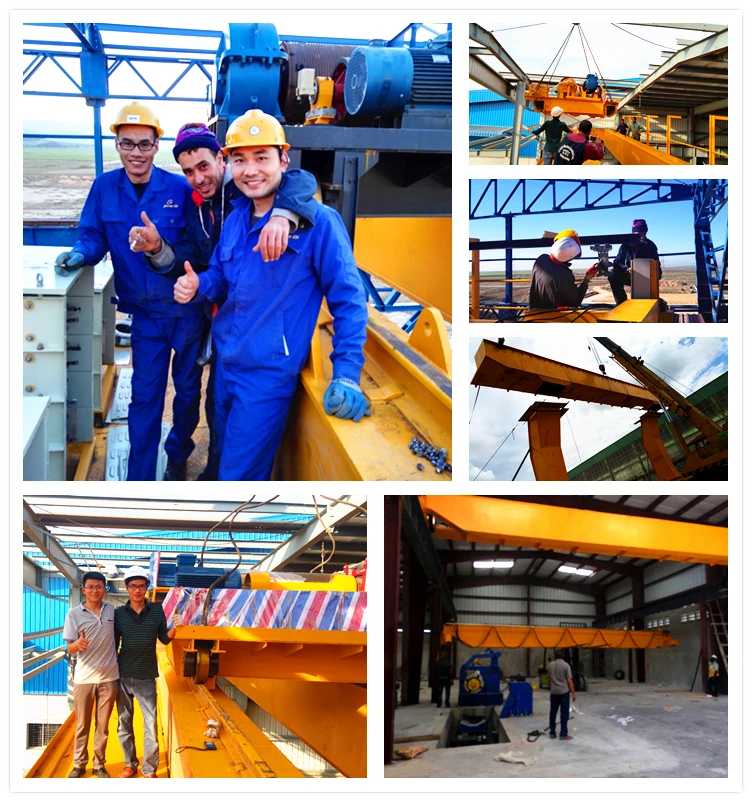

Customers to visit factory
Our Services
1.We could provide turn-key project as your demand, including Design, Manufacture, Quality
assurance, assembling, Testing, Commissioning, Training and After service.
2. Complete spare parts available.
3. Lifelong free service guiding.
4. Door to door service if necessary.
We have formed a partnership with customers from more than 80 contries all over the wrold,such as Pakistan, the United Kingdom,India,Australia,Saudi Arabia,Bolivi, UK, USK and so on.The customers were conquered by our strength. Supply the overseas service for installation and maintenance with the crane machinery.
Good experience has been given to our customers by our rich experience.
