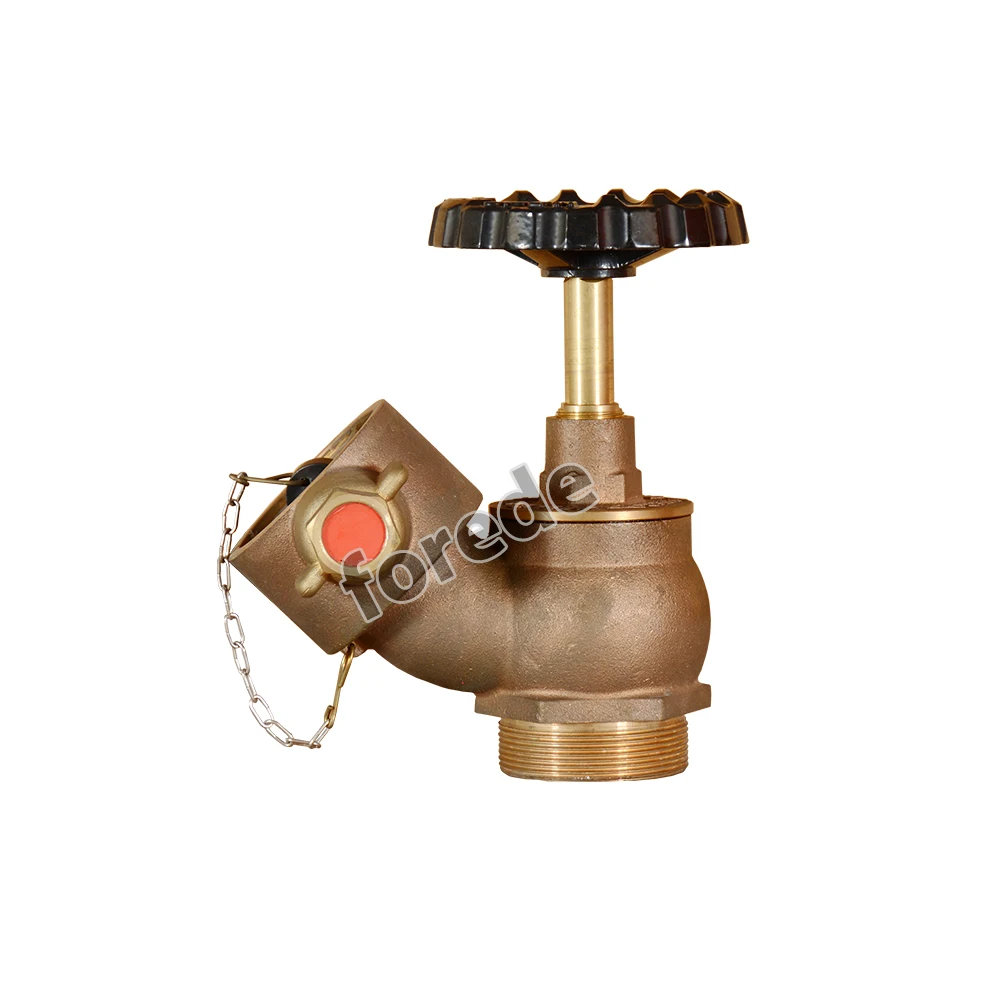

DN65 2.5' Thread type oblique landing valve for wet riser

forede FRD-FT fire hydrant landing valves are suitable for installation on wet risers in a building for fire fighting purposes with permanently charged water from a pressured supply.

The fire landing valves are oblique type with thread inlet and are manufactured to comply to BS 5041 Part 1 standard with delivery hose connection and blank cap complying with BS 336:2010 standard.
The landing valves are classified under low pressure and are suitable for use at nominal inlet pressure up to 15 bar.

*CCC and ISO certified

*Body material made of copper alloy to EN 1982
*Hand wheel material made of grey cast iron to BS EN 1561
*Blank cap material made of Plastic.
*Possible to replace the gland seal when under pressure with the valve fully closed
*Disc facing rubber is of replaceable type
*Valves are provided with a strap and pad lock so that the hand wheel can be secured to counter unauthorized use
*The hand wheel is BLACK painted and body to RED
