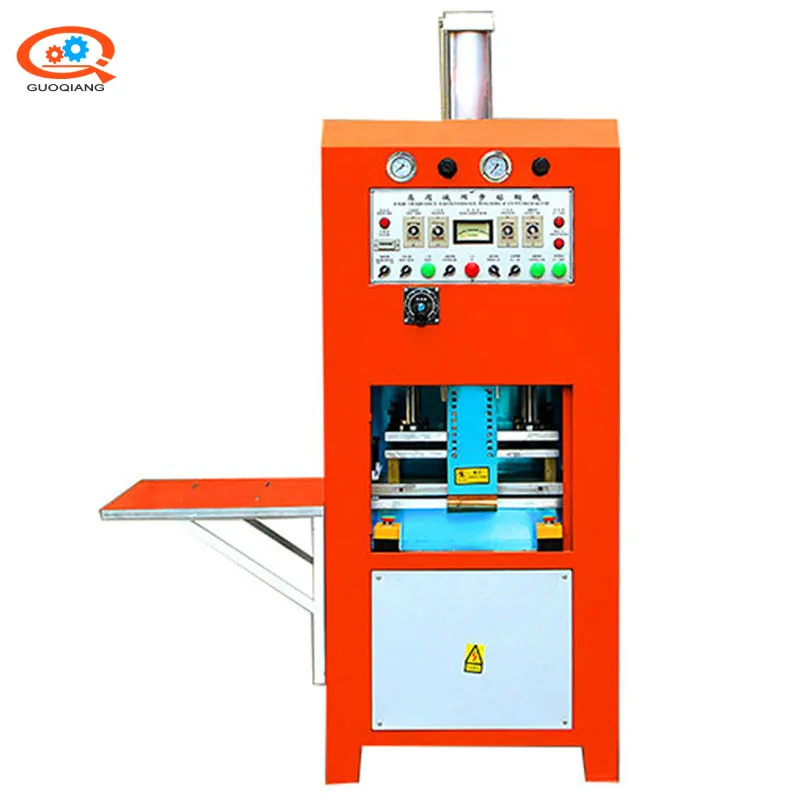

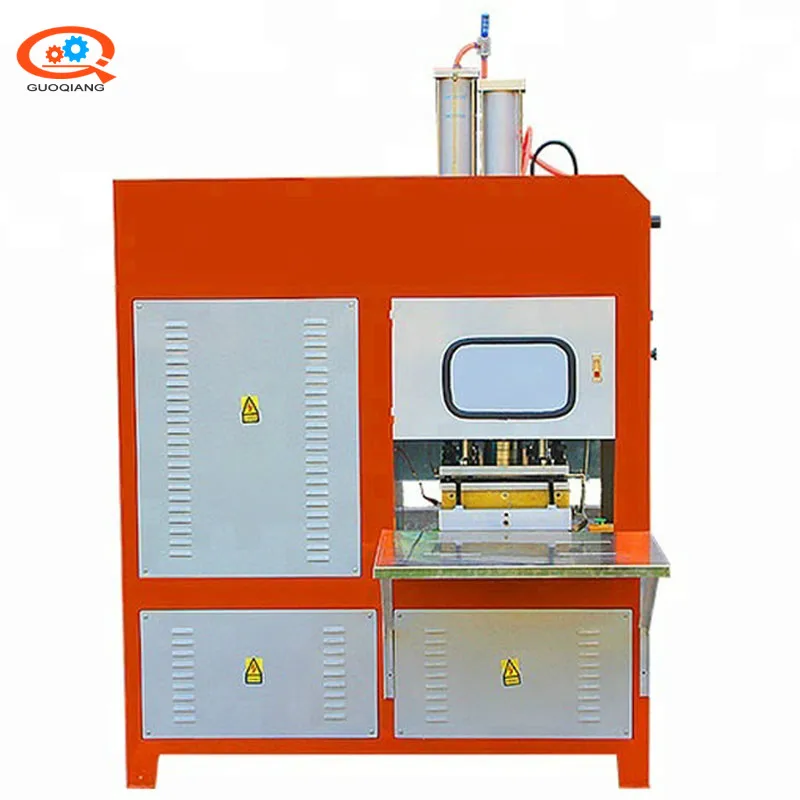

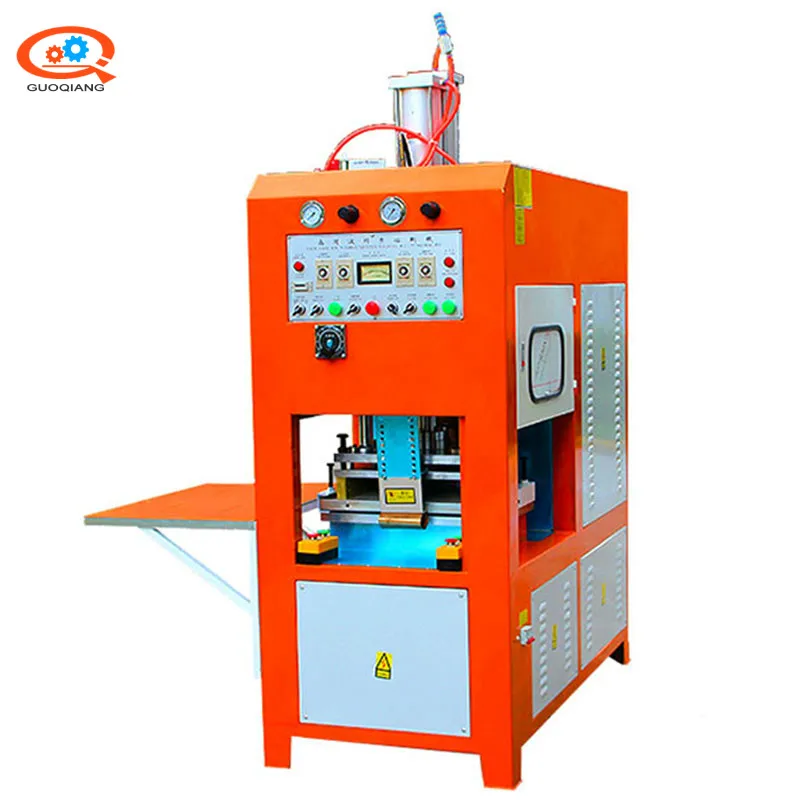

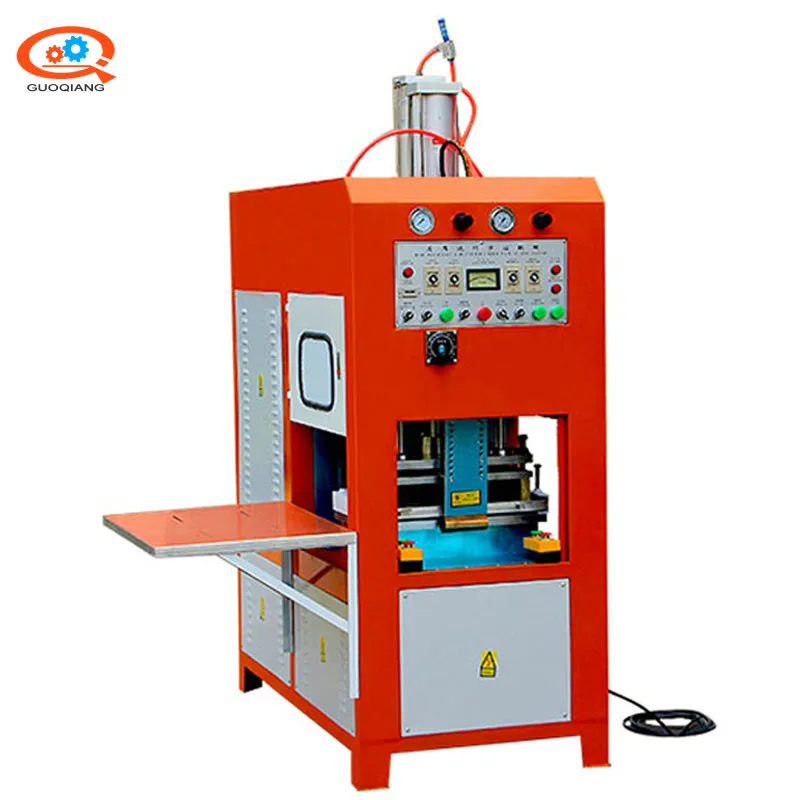

high frequency Medical Sterile IV Infusion Bag Making Machine

Product Overview

Description

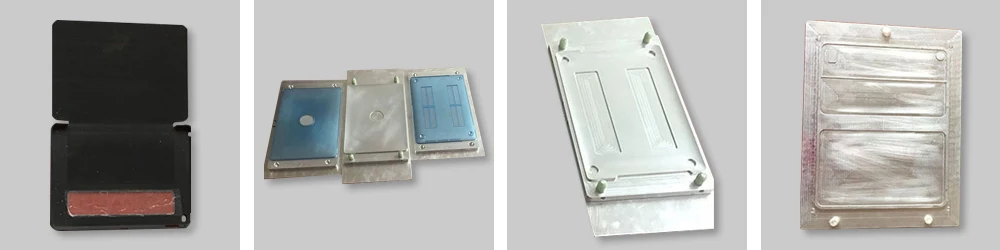

The machine double station shuttle HF welders with 8, 10, 15kW stable controlled HF power outputs are designed for various industrial HF welding and heat sealing applications requiring precision flat surface for product positioning and complex shape welds. HF welder can be easily converted to a standard Heat Sealer for applications where HF welding is not necessary or impossible (eg: PP or PE materials). Machine is equipped with quick change 4 point electrode holder. Custom built tooling and electrodes are available upon request.





• HF output power range at 8, 10, 15kW


• Side load pneumatically driven shuttle work trays (1 or 2)


• Heated electrode holding plate up to 160°C


• Sealing efficiency from 1kW: 25cm2 for standard PVC materials


• Easy conversion to standard Heat Sealer


• Universal usage for PVC, PU, PET, A-PET, PLA films


• Automatic smooth glide work trays


• Easy electrode change system on upper platen



Model No	GCQ-W8KW	GCQ-W10KW	GCQ-W15KW
Voltage	AC220/380/400/415/440V 50/60HZ(Customized)
Output Power	8KW	10KW	15KW
Input Power	10KVA	12KVA	18KVA
HF Frequency	27.12MHZ ±0.6%
Oscillation Tube	8T85RB	8T85RB	8T85RB
Anti-spark Tube	NL-5557	NL-5557	NL-5557
Gap of Electrode	200mm	200mm	200mm
Size of upper electrode	300×400mm	350×450mm	400×500mm
Machine Size	1900×1400×1900	1900×1400×1900	1900×1400×1900
Machine Weight	600KG	620KG	650KG
