Тепловой насос для бассейна 52 кВт, тепловой насос для спа, водонагреватель

Product Overview

Description

Swimming pool heat pump/spa heat pump
Model				heat pump	FAP-12
function	Rated heating capacity			kW	52.0
				BTU	177474
	Rated input power			kW	10.00
	Rated heating input current			A	15.22
	COP			kW/kW	5.2
	Max running current			A	26.00
	Power source				380V/50Hz
	Noise level			dB(A)	60
	Dimention		Width	mm	1470
			Depth	mm	735
			Height	mm	990
	Weight			kg	232
	Water temperature control precision				±2℃
	Working environment				—15℃~43℃
	Throttle type				Electronic expansion valves
	Refrigerant	Type			R417A, R407C,R410A
	Compressor	Brand /type			scroll panasonic/sanyo Copeland
		Qty		pc	2
	Heat source side	Heat exchange type			Efficient finned tube exchanger
		Motor power fan type			Axial flow fan
		Motor power		kW	0.6

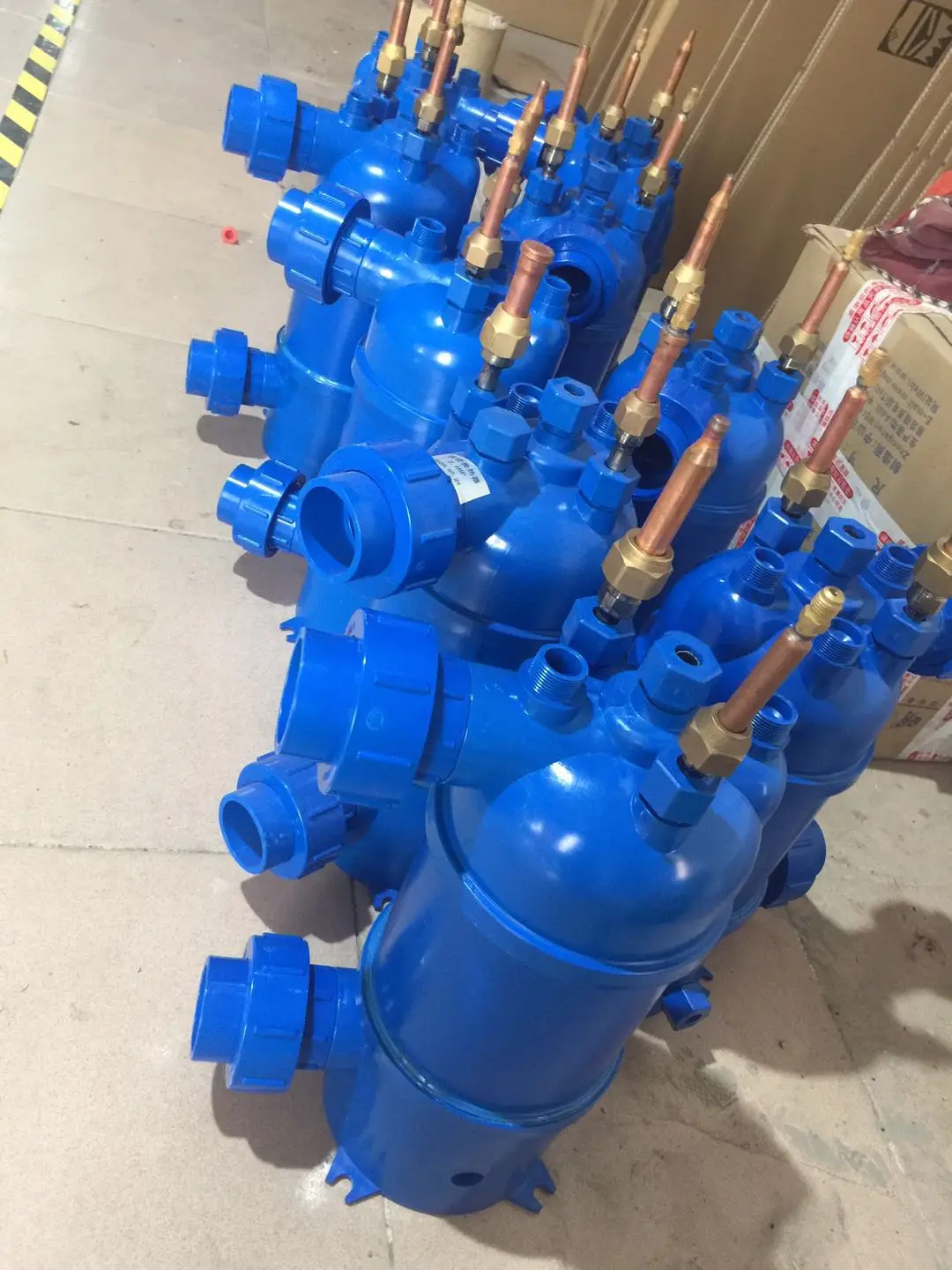

	Hot water side	Heat exchanger type			High titanium tube heat exchanger
		Water flow		m3/h	22.00
		Water pressure drop		kPa	28
		Connect pipe size		Inch	2 and 0.5
		Water size max work pressure		kPa	600

Rated heating working conditions: air-source air inlet dry bulb temp is 24,wet bulb temp is 19℃, water side inlet temp28℃, outlet temp32℃
