Customized 30ah 60v 48v 25ah 1600w electric scooter EV lithium battery pack
- Category: >>>
- Supplier: Shenzhen Matrix Battery Co. Ltd.
Share on (62261546497):
Product Overview
Description

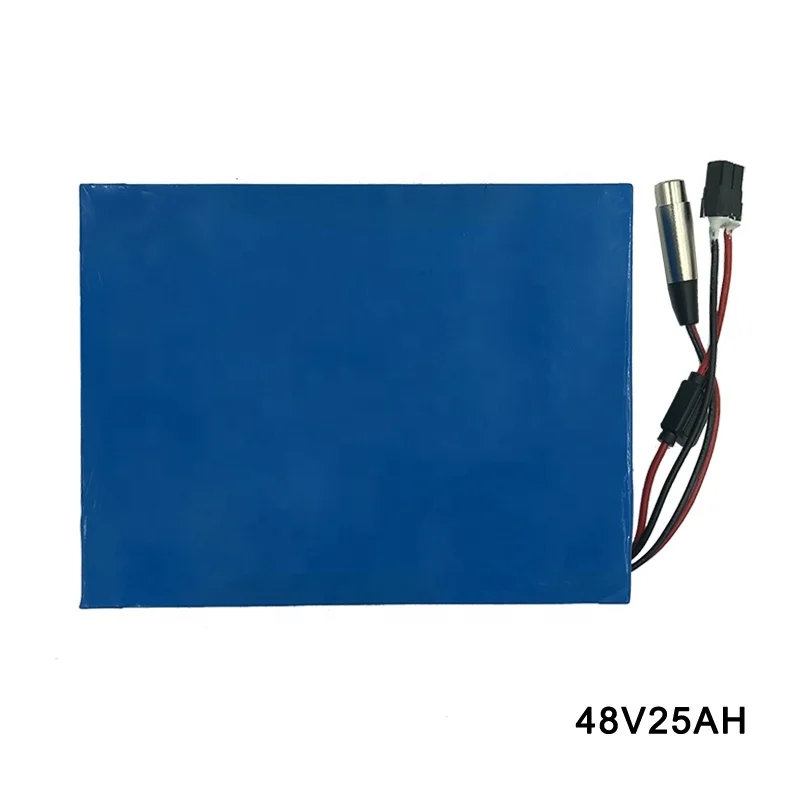

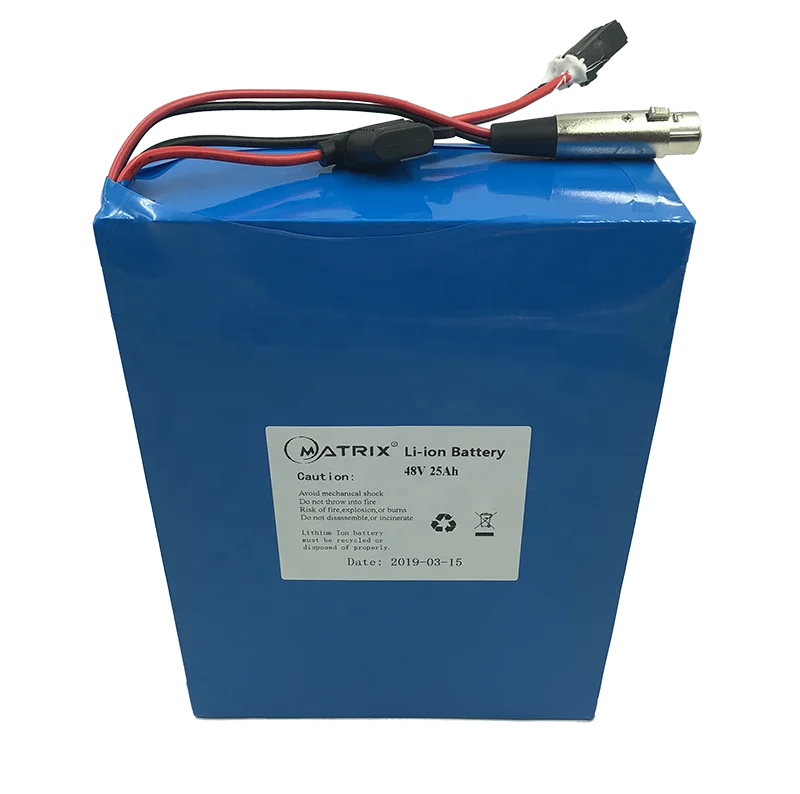

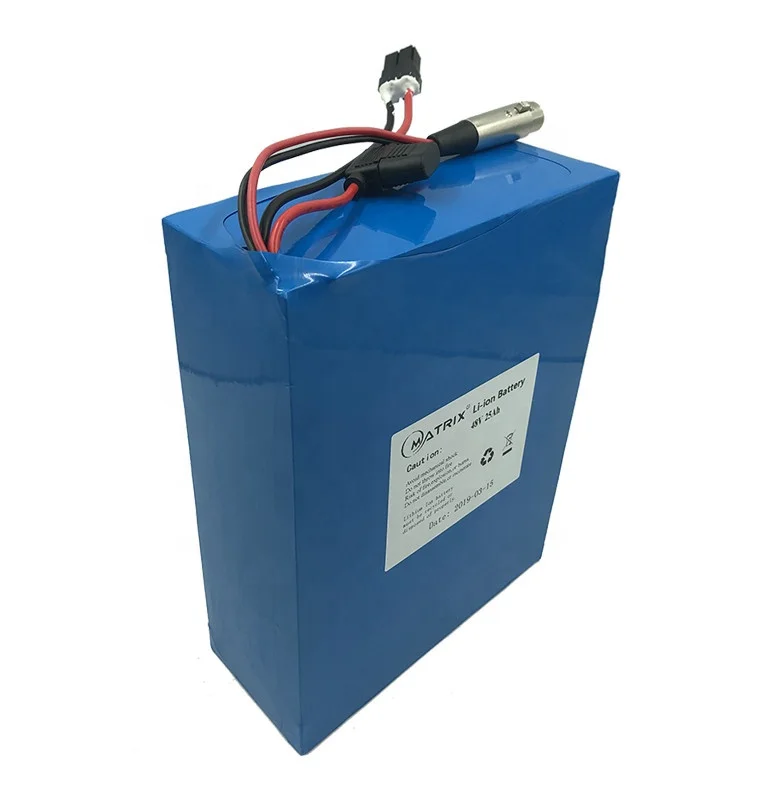

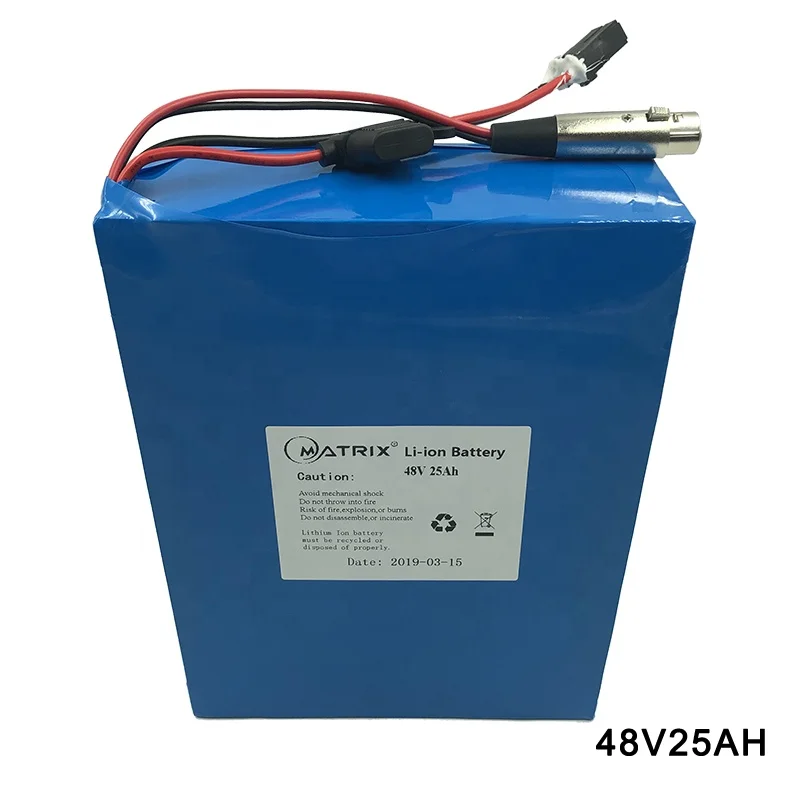

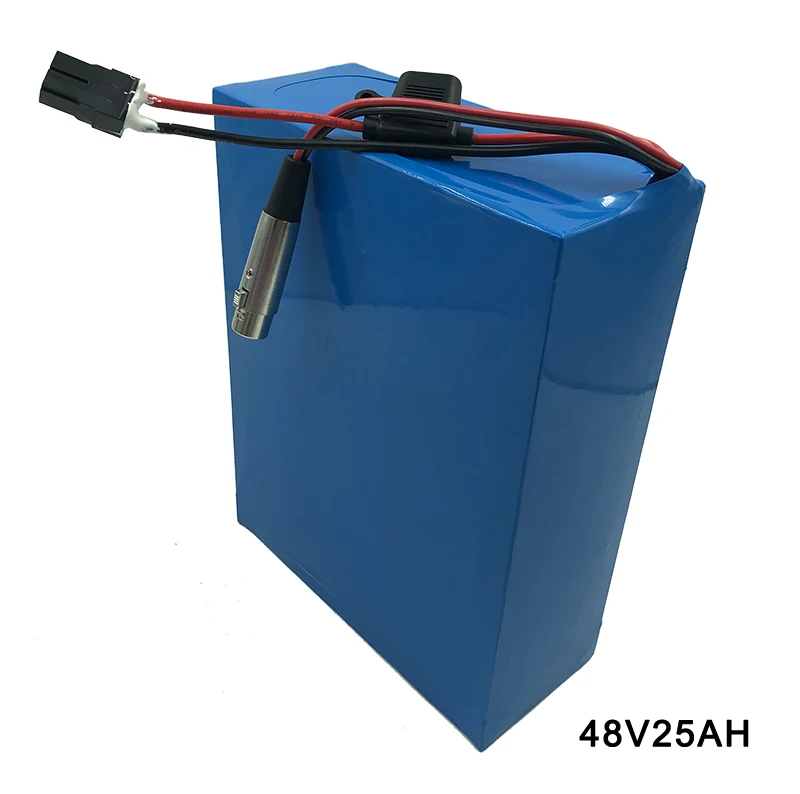

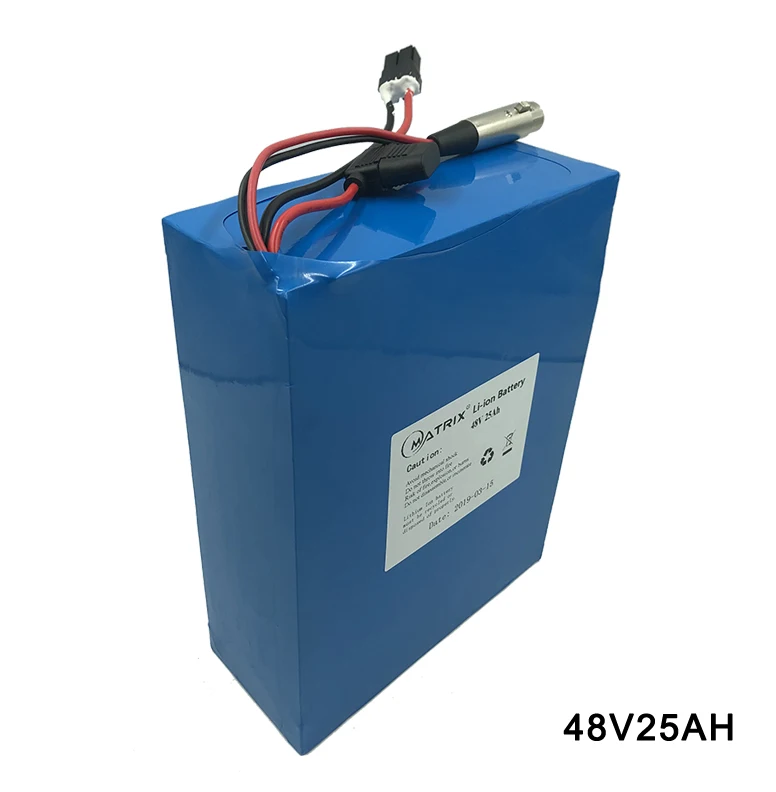

Customized 30ah 60v 48v 25ah 1600w electric scooter EV lithium battery pack
Product Information
Specification
Item | Matrix 18650-13S10P-48V-25Ah |
Unit Price | 207.58USD |
Battery cell | Domestic A grade cell 18650-2500mah |
Nominal Capacity | 25Ah |
Nominal Voltage | 48V |
Max Working Current | 30Amp |
Continuously Working Current | 30A |
Charger | 11 Amp Charger |
Charge Method | CC/CV |
Weight (Approx.) | 7.5KG |
Dimensions | 310*210*11mm or customized |
Operating Temperature | 0℃~45℃ (charge) |
| -20℃~60℃ (discharge) |
| -20℃~45℃ (storage) |
Plug | customized |
Connector & Cable | Pin plug & Normal type Cable |
PVC Wrap | Black/Blue/Green |
Charge
1. AC Input Voltage: 100-240V.
2. Charge Voltage: 54.6Volts.
3. Charge Current: 2Amps.
4. AC Charger Plug: EU/US/UK/AU you can choose
Working temperature
Charging 0°C~45°C
Discharging -20°C~60°C
Storage -10°C~45°C
Cycle life (times): More than 500
Applications:
·Electric Vehicles, such as E-bike, E-scooters
·Electric boats, such as trolling fishing boat;
·Robots for industries and military;
·Remote data transfer system;
·Satellite communication station;
·Un-manned aircrafts;
·Power tools, such as drilling, cutting and polishing tools;
·Power supplier for Training systems
Related Products
Related product
Product Description
1. Safety: safest Li-Ion battery, CE UL approved, built-in BMS, none fire, none explosive
2. Clean and Green energy, no toxic material contained
3. Long life cycle, > 500 times deep cycle,8 times of lead acid battery
4. No memory effect,highly efficient charge anytime, no reduction of capacity
5. Operation temperature: -20~70°C
6.Small size, light weight: 1/2 size of lead acid battery, 70% size of Ni-MH Ni Cd battery, 1/2 weight of lead acid battery
7. Good performance at high temperature and high temperature resistance
8. Low self-discharge rate: < 3% monthly
