12v 24v 120x120x32mm High Airflow DC Centrifugal Blower Fan 1232
- Category: >>>
- Supplier: Shenzhen Yccfan Technology Co. Ltd.
Share on (62261731867):
Product Overview
Description
Product Description

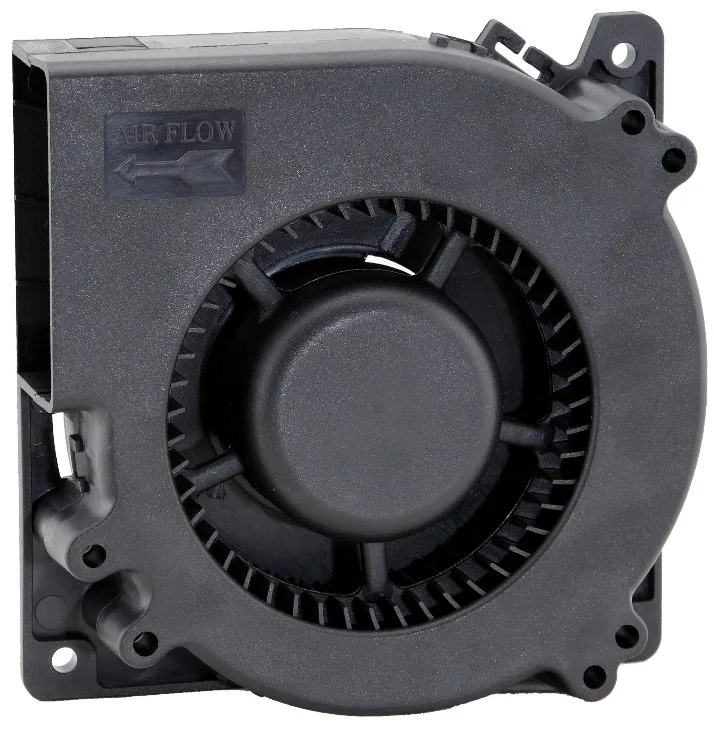

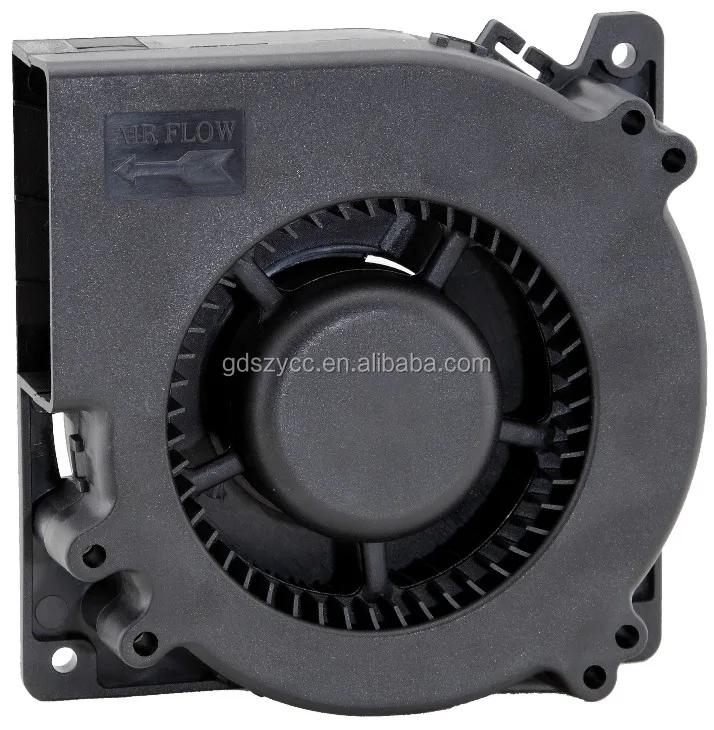

120x120x32mm dc centifugal cooling fans dc motor dc blower fan 12v 24v
The fan with various functions are available, such as 3 wires Tachometer signal output , Alarm signal output , Dual speed with Tachometer signal , Temperature control, PWM , 4 wires FG+Alarm function, Waterproof , USB cable, LED fan etc…

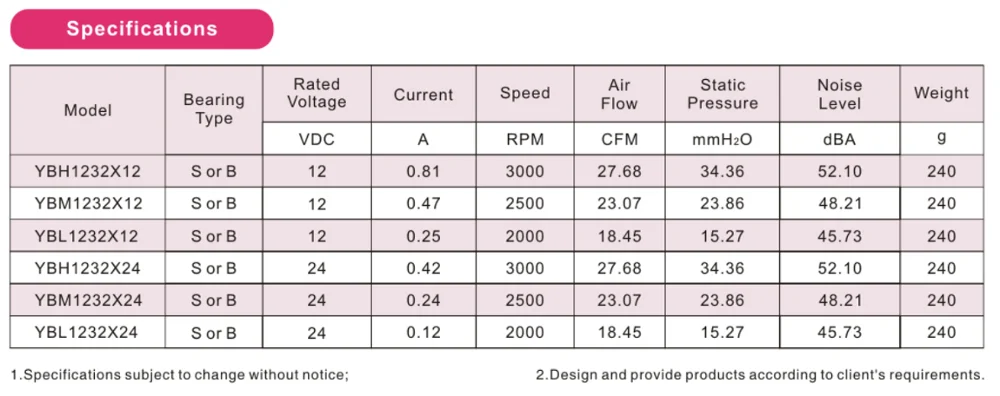

| Size | 120x120x32mm |
| Construction | Plastic blades,Plastic Frame |
| Operating Temperature | Ball bearing:-10°C to +70°C Sleeve bearing:-10°C to +60°C |
| Insulation Resistance | 10meg Ohm min,at 500 VDC(between frame and terminal) |
| Dielectric Strength | 5mA max,at 500 VAC60Hz one minute (between frame and terminal) |
| Life Expectancy | Dual ball:50000-70000 hours sleeve:30000 hours |
Rated voltage: 12v 24v dc acording to customer's requirement

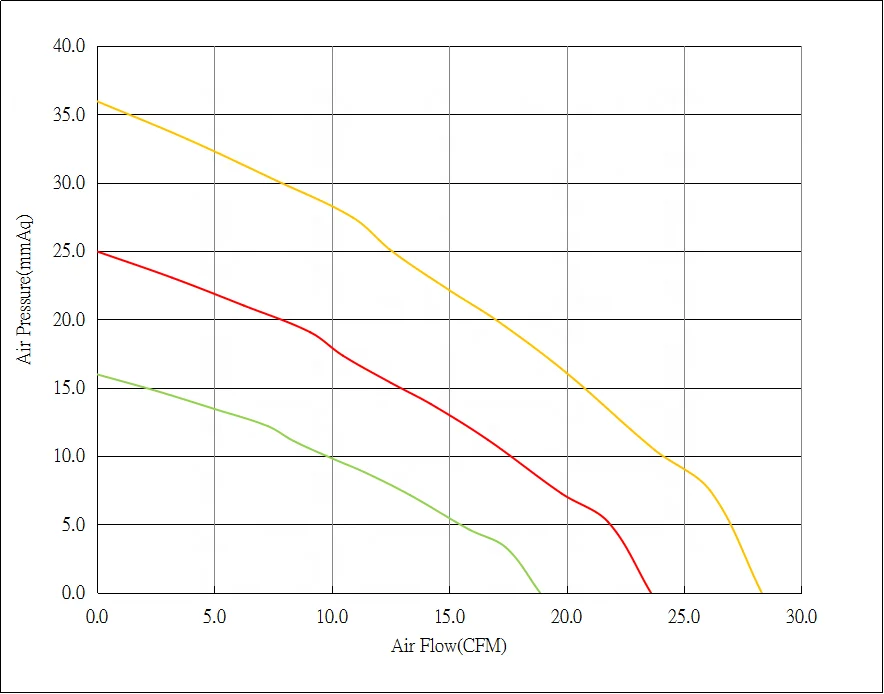

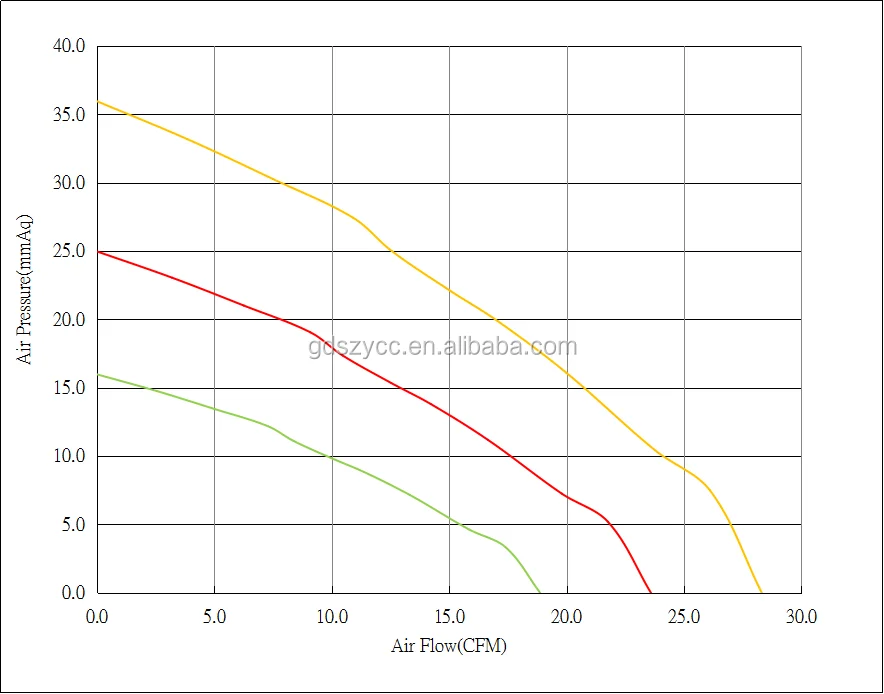

Air flow, air pressure, speed and rated voltage can be customized based on customer's requirement
Bearing: Sleeve or Ball ( sleeve working time for 30,000 hours, ball working time for 50,000 hours)
Yccfan ball bearing is Minebea NMB brand, it is imported from Japan

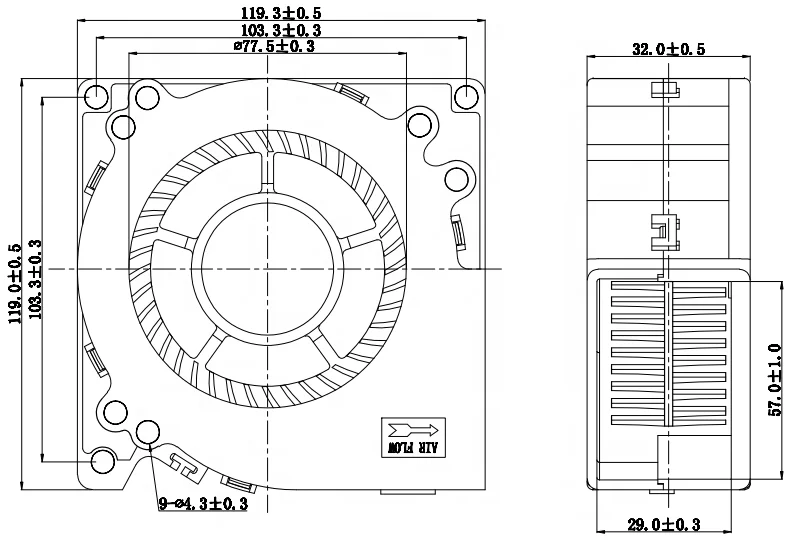

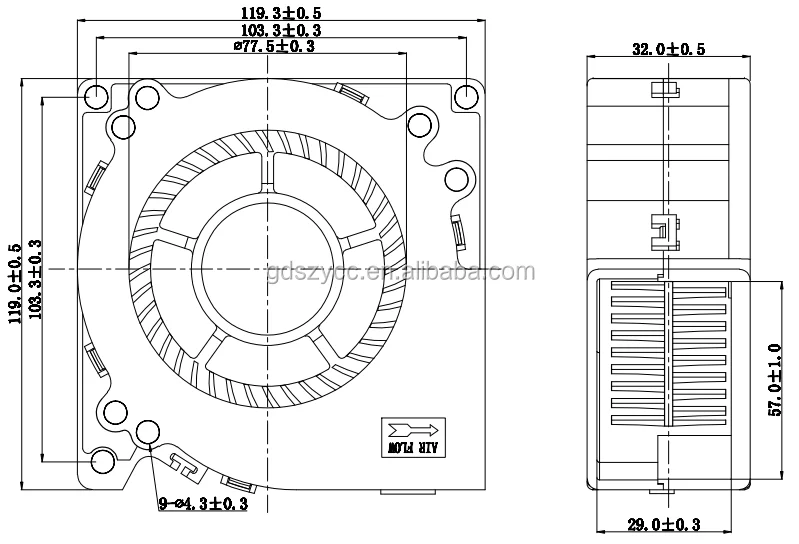

Size: 120*120*32mm dc blower fan 12v 24v
Construction: Glass fibre reinforced plastic;Impeller and housing PBT are UL 94V-0 rating
Operating Temperature: Ball bearing:-30°C to +75°C
Sleeve bearing:-10°C to +70°C
Life Expectancy: Dual:55000-60000 hours
Sleeve:20000-30000 hours
Testing
100 % testing ,cooling fan before leave our factory.
Company Information
YCCFAN is a professional manufacturer and supplier in Guangdong, China.
We have 11 Years’ experience in Cooler Industrial.
We devote ourselves to offer high quality products to our clients in a competitive price, we also provide top quality service to clients.
Our company produce Cooling products: AC Fan, DC Fan and EC fan. All of our products have passed CE & ROHS certificate.
We also accept customized products. Please contact us if you have any needs anytime. We will reply within 24H.
Certifications
1. All cooling fan have passed CE , Most of them also got UL & CUL certifications.
2. Our company have approved IS9001 & ISO14001 & IATF16949 certificate .

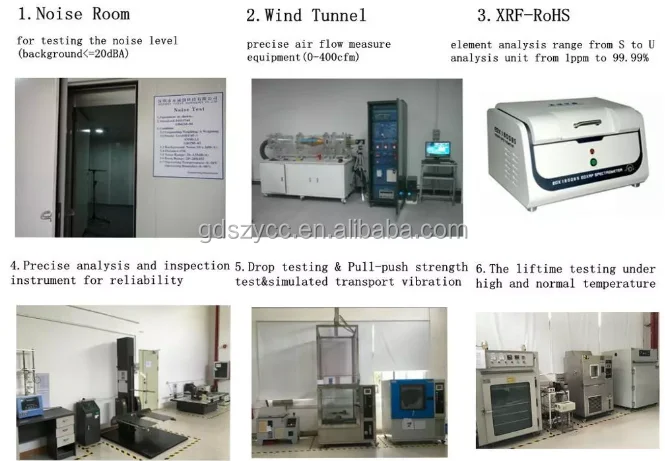

R & D Ability
Every year, YCCFAN invest 50% of turnover to R&D new products, purchase experimental and detecting instrument.
Since 2017,YCCFAN are focusing on design a new bearing to prolong life span of cooler fan, now Cycle Seal Bearing is widely used for 20mm-90mm, precise groove structure & shaft & better qualified greeze to prolong fan's lifespan.
Packaging & Shipping
- carton package.
- 10-15 days after confirming your order and receiving your payment.
- We ship goods to worldwide! Product will be ship by EMS, FedEx, DHL, or UPS.
- Please check with your local agency as you might be required to pay custom duty/tax on import of this goods, all custom duty/tax pay by buyer. We are not responsible for any custom duty or import tax.
- All items will be packed safely by our professional logistic department, please check the product before Signoff, if your item is damaged or lost by Express, please Reject. Meanwhile, please contact us immediately so we can assist with correcting the problem A.S.A.P, And we will report to the Express and ask for refund.
Visting & Exhibition
We welcome the customers and visitors from home and abroad. By face-to-face talking, we can better know each other and solve each others' questions more effectively. Some customer from US, Germany, Korea.. fly to our factory to sign the contacts.
