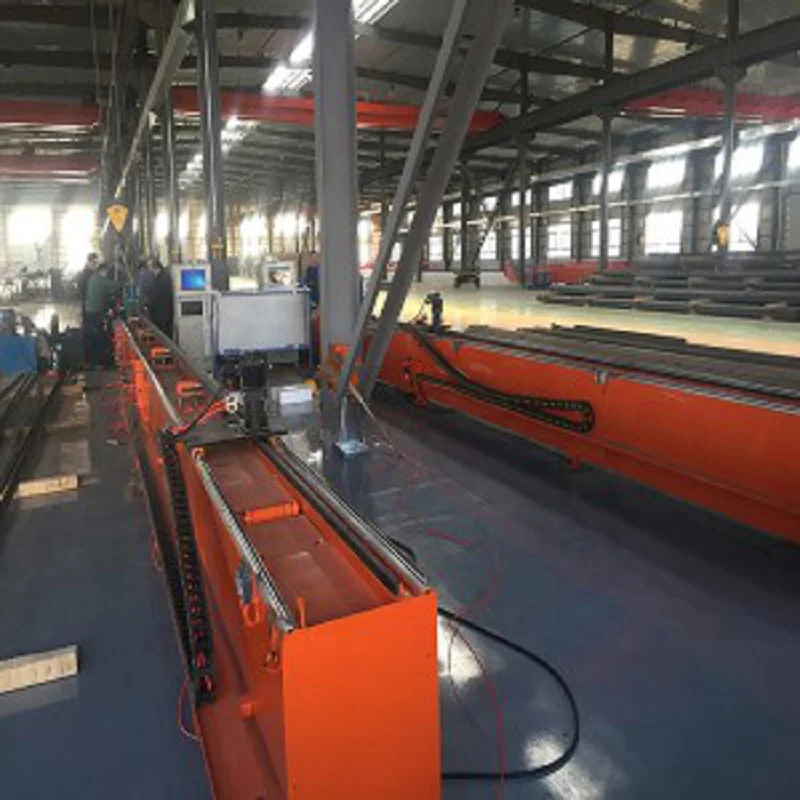

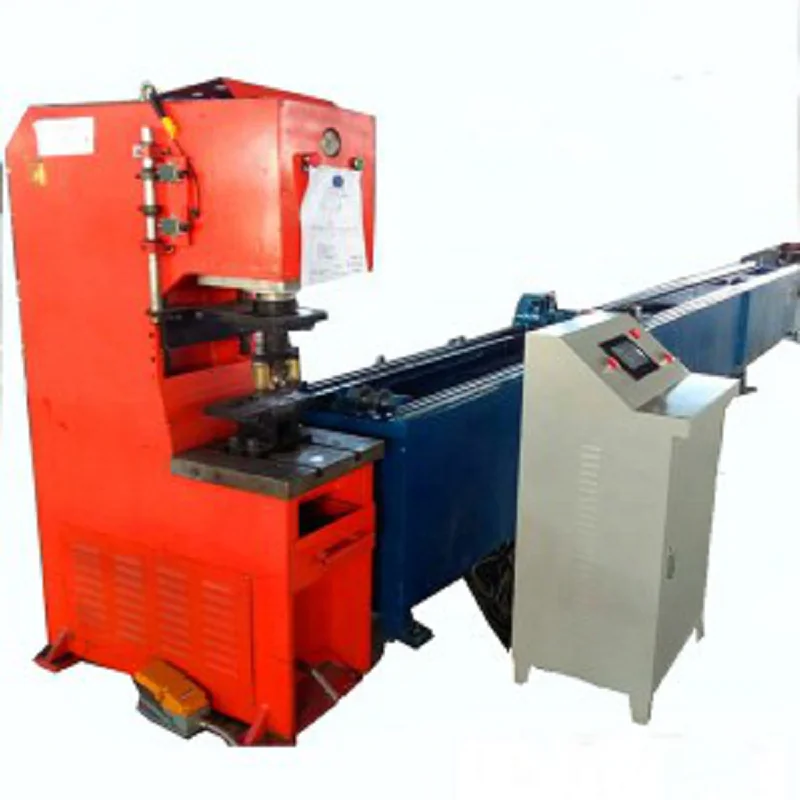

6 Working Stations CNC Small Channel Steel Line
Application
Punching, shearing, marking for angle steel, which used widely in steel structure, steel tower, railway, scaffolding etc.
Feature
1.The basic support height can be adjusted easily, fleaxible installation and good stability.
2.Length direction aixs made up of two circular orbit with dia.30mm. Smooth and warep.
3.Servo motor adopt latest intelligent power mould IPM.
4.With the good performity of integration,small size, fast speed, complete protection.
5 The clamp part is specially for the angle steel, reasonabe structure and stable. In addition, have the other three sets of floating gripper moulds, avoid the tremble in the feeding process.

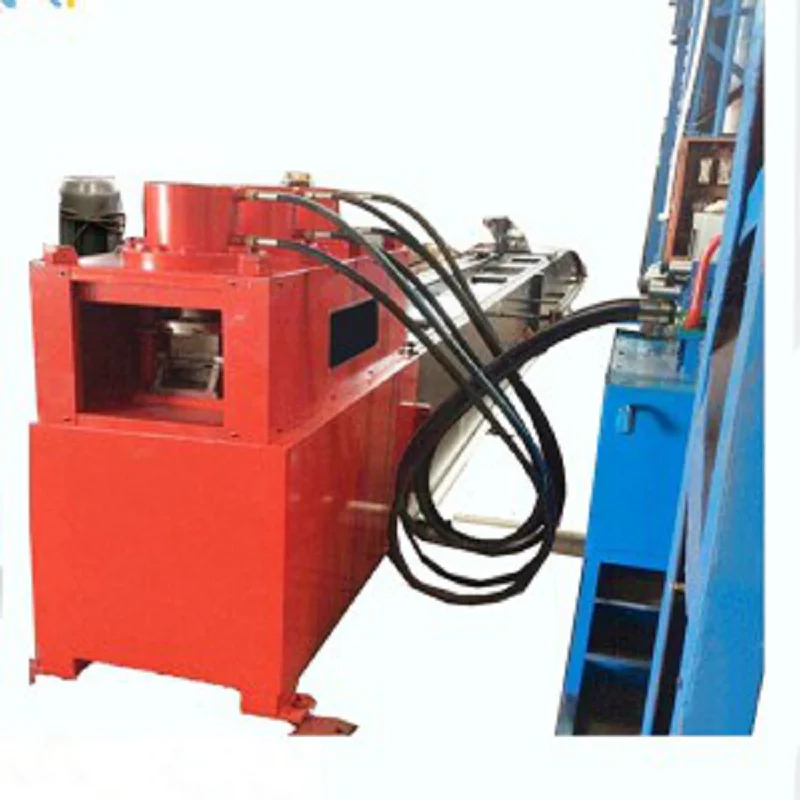

Punching and Shearing
More tight structure, more reasonable design, resolve the problems of the old moulds heavy and complicate changement.
Size Information
NO. | Technical Data | SPA-12000*5 |
1 | Feeding stroke length | 12m |
2 | Blind spot control | dies avoid |
3 | Max. speed | 18m/min |
4 | Max punching speed | 40 times/min |
5 | Stations Number | 6 |
6 | Shear station | 1 |
7 | Punching station | 4 ((one can be changed to marking)) |
8 | Total Power | 20 |
9 | Overall Size | 9m*1.7m*1.6m |
