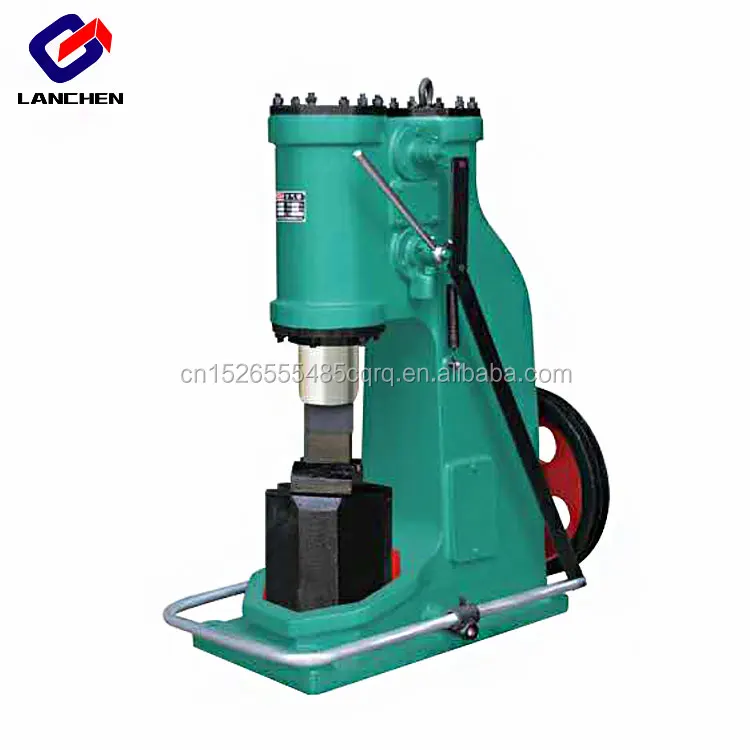

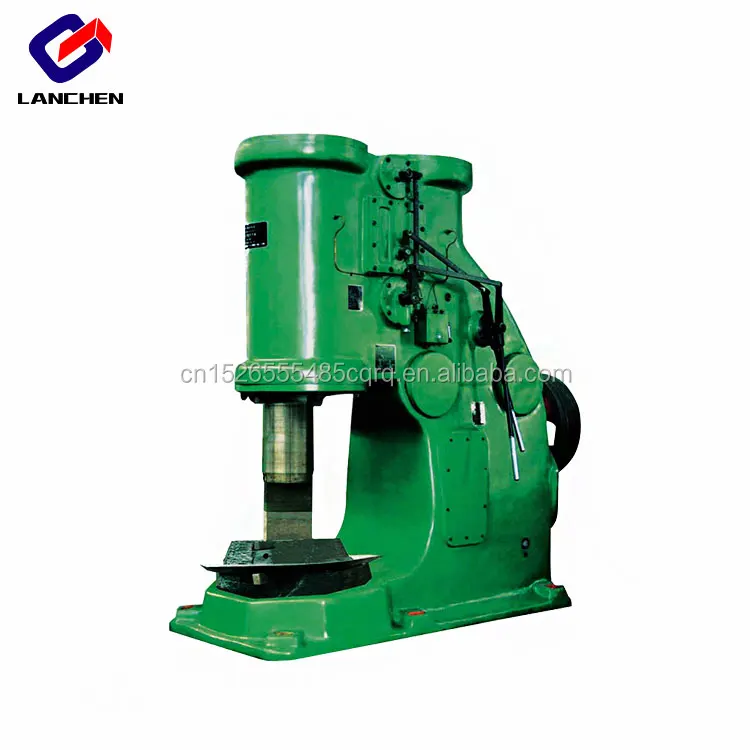

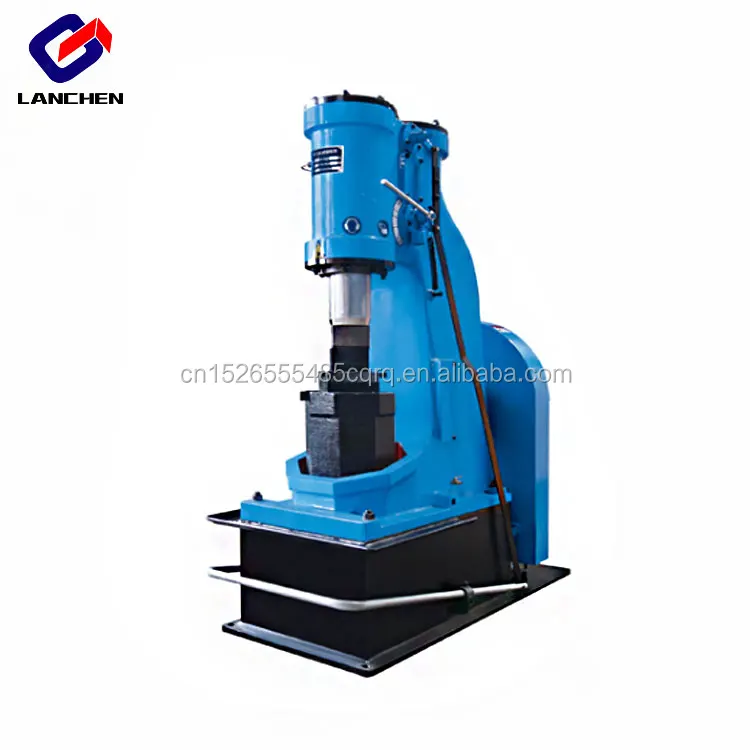

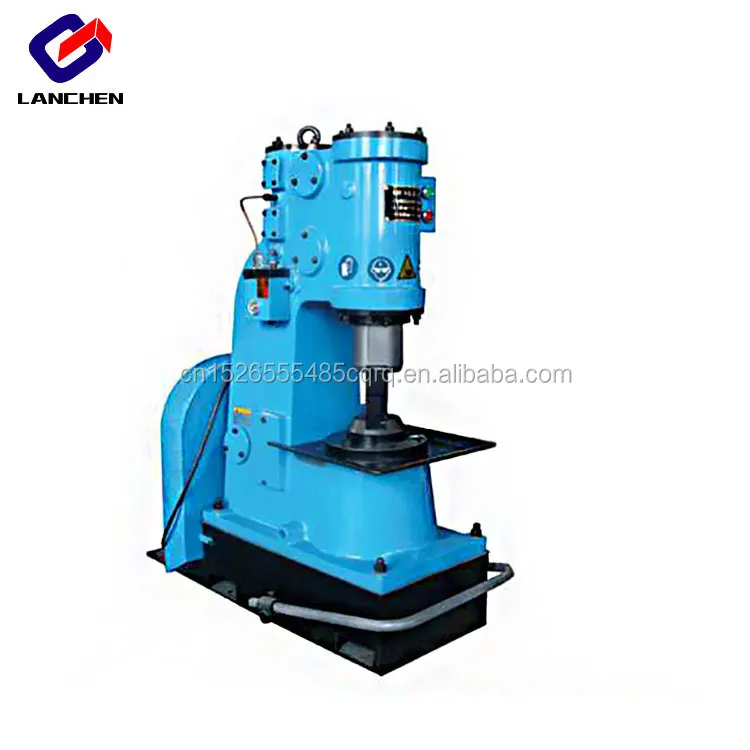

Widely used 25kg wrought iron forging hammer press
- Category: >>>
- Supplier: Zhengzhou Lanchen Electronic Technology Co. Ltd.
Share on (62261764903):
Product Overview
Description
C41-25kg drop forging air power hammer for iron blacksmith
Product Uses
| General description | High efficiency C41-25kg power runner hammer also called wrought iron blacksmith power hammer.Ellsen power hammer from 16kg to 150kg are widely used by blacksmith for the art forging;from 150kg to 2000kg are widely used in the industrial forging. Pneumatic forging hammer/power hammer is widely used for general Forging works, such as drawing-out, upsetting, punching,chiseling, forging welding, bending and twisting. It is also used for forging in bolster dies. |
| Main feature | 1.Unlike steam hammers or air hammers fed from a supplementary compressor, the Pneumatic forging hammer with itself-contained cylinder,require no ancillary power raising plant. |
Product Description
Technical parameter of C41-25kg model air hammer
Air hammer technical parameters | ||||
Items | C41-25KG A | C41-25KG A | C41-25KG C | C41-25KG D |

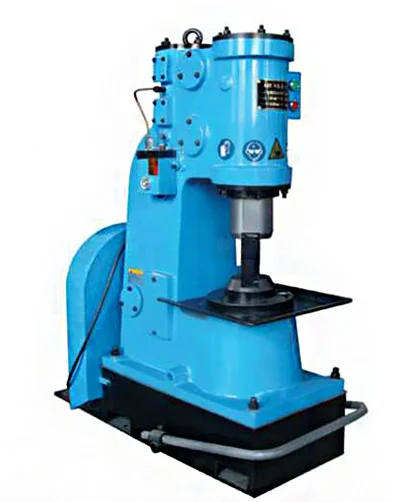

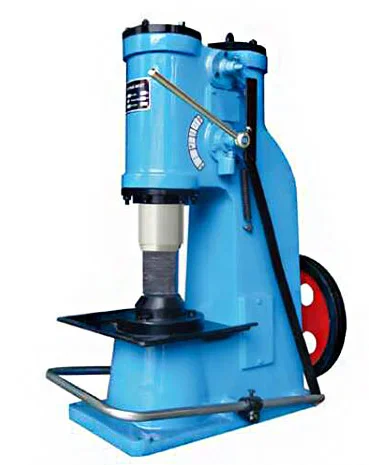

Photo |
|
|
|
|
Weight of falling parts | 25KGS | 25KGS | 25KGS | 25KGS |
Attack Energy(J) | 270 | 270 | 270 | 270 |
Height of working area | 240 mm | 245mm | 245 mm | 245mm |
Attack Number of times(T/Min) | 250 | 250 | 250 | 250 |
Dimension of top and bottom die syrface (LxW) |
100X50 mm |
100x50 mm |
100X50 mm |
100x50 mm |
Max.square steel can be forged | 40*40 mm | 40*40 mm | 40*40 mm | 40*40 mm |
Max.Malleable Round steel Length of Side(mm) | 45 mm | 45 mm | 45 mm | 45 mm |
Mold come with machine
Modle 2-101 |
|
|
|
|
Rate power(KW) | 3 KW/4.08 HP | 3 KW/4.08 HP | 3 KW/4.08 HP | 3 KW/4.08 HP |
Speed of motor | 1440 r.p.m | 1440 r.p.m | 1440 r.p.m | 1440 r.p.m |
Weight of base plate | 80 KGS | / | / | 80 KGS |
Anvil weight | / | / | 150KGS | 150KGS |
Total Weight (KG) | 640 KGS | 560KGS | 710 KGS | 790KGS |
Size | 1150*510*1400 mm | 980*510*1200 mm | 820*460*1110 mm | 820*460*1110 mm |
Display of air hammer mold
Feedback hammer
Contact with us
| Zhengzhou Lan Chen Electronic Technology Co.,LTD | |
| Telphone | 0086 18539568166 (Daisy Lee) |
| Mobile phone | 0086 18595369118 (Diana Liu / PO3A ) |
| IM tools | Whatsapp/Wechat/Viber/Facebook/VK: (0086 18539568166 / 0086 18595369118) |
| Website | https://cn1526555485cqrq.en.alibaba.com |
If you are interested in any of our products, please leave us an inquiry!!
