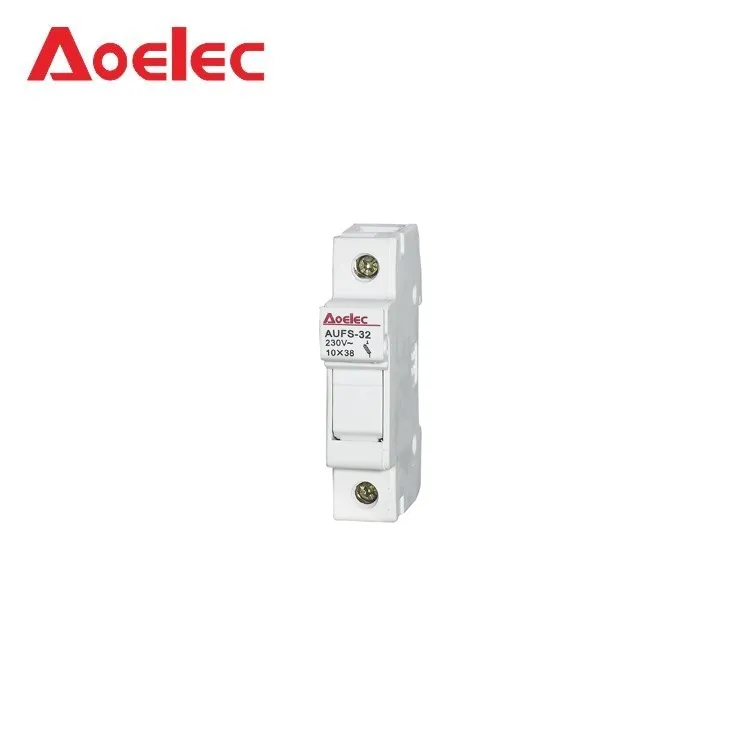

AUFS din rail mounting Fuse Switch Disconnect 32A

Product Overview

Description

Application:

AUFS fuse is a new type of RT18-32X series.used in distribution unit with rated voltage 220V/380V,rated current to 32A,serves as protection,for overloading and short circuit.Neon light and resistance form isolator for fusing signal unit of fuse boy.And the products suitable with 10* 38mm fuse link



Technical Data:

Rated thermal current: 32A

Rated voltage(Un):230/240VAC,400/415VAC

Rated frequency:50/60Hz
Poles number: 1P, 1P+N (one module), 2P, 3P, 4P
Rated insulation voltage: 600V
Suitable fuse link: 8.5 x 31, 10 x 31
Standards: IEC60947-3 and EN60947-3



Catalogo No.

Model	Code	Qty/Box	QTY/CTN
AUFS 1P	190321	12	120
AUFS 1P+N	190325	12	120
AUFS 2P	190322	6	60
AUFS 3P	190323	4	40
AUFS 4P	190324	3	30
AUFS 1P with LED	191321	12	120
AUFS 1P+N with LED	191325	12	120
AUFS 2P with LED	191322	6	60
AUFS 3P with LED	191323	4	40
AUFS 4P with LED	191324	3	30

About us:

 Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
