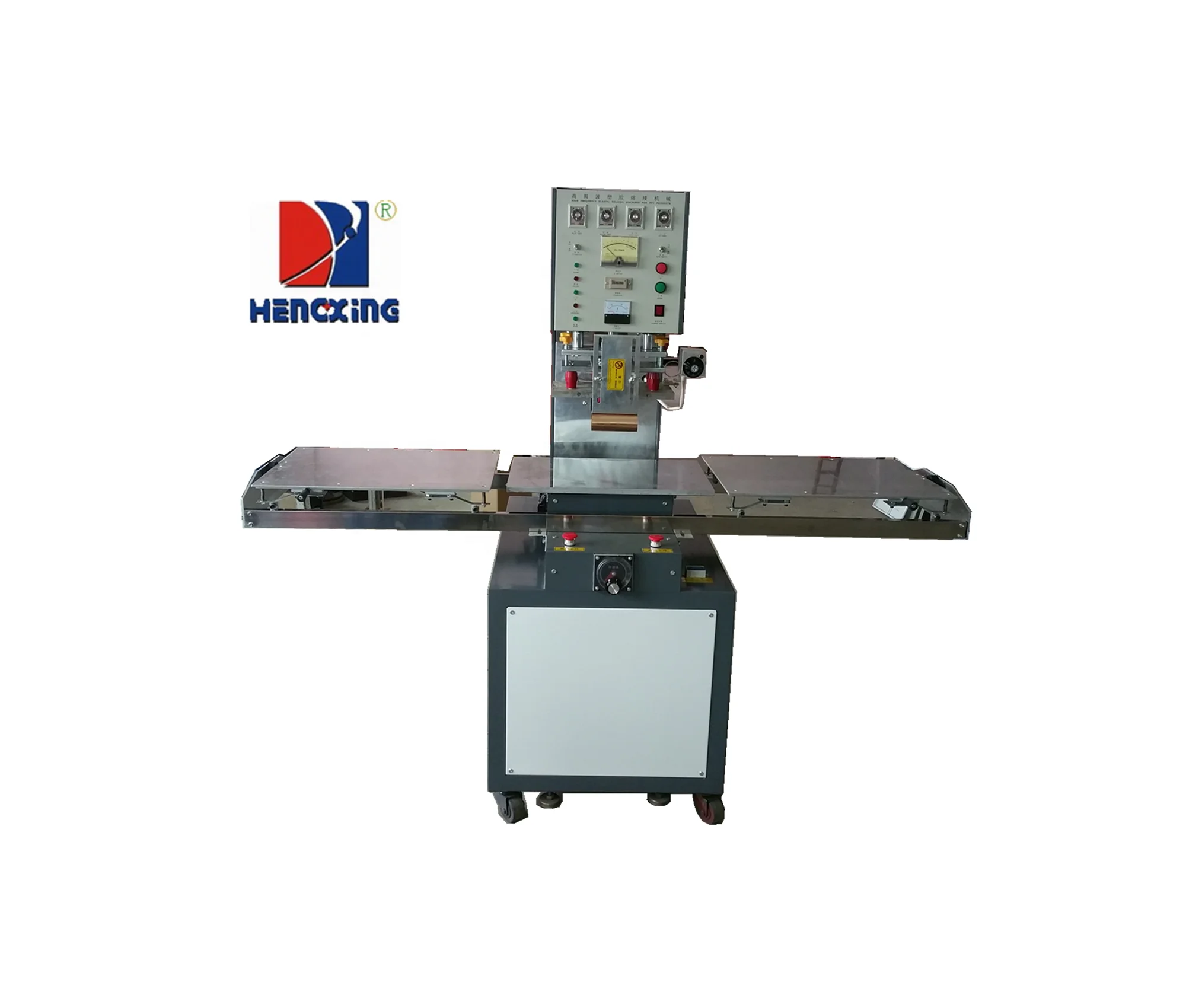

high frequency pvc welding machine
- Category: >>>
- Supplier: Hengxing Blister Machinery (Shenzhen) Co. Ltd.
Share on (62261880341):
Product Overview
Description
Related Products
HX-76HD PLC Control
Automatic Forming Machine
Forming size:760*1250 mm
High speed machining
OEM
HX-61H Compact
Automatic forming machine
Forming size:610*710 mm
Cost performance
OEM
HX-61B Semi-automatic
Forming size:560*610 mm
Low price
OEM
HX-61A Semi-Double station
Semi-Automatic
Forming size:560*610 mm
reasonable price
OEM
Product Description
Application：
Suitable for electric hot-water bag, plastic blister packaging, inflatable toys, raincoats and umbrellas, purse handbags, stationery, stickers, leather embossing, shoe brand welding, and car seat cushion, cloth embossing, normal PVC and PVC percentage more than 30% welding packaging.

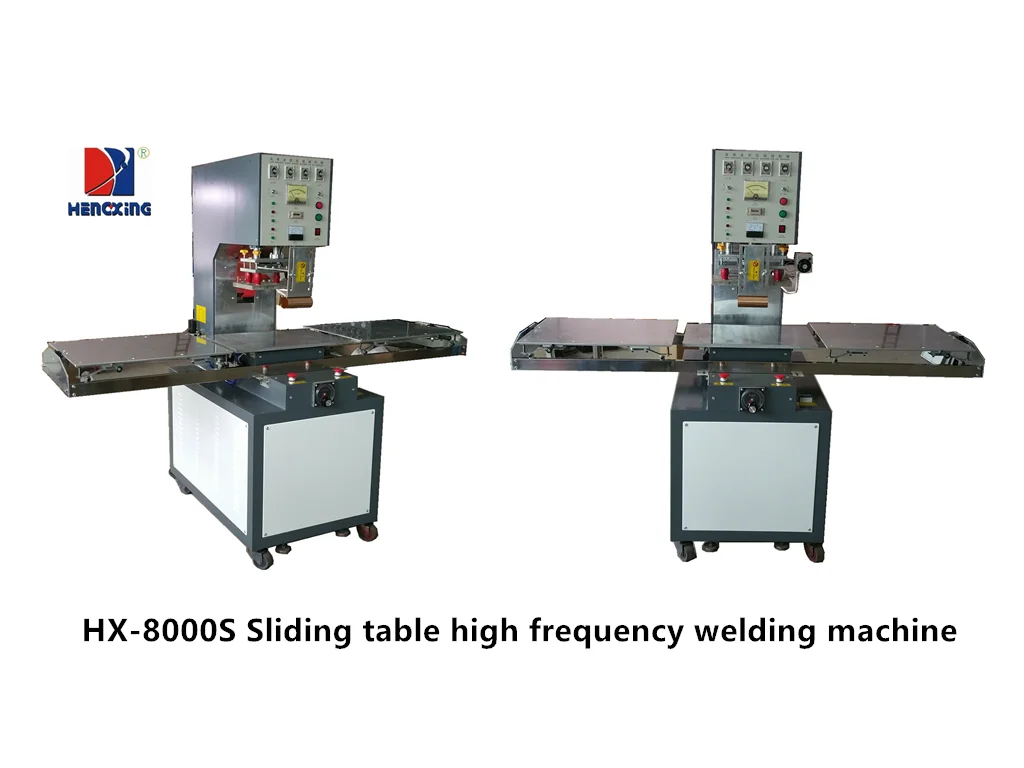

Model | HX-8000S |
Power supply | 380V/50HZ |
Output Power | 8000W |
Oscillation Frequency | 27.12MHZ |
Working speed | 400-600Pcs/H |
Rectifier | Silicon Diode |
Vibration Tub | 7T69RB |
Gap of electrodes | 250mm |
Size of disc | 460*610mm |
Machine size | 1100*2000*1650mm |
Weight | 450KG |
Main Features
1 Using vacuum tubes, the output power is stable and reliable.
2. Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
3 Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
4 Infinitely adjustable head trip, special mechanical pedal mechanism maximum pressure up to 400kgs.
5 According processing needs, choose pneumatic pressure way to reduce the intensity of work, enhance the quality of voltage products.
6 Stepless temperature heating system, make work more efficient.
7 The four type horizontal adjustment, easy adjustable die to save time.
8.Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.
9.4kw40.68mhz, 5-12kw27.12mhzinternational standard industrial band.
2. Sensitive spark over-current protection circuit. Can effectively cut off due to damage to host large current output, suppress sparks.
3 Has a frequency stabilizer and high frequency shielding devices, the high-frequency interference to a minimum.
4 Infinitely adjustable head trip, special mechanical pedal mechanism maximum pressure up to 400kgs.
5 According processing needs, choose pneumatic pressure way to reduce the intensity of work, enhance the quality of voltage products.
6 Stepless temperature heating system, make work more efficient.
7 The four type horizontal adjustment, easy adjustable die to save time.
8.Automatic over-current protection system, increase the service life of vacuum tubes, protect the mould.
9.4kw40.68mhz, 5-12kw27.12mhzinternational standard industrial band.

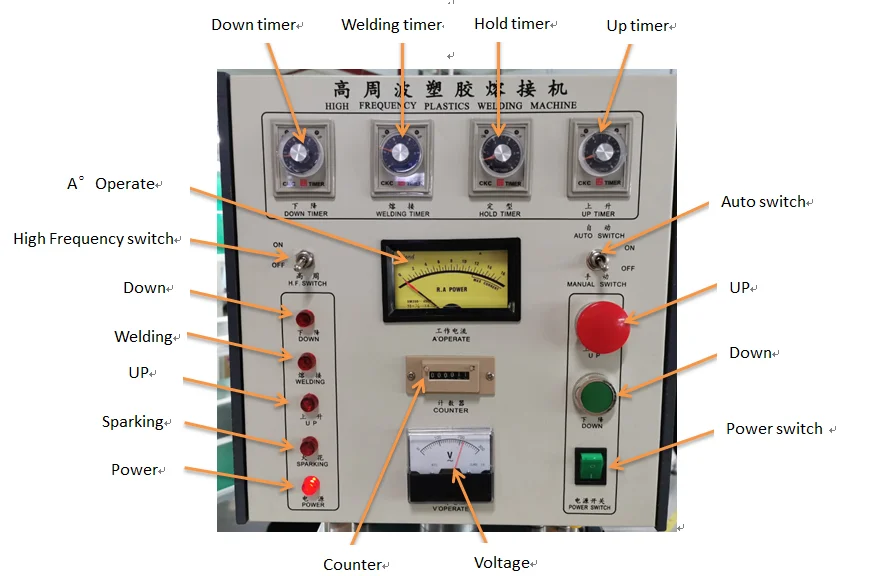

Details Images

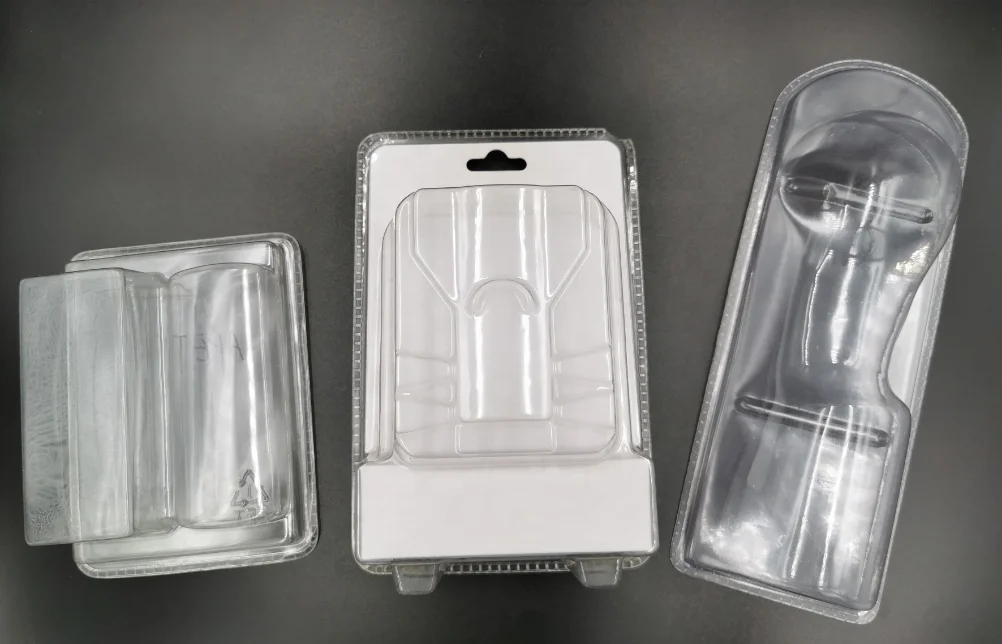

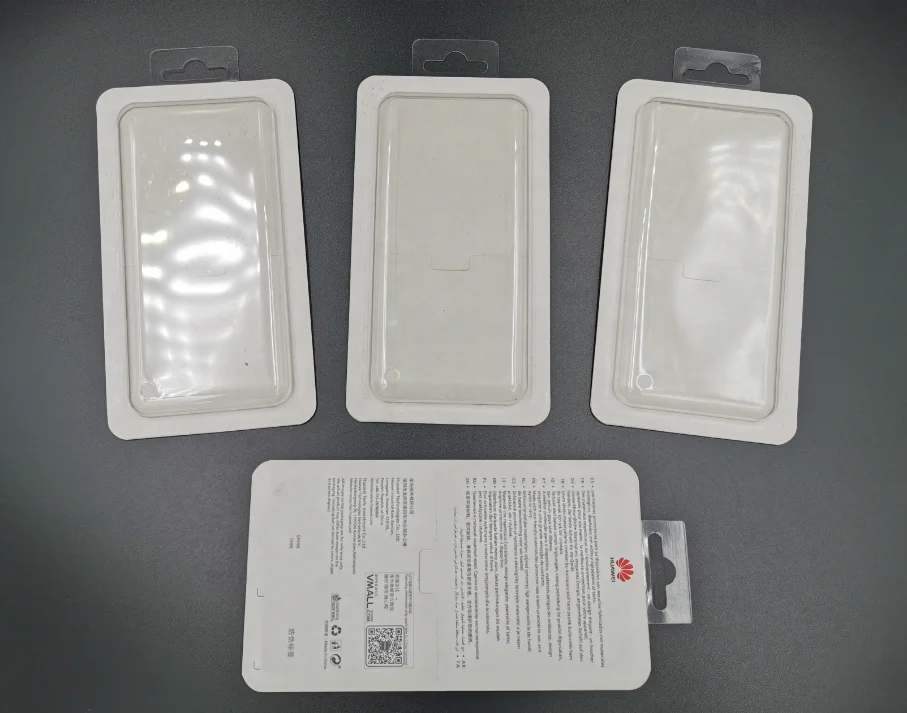

Sample
Typical Application

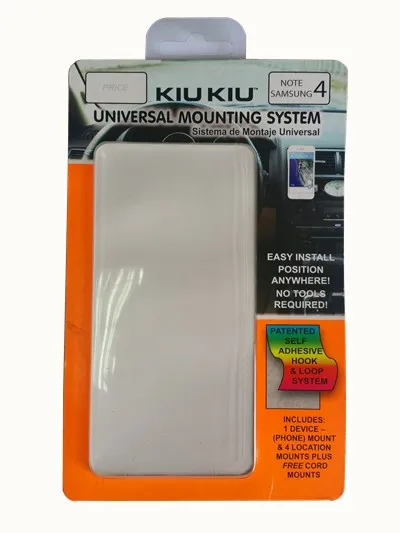

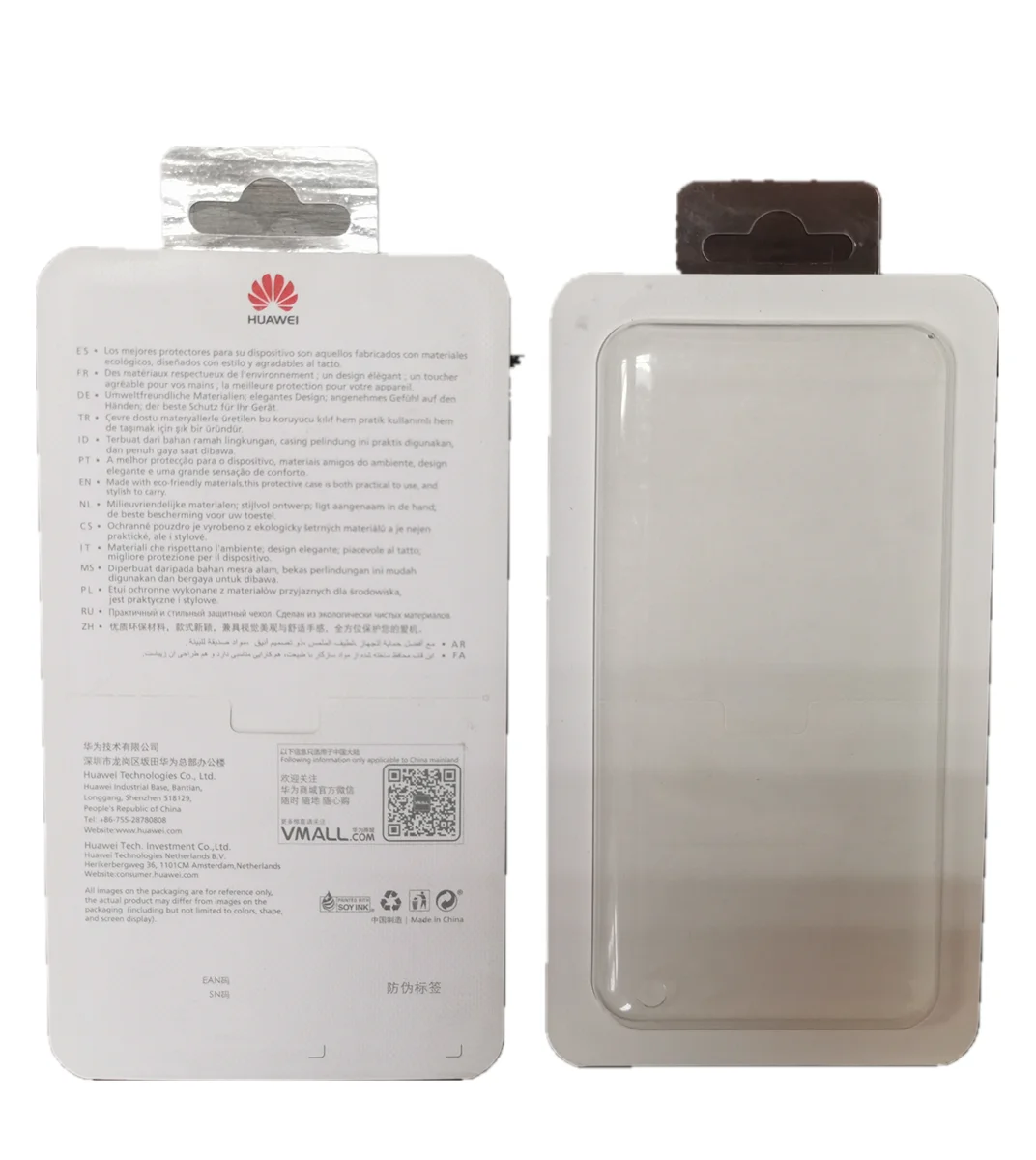

Blister packaging is used to package toys, stationery, SD cards, batteries, hardware, medicines and other products.
Blister + Blister = finished product
Blister + Blister = finished product
Paper card + plastic + paper card = finished product
Paper card + plastic + paper card = finished product
Paper card + blister = finished product
Paper card + blister = finished product
Paper card + blister = finished product

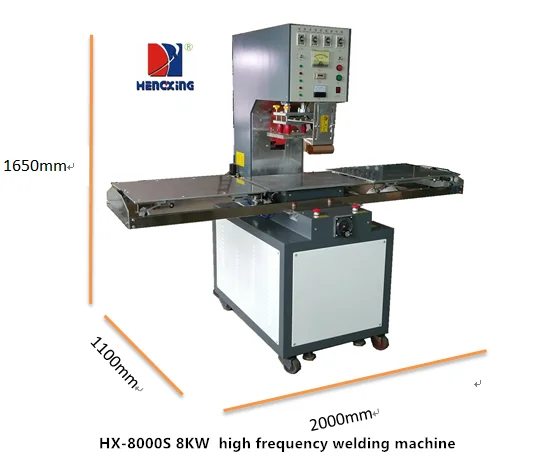

Machine Size
SIZE
L2000*W1100*L1650 mm
Packing & Delicer
Packaging
Stretch film & wooden box packaging
Related Products 1
HX-10T blister cutting machine
Working area:1160×400mm
HX-30T Hydraulic cutting machine
1.Working area: 510 × 1250mm
2.OEM
HX-6347 Thick plate plastic forming machine
1.Forming size:1500*2000 mm
2.OEM
HX-50 blister selling machine
1.Platen area: 300 × 500mm
2.OEM
HX-3350 Blister folding machine
1.Platen area: 330 × 500mm
2.OEM
HX-8000SR High frequency
1.Platen area: 400 × 600mm
2.OEM
Company Profile
About US
HengX Blister Machinery (Shenzhen) Co., Ltd. was established in 1998. Is a professional manufacturer of plastic vacuum forming machine, semi-automatic plastic molding machine, thick plate plastic molding machine, printing positioning plastic molding machine, high-frequency welding machine. With more than 22 years of production experience, we serve more than 2,000 companies worldwide. Our products have won high praise from customers all over the world for their high quality and competitive price.
our service
1. Provide overseas installation and training services
2, equipment warranty for 1 year
2, equipment warranty for 1 year
FAQ
1. If I order this machine, and how can l learn to operate it? Do you offer any help? Would it be charged?
Answer: Shenzhen Hengxing Machinery Factory will provide our after sales service to our customers. Once you get the machine, meanwhile you will get our operation instruction which would detailed explain all about the machine operation. Besides, our operation video is available for your operation reference. If either instruction or video can not help you, and we will arrange the our engineer contact you via international telephone conference or via face to face mutual video conference.
All above service is free.
The service cost in customers` country was not included if requires oversea service.
2.About The Warranty:
Answer: One year warranty. Within one year, the initial parts or elements of the machine broke down cause by the raw material and our hand work, Shenzhen Hengxing Machinery Factory would replace the parts freely, but the freight charge and the consumable parts like die, cutting mould were not included. The warranty is not valid if the machine damage due to customers` wrong operation or caused by force majeure factors.
3.How to order raw material ?
Answer: We can help you to find raw material supplier, and also we can help you to order if need. And if possible, we will arrange the machine and the raw material sending to you together.
4..Do you have any other model ?
Answer: Of course . We have different choice for you, and if all our models that`s not what you want, and you can tell us your details and we can custom make for you. Or OEM is available.
5.What is the power supply?
Answer : Normally, there are 220v and 380v, and if you need other choice, just tell us, and we can custom make for you. Or OEM is available.
6.Is this machine need a mould ? Then what kind of mould should it be? How can I sure the mould is what I need?
Answer: Yes, it needs mould, Cost will be base on the size.
