220V 50Hz Programmable Radiator Valve Wifi Electric Heating Thermostat Worked with Smart Phone and Alexa Control
- Category: >>>
- Supplier: Beijing Brade Controls Tech Co. Ltd.
Share on (62262216378):
Product Overview
Description
Touch Screen HAVC Wifi Smartphone Remote Control Fan Coil Unit Thermostat
Product Description
Supply Voltage | 85-260vac, 50/60hz |
Setpoint Range | 5~45℃ (software selectable) |
Temp. Accuracy | ± 1°F Or 0.1℃ |
Setting Step | 1°F Or 0.5℃ |
Display | 480*320 Colour Lcd Display |
Operation | Capacitive Touch Screen |
Mode Setting | Away / Home |
Multi Sensor | Inner / Remote / Floor |
Programmable | Non Programmable, 5/2 Day, 7 Day And 24 Hour |
Frost Protection | Enable / Disable |
Control Performance | On/Off Control |
Specifications
Switch Differential | 1 ℃/2°F |
Thermostat Output | SPST relay for underfloor heating models |
Switch current rating | Resistive: 5A, Inductive: 1A |
Temperature Sensor | NTC Thermistor 10K |
Enclosure | Fire retardant PC ABS |
Minimum Operational Life | Thermostat contacts: 100,000 cycles |
Remote Controller(optional) | App Remote Control |
Backlight Function(optional) | Auto dim by ambiente detection |
Dimensions | 96 X 86 X 13.5mm (W×H×D) |
Hole Pitch | 60 mm |
Environmental requirements | Operating temperature range 0 ~ 45℃, Humidity range 5 ~ 95 %RH (non-condensing) |
Mounting | Embeded mounting, standard 86 × 86 mm junction box (hole pitch 60 mm) |
Wiring | Screw-in terminals, each terminal capable of accepting 16 AWG, 18 AWG, 1.5 mm2 or 2.5 mm2 wires |
Product Detail
- Unprecedented design, top grade, Fashion
- Multi Language:English ,Deutsch ,Czech ,Espanol,French,German,Italiano,Polish,Russian,Swedish,Croatian,Svenska
- Colour TFT LCD (480*320)
- Capacitive Touch Screen
- Concise icon shown on LCD
- Energy saving.
- Wireless module ( Optional)
- Save energy when It is in stands by model
- Keypad lock to avoid any mistake operations(Optional)
- Optimum Start
- WiFi enable+APP ( Optional)
- Modbus Connectivity (RS485 or TCP) ( Optional)
Main Function
- Detect And Display Room Temp
- Detect And Display Room Humidity
- Hotwater Boost On/Off
- Remote Sensor ( Optional)
- Holiday Function
- Away Function
- Hold Temperature Function
- Open Window Function
- Clock ( Sync Time With Timer Zone )
- Daylight Saving Time(DST)
- C/F Temperature Display
- Temperature Limitation
- Timer On/Off ( Optional)
- 7 Days 4 Periods Programmable
- Model Available For 85-260VAC Power Input
- Temperature Calibration

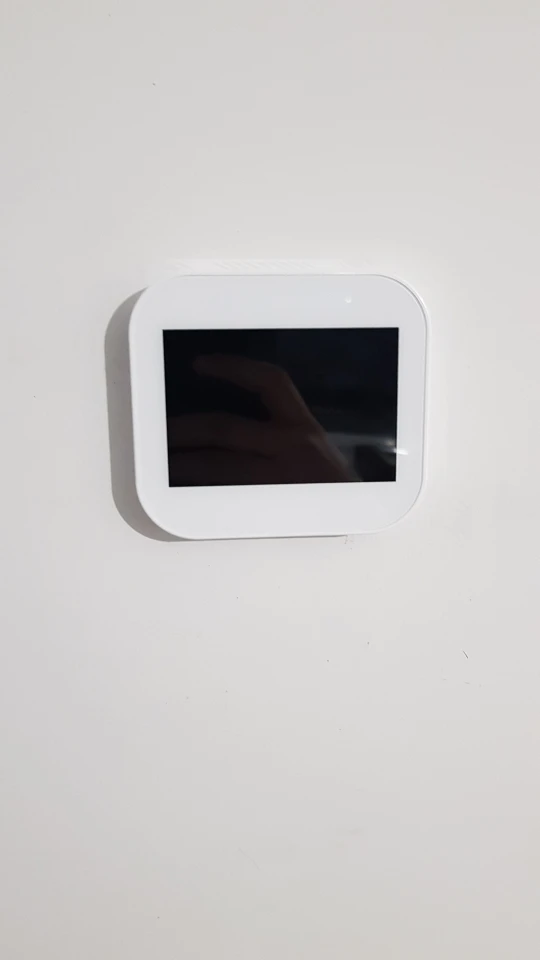

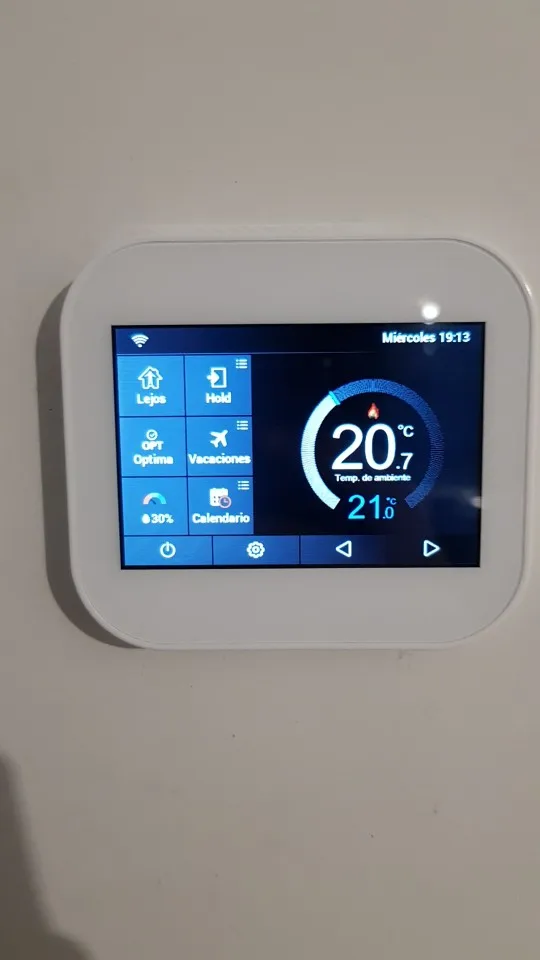

Product Display
OEM Customisation
1. Company Logo on Product
2. Company Logo in boot video
3. Branded Packaging
4. Branded Manual
5. Branded Terminal Label
Wiring Diagram
