| Led chip brand | USA Bridgelux 210lm/W |
| Solar Panel | 18V120W poly |
| Controller | MPPT |
| Battery | Lithium battery(LiFeP04)120ah/12.8v |
| Back up days | 4 days |
| Maintenance | 9 years free maintenance |
| Working Mode | Full power |
| Lamps material | Aluminium alloy |
| Mounting height | 6m |
| Distance between poles | 20m |
| Product Keywords | street light solar lamppost,solar-powered led street lights,solar windmill street light |
●3- 5 rainy /cloudy days backup
●Dusk-to-Dawn 12 hours with dim energy saving mode
●Lighting times can be individually adjusted with program switch.
●Illuminance in operation depending on local site conditions (average daylight available) and customer-specific lighting times.
| Specification |
| Lighting Time | 10-14hrs/day(adjustable),3-7 rainy days back-up |
| Solar Panel | Poly solar panel 80W(optional)*1pcs,high efficiency,life span >25years 80% rated output power |
| Gel Battery | Capacity 60Ah/12v(optional)*1pcs,free maintenance,better weather-ability(-20ºC to +55ºC) Deep cycle 3500 times @ 30% DOD,low self discharge rate,life span>8 years |
| Solar Controller | MPPT/PWM,intelligent output power control,light on/off+time off,remote control,waterproof IP68 over-charge/discharge/over heat/over load/short circuit/anti-reverse protections,life span:>10 years |
| LED Lamp | LED power 30w,USA Bridgelux LED chip efficiency 200lm/w,Whole LED lamp efficiency 180lm/w, IP65 or higher,CRI>70Ra,C.T. 3000-6500k(optional),life span>100,000hrs |
| Light Pole | Q235 steel material,hot-dip galvanized and powder coating,equipped with lamp arm/solar panel mounting bracket/flange/fittings/foundation kit,wind resistance>150km/h,life span>20 years |
Hey i am Lily ! Tel / Whats-app: 0086-137-5898-2410 E-ma1: sale1(at)chinasunmaster.com

| Product Benefits |
![]() | Solar Panel Optimal configuration design High efficiency A grade solar cells. 25-year linear performance warranty. Certified by TUV. 0 to +5W positive tolerance. |

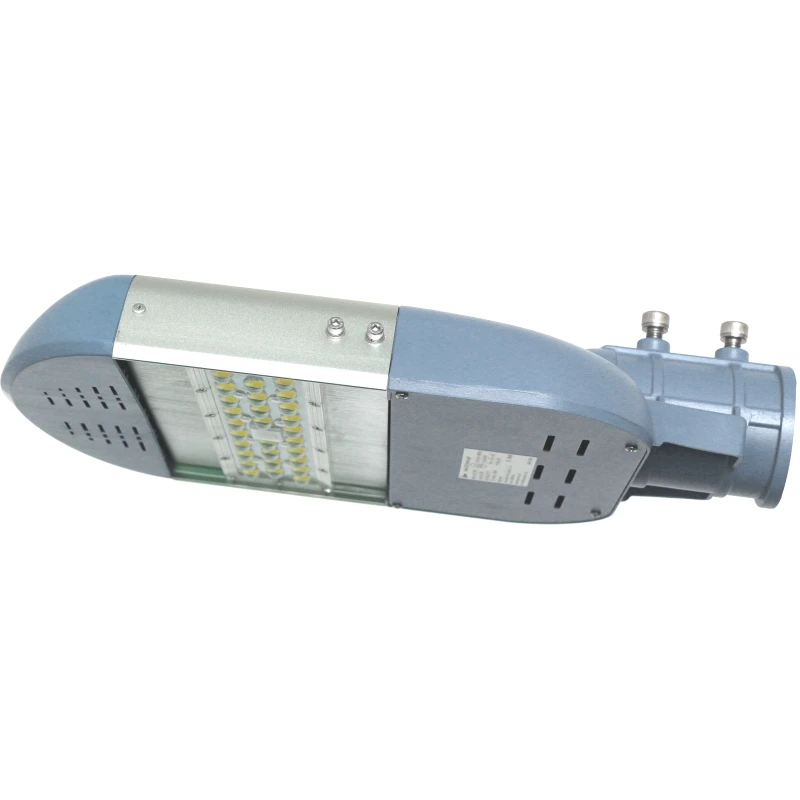

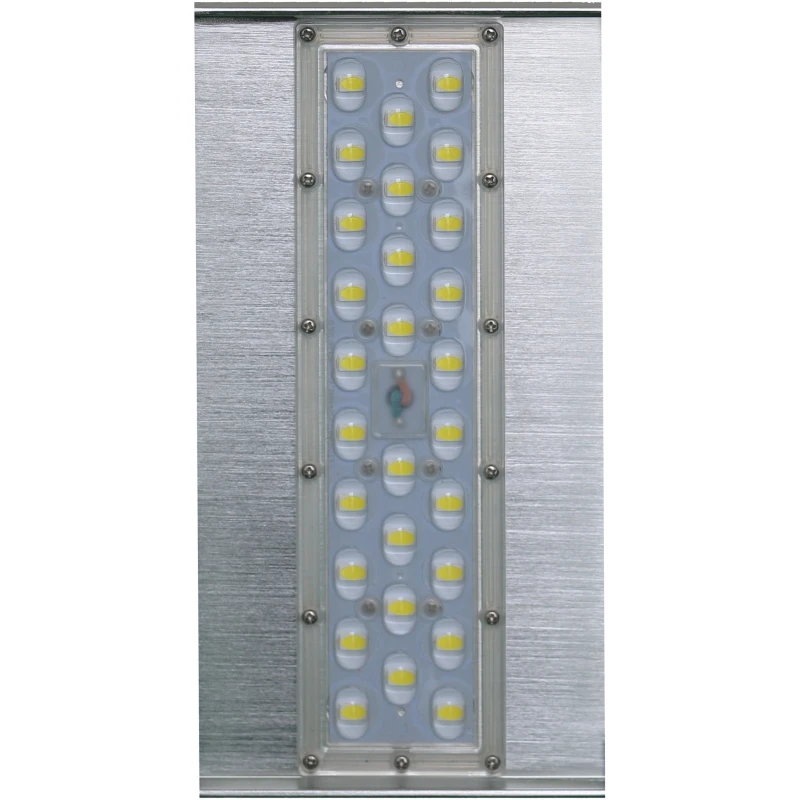

LED Street Light Built in Bridgelux LED chip up to 200lm/W System efficiency up to 180lm/w. Module design easy for replacement. Vertical and horizontal installation. Big power range from 30-200w. | ![]() |
![]() | Solar Controller With remote monitoring function(optional) 20% energy utilization more than PWM. The infrared wireless communication. Aluminum case, IP68 waterproof. Intelligently extends battery working time. With Energy saving mode Build-in the Constant current LED Driver |

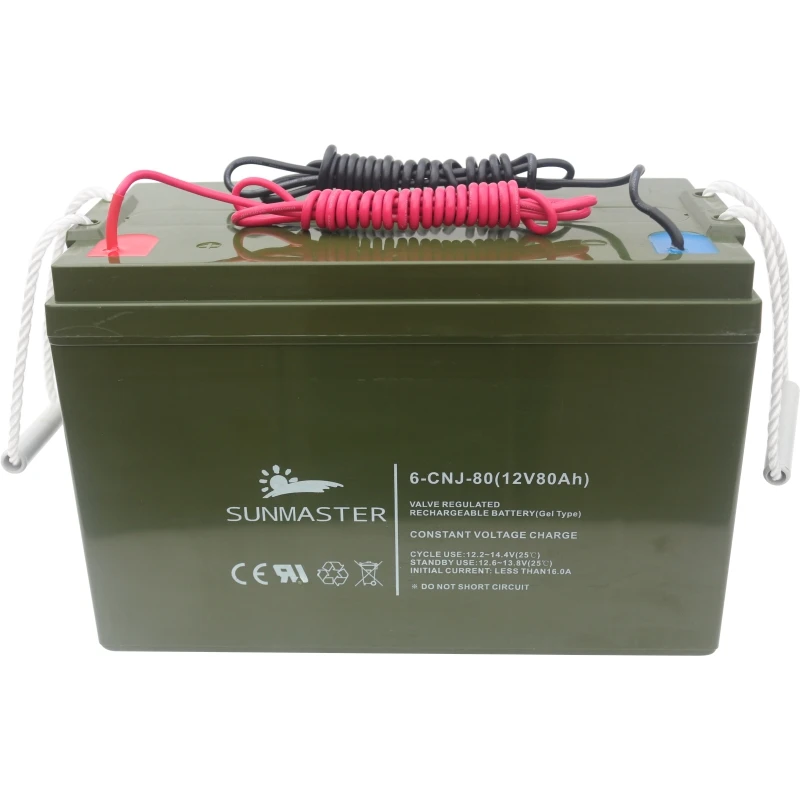

Solar Battery Stable Performance Long lifetime up to 8-10 years. Maintenance free operation. Gel/AGM Battery or Lithium Battery. Environmental & non-polluting. Safe and reliable | ![]() |

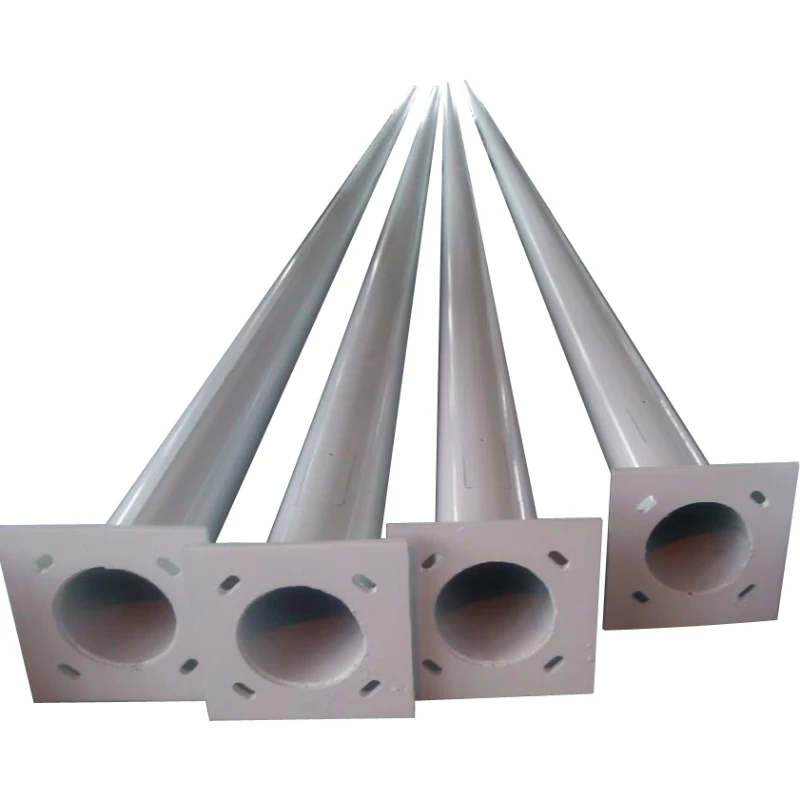

![]() | Light Pole Reinforced design Galvanization standard: ASTMA123/EN ISO1461 Hot dip-galvanized. Galvanize Q235 OEM design |

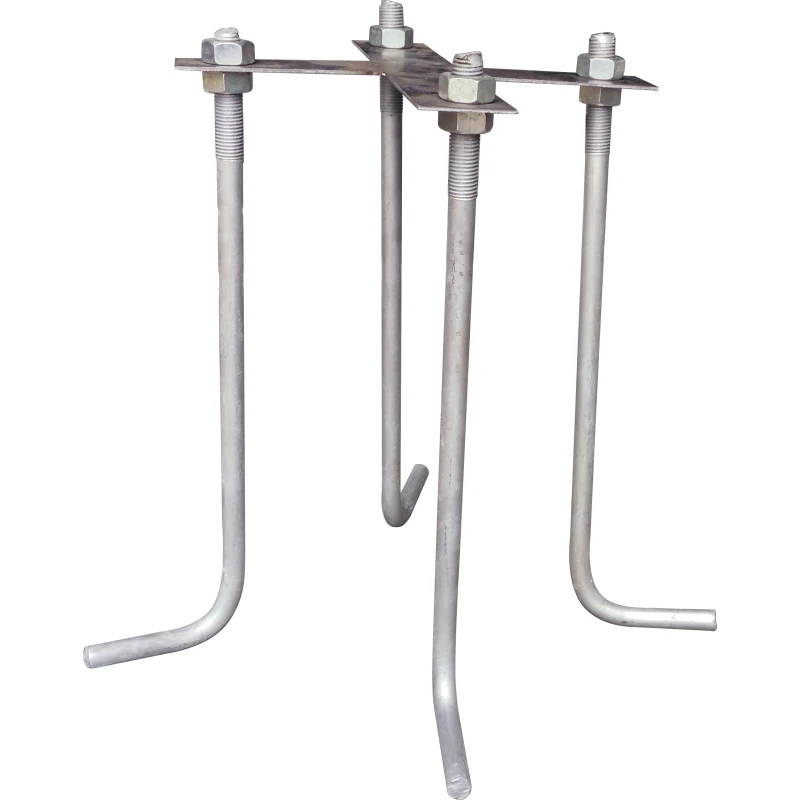

Foundation Kit anchor bolt & "X"shape plate Rreinforced anchor bolts Designed according to pole height and wind resistance Stainless fixings anti-rusty | ![]() |
![]() | Solar Cable Easy plug in design Cu content exceeds 99.9999%. GB standard CU/PVC/PVC. 2×2.5mm2 copper stranded core cable. Double protective layer, long service life. |
| Recommended configurations |
| Lamp | Pole | Solar Panel | GEL Battery | Lighting Space | Controller | Working Hours | Backup |
| 20w | 3-4m | 50w*1pcs | 40Ah*1pcs | >12m | MPPT | 10-14 hours | 3-5days |
| 30w | 4-5m | 80w*1pcs | 60Ah*1pcs | >14m | MPPT | 10-14 hours | 3-5days |
| 40w | 5-6m | 100w*1pcs | 80Ah*1pcs | >15m | MPPT | 10-14hours | 3-5 days |
| 50w | 6-7m | 120w*1pcs | 50Ah*2pcs | >17m | MPPT | 10-14 hours | 3-5days |
| 60w | 7-8m | 150w*1pcs | 60Ah*2pcs | >20m | MPPT | 10-14 hours | 3-5 days |
| 70w | 7-8m | 180w*1pcs | 70Ah*2pcs | >22m | MPPT | 10-14 hours | 3-5 days |
| 80w | 8-9m | 200w*1pcs | 80Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 90w | 8-9m | 120w*2pcs | 90Ah*2pcs | >24m | MPPT | 10-14 hours | 3-5 days |
| 100w | 9-10m | 130w*2pcs | 100Ah*2pcs | >27m | MPPT | 10-14 hours | 3-5 days |


3-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
Standard export carton packing with pallet.
