The briquette machine is widely used for pressing briquettes with agricultural and industrial wastes, such as sawdust, rice husks, sugar cane trash, coffee husks, coir pith, sugarcane bagasse, jute sticks, silk cotton pods, groundnut shells, mustard stalks, cotton stalks and corn stalks etc. The charcoal briquettes are featured with long burning time, great firepower, smokeless and odorless, suitable for BBQ, family and industrial use.
Working Principle
Woring Principle of Wood Sawdust Briquettes Machine is using screw propeller's high pressure and heating ring's high temperature, compress and extrude loose biomass into high density and small volume wood briquettes.
Features of Rice Husk Extruder Briquette Machine
1.Stick shape withdifferent diameter.
2.The density, strength and hardness of products are very high.
3.Our briquette machine with higher capacity and lower energy consumption. 4.Production moisture is 8-12% ,raw material size below 3-5mm. 5.This series of briquette machine is a new type of wood briquette machine,the finished products are more solid. 6.This Wood Briquette Machine with automatic temperature control system is designed to produce high density wood briquette stick from biomass.
The Raw Material of Rice Husk Extruder Briquette Machine Almost any biomass can be briquetted,then carbonized Briquetting plants set so far are using Saw Dust, Bamboo dust, Bagasse, Cotton Stalk, Coffee husk, Groundnut Shell, Mustard Husk/Stalk, Pine Needles, Rice Husk, Sugar Mill Waste, Jute waste, Coir pith and other wastes & residues like Castor Shell, Red Gram Stalk, Tobacco stem, Tea Waste, Sander Dust, Tree Bark, Wild Grasses & Shrubs and Sander dust.These material can also be briquetted individually or in combination without using any binder.

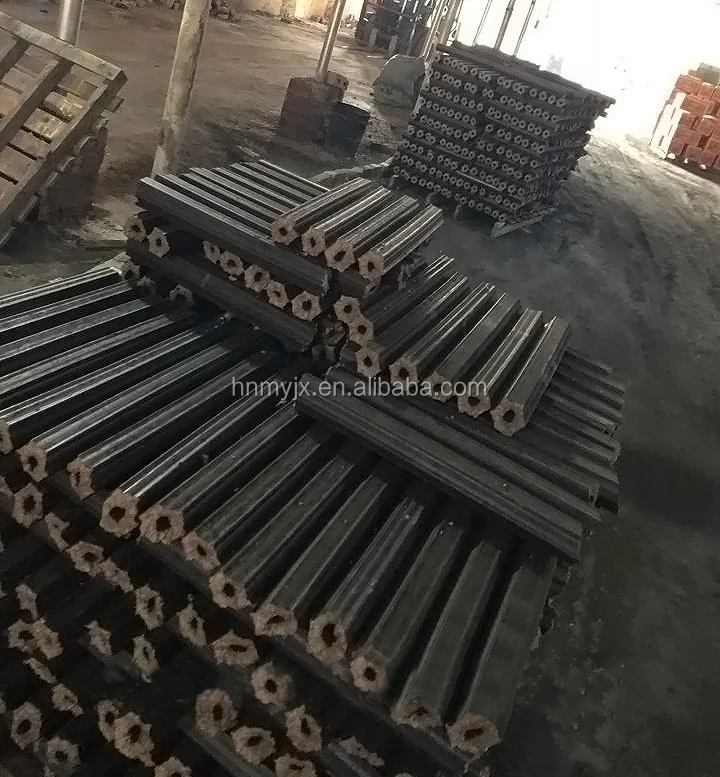

Final Product of Rice Husk Extruder Briquette Machine
1.Final shape:hexagon, pentagon, square, round 2.Final length: 20-40 cm adjustable, according to per your needing 3.Final size: Dia. 50mm, 60mm,70mm,80mm
Model
Power
Capacity
Weight
Material Humidity
50-9
18.5kw
120kg-220kg/h
550kg
8-12%
50-C
22kw
350-420kg/h
750kg
8-12%
70-9
18.5kw
280-340kg/h
780kg
8-12%
Detailed Images
Main Features
Original: Henan, China

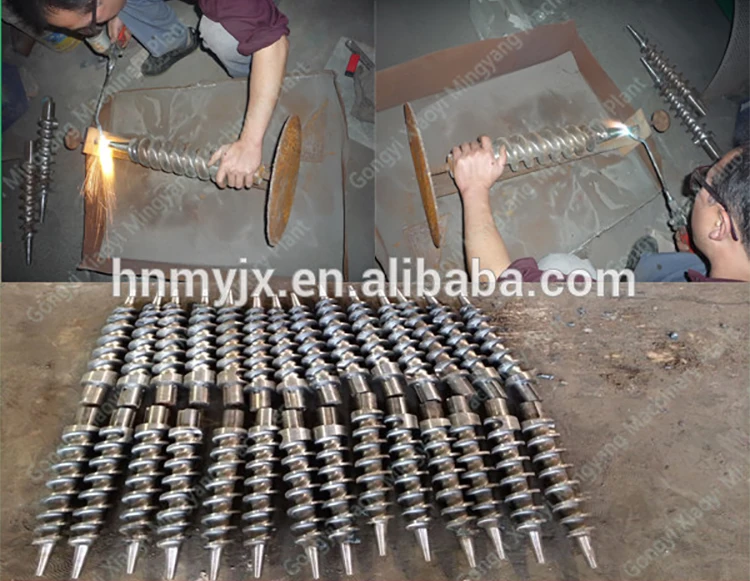

Propeller of briquette machine,special chrome alloy 45# steel body, alloy powder coated (1)most important parts of Machine (2)wear-resistant, high pressure resistance, high abrasion resistance. (3)should be repair tangle after 12-15ton (4)different raw material need different screw pitch
Main Features
Name:Mould barrel Brand:MING YANG Original: Henan, China Material: tungsten alloy Functions: (1)decide the shape and size
(2)thickness:12mm,length:38-45cm,diameter 50-80mm (3) 50-60mm suitale for making charcoal,70-80mm for biomass fuel (4) new type ,high-wear-resistant ,no need Scuff sleeve
Main Features
Name: Heating ring Material:Chrome Nickel Steel
(1) 1 machine need 3 coil heater, diameter can be adjust
(2)1ps coil heater will need one 1.5-3kw electrical motor (3) basic construction consists of compacted MgO, high temperature resistance wire &Chrome Nickel Steel tube.
