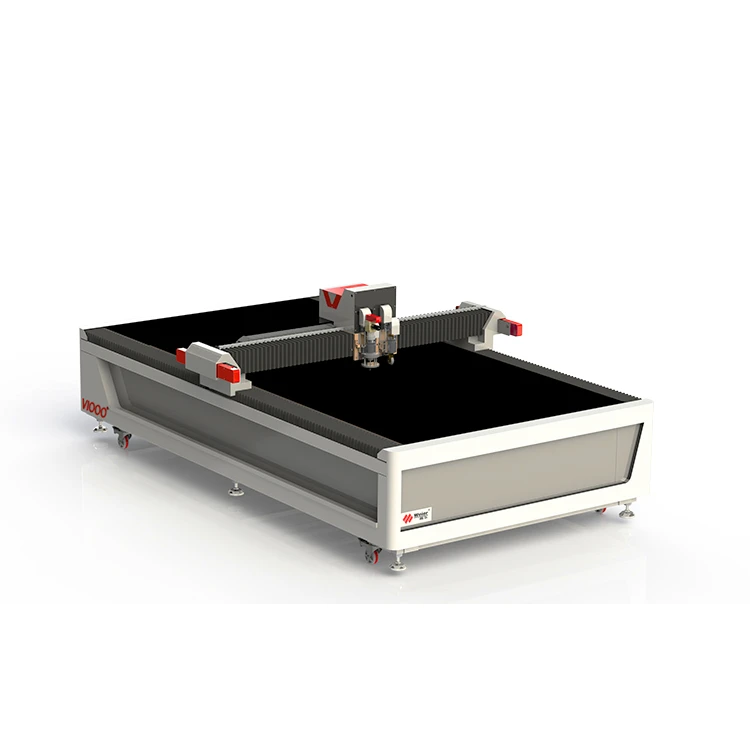

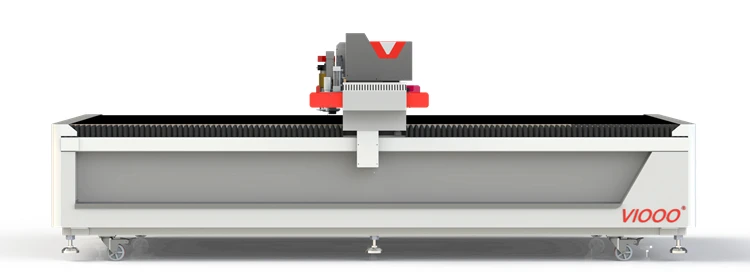

Weier Factory Sell Rubber Sealing Gasket Oscillating Knife Cutting Machine Foam Cutting Machine
- Category: >>>
- Supplier: Jinan Weier Laser Equipment Co. Ltd.
Share on (62262369786):
Product Overview
Description

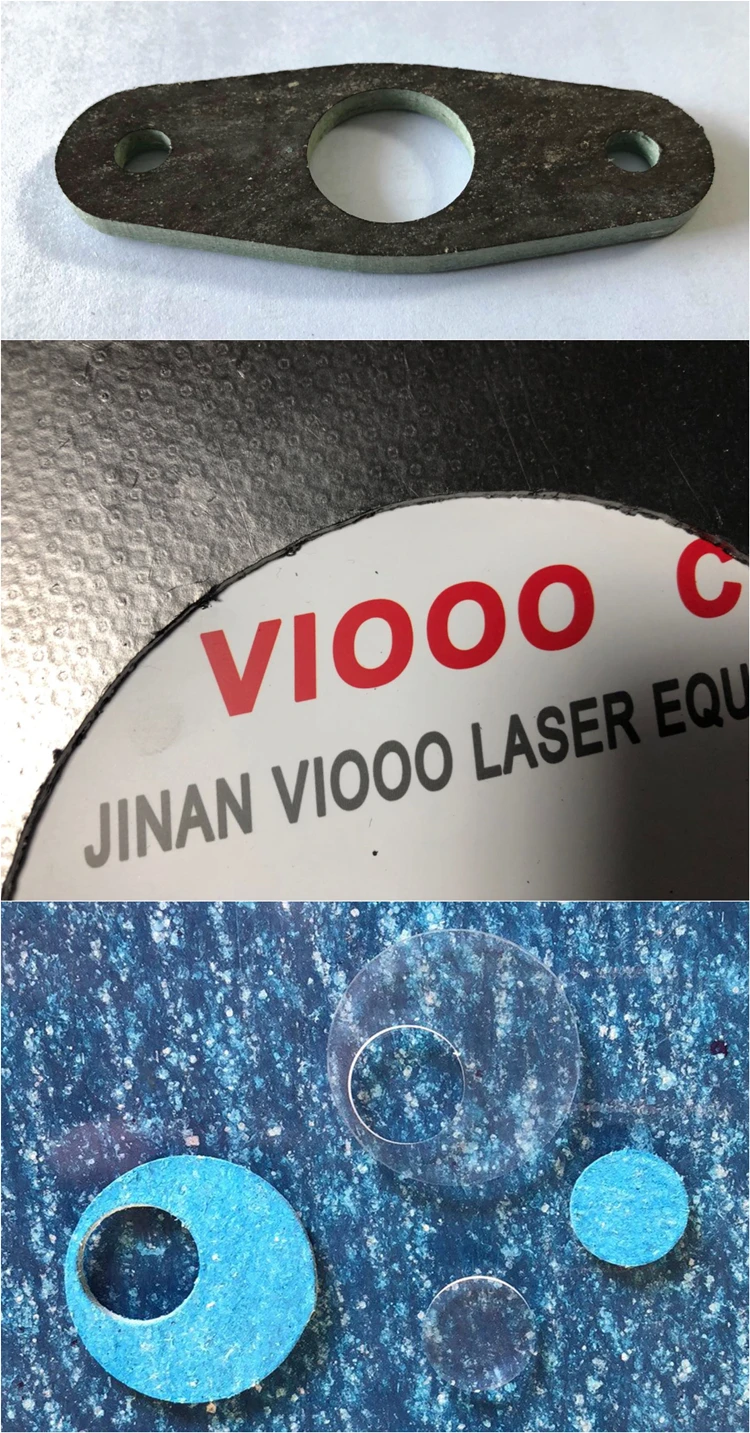

sealing gasket Cutting Machine
Hot products
Product Description
| Specifications | ||||||
| Model | 1625 | 1825 | 2035 | Customizable (length*width) | ||
| Effective cutting size | 1600mm*2500mm | 1800mm*2500mm | 2000mm*3500mm | length: 800mm-15000mm Width: 800mm-5000mm
| ||
| Feeding mode | manual/automatic | |||||
| Max cutting speed | 1500mm/s | |||||
| Cutting precision | ±0.1mm | |||||
| Max cutting thickness | 30mm(special support custom) | |||||
| Data format | DXF, PLT, AI, etc. | |||||
| Transmission mode of data | networking cable, data line, USB disk | |||||
| Materials fixation | vacuum adsorption | |||||
| Power of vacuum pump | 7.5kw,9kw,11kw | |||||
| Working voltage of main machine | AC220V/50HZ | |||||
| Working voltage of vacuum pump | AC380V/50HZ | |||||
| Rated power | 10KW-13.5KW | |||||
| Cutting tool | high frequency oscillating knife | |||||
| Optional tools | oscillating knife full Cutting tool, high power active circular knife tool, punching tool, pneumatic oscillating knife tool, drag knife tool, half Cutting tool, V-cut tool, ball-point pen tool, creasing tool | |||||
| Applicable materials | Non-metal materials including car mat, cloth, PE foam, fiber glass, corrugated cardboard, carton, soft PVC crystal mat, leather, sponge, advertising materials, composite materials, etc. | |||||
| Applicable industries | advertising, carpet, garment, fabrics, automotive interiors, suitcases and bags making, packaging, sound-proofing, etc. | |||||
| The above data is for reference only and is subject to the actual product. | ||||||
“6H” High-tech: design concept of replaceable tool |

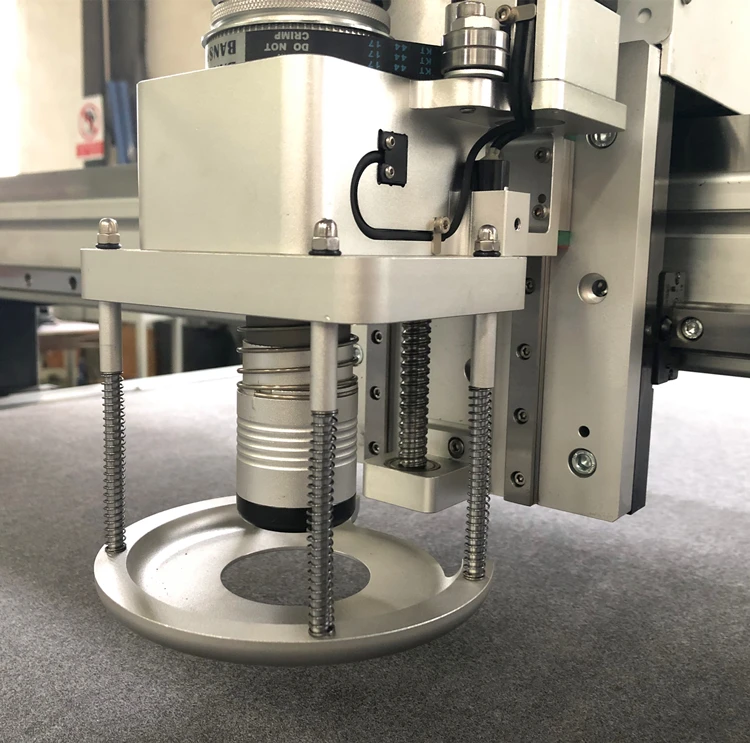

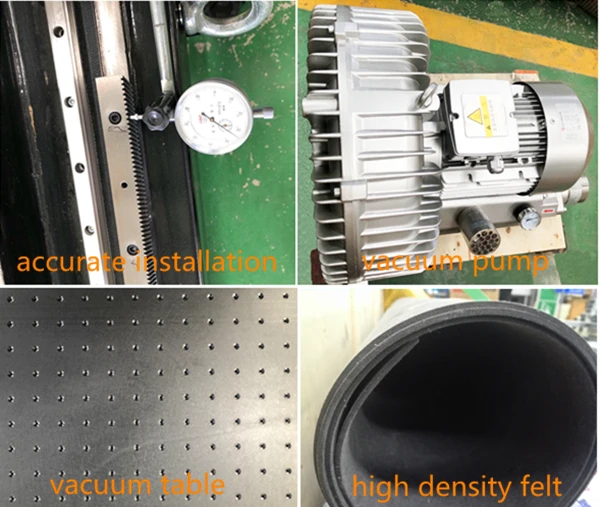

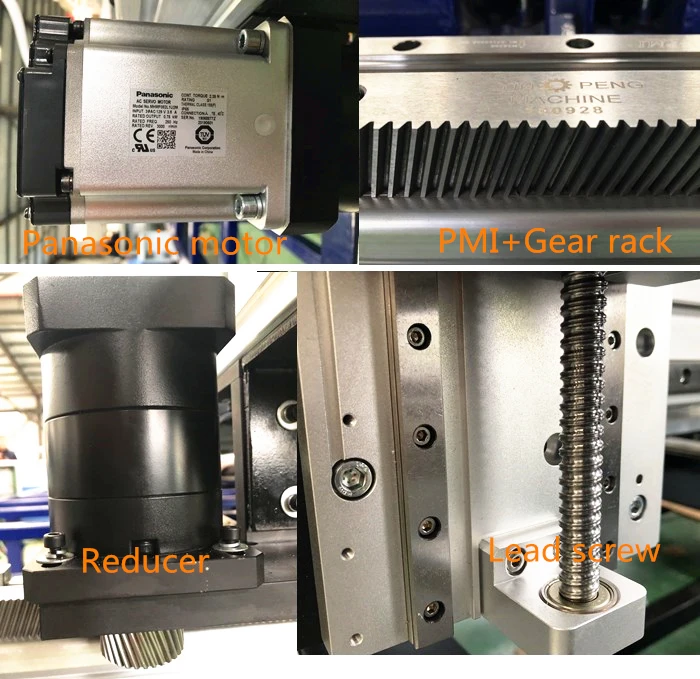

Core Technology The precision cutting assembly is developed and manufactured by ourselves, working with the steel and aluminum adsorption platform of VIOOO Laser, result in full, stable, and accurate cutting effects. The positioning accuracy, repetition accuracy and reverse clearance of X, Y and Z axes of the machine were all detected by laser interferometer. |
Advantages 1.Fast Max. cutting speed: 1200mm/s Viooo cutting machine is 3 to 5 times faster than traditional manual cutting. 2. Material Saving Viooo cutting machines are computerized Accurate and material saving. 3. Compatible Our cutting machines support any design software which can output files in DXF or PLT format. Eg: AutoCad, Coreldraw, AI, etc. 4.User friendly All the sharp turnings can be controlled on the machine. A free training is supported at our company or on your site. We assure you can operate the machine. |
Company Information
VIOOO Laser has been focusing on R&D and production of mechanics, optics and electronics integrated CNC equipment for nearly 20 years, established complete marketing system nationwide, meets customer needs in all aspects and at multiple levels, serves more than 3000 customers successfully and gets praised by customers. Nowadays, with the increasing development of science and technology, as a mature CNC equipment manufacturing enterprise, VIOOO Laser will continue to adhere to the business philosophy of “survive by quality, develop by reputation”, the management attitude of“rigor and pragmatism”, and the mission of improving production efficiency by technological innovation, to provide customers with better CNC equipment and solutions.
Certifications
Exhibition
Packaging & Shipping

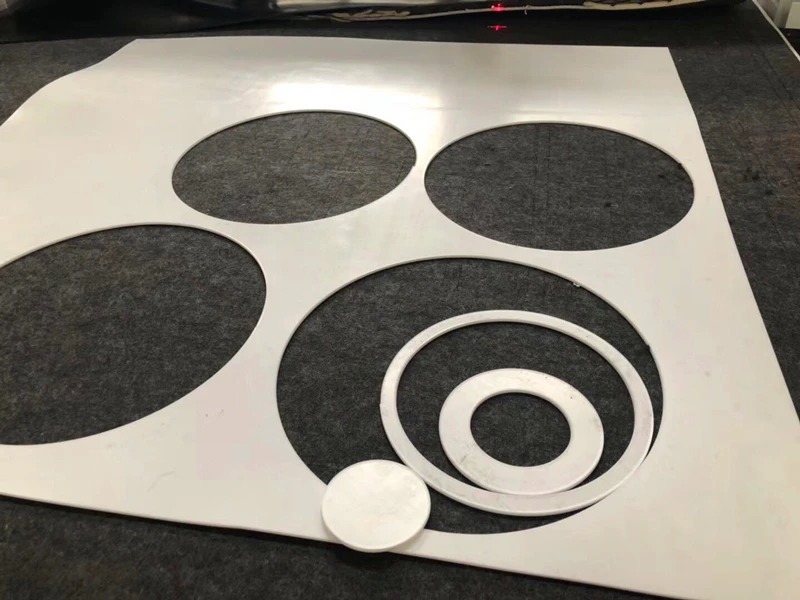

sealing gasket Cutting Machine
FAQ
Q1: I know nothing about this machine, what kind of machine I should choose?
A1:easy to choose, just tell us : 1. the work you want to do? 2. the maximum size of your materials, then the perfect solutions and suggestions will be given. 3. the cutting machine with an automatic conveyor system is most suitable for materials in roll shapes, eg. colth, PU, PVC, etc.
Q2: When I get this machine,but I dont know how to use it, What should I do?
A2:Video and english version manual had been sent to your email, If you still have some problems, we can talk by telephone or skype. Or even send our engineers oversea to help you.
A1:easy to choose, just tell us : 1. the work you want to do? 2. the maximum size of your materials, then the perfect solutions and suggestions will be given. 3. the cutting machine with an automatic conveyor system is most suitable for materials in roll shapes, eg. colth, PU, PVC, etc.
Q2: When I get this machine,but I dont know how to use it, What should I do?
A2:Video and english version manual had been sent to your email, If you still have some problems, we can talk by telephone or skype. Or even send our engineers oversea to help you.
Any questions, pls feel free to contact us!
