Tobee Effluent Handling
$12,600
Factory explosion proof pneumatic slurry pump piston pump
- Category: >>>
- Supplier: Wenzhou Lungbor Technology Co. Ltd.Wenzhou Ltd.
Share on (62262386527):
Product Overview
Description
Product Description
| Model | LB-0.8T | LB-1.2T | LB-3.2T | LB-3.2T2 | LB-5.0T |
| Inlet and outlet of outer diameter(mm) | 51/32 | 60/32 | 75/38 | 57/38 | 88/50 |
| Head(m) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
| Max. supply pressure(kgf/cm2) | 10 | 10 | 10 | 10 | 10 |
| Pressure(MPa/min) | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 | 0.3-1.0 |
| Outlet diameter (Inch) | 100 | 100 | 150 | 150 | 180 |
| Outlet pressure(MPa) | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 | 0-1.0 |
| Weight(kg) | 14 | 16 | 23 | 19 | 37 |
| Max.Flow rate | 20 | 30 | 70 | 50 | 100 |
| Flow rate | 10-20 | 10-30 | 20-70 | 15-50 | 30-100 |
| Specification(mm) | 100*1450 | 100*1400 | 100*1650 | 100*1500 | 100*1750 |

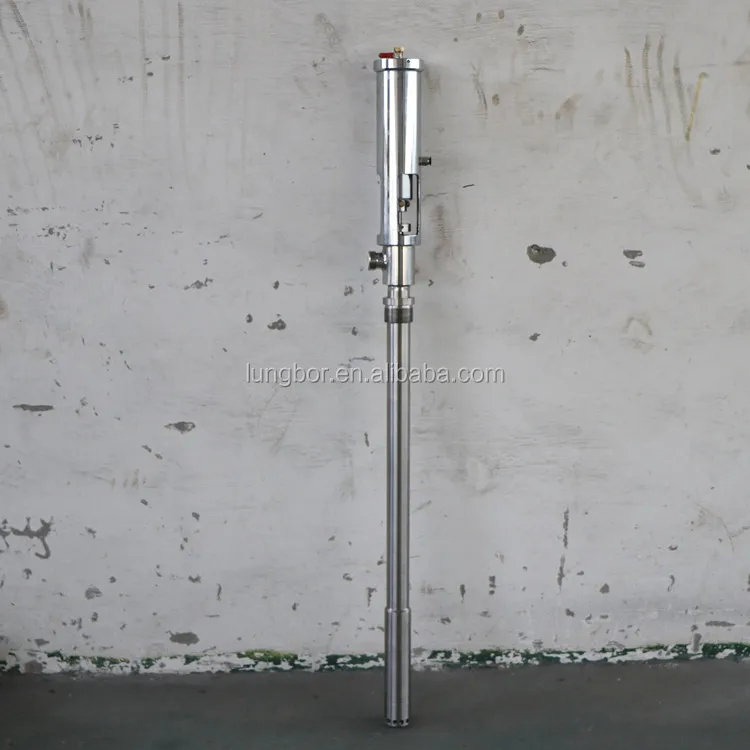

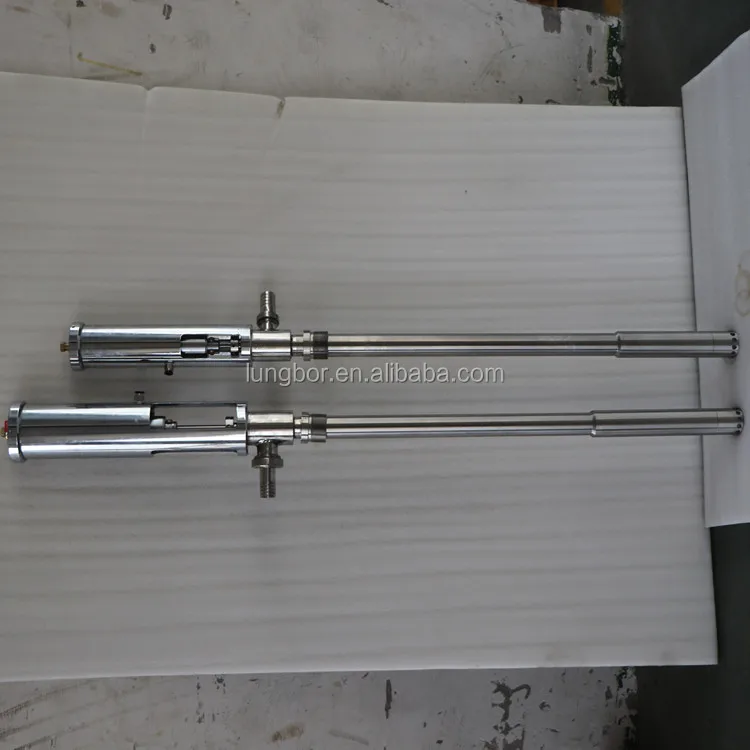

Detailed Images
Advantages
1. The design is novel, beautiful and practical. The material is made of 304 stainless steel, with anti-explosion and corrosion resistance, long service life (can work 24 hours a day), not easy to hang liquid, easy to clean; meet the hygiene requirements of food production.
2. Built-in cylinder, advanced air control design technology, no noise, convenient maintenance and cleaning.
3. Low requirements on gas source, eliminating the phenomenon that the traditional pump start logic element is easy to block.
4, the working principle of the pump is automatic reversing, plunger movement work, flow can be adjusted.
5. When not heating, only the air source is needed to provide power to reduce the danger caused by electricity consumption.
6, the product can be developed according to customer requirements.
7, a wide range of applications, can be used in different industries.
