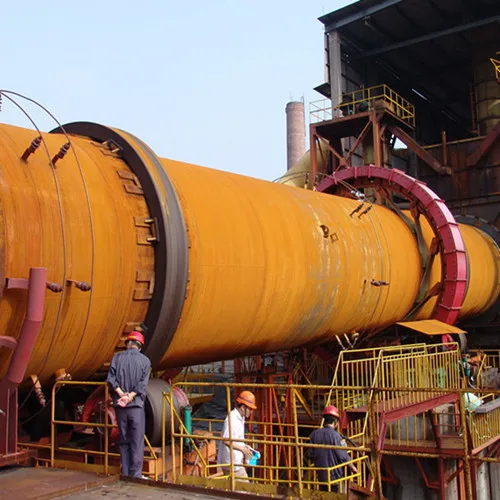

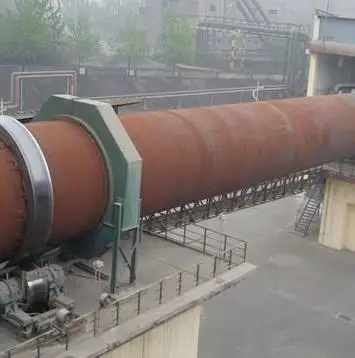

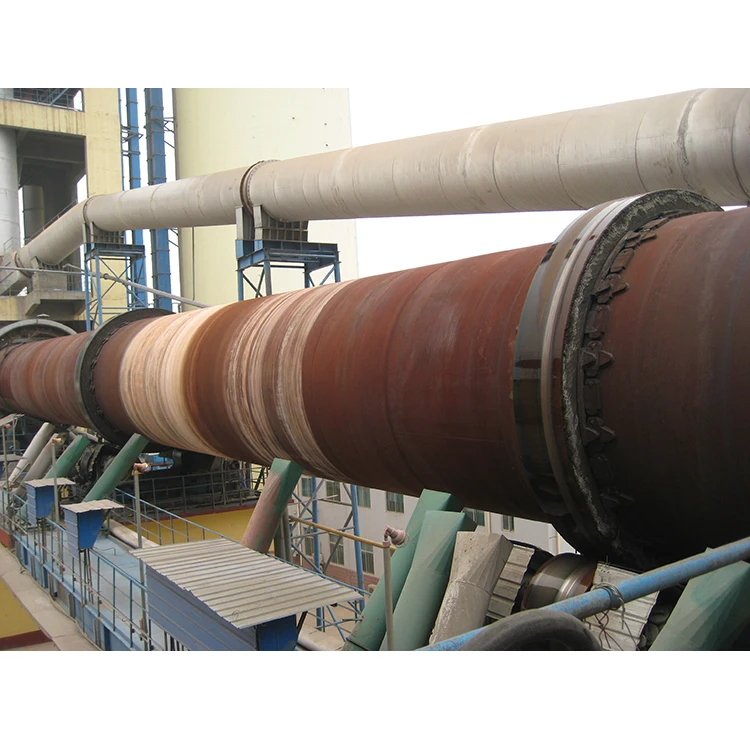

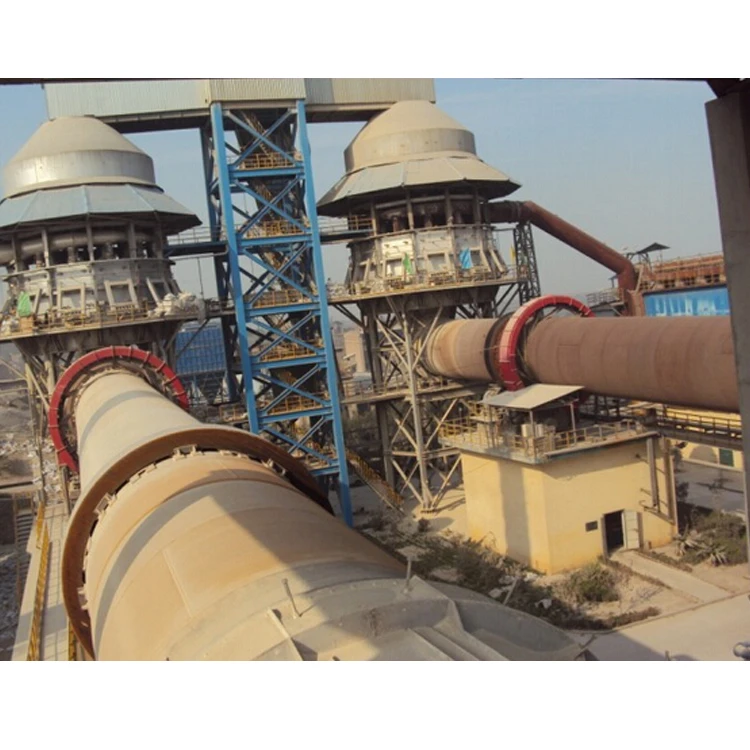

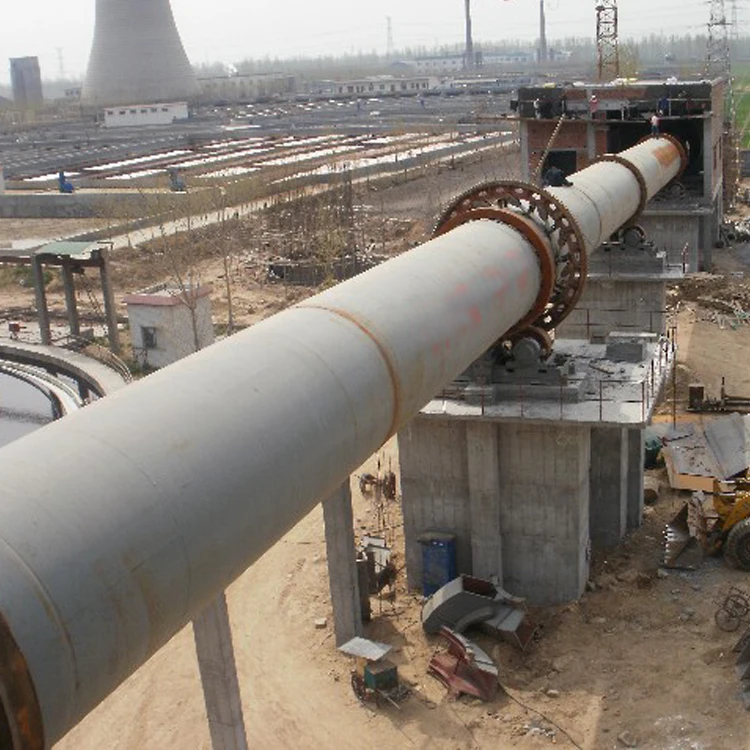

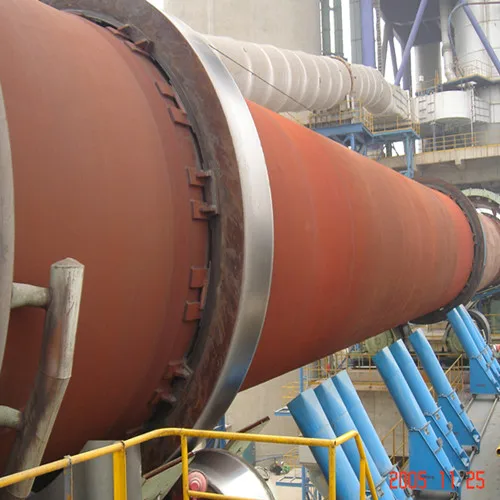

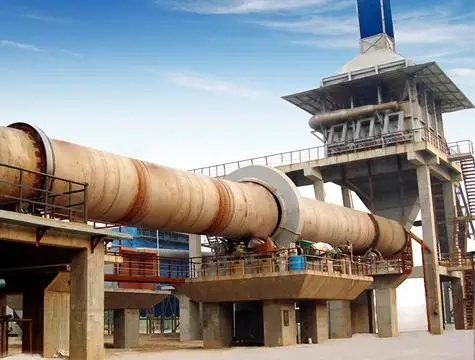

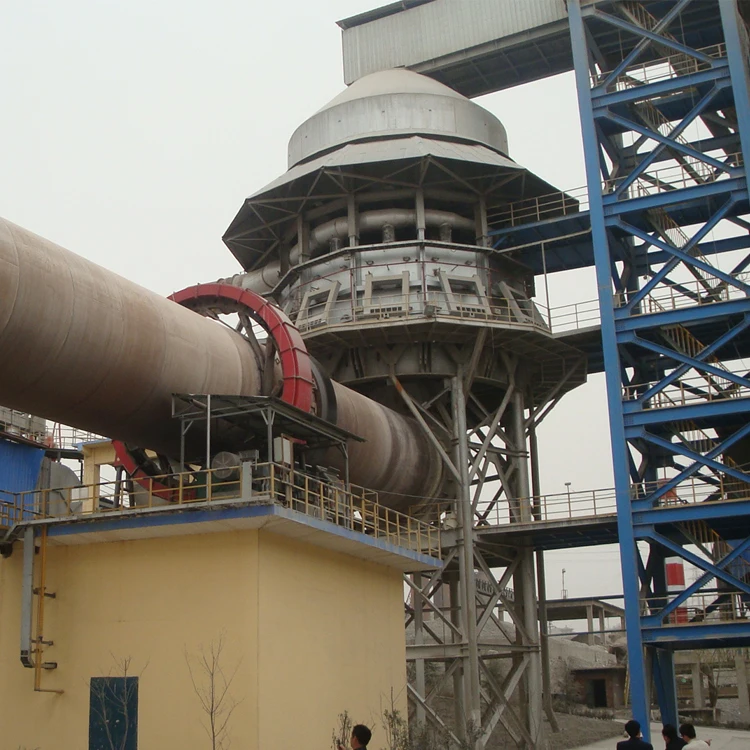

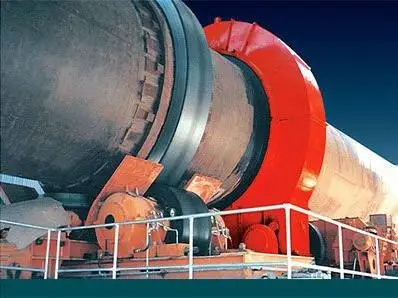

Rotary lime kiln burner for India sale is widely used for many industries like metallurgy, chemical industry, building refractory materials, environmental protection, etc. The Rotary Kiln consists of cylindrical shell, supporting device, supporting device of thrust roller, driving unit, moveable kiln head, sealing device on the tail of kiln, coal dust pipe device, etc. The kiln body has acertain tilt angle with level. The whole kiln body is supported by the roller supporting device, and it is also equipped with thrust roller device to control the up and down movement of the kiln body.
Features
Working principle:

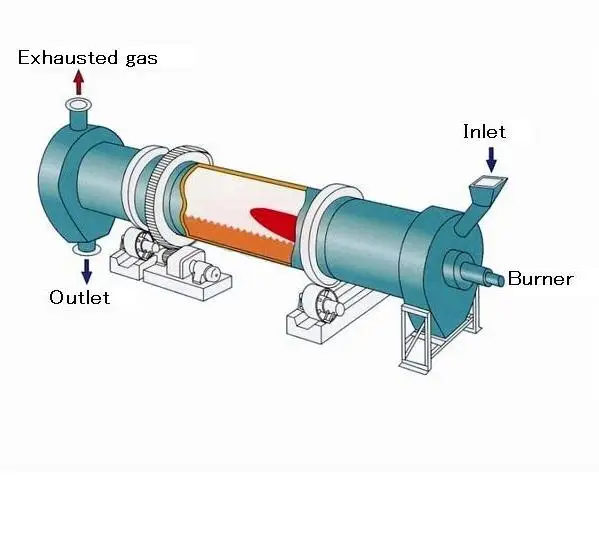

The rotary lime kiln burner for India sale is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly around its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, the materials gradually move down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or 'firing pipe') which acts like a large burner. The fuel may be gas, oil or pulverized coal.
Features:
1) Long running time before maintenance.
2) The shell of the kiln is made of mild steel plate
3) High quality supporting roller and tyre.
4) Reliable inlet and outlet seal.
5) Fixed and movable kiln head hood.
Technical data
Model
Capacity (t/h)
Speed (r/min)
Pedsetal number
Power
Remark
φ2.5*40m
6.3
0.62-1.5
3
75/11
Preheater kiln
φ2.8*40m
8.3
0.62-1.5
3
75/11
φ3.0*50m
10.4
0.5-1.5
3
125/11
φ3.2*50m
12.5
0.4-1.5
3
125/22
φ3.3*55m
14.5
0.92-2.74
3
125/11
φ3.6*55m
16.7
0.4-1.5
3
250/22
φ3.8*58m
20.8
0.4-1.5
3
250/22
φ4.0*60m
25
0.4-1.5
3
315/30
φ4.3*60m
31.3
0.58-3.46
3
2*125/2*11
φ4.3*65m
33.3
0.58-3.46
3
2*125/2*11
φ4.8*68m
41.6
0.58-3.46
3
550/30
Packaging & Shipping
Packaging Details:
We will load different sizes of packing according to different machine sizes, and the normal packing is in wooden cases. If exported to European countries, wood frame will be fumigation. If the container is too tight, we will use the PE film according to the customer's special requirements.
Delivery Time:
We are based on the actual needs of customers, to carry out tailor-made sales. By senior engineer to design scheme, after receipt of customer deposits began production, regardless of the size of the equipment we can deliver the goods in two weeks, delivered the balance after delivery.
