OS | Linux | ||
Language | Chinese/English/Customized | ||
Video Compression | H.264 | ||
OSD | Overlays information such as date time and vehicle ID | ||
GUI | Graphical User | Setup system parameters with the remote control. | |
Video Record System | Video Input | 4CH 720P AHD input/SD input/mixed video input, aviation connector, 1.0Vp-p, 75Ω | |

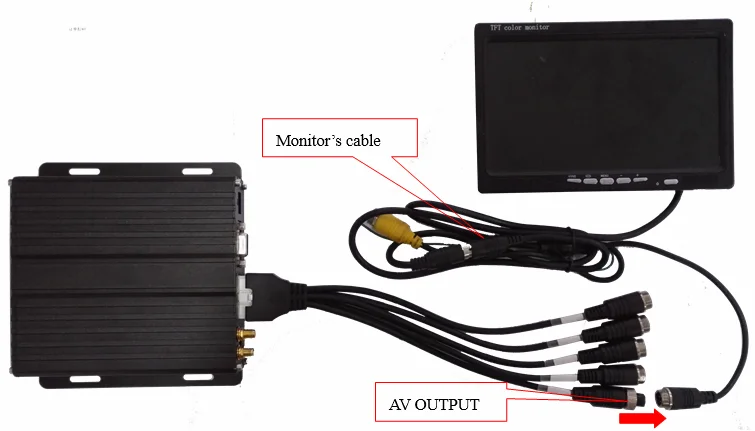

Video Output | 1CH CVBS+1CH VGA output, 1.0Vp-p, 75Ω,Aviation, Support 1CH Full Screen,4CH Screen | ||
Preview | Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview | ||
Resolution | 720P/D1/HD1/CIF, MAX:4 channels 720P | ||
Video Quality | 0-7 levels, 0 is the highest level. | ||
Video Standard | PAL: 100f/s , CCIR625 line,50field; | ||
NTSC: 120f/s, CCIR525 line,60field; | |||
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; | |||
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; | |||
D1: 800Kbps ~ 3Mbps, 8 level video quality optional; | |||
720P: 4Mbps-6Mbps, multi level video quality optional | |||
Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | ||
Audio | Audio Input | 4CH, Aviation Plug | |
Audio Output | 1CH, Aviation Plug | ||
Compression | 1CH, Aviation Plug | ||
Alarm Input | 4Ch Alarm Input, kinds of alarm linkage support | ||
Alarm Output | 1CH Alarm Output | ||
Communication interface | 1CH RS232 or 1CH RS485 for optional | ||
Position | Support Built GPS/BD Module, built in G-sensor, can repaly and analyse vehicle driven route. | ||
Wireless transmission | Suppport Built-in 3G/4G wireless transmission function, WCDMA, CDMA2000, TDD-LTE, FDD-LTE.... | ||
Motion Detection | Support motion detection alarm. (Can set the video recording duration time after alarm on platform.) | ||
G-Sensor | Support G-sensor | ||
Storage | SD | Dual SD Card,each max 128GB SD Card loop recording | |
Upgrade | Support SD Card remote updating | ||
File Format | 0.264 | ||
File System | Special FAT32 File System | ||
Video Playback | Video Search | Search By Record Time/Record Type etc | |
Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | ||
Support forward and backward play at the speed of: x 2,x4,x8,x16. | |||
Voltage & Power | Power Management | Wide Voltage/Support Timed/Delay off | |
Voltage Input | DC: +9V ~ +36V | ||
Voltage Output | +12V 2.5A,+5V 2.5A | ||
Power Consumption | Normal Working <14W , Stand-by status < 0.5W | ||
Working Environment | |||
Security | Password | User/Admin 2 Level Different Password | |

Shenzhen Sunta Technology Co., Ltd. (hereinafter referred to as SUNTA) is a high-tech security company specializing in R&D, production, sales and service of Mobile DVR/MDVR,CAR DVR, car monitor, car driving recorder, car/vehicle cameras and Color multiplexer and screen segmentation systems. Has registered its own "LUHOOVISION" brand.
All key components of the product are imported from Japan, Europe , the United States and Famous Brands in China, which ensures the stable and reliable quality of the whole machine. All products are produced in strict accordance with the ISO9001 quality certification system, and passed CE, FCC certification and national security alarm system quality supervision and inspection Certification. Our customers come from more than 40 countries and regions, including the USA, UK, Germany, France, Australia, Japan, Latin American and etc.

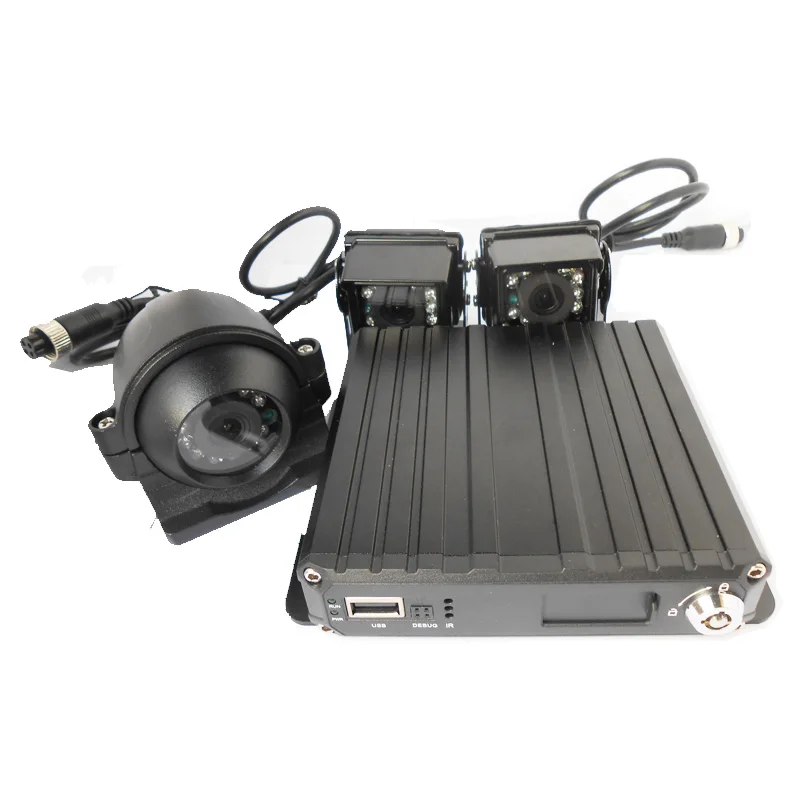

720/1080P MDVR

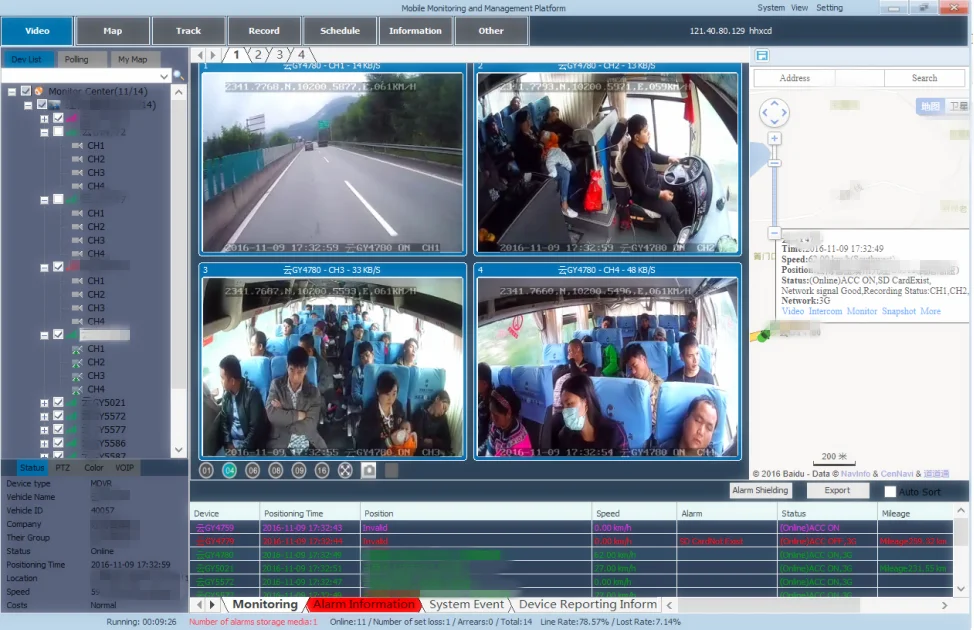

Equipped with high-definition audio and video input and output, real-time synchronous recording and SSD hard disk storage; Waterproof function can protect video data security; It has G-sensor, over speed, motion detection and other trigger alarm forms. The alarm video can be uploaded to the server through 3G/4G/WiFi network. Users can perform remote real-time preview and download the video on a PC, phone and an iPad. GPS real-time positioning and history track query, vehicle location and running speed data are also available. Besides, the platform server supports distributed deployment, unlimited expansion of DVR access, and it also has remote management to schedule of all vehicles in the fleet.
Vehicle Camera
We produce and design various models of Vehicle cameras and H.264 / H.265 Digital Video Recorder (DVR) with capabilities of capturing 1 Megapixel (720p), and 2 Megapixel (1080P) resolutions. With various camera form factors (Indoor Dome camera, Outdoor Dome Mobile Camera, Rear View Camera , Mini conch dome vehicle camera, PTZ camera and Square Camera).
360° bird-view panoramic driving system
Equipped with 720P wide-angle camera (4CH), the captured video performs image fusion automatically, and it debugs automatically to splice into a car top view, achieving 360° no-dead-angle monitoring. It can also be used in conjunction with the radar system to detect obstacles around the vehicle (optional). When the vehicle passes through complex roads or parking, it will promptly remind the driver to pay attention to the obstacle through the audible alarm. It can reduce the occurrence of accidents such as smashing, collision, and subsidence.
7/9/10.1 Inch TFT LCD Waterproof Car Monitor System
Standalone car camera system with 7/9/10.1 inch high resolution 1024*600 digital TFT LCD car quad monitor connecting to Auto car camera for vehicle reversing system with screen splitter function. 100% original ONE-HAND screen support multiple languages.
HD rear view system
With high color reproduction and anti-interference ability, the resolution of the system can reach to 1024 x 600.The HD input marks the leap forward from "visible" to "Crystal" and also breaks through monitor image quality of rear view system.
Car QUAD System
Various types of blind area assistant systems provide customers with visual angle of blind area image to ensure safe driving. This system is based on the driver's operating habits, manual and automatic analysis and control of the road conditions shown in the video.
Our products can be widely used in ships, trucks, buses, school buses, ambulances, garbage trucks, fire trucks, agricultural vehicles, cement mixers, excavators, forklifts, road sweepers, cranes and other vehicles and large machinery equipment. With the development by the time, SUNTA has established solid cooperation with many excellent enterprises from various fields. The filed range covers consumer electronics, industry, agriculture, manufacturing, public transportation and so on ...
