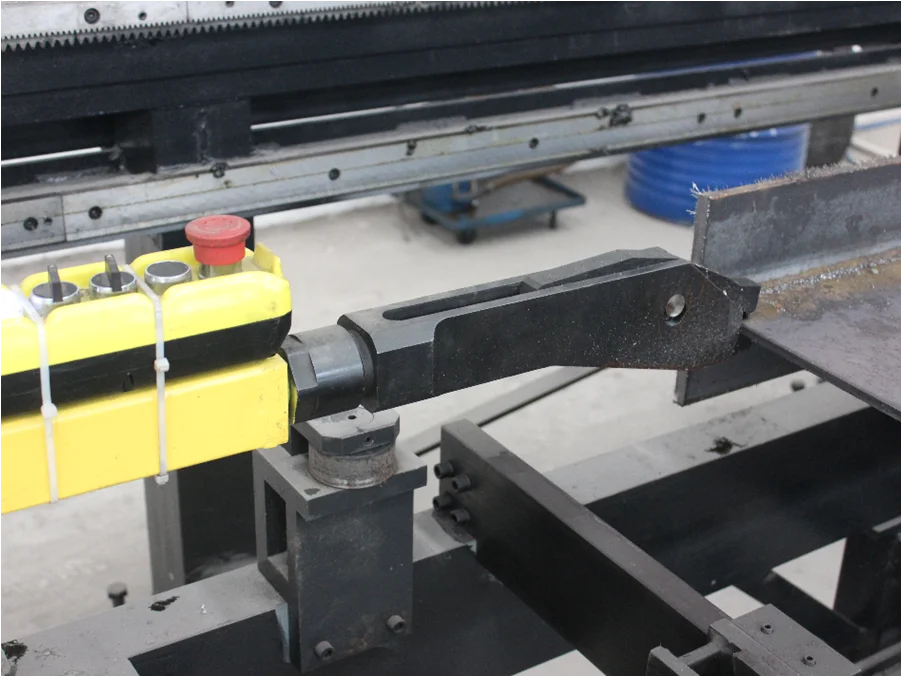

Channel Beam CNC Drilling Machine
Channel Beam CNC Drilling Machine
Channel Beam CNC Drilling Machine
Channel Beam CNC Drilling Machine
Channel Beam CNC Drilling Machine
Channel Beam CNC Drilling Machine
Channel Beam CNC Drilling Machine

Channel Beam CNC Drilling Machine

Share on (62262513949):


Price:

Quantity:


Product Overview

Description


Product Description

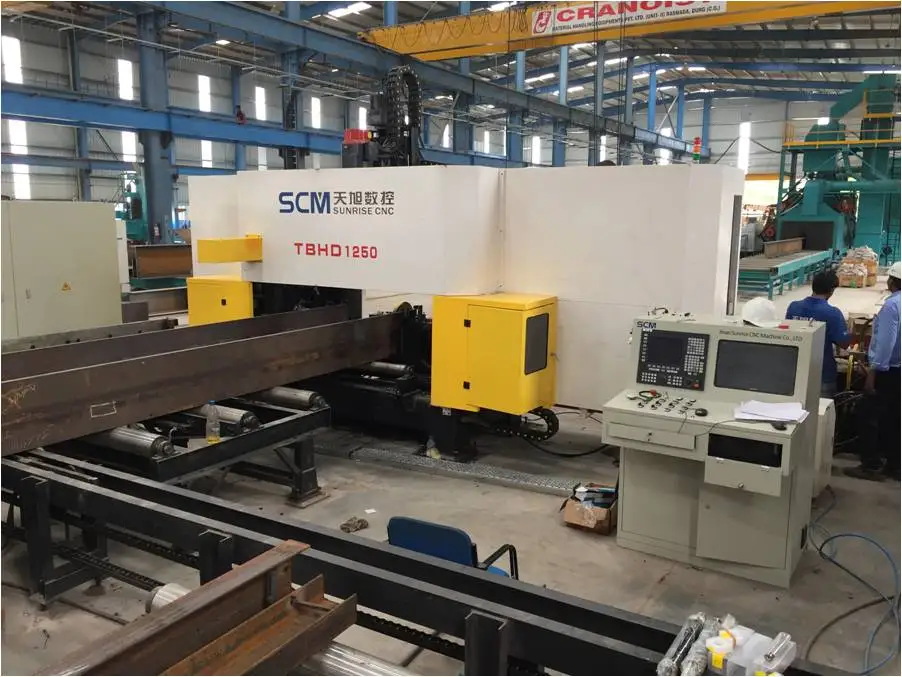

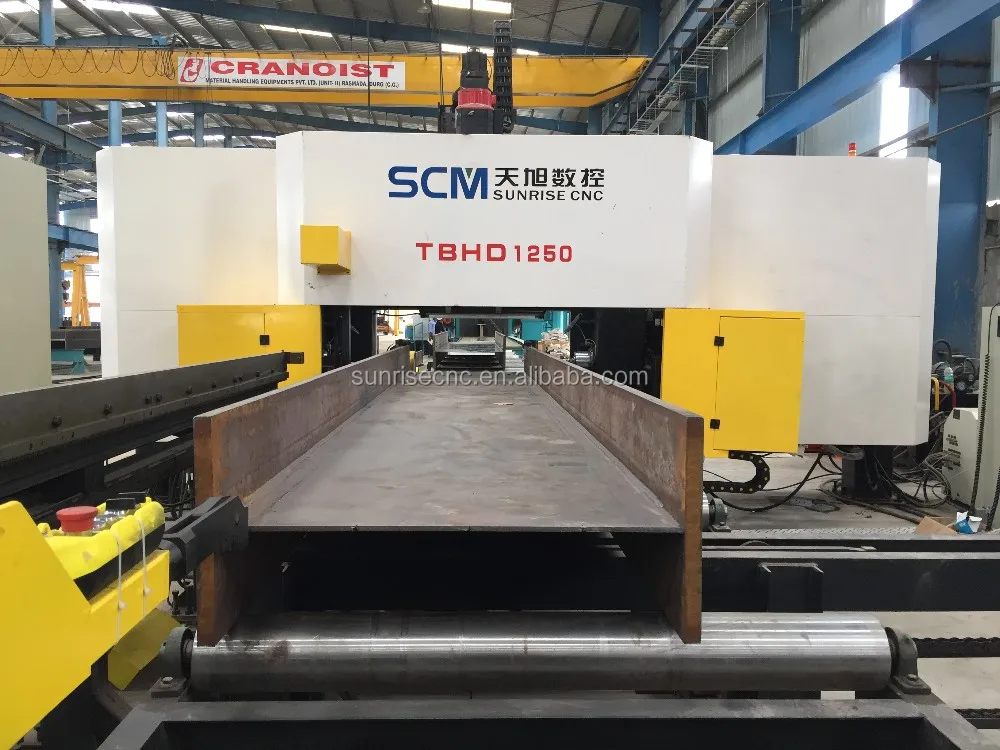

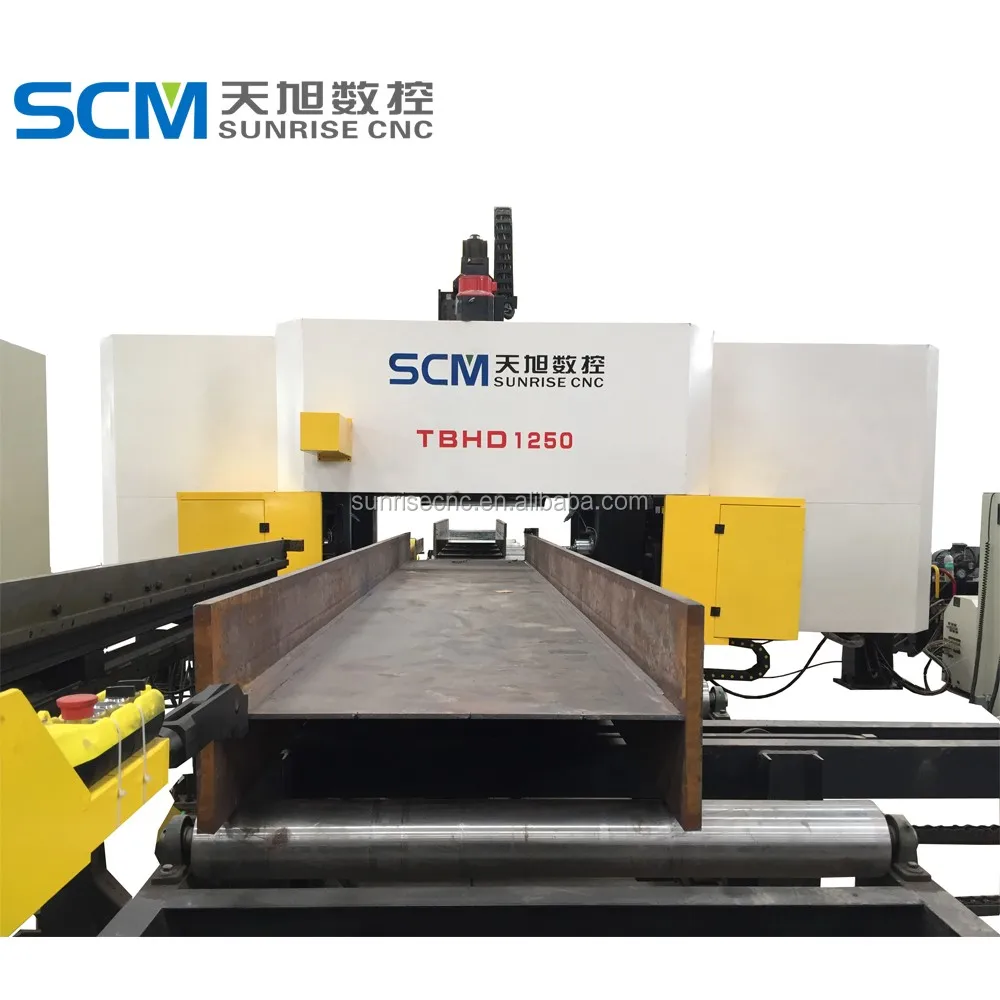

TBHD1250 High Speed Beam Drilling Machine

Applicable Industry:

This machine is mainly used for processing holes on H-beam, channel beam with high speed. It adopts spindle servo motor, controls by CNC system, and in-feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in construction, bridge and other industries.


Product Feature:

1. The whole machine is optimized integrated design, with high quality casting machine body and drilling units, which ensure high stability and high rigidity when high speed drilling.

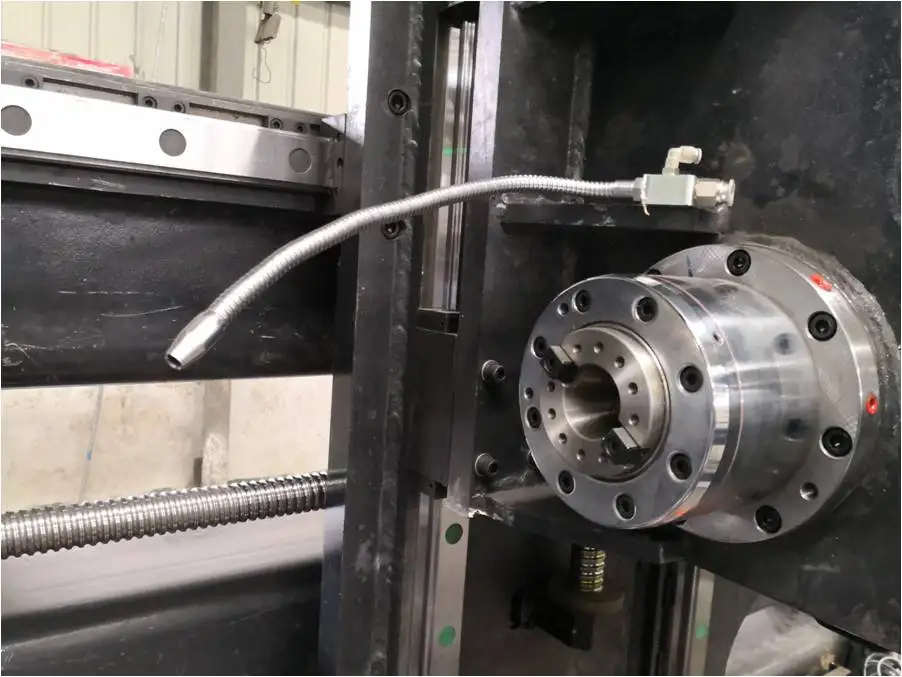

2. Used high-speed precision spindle from Taiwan's well-known brand, model BT, which can meet the using demand of both hard alloy and high-speed steel drill. Every CNC axes are guided by the heavy loading roller linear guide, driven by the servo motor and roller screw which ensure the rigidity and positional accuracy.

3. With the trolley conveyor system and surface detector which realize the accurate positioning, ensure the processing precision.

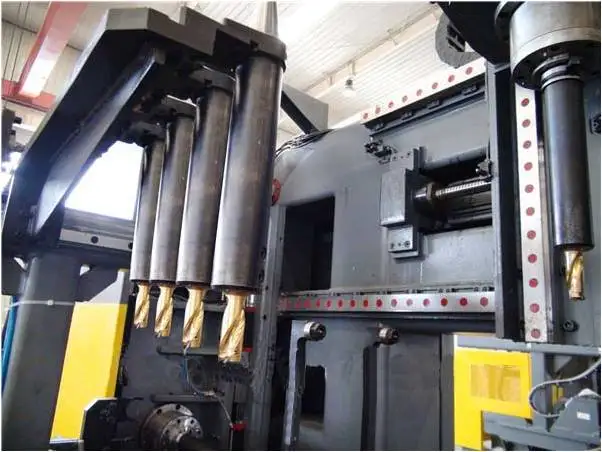

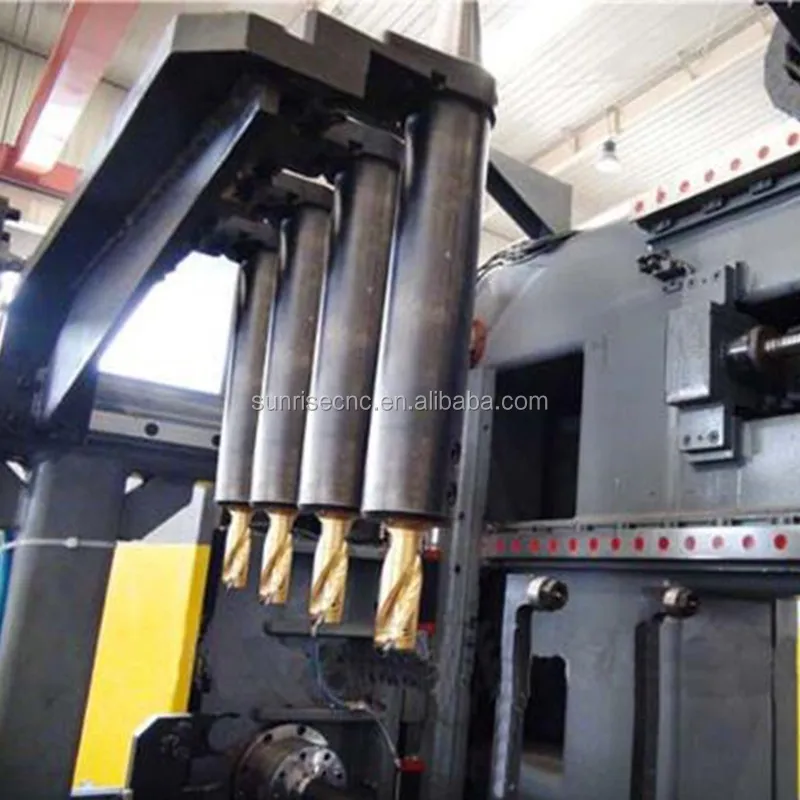

4. Installed 3 inline type tool magazine, which realize the automatic tool change, also meet the demand of drilling multiple diameter's hole. Oil spray and air spray cooling, has inner cooling and outer cooling efficacy.

5. The CNC control system is the FAGOR or SIMENS. Strong anti-interference, high precision, because of the digital communication, thus overcome the defect of easy be interference in traditional pulse analog transmission.

6. In order to ensure the accuracy, reliability and stability of transmission system, electrical system, hydraulic system, all the key components are from international famous brand.

\t
Model
\t
TBHD1250
\t
Work piece size
\t
H beam
\t
Web (mm)
\t
150~1250
\t
Flange (mm)
\t
75~600
\t
U beam
\t
Web(mm)
\t
150~1250
\t
Flange(mm)
\t
75~300
\t
Max. material length(mm)
\t
12000/15000(optional)
\t
Max. Workpiece thickness (mm)
\t
80
\t








Main Spindle
\t
Quantity
\t
3
\t
Spindle taper
\t
BT40
\t
Spindle rotation speed(r/min)
\t
200~3000
\t
Feeding speed(mm/min)
\t
0~5000
\t
Max. hole diameter(mm)
\t

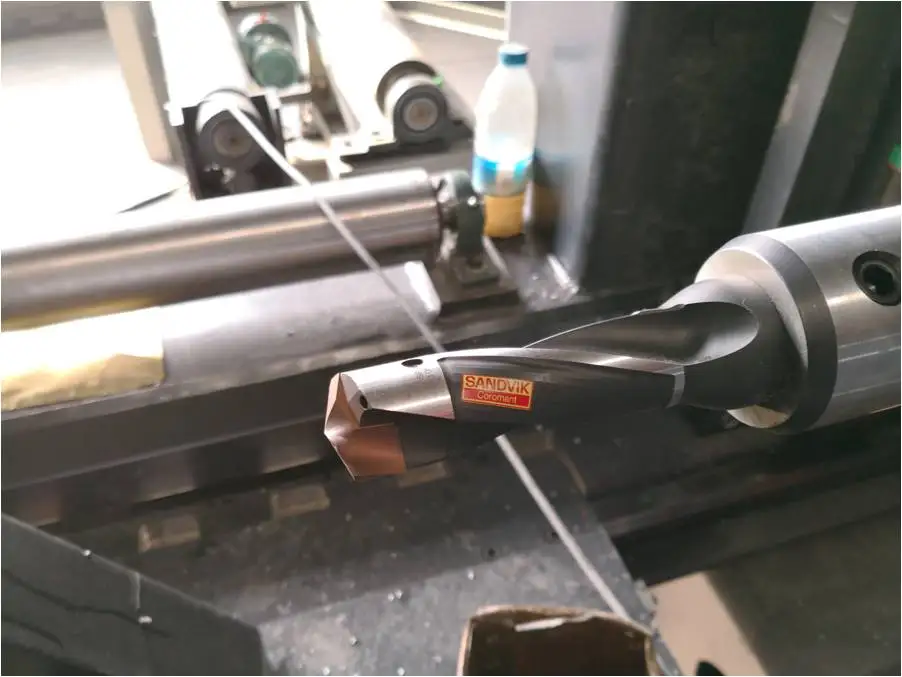

Cemented carbide:φ30
Twist drill:φ40
\t



Center line movement scope(mm)
\t
Center slide table/Horizontal direction
\t
45~1200
\t
Fixed side/movement side
Vertical direction
\t
30~570
\t

Tool Magazine
\t
Tool Magazine Quantity
\t
3
\t
Tools quantity for each Magazine
\t
4 pieces
\t


Motor power
\t
Spindle motor power S1/S6(kW)
\t
11/15.5
\t
Feeding servo motor(N.m)
\t
3×14.8
\t
Position servo motor(N.m)
\t
3×11.9
\t
Feeding carriage servo motor(N.m)
\t
27.3
\t
Control system
\t
CNC system
\t
FAGOR 8070
\t
CNC axes quantity
\t
7+3
\t
Hydraulic system
\t
Max. Hydraulic Pressure (MPa)
\t
7.5
\t
Motor power(kW)
\t
5.5
\t
Cooling system
\t
No. of nozzle
\t
3
\t
Pressure of compressed air (Mpa)
\t
0.5
\t
Cooling way
\t
Internal cooling & external cooling
\t
Working environment
\t
Working power
\t
Three phase four wire system 380±10%V, 50HZ
\t
Control power
\t
220±10%V 50HZ
\t
Operate power
\t
24V DC
\t
Working temperature
\t
0℃ ~ 40℃
\t
Humidity of environment
\t
≤75%
\t
Overall dimension(L×W×H)(mm)
\t
About 6000×2100×3500
\t
Main Machine weight (Kg)
\t
About 8500

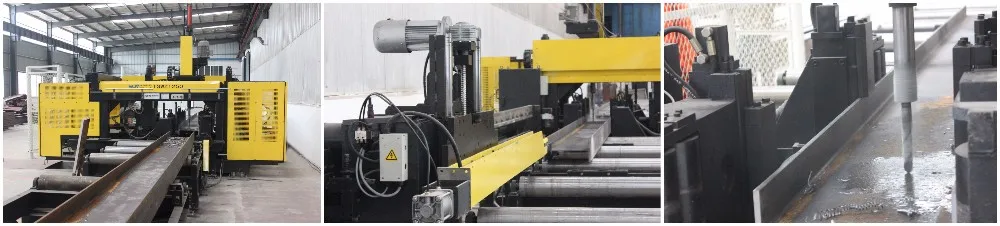

Products Show
Our Service

Installation

The seller shall send one engineer to the buyer's country for installation, commissioning and training. The buyer is responsible to provide all necessary equipments for handling and lifting the machine parts before seller's engineers go to the buyer's plant. In addition, the buyer should provide workers to support in installation activities, under supervision from the seller's engineers.

Commission

The Supplier should give drawings and other details of material/preparation required for installation of machinery which the buyer has to prepare and keep ready before the machine arrives at the buyer's factory. Installation and commissioning can be finished within 5-10 days for above machine generally.

Training

Training will include training on computer programming, machine operation and troubleshooting. The training time is at most 5 days for this machine.

The buyer should arrange no less than two people for accepting training. After training, the buyer should sign the "Receiving & Inspection Report" supplied by the seller to demonstrate the successful finish of commissioning and acceptance of the buyer.

Packing & Delivery

Packing Details  : Packing, this model need 1*40QT+1*40HQ;

Delivery Details : 20-30 days after get the first payment.

1. Special logistics packaging
2. Suitable carton size
3. Fasten
4. Professional placement
5. Professional shock
6. Complete package
Our Certifications
FAQ

Q1. Are you a Manufacturer or a trading company?
A1.We are the manufacture, integrating with design, machining and assembling for angle machine.

Q2. Do you have stock product ready to deliver?
A2. In order to satisfy with the customer for fast delivery, we have certain amount of machines in stock, you can check the machine on LIVE-DEMONSTRATION at any time.

Q3. How do you deliver the finished products?
A3. The machine is mostly delivery by sea, rail way or road for some exception. For some urgent part or shipping document we delivered by air or Express like TNT, FEDEX,DHL,UPS,EMS, Etc.

Q4. How can you guarantee the after-sales service?
A4. We have the special after-sales service department, they will provide training program for operation and trouble shouting during installation. And they will visit the customer regularly for service.
all questions will be answered within 3 hours and 90% problem will be solved within 24 hours.

Q5. What's delivery time for the angle machine.
A5. Within 20 days after payment.

Q6. How can you guarantee your finished angle machine quality?
A6. First, the machine will have 8 hours idle running;
Second, we will test the machine with the material working together.
