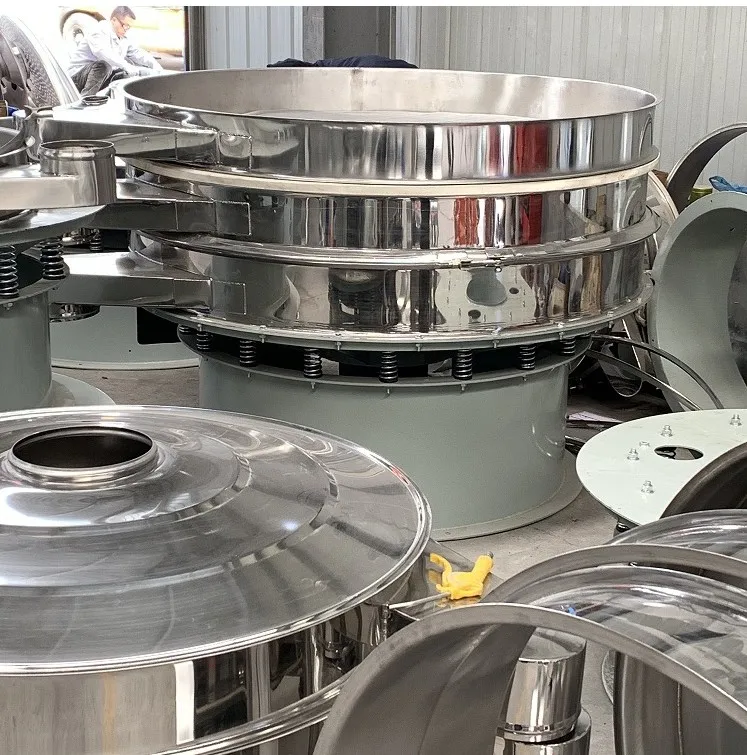

Hot sale vibrating rotating sieve

Product Overview

Description

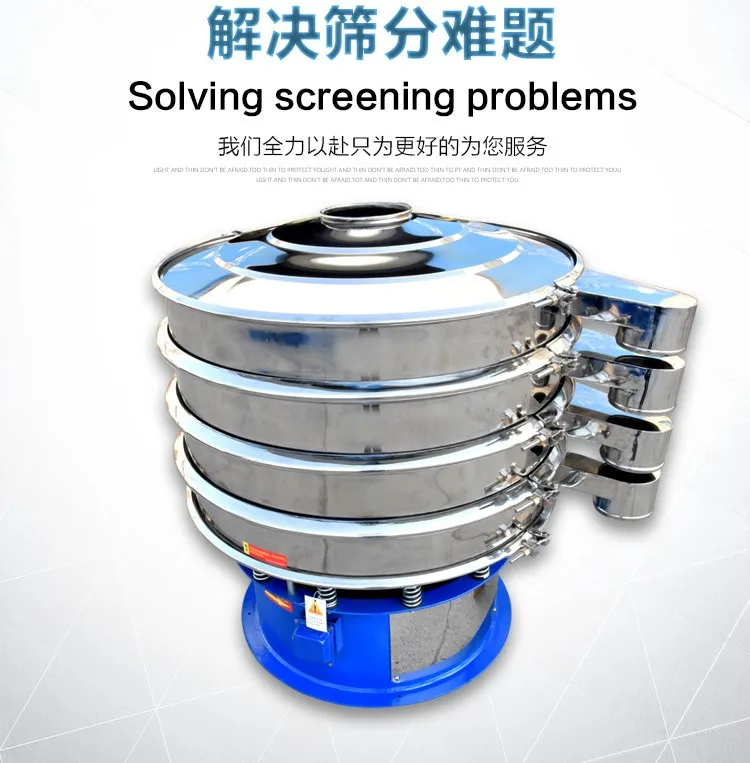

Stainless steel mini round vibrating screen

Stainless steel mini round vibrating screen is a high precision fine powder sieving machine. The fundamental principle of Stainless steel mini round vibrating screen is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

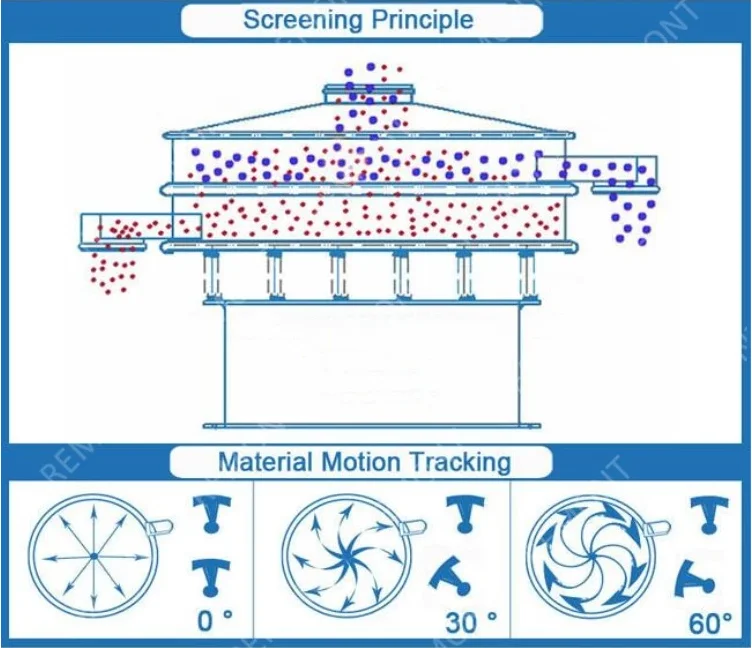

1, Working principle of vibrating screen:

The vibrating screen is excited by the vertical motor as the source of vibration.  The motor's lower and upper ends of the installation of eccentric heavy hammer make the motor rotation into a horizontal, vertical, oblique motion of the three dimensional motion and transfer the motion to the screen surface.

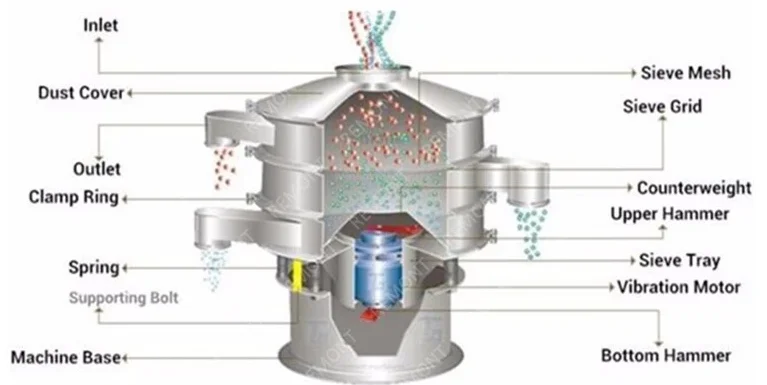

2, Structure chart of vibrating screen:

It's composed by the inlet, outlet, dust cover, clamp ring, spring, machine base, sieve mesh, sieve grid, counterweight, upper hammer, sieve tray, vibration motor and bottom hammer.

3, Wide Applicability:

The vibrating screen is widely used in many industries, such as, in the fertilizer, metallurgy, mining, chemical, soda ash, medicine, building materials, food processing, refractories and other industries.



4, The Specification:

Models	Power(kw)	Diameter of   screen surface(mm)	Valid arer(square meter)	Dimensions(mm)	DO.ofscreen layer
M-400	0.25kw	350	0.0962	580*580*560/670/780	1/2/3
M-600	0.55kw	550	0.2375	800*800*750/890/1030	1/2/3
M-800	0.75kw	750	0.4416	900*900*750/890/1030	1/2/3
M-1000	1.47kw	950	0.7085	1160*1160*810/950/1090	1/2/3
M-1200	1.84kw	1150	1.0382	1360*1360*810/1050/1257	1/2/3
M-1500	2.2kw	1430	1.6502	1850*1850*990/1185/1380	1/2/3
M-1800	3.0kw	1700	2.4593	2200*2200*1050/1250/1450	1/2/3



5, Why choose us?
