Precast Concrete Spun Piles Poles Molds Cage Welding Machine

Product Overview

Description

   Precast Concrete Spun Piles Poles Molds Cage Welding Machine

Concrete Spun Poles Production Machinery: centrifuge

Concrete Spun Poles Production Machinery: molds

Our factory is a professional manufacturer of building material machinery around the needs of market development. Our products: concrete pole molds, concrete pole skeleton cage welding machine, steel bar tension machine, centrifuge, steel bar cutting machine,steel bar heading machine and so on.

Electric Concrete Pole Die

Molds	Small Head Diameter(mm)	Roller Gap(mm)	Length(mm)
Conical Eletric Pole Molds	100	2000	6-7
	110	2000	6-7
	120	2000	6-8
	130	2000	6-8
	150	2000	6-10
	170	2000	6-12
	190	2000	7-12
	190	2000	15-18
	230	2000	6-9



Mold	Inside Diameter(mm)	Roller Gap(mm)	Length(m)
Same Diameter Electric Pole Mold	300	2000	4,5,6,9
	400	2000	4,5,6,9
	500	2000	4,5,6,9
	550	2000	4,5,6,9
	600	2000	4,5,6,9



 Concrete Spun Poles Production Machinery: eletric pole molds

Spun Pole Molds

Inside Diameter(mm)	Roller Gap(mm)	Roller Diameter(mm)	Length(mm)
300	2000	510	7-15
350	2000	610	7-15
400	2000	610	7-15
450	2000	710	7-15
500	2000	710	7-15
550	2000	810	7-15
600	2000	810	7-15
800	2000	1010	7-15
1000	2000	1210	7-15

Centrifuge

1. Shaft: Φ130mm

2. Support roller:Φ600mm

3. The thickness of the tug:50mm

4. Coupling: clamping coupling

5. Center distance:950mm

6. Wheel and shaft assembly structure:taper sleeve

7. Ground screw:M30X600mm

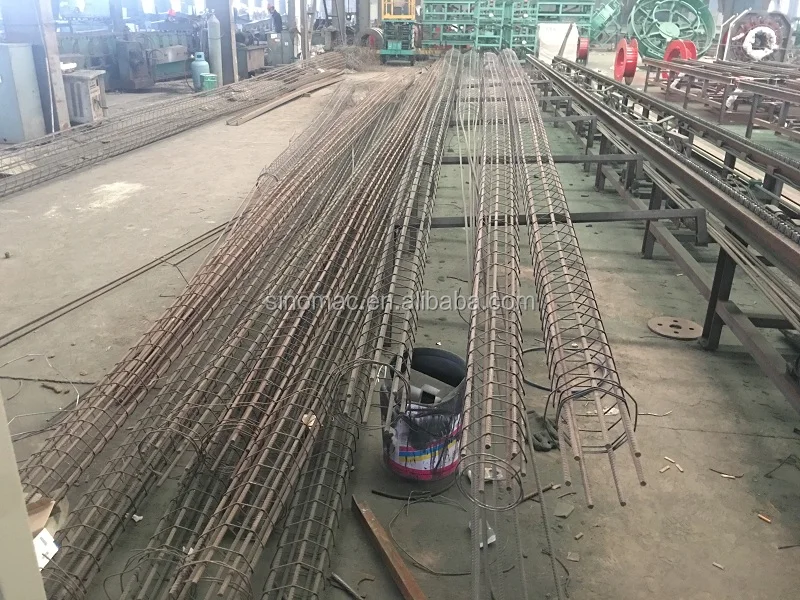

Automatic Concrete Pole Skeleton Cage Welding Machine

1. Welding frame diameter:Φ300-Φ600

2. Welded steel skeleton length:0-15

3. Applicable steel bar diameter:Φ7.1 Φ9.0 Φ10.7 Φ12.6

4. Ring bar diameter:Φ4-Φ6

5. Ring bar distance:0-150mm

6. Driving power:8.4kw

7. Welding power:300KW

8. Controller:smart touch screen







Concrete Feeder

1.Model:WLJ15

2. Hopper volume:1.5m3

3. Productivity:10m3/h

4. Running motor power:2.2kw

5. Air compressor:0.14m3

6. Rail center distance:1350mm

7. Dimensions:2730x1850x2640mm

8. Cylinder diameter:Φ90





Electric Pole Tension Machine

1. Tension: 6010KN

2. Piston Area: 1250cm2

3. Diameter of perforation:150mm

4. Pull-up Trip:200mm

5. Rated Pressure: 50Mpa

6. Double oil pump with high pressure flow rate 7L/min, low pressure flow rate 20L/min, high pressure 60MPa,low pressure 5Mpa.



Spun Concrete Pole YB300 Tension Machine

1. Rising force:3316KN

2. Stretching stroke:300mm

3. Rated oil pressure:60Mpa

4. Through hole diameter:120mm

5. Tensile piston area:615.5cm2

Steel Bar Heading Machine

1.Transformer:15KW

2.The max clamping force is 50T when the air pressure is 7.2kg/cm

3.The max breaking force is 16T when the air pressure is 7.2kg/cm

4.Cutting diameter of steel bar:Φ7.1 Φ9.0 Φ10.7 Φ12.6

5.Controller:smart touch screen







Welcome to visit our Concrete Spun Poles Machinery Factory and Concrete Spun Pole Production Line Workingsite.
