Direct factory manufacturing outdoor high quality led inground lights
- Category: >>>
- Supplier: Puyuan Electronic Illumination Co. Ltd.
Share on (62262758711):
Product Overview
Description
Product Description
. 1 PC CREE XPE LED with high lumen and beautiful light output.
. Stainless steel 316 (not 304) trim and tempered glass with high loading capacity.
.20~25 um thickness passivated anti-corrosion protection film that won't be fading even after 2 to 3 years
.15°,25° ,38,°,45°,60°,120° optional beam angle as options
.90-95 l m luminous flux output
.IP68 waterproof
. 3 years warranty
.8~10 years professional sales and technicians to serve you
General Data | |
Item No. | UL-1011-0100-A(Deck) |
Power | 1.5 Watts |
LED type | 1 PC CREE XPE LED |
Luminous flux | 90-95 l m |
CCT | 2700K,3000K,4000K,6000K, R/G/B/A |
CRI | 80+ |
Beam angle | 15°, 25° 38°, 45° 60°,120° optional. |

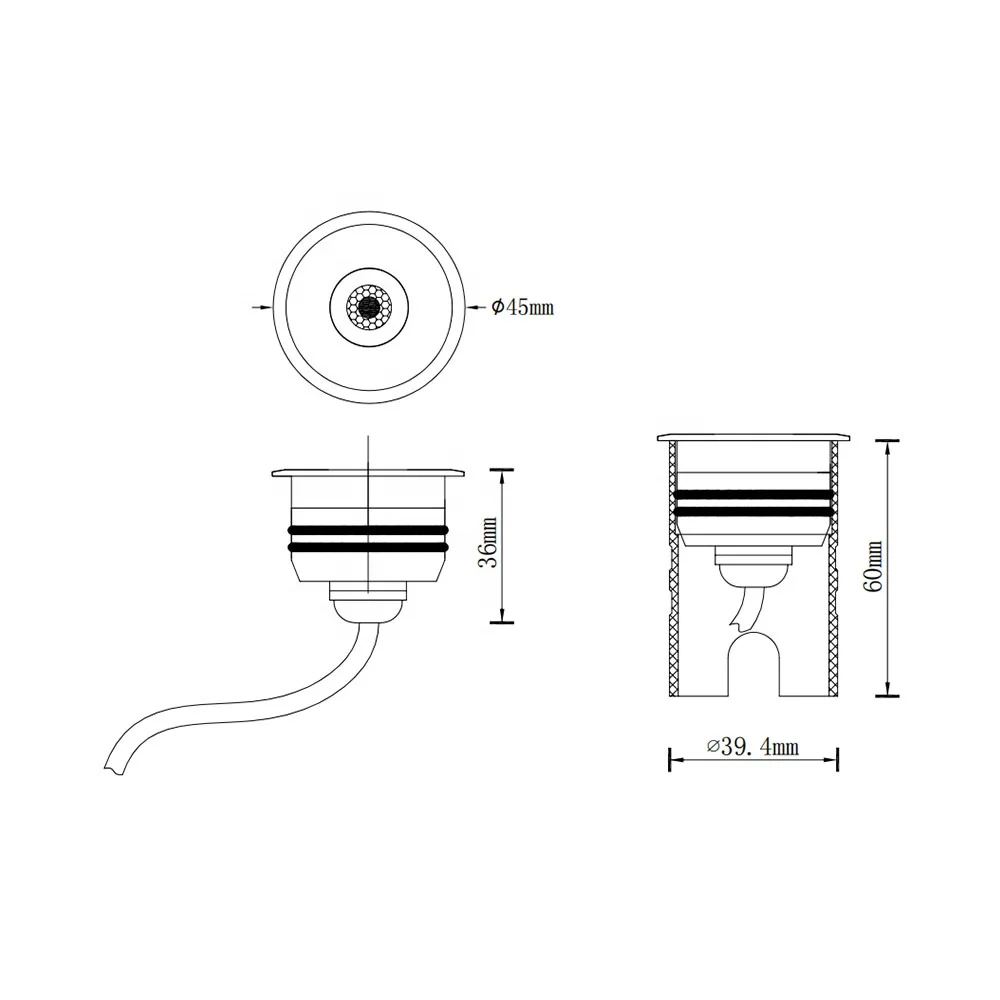

Dimension | Φ45x36 (mm) Diameter x length |
Cut out | 40 mm |
Net weight | 0.165 kgs |
Warranty | 3 years |
Certifications | CE, RoHS |
Electrical Data | |
Input voltage | DC 12/24V |
Insulation class | Class III |
Cable | 1PC rubber cable 1M H05RN-F 2x1mm square |
Driver | Low voltage constant current output, excluding the transformer |
Construction Data | |
IP rating | IP68 Waterproof |
Housing | Solid Passivated (Anodizing) Aluminum CNC machined as standard,( Stainless steel 316 as options) |
Protection finishing | 20~25μm thickness anodized film for housing . |
Trim | Stainless steel 316 |
Glass | Step tempered Glass.T=4mm. |
Loading capacity | 320 kgs |
Cable Gland | PG7 IP68 |
Gasket | O-ring PMQ silicone seal |
Accessories | |
Mounting Sleeve | Anti-corrossion grey PVC mounting sleeve as optional |
Clip | With clip as deck light or downlight |
Photometric Data (36w,3000K,10*30°) & Illumination Picture

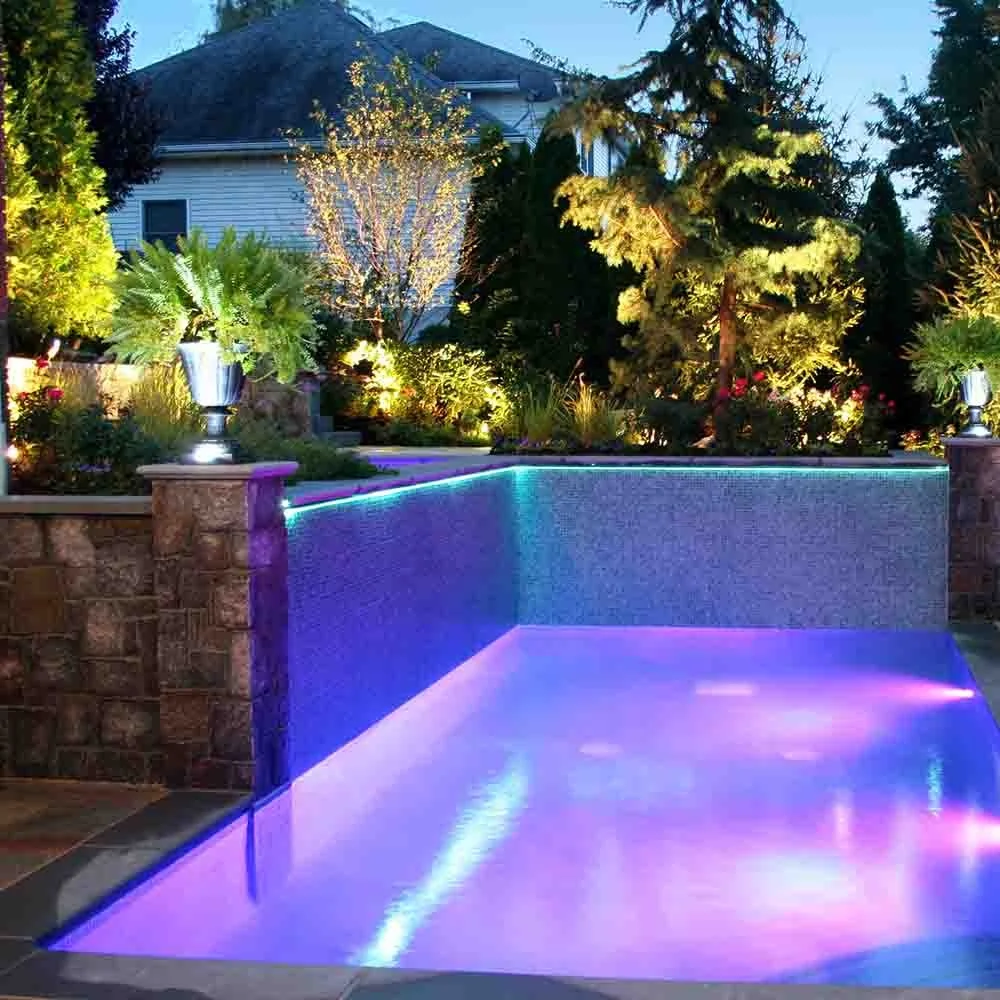

Application Pictures
Company Information
Packaging & Shipping
Our Services
1.Are you a trade company or a manufacturer?
We are an ISO approved manufacturer that's specialized in exterior LED lighting Products. OEM & ODM service are available.
2.What is your delivery date?
The delivery date is around 7-15 days for samples,and 15~25 days for regular orders after receipt of payment.
3.What is your payment terms?
For samples: 100% deposit.
For regular order:30% deposit in advance and 70% balance before shipment.
The payment method can be Paypal,western union bank, bank for TT .
4.What's your delivery terms ?
We can provide EX-WORKS ,CIF or FOB JIANGMEN,FOB HESHAN,FOB SHENZHEN delivery terms.
5.What's your warranty ?
We are confident on our quality of design,and the warranty is 3 years.
6.Can I buy the quantity below MOQ ?
Yes, please contact us for the detailed prices based on your detailed quantity requirement.
7. How many years are you producing exterior LED lighting ?
12 years since 2007.
