Manufacturers provide direct fire board aluminum honeycomb composite board ship material aluminum honeycomb board

Product Overview

Description

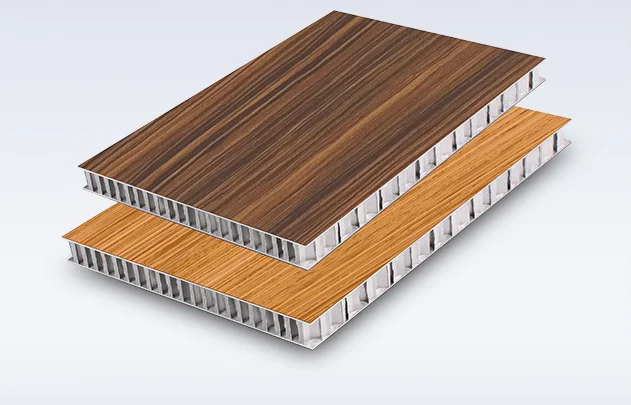

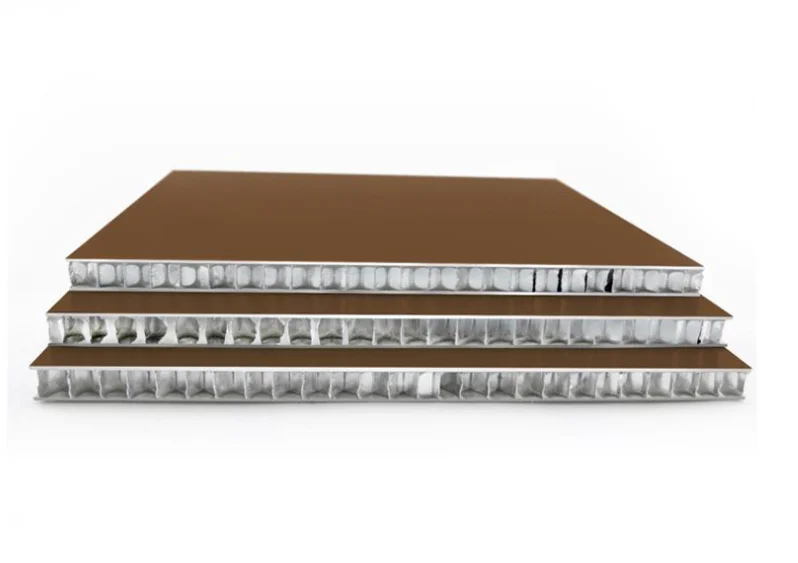

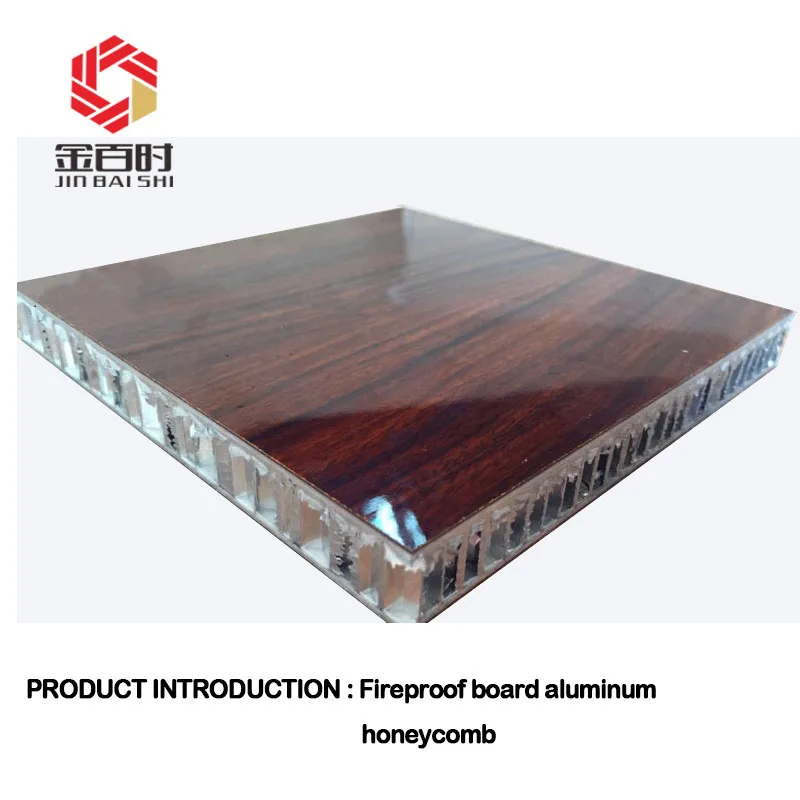

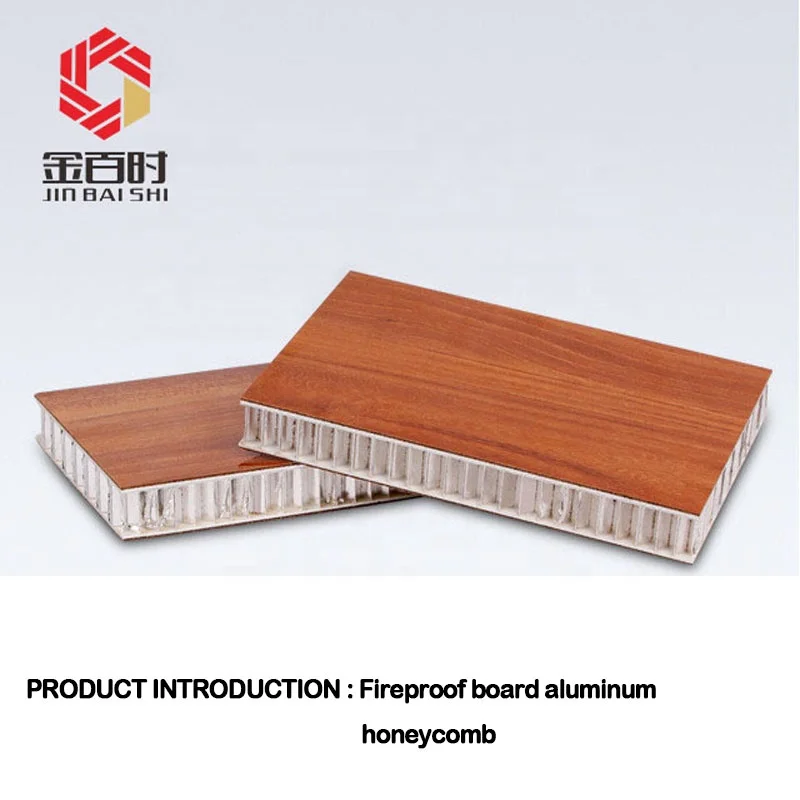

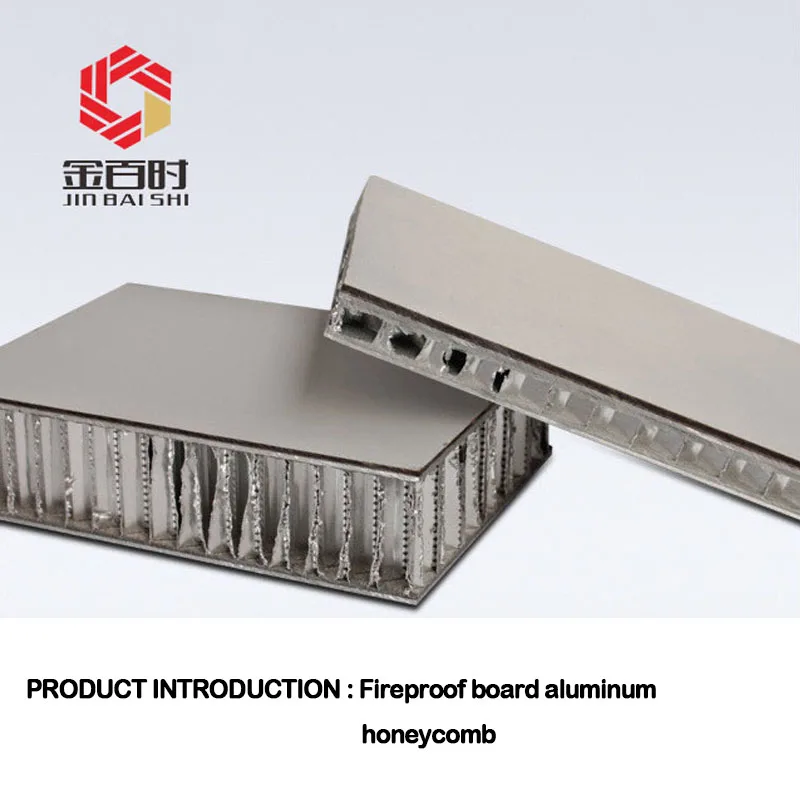

Curved aluminum honeycomb panel with IMO certificate for marine ships

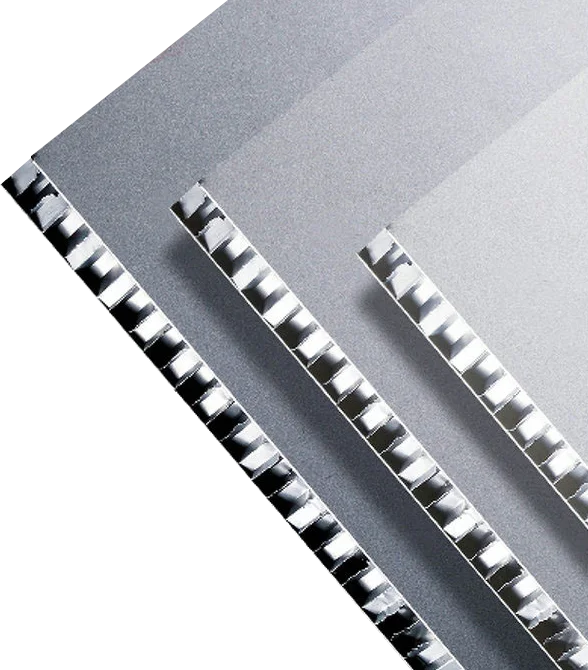

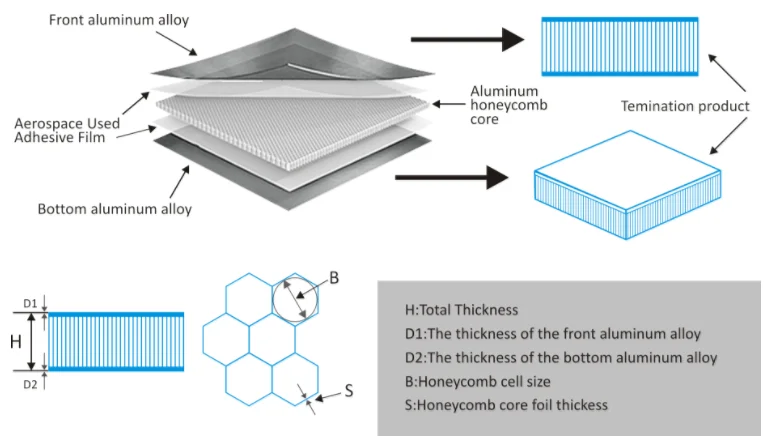

Aluminum honeycomb panel is a kind of sandwich

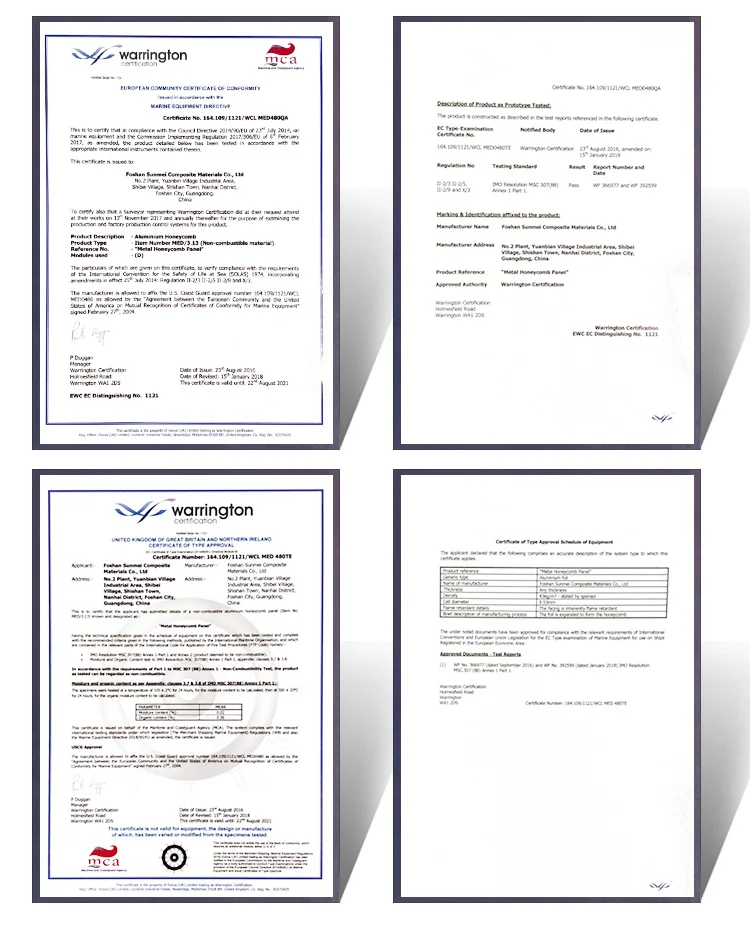

panel consisting of two aluminum plates as face panels and hexagonal aluminum honeycomb cell as core materials, bonded together by aviation-purpose adhesive film. Thanks to its superb characteristic of light weight, good strength, hyper flatness, sound and heat proof, aluminum honeycomb panel has transferred from aviation industry's usage to civil application, and tends to be the most popular light weight panel, widely used in façade cladding industry, interior decoration, ceiling, partition, furniture industry, ship hull building and ship decoration, vehicle building and so on. JINBAISHI alu honeycomb panels with MED/IMO certificate are widely used in marine interior building.

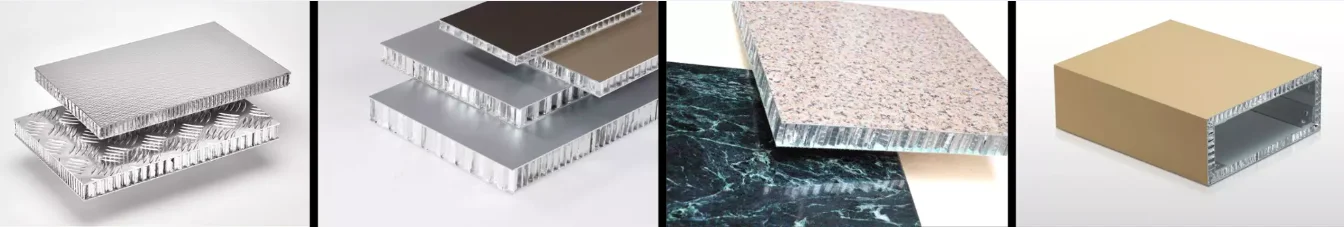

Different surface treatment is available, including PE coating, PVDF coating, HPL etc.











1220x1830mm	1525x1830mm	1830x1830mm	1220x2440mm
1525x3050mm	1830x2440mm	1220x3050mm	1525x3660mm
1830x3660mm	1220x3660mm	1300x3050mm



 Other sizes are available on request.

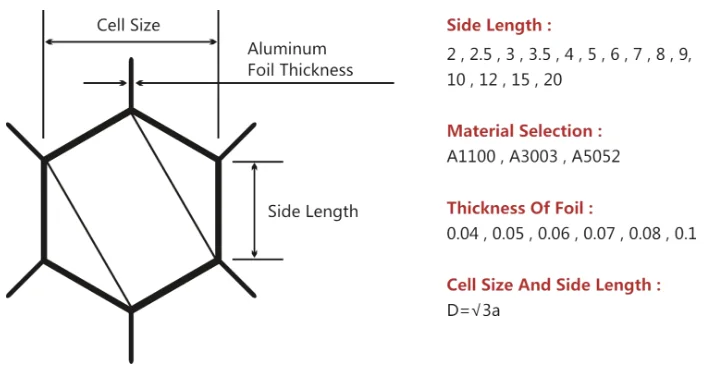

 ALUMINUM HONEYCOMB CORE

 SPECIFICATION AND MAXIMUM EXPANDED SIXE

 (1) Microcellular Aluminum Honeycomb Core and Maximum Expanded Size

Side Length(mm)	a=0.6	a=1.0	a=1.5	a=1.83	a=2	a=2.5	a=3
Cell Size(inch)	1/25	1/16	1/10	1/8	1/8	1/6	1/5
Maximum Expanded Size	300x500	1000x1000	1200x1500	1600x2000	1600x1600	1600x2200	1600x2400
Aluminum Alloy & Foil Thickness	3003 0.02	3003 0.04,0.03	3003 0.04,0.03	3003 0.04,0.06	3003 0.04,0.03	3003 0.04,0.03	3003 0.04,0.06





  (2) Regular Aluminum Honeycomb Core and Maximun Expanded Size



Side Length(mm)	a=4	a=5	a=6	a=7.5	a=10	a=12	a=15	a=20	a=30
Cell Size(inch)	1/4	1/3	3/8	1/ 2	3/4	4/5	1	11/8	2
Maximum Expanded Size	1600 x 3100	1600 x 4000	1600 x 4600	1600 x 6000	1600 x 7500	1600 x 9000	1600 x 1200	1600 x 1500	1600 x 2000
Aluminum Alloy & Foil Thickness	3003 0.04,0.06	3003 0.04,0.06	3003 0.04,0.06	3003 0.04,0.06	3003 0.04,0.06	3003 0.04,0.06	3003 0.04,0.06	3003 0.04,0.06	3003 0.04,0.08

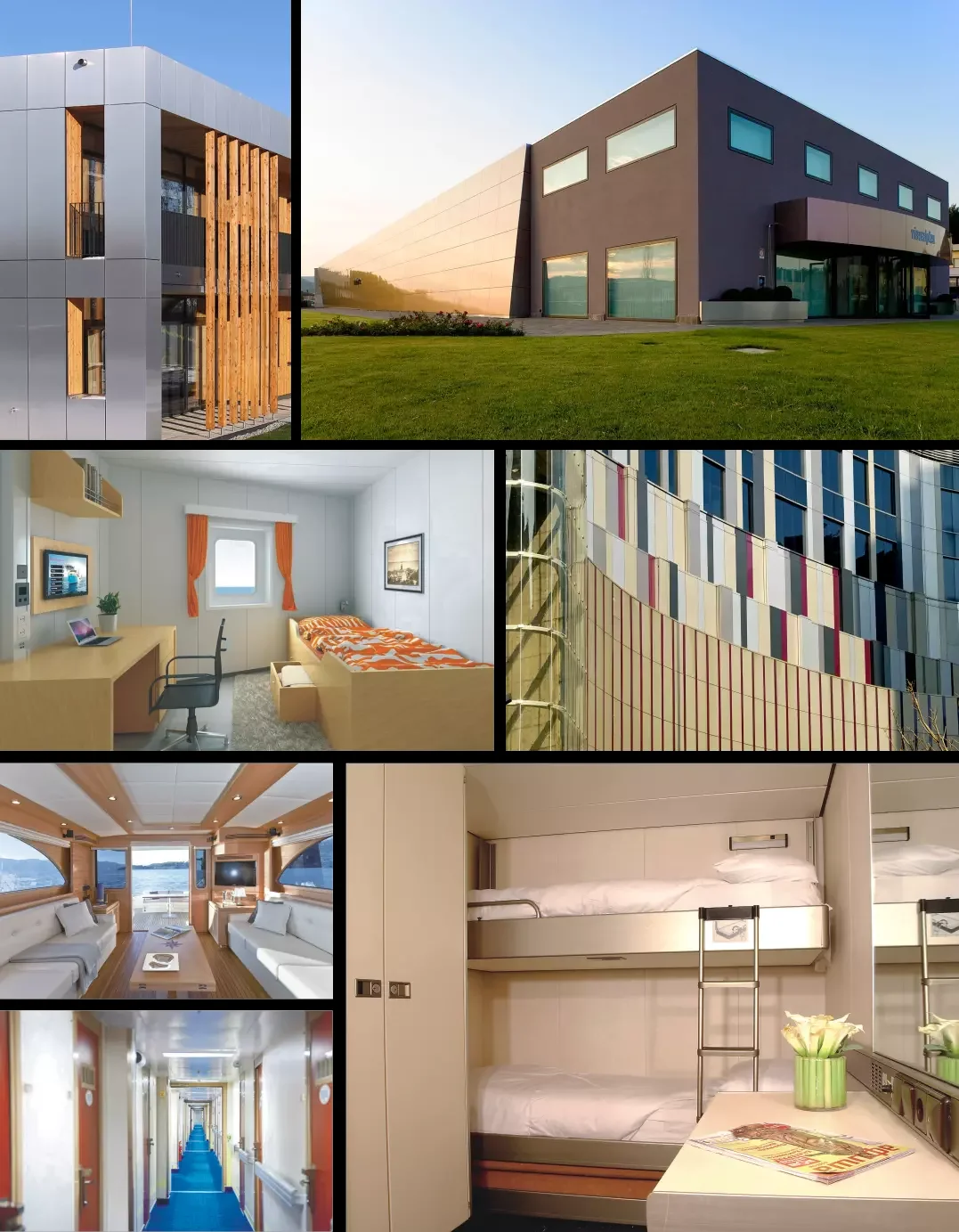

APPLICATION

    « Decorative interior partitions              « Bulkheads

  « Ceilings                                            « Cabinet parts

  « Alu. Honeycomb Furniture                  « Wall Panel
